• Model NO.：LCD-HB-S3-155
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：Bridgelux
• Transport Package：Carton Box
• Specification：253x253x163mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：85395200
• Production Capacity：50000PCS , Year

  Materials and finishing

Housing - Aluminium Alloy

Protector - High-impact clear glass (IK 08) or and polycarbonate lens

CoatingBlack and RAL colours on requestInstallationBottom-entry mounting spigot™ kitFixingø60-65 mm Fixing holes or ¢ 40mm on requestsDimensions (LxWxH)

Maxi - 651 x 307 x 117 mm
Mid 3- 489 x 307 x 117 mm
Mid 2- 378 x 291 x 117 mm
Mid 1 - 317 x 291 x 117 mm
Mini - 331 x 205 x 117 mm

Weight (with gear)

Maxi - 10.3 kg

Mini - 4.5kg

AccessYesAerodynamic resistance (CxS):

Maxi - 0.027m²

Midi - 0.015m²

Electrical Characteristics

Line Voltage220VACMains voltage Tolerance (AC)85-265VLine frequency50/60HzElectrical Safety Class (IEC)Class ISurge protectionYes - 3-4KV (10kV/10kA on requests)Lighting control

-on requuests below

- Incorporated downward facing daylight switch

- Pre-programmable stand-alone dimming

- Solar version for Midi is available



Power supply

Power Factor≥0.97RemovableYesThermal SafetyYes

Environment

Storage temperature-40< T < 85Enclosure TightnessIP65 IP 66 IP67 IP68Enclosure Mechanical Withstand ImpactIK 08Enclosure Mechanical Withstand VibrationsModified IEC 60068-2-6



Application

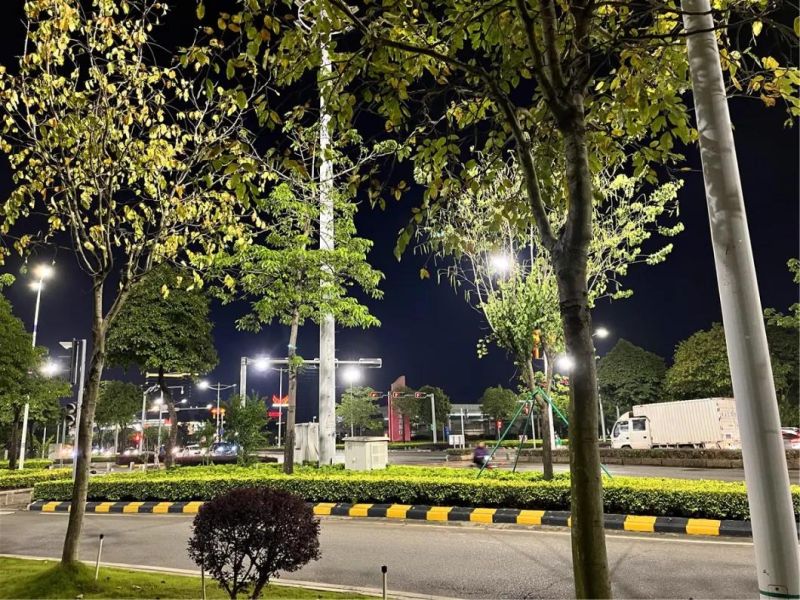

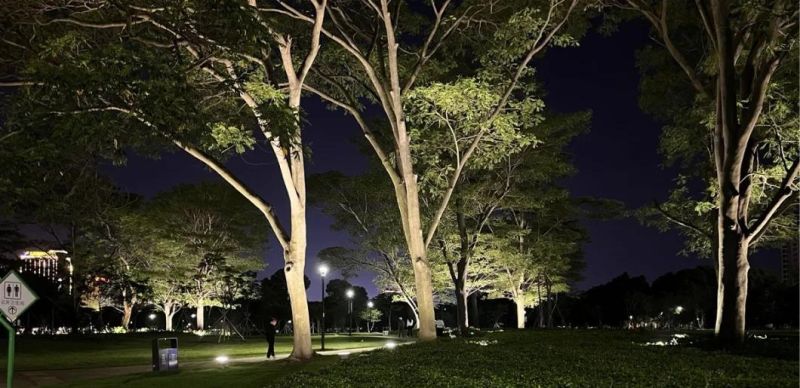

• Façade lighting• Area lighting• Security lighting• General floodlighting• Car parking lighting• General street lighting

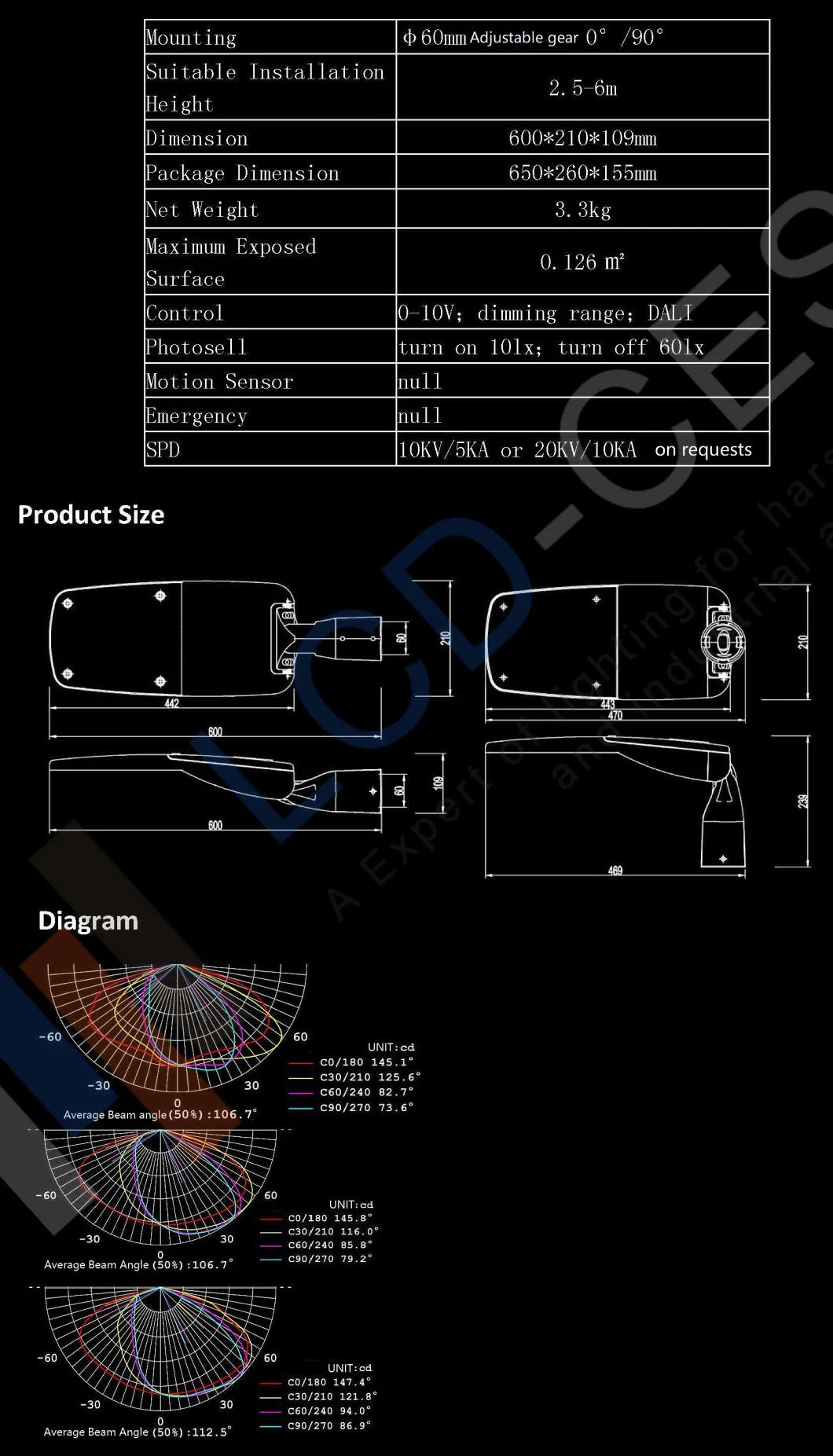

Products Dimensions in MM

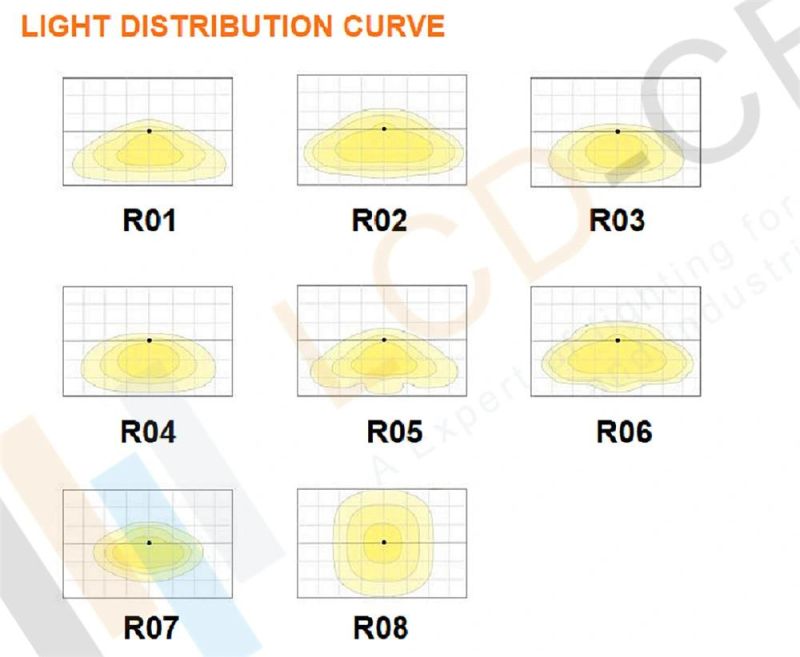

LIGHT DISTRIBUTION CURVE



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products and 7-10 years warranty on requests.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Features
Streamline shape, back self-cleaning
No tool to open the electric box, open the cover and cut off the power
Hidden respirator, equilibrium pressure
0-90 degree adjustable tailstock
Evenly spread the LED, and the heat dissipation is uniform
Nano reflector, repair light type, improve light efficiency

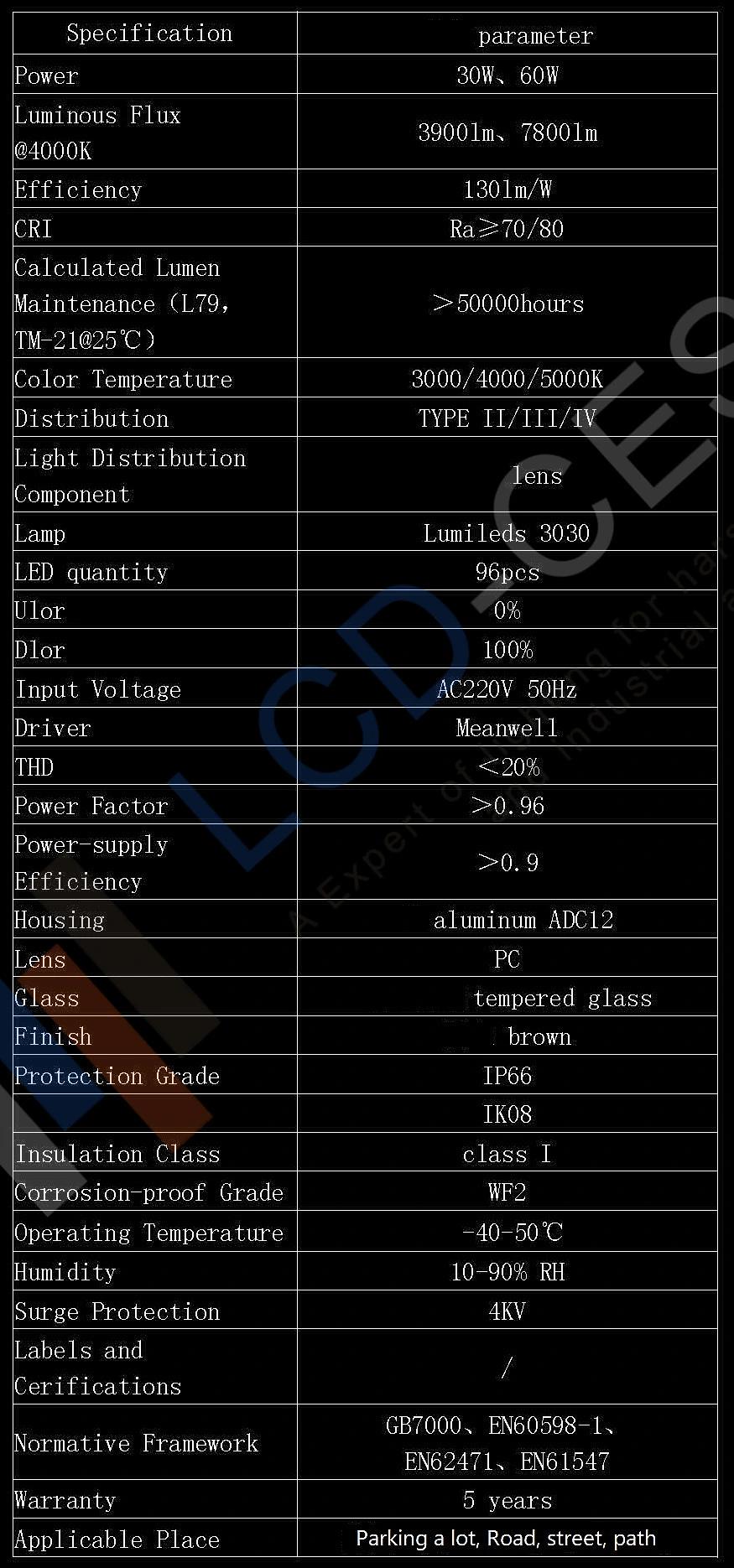

Specification
