• Model NO.：CS-LDX1-40
• Certification：CCC, CE, EMC, LVD, RoHS, SASO
• Input Voltage：85V-265V
• With Light Source：With Light Source
• LED Chips Brand：Bridgelux
• Main Body Material：Aluminum Alloy
• Warranty Option：2years,3years
• Watt′s Option：40W Until 150W
• CRI：>80
• Light Color Opiton：White,Neutral, Warm White
• Chip′s Size：3030
• LED Qty /Module：40PCS,60PCS,90PCS,120PCS
• Watt：40W
• Chip′s Brand Option：Epistar,Bridgelux, ,Osram,CREE
• Installation Height：7-9m
• Life Span：2,000hours -35,000hours
• Work Temperatu：-40ºC~+70ºC
• IP Rating Option：IP65 or IP67
• Transport Package：Carton
• Specification：L450W150H70MM
• Trademark：Capson Lighting
• Origin：China Zhongshan
• HS Code：9688841222
• Production Capacity：100000pieces,Year

Basic Info.

Model NO. CS-LDX1-40 Certification CCC, CE, EMC, LVD, RoHS, SASO Input Voltage 85V-265V With Light Source With Light Source LED Chips Brand Bridgelux Main Body Material Aluminum Alloy Warranty Option 2years/3years Watt′s Option 40W Until 150W CRI >80 Light Color Opiton White/Neutral/ Warm White Chip′s Size 3030 LED Qty /Module 40PCS/60PCS/90PCS/120PCS Watt 40W Chip′s Brand Option Epistar/Bridgelux/ /Osram/CREE Installation Height 7-9m Life Span 2,000hours -35,000hours Work Temperatu -40ºC~+70ºC IP Rating Option IP65 or IP67 Transport Package Carton Specification L450W150H70MM Trademark Capson Lighting Origin China Zhongshan HS Code 9688841222 Production Capacity 100000pieces/Year

Product Description

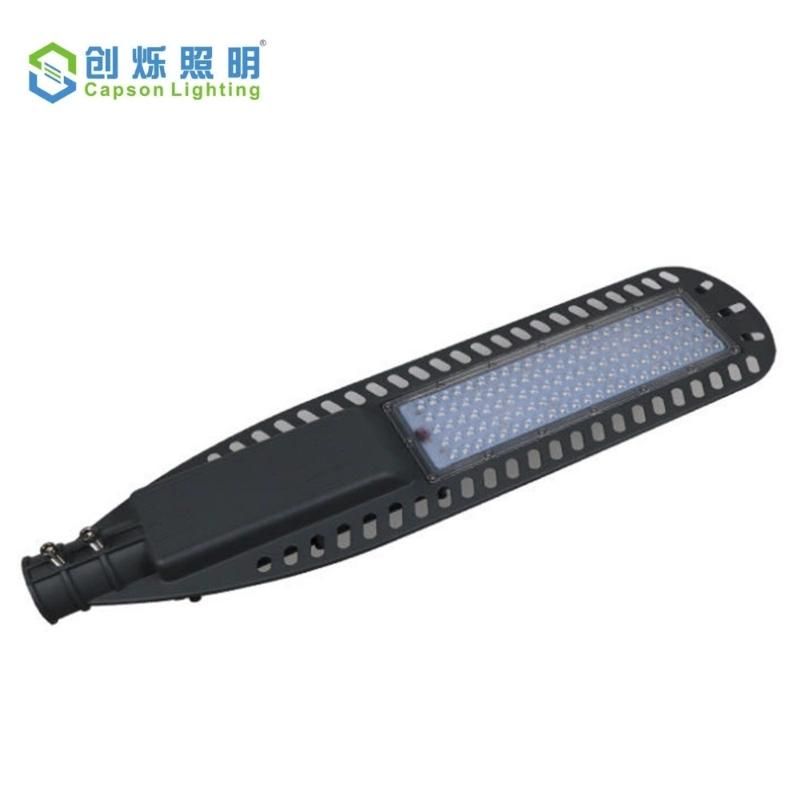

Factory New Design 35000Hours Warranty 40W LED Street Light(CS-LDX1-40)

Product name	LED Street Light 40W
Item No.	CS-LDX1-40
Power option	40w ~ 150w
LED chips	Cree 3030 40pcs
Light effect	120lm/w
Lumen output	4800lm/w
Driver brand	Inventronics 0-10V
Input voltage	AC85V-265V
IP rating option	IP65 or IP67
Life span	2,000hours or >35,000hours
CRI (color rendition index)	≥80Ra
Power factor	≥0.95
Dimension	L450W150H70MM
Optional beam angle	60*120°
Material	Aluminum Alloy
Operating Tem	-40ºC~ +70ºC
Warranty	2,3years
Dimmable options	yes
Packing size	L81W47H40MM

The main characteristics

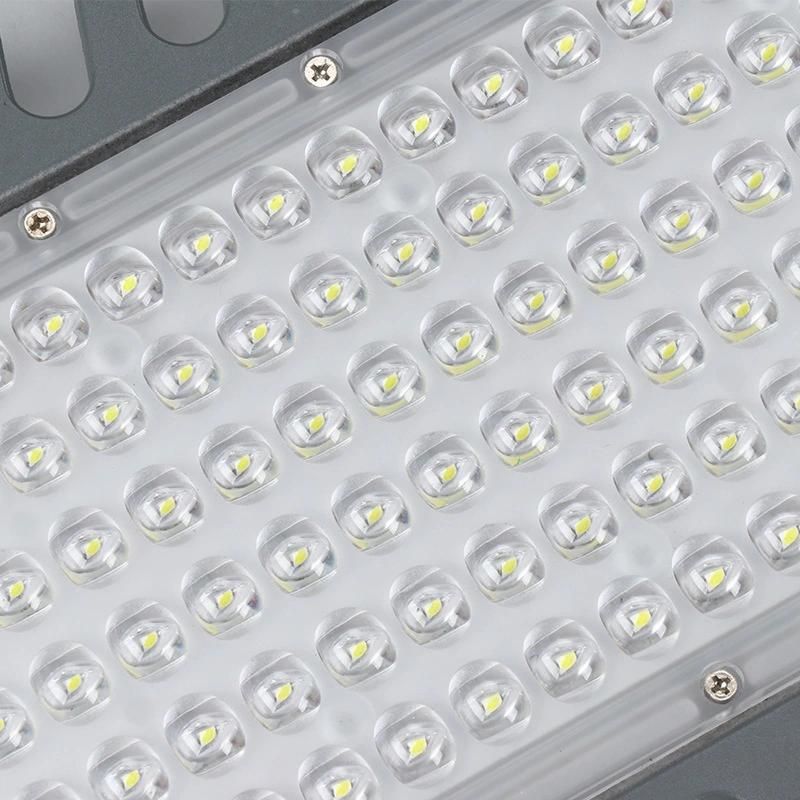

1. High-power CREE 3030SMD is used as the light source. Energy saving and environmental protection, long service life.

2. Toughened transparent glass, high temperature resistant, easy to light transmission, light transmittance up to 92%.

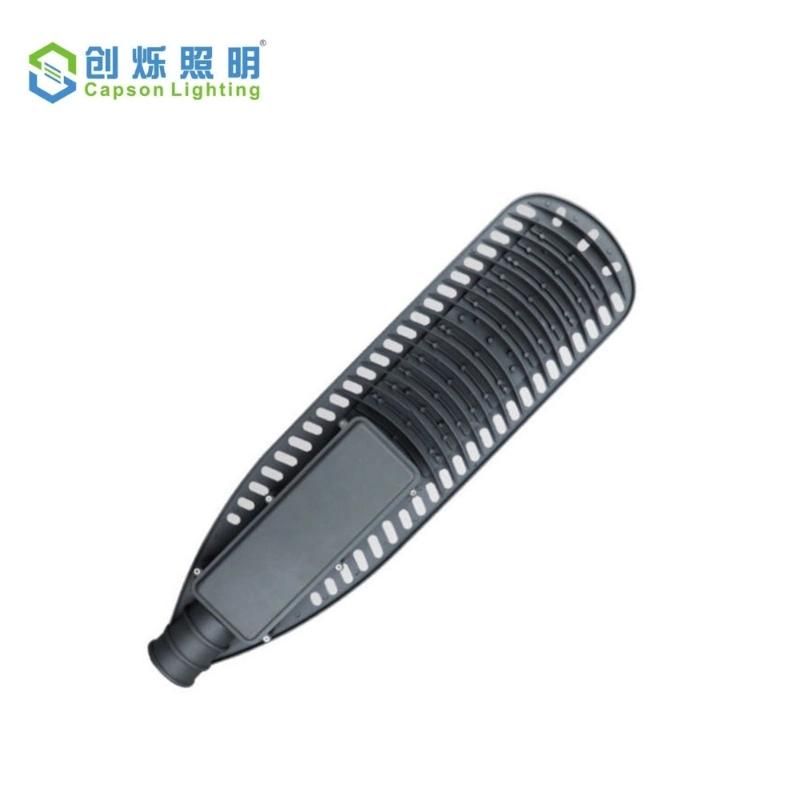

3. The radiator adopts aluminum alloy with high thermal conductivity, and the lamp surface adopts oxidation technology to resist corrosion and ensure heat dissipation.

4. Constant current source, good stability and high safety.

5. Energy saving up to 80%.

6. Beautiful appearance and easy installation.

7. Suitable for highway, urban road, bridge, port, factory lighting, etc.

8. Lamp cover material: die-cast aluminum shell, toughened safety glass, paint coating.

9. The metal part between the rod and the street lamp is designed to be the original rod size.
