• Model NO.：LED 16E-1
• Certification：CE
• Electric Current Type：AC
• Input Voltage：100V,120V,200V,220V ,230V,240VAC, 50,60Hz
• Color：RGB,RGBW,RGBA,RGBWA
• Base Material：Aluminum Alloy
• Transport Package：Carton,Flycase
• Specification：CARTON: L100*H52*W25cm G. W: 15kg
• Trademark：MSLigting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

Basic Info.

Model NO. LED 16E-1 Certification CE Electric Current Type AC Input Voltage 100V/120V/200V/220V /230V/240VAC, 50/60Hz Color RGB/RGBW/RGBA/RGBWA Base Material Aluminum Alloy Transport Package Carton/Flycase Specification CARTON: L100*H52*W25cm G. W: 15kg Trademark MSLigting Origin Guangzhou, China HS Code 94054090 Production Capacity 500PCS/Week

Product Description

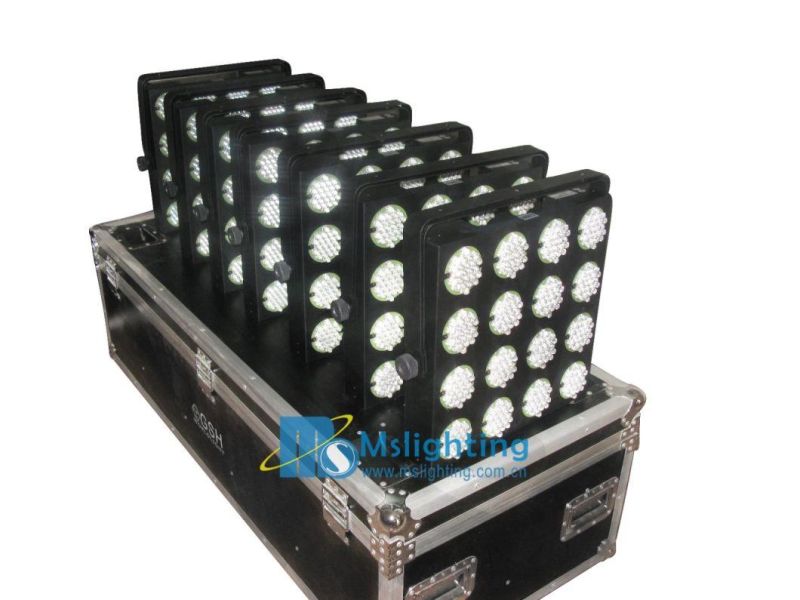

LED Strobe light/LED High Power strobe Light/LED Stage light and led Effect light/DMX LED light,LED Color Change Light,LED Blinder Light,LED 4EYE Light,LED WASHER



Light Source: 384*F10MM RGB LED

 Color Range : 16.7 million  additive  RGB  colors; continuously  variable  intensity (256×256×256=16777216)

Power Supply: 60W

Control Method: DMX 512 (6CH)

Input voltage:  AC 90-260V/ 50-60HZ

Beam Angle: 10°~ 30°

Cover: Aluminum alloy

Working Voltage: 12VDC

Environment Temperature: -20^oC+ 50^oC

Life Time: 80000 hours



DMX Channel: 3CH

CH 1 -  Red              (1-255, Dimmer,from dark to light)

CH 2 - Green            (1-255, Dimmer,from dark to light)

CH 3 - Blue              (1-255, Dimmer,from dark to light)



DMX Channel: 4CH

CH 1 -  Red              (1-255, Dimmer,from dark to light)

CH 2 - Green            (1-255, Dimmer,from dark to light)

CH 3 - Blue              (1-255, Dimmer,from dark to light)

CH 4 - White             (1-255, Dimmer,from dark to light)



DMX Channel: 6CH

CH 1 - General dimmer   (1-255, Dimmer,from dark to light)

CH 2 -  Red              (1-255, Dimmer,from dark to light)

CH 3 - Green            (1-255, Dimmer,from dark to light)

CH 4 - Blue              (1-255, Dimmer,from dark to light)

CH 5 -  Strobe & Color change/ color gradual change open

CH 6 - Strobe & Color change/ color gradual change speed adjustment

(1-255, Speed adjustment, from slow to fast)



DMX Channel: 7CH

CH 1 - General dimmer   (1-255, Dimmer,from dark to light)

CH 2 -  Red              (1-255, Dimmer,from dark to light)

CH 3 - Green            (1-255, Dimmer,from dark to light)

CH 4 - Blue              (1-255, Dimmer,from dark to light)

CH 5 - White             (1-255, Dimmer,from dark to light)

CH 6 -  Strobe & Color change/ color gradual change open

CH 7 - Strobe & Color change/ color gradual change speed adjustment

(1-255, Speed adjustment, from slow to fast)



Control Method:

Protocols: DMX 512

Control channel: 3CH/6CH,4CH/7CH

Control modes: Master/slave. Stand alone. Sound

Data in/out: locking 3-pin XLR



Function: it is max mix color, color change, flash, speed/luminance the adjustable



Thermal:

Maximum ambient temperature: 40°

Maximum housing temperature: 60°
