• Model NO.：PCBA
• Small Orders：Accepted
• Copper Thickness：1oz
• Board Thickness：1.6mm
• Lead Time：12-20 Days
• Min Pad：+,-0.1mm
• Max Board Size：1200mm*500mm
• 4layers Board Thickness：0.3mm
• Material  Types ：Fr-4, Fr-5, High-Tg, Aluminumbasedhalo
• Service：One -Stop Service
• Transport Package：Vacuum+Carton Packing
• Specification：RoHS, ISO9001, UL, SGS
• Trademark：Fastline
• Origin：Shenzhen, China
• HS Code：8534009000
• Production Capacity：20000 Square Meter,Mon

PCB  Manufacture  CapabilityItem   Manufacture  CapabilityLayers   1-26  LayersHDI 2+N+2Material  Types Fr-4,   Fr-5,   High-Tg,   Aluminum  Based  , Halogen  Free,                                                                                              Isola,   Taconic,   Arlon,   Teflon,   Rogers,  Max.   Panel  Dimension39000mil  *  47000mil  (1000mm  *  1200mm)Outline  Tolerance ± 4mil  (± 0.10mm)Board  Thickness8mil-236mil  (0.2  -  6.0mm)   Board  Thickness  Tolerance ± 10%Dielectric  Thickness 3mil-8mil  (  0.075mm-0.20mm)Min.   Track  Width 3mil  (  0.075mm  )Min.   Track  Space3mil  (  0.075mm  )External  Cu  Thickness 0.5  OZ  -  10  OZ  (  17um  -  350um)Internal  Cu  Thickness   0.5OZ  -  6OZ  (  17um  -  210um)Drilling  Bit  Size  (  CNC  ) 6mil-256mil  (  0.15mm  -  6.50mm)Finished  Hole  Dimension       4mil-236mil(0.1mm  -  6.0mm)Hole  Tolerance± 2mil  (± 0.05mm)Laser  Drilling  Hole  Size   4mil(0.1mm)Aspect  Ration 16: 1Solder  MaskGreen,   Blue,   White,   Black,   Red,   Yellow,   Purple,   etc.Min  Solder  mask  Bridge2mil(0.050mm)Plugged  Hole  Diameter8mil-20mil  (  0.20mm-0.50mm)Beveling30o  -  45oV-scoring+/-0.1mm,   15o    30o    45o    60o Impedance  Control                               Min. 5%    General  ± 10%Surface  Finishing HASL,   HASL(lead  Free),   Immersion  Gold Immersion  Silver,   OSP,   Hard  Gold  (  up  to  100u" )CertificationUL  RoHS  ISO9001: 2000  ISO14000: 2004  SGSTestingFlying  probe, E-TEST,   X-RAY  Inspection  , AOIFilesGerber  Protel  DXP  Auto  CAD  PADS  OrCAD  Express  PCB  etc

Note:   Base  on  all  data  received  by  us  and  must  be  complete  and  problem  free, Lead  time  is  ready  to  ship  time.


Company Introduction


Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!

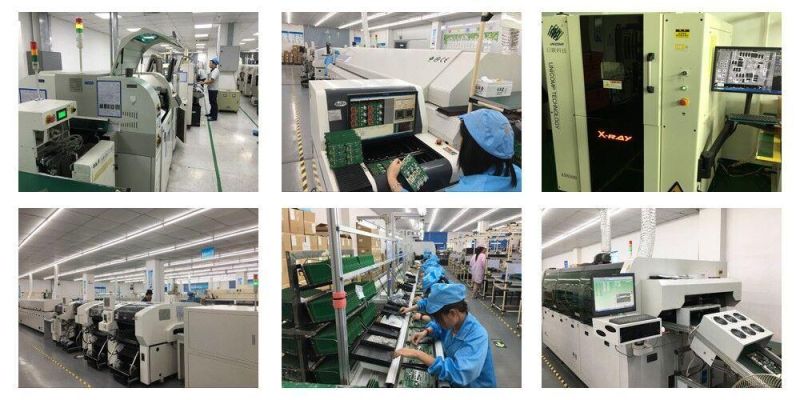

Our Factory

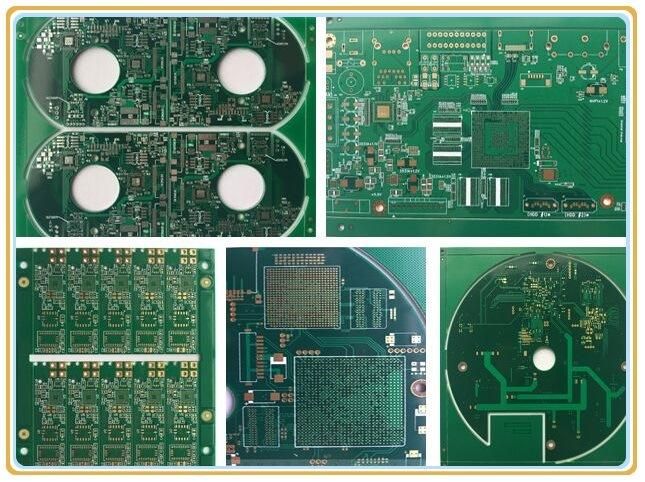

PCB & FR4 PCB

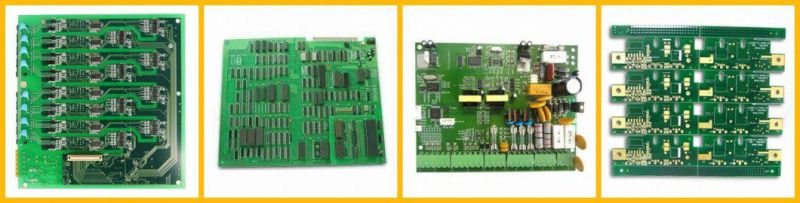

PCBA







FAQ

Q1: Are you a factory or trade company?
A1: We have our own PCB manufacturing & Assembly factory.

Q2: What's your minimum order quantity?
A2: Our MOQ is not the same based on different items. Small orders are also welcome.

Q3: what file we should offer?
A3: PCB:Gerber file is better,( Protel,power pcb,PADs file), PCBA : Gerber file and BOM list.

Q4: No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A4: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q5: What any other information should be offered except for file?
A5:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity

Q6:I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!

Q7: What is delivery terms and time?

A7: We usually use FOB terms and ship the goods in 7-30 days depending on your order quantity, customization.

More information about PCB, please contact us!
