8m 60W Solar Powered Energy LED Street Lights Price List
BAODE LIGHTING GROUP CO., LTD.- Power Supply:DC
- Color Temperature:>5000K
- Lamp Body Material:Aluminum Alloy
- Power:48W
- Application:Square, Highway, Garden
- IP Rating:IP65
Base Info
- Model NO.:bdssl07
- Certification:CCC, CE, CQC, FCC, RoHS, SASO
- Input Voltage:24v
- With Light Source:With Light Source
- LED Chips Brand:Bridgelux
- Allocation Design:According to Clients Requirement
- Solar Panel:30W -400W Monocrystal Polycrystal
- Battery:38ah-250ah Gel Battery
- Controller:10A15A20A
- Cable:2.5mm2
- Pole of Color:According to Clients Requirement
- Surface Treatment:Galvanized or Powder Coating
- Shape:Round or Polygon
- Tolerance:+-2%
- Transport Package:Bulk Packing
- Specification:CE ROHS FCC SASO SONCAP CQC
- Trademark:LUYOU
- Origin:China
- HS Code:940540900
- Production Capacity:1000 Sets,Week
Description
ParametersSolar Module Pmax(W) 30-400W Vmp (V) 35.0V Imp (A) 2.86A Light Fixture Material Aluminum die casting & Toughened glass Operating Temperature -40°C~75°C Protection Level IP65 LED Light Source LED Chip BRIDGELUX / Cree (Top brand in U.S.A.) Color Temperature 3800-6500K(white) Luminous flux 5300 LM Operating temperature -40°C~75°C Current Source DC 12V/24V Power 15W/18W/21W/24W/30W/36W/42W/48W/54W/60W Lighting Pole Height 3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m Material BAOSTEEL GROUP Q235/345/GR60 Surface Treatment Hot-dip galvanizing, Static spray, Size φ60-φ200,δ3-5m, vary according to models Flange Plate 300*300*16, vary according to models Battery Capacity 200AH (100AH*2pcs) Type Gel/AGM Battery Dimension 546*1203*30 Weight 28Kg Controller Rated voltage and current 12V/10A or 24V/10A waterproof Weight 0.165Kg Two times rainy day backup
&Protective Function Two times of rainy day backup.
Good protection: overcharging, discharging, voltage surge, reverse polarity, etc. Accessories Cable 2.5 mm2, 15m Battery Box 200AH ABS battery box or metal box with hot-dip galvanizing spray treatment Solar Street Light Details
A GRADE high efficient solar panel
Mono: 18% convert efficiency
Poly: 17% convert efficiency
5 years warranty for solar panels
USA BRAND LED and Aluminum Section Bar Light Fixture
LED: BRIDGELUX/CREE
Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time
STRONGER POLE with 20 years life time
Larger diameter: our pole is 10% larger in diameters
Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm
Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m light, while others, M16-18*800mm
Thicker zinc galvanization and painting: we offer 100 μm zinc and coating than the standard 80 μm
TWO TIMES rainy day backup waterproof controller
Rainy day backup: 2 times more rainy day backup, savings in battery
Combined LED driver and controller as one, easy to maintain
IP67: ideal for high humidity and dust areas
Energy saving mode: THREE periods of power adjustment available
All metal shell: high strength and fast heat dissipation, giving long life time
UL LISTED GEL battery
Long service life (1600 cycles @ 30% DOD)
Better Weather-ability (-20 ºC ~ 50 ºC)
Fully sealed construction
Why Us
One-stop Service
You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.
Vertically Integrated Production System
You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.
21 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.

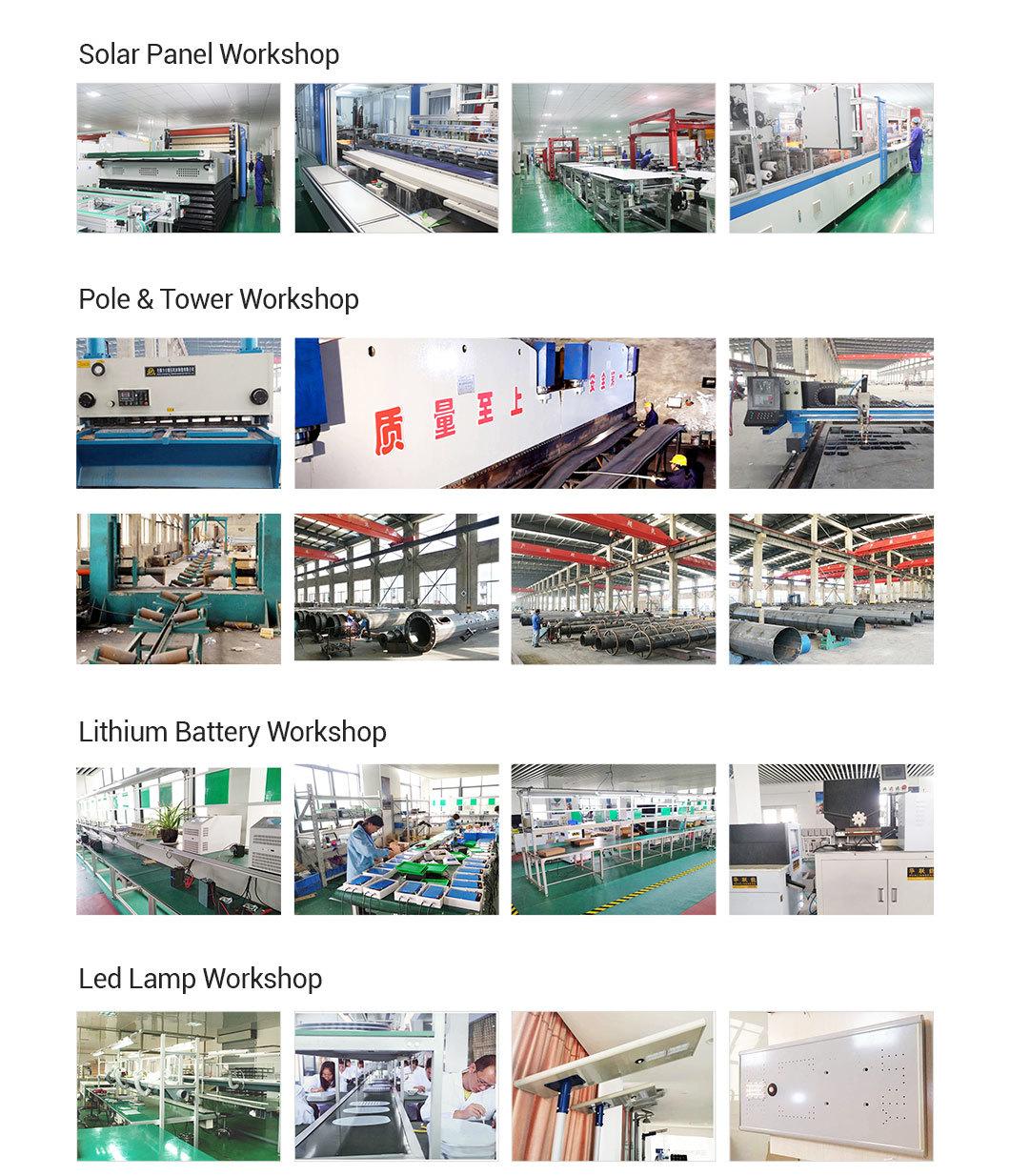

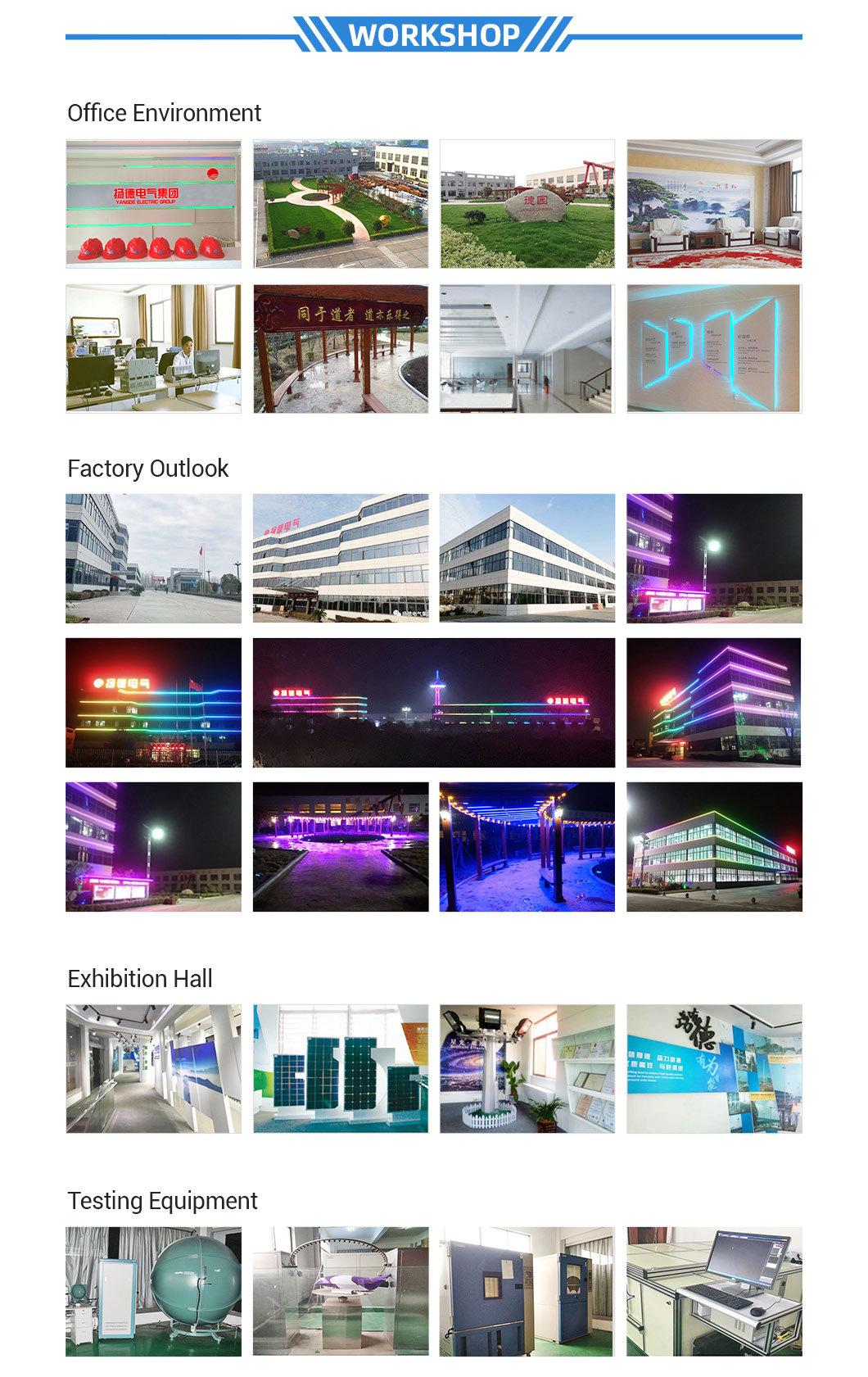

Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Advanced Technology
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Cost Efficiency
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
Company Information 21 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
&Protective Function
Good protection: overcharging, discharging, voltage surge, reverse polarity, etc.
A GRADE high efficient solar panel
Mono: 18% convert efficiency
Poly: 17% convert efficiency
5 years warranty for solar panels
USA BRAND LED and Aluminum Section Bar Light Fixture
LED: BRIDGELUX/CREE
Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time
STRONGER POLE with 20 years life time
Larger diameter: our pole is 10% larger in diameters
Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm
Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m light, while others, M16-18*800mm
Thicker zinc galvanization and painting: we offer 100 μm zinc and coating than the standard 80 μm
TWO TIMES rainy day backup waterproof controller
Rainy day backup: 2 times more rainy day backup, savings in battery
Combined LED driver and controller as one, easy to maintain
IP67: ideal for high humidity and dust areas
Energy saving mode: THREE periods of power adjustment available
All metal shell: high strength and fast heat dissipation, giving long life time
UL LISTED GEL battery
Long service life (1600 cycles @ 30% DOD)
Better Weather-ability (-20 ºC ~ 50 ºC)
Fully sealed construction
