• Model NO.：LCD-FK-203-4K-LN60
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, REACH, RoHS, SAA, SASO, UL, VDE, TUV SGS
• Operating Voltage：110-130V
• Input Voltage：110V
• LED Chips Brand：CREE
• Transport Package：Carton Box
• Specification：350x265x69mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Wattage100W150W200W250WLight sourceLUMILEDs SMD 3030 or OSRAM SMD5050Lamp Luminous Efficiency(lm/w)145- 155 lm/wLamp Luminous Flux(lm)14500217502900036250Color Temperature(CCT)2800-3000K,    4000-4500K,    6000-6500K,        7000-7500KCRI (Ra>)>70 @ 6500K,   >75 @ 4000K,  >80 @ 3000KInput Voltage(V)AC85-265V 50/60Hz   /  12V 24V 32V DCHousing MatrialCopper free die-cast Aluminum alloy ADC12 DriverMeanwell driver ,SOSEN, MOSO, PH driver etcDriver efficiency≥0.9%Power Factory(PF)≥0.97Working Temperature(ºC)-70ºC~60ºCIP RatinIP66Angle Beam (Degree)10º 20º 30º 10x45º 60º 90º 120º TYPE I  II  III IV CertificateCE, ROHS, EMC, LVD, TUV, SAA, UL, cUL, IEC Warranty(Years)5 Years

Area & Landscaping floodlight 200W

Brighten large outdoor spaces with our slim of high-power LED flood lights. Fixtures feature adjustable mounting brackets, allowing you to focus light output with precision. Quality-tested and built to last, our LED flood lights stand up against the elements and significantly outperform traditional halogen fixtures. A top choice for a wide range of applications, including billboard and subdivision sign lighting, architectural facades, parking lots, landscaping, and area lighting.



Operating and Electrical

 Input Voltage220-240 VAC / 110-277VAC  or 12V 24V 32VDCInput Frequency50 /60 HzPower Factor (Min)>0.97Controls and DimmingPLC dimmer, 0-10V , DALI, Triac , motion sensor or Infrared induction

Mechanical and HousingHousing MaterialAluminum alloy ADC12 die-castedReflector materialPure polish aluminum reflector Optic materialPolycarbonateOptical cover/lens materialPolycarbonateFixation materialCarbon steel with corrosion proof powder coating or Stainless steel #316 & 304Mounting deviceMounting bracket adjustableOptical cover/lens shape7° 10° 10x45° 30° Asymmetric 45°  60° 90° 120° TYPE I  TYPE II  TYPE III TYPE IV  TYPE VOptical cover/lens finishtransparent  or  FrostedOverall lengthsee dimensional drawingOverall widthsee dimensional drawingOverall heightsee dimensional drawingEffective projected areasee data sheetColorWhite and black and grey

Approval and ApplicationIngress protection codeIP66 [ Dust penetration-protected, jet-proof]Mech. impact protection codeIK07 [ >4 J vandal-protected]Surge Protection (Common/Differential)Luminaire surge protection level until 3 kV

Initial Performance (IEC Compliant)Initial luminous flux (system flux)29000 lmLuminous flux tolerance+/-10%Initial LED luminaire efficacy145 lm/WInit. Corr. Color Temperature3000K / 4000K / 6500KInit. Color Rendering Index>75Initial chromaticitySDCM<=5Initial input power200 WPower consumption tolerance+/-10%



Application Conditions / Product DataAmbient temperature range-70 to +50 °CMaximum dim levelon requestsFull product codeLCD-FK-200-LNXX-4K-PLCOrder product nameLCD-FK-Flood light 200WOrder codeNNumerator - Quantity Per Pack1 pcsNumerator - Packs per outer box1 boxMaterial Nr. (12NC)NNet Weight (Piece)6.1KG

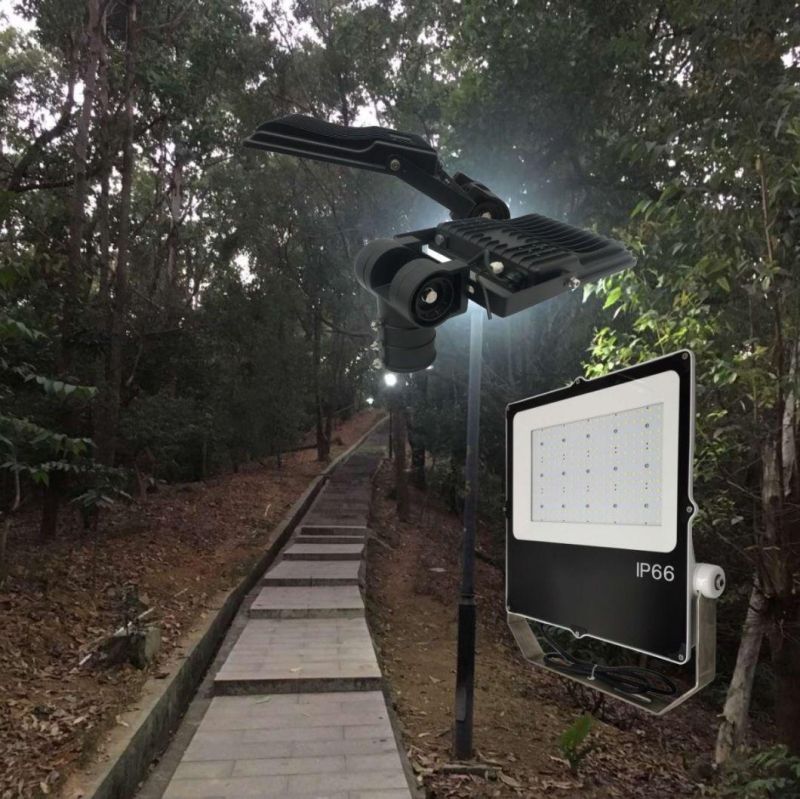

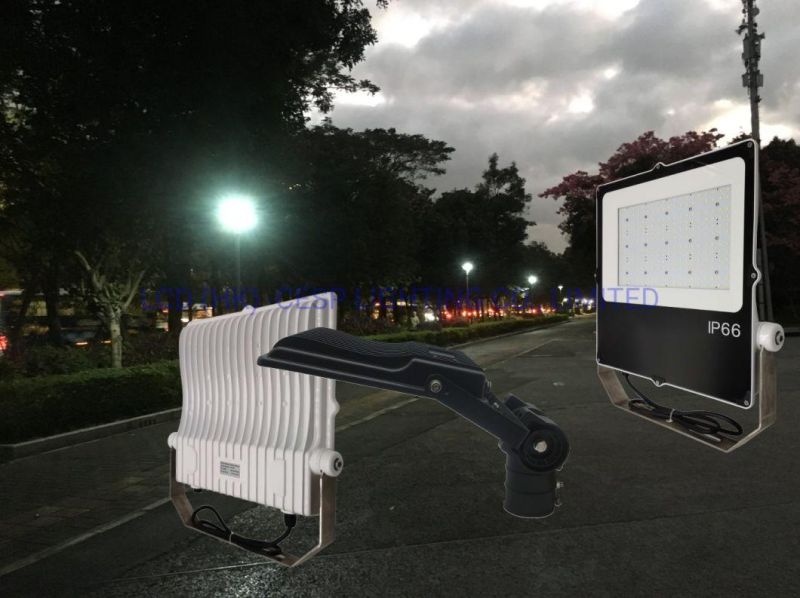

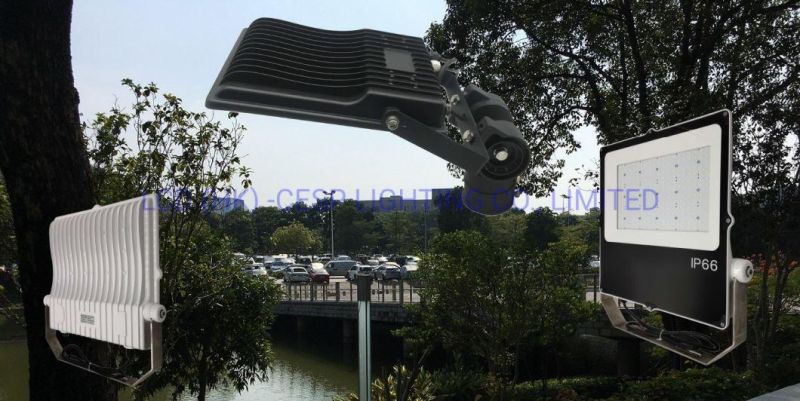

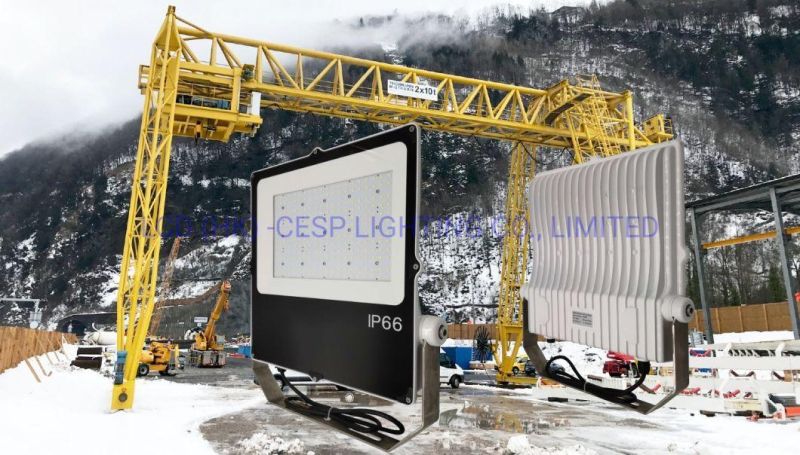

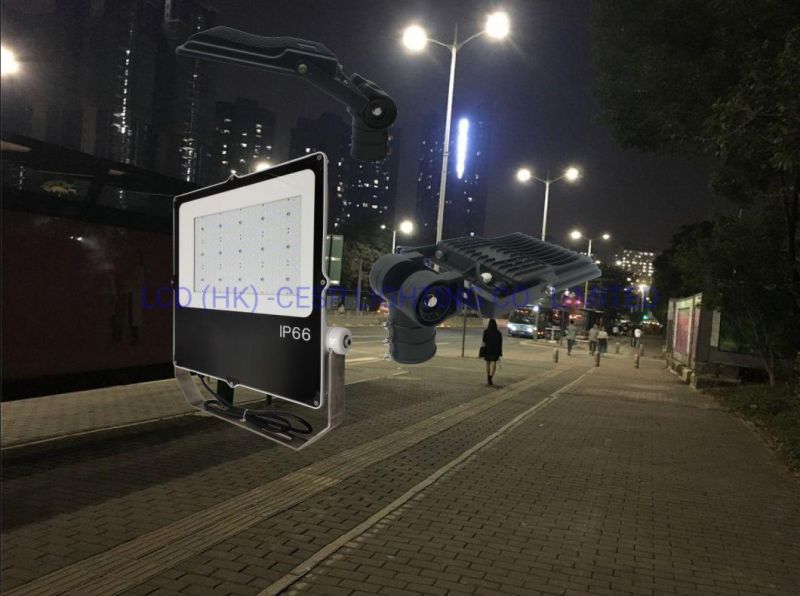

Product Photos:

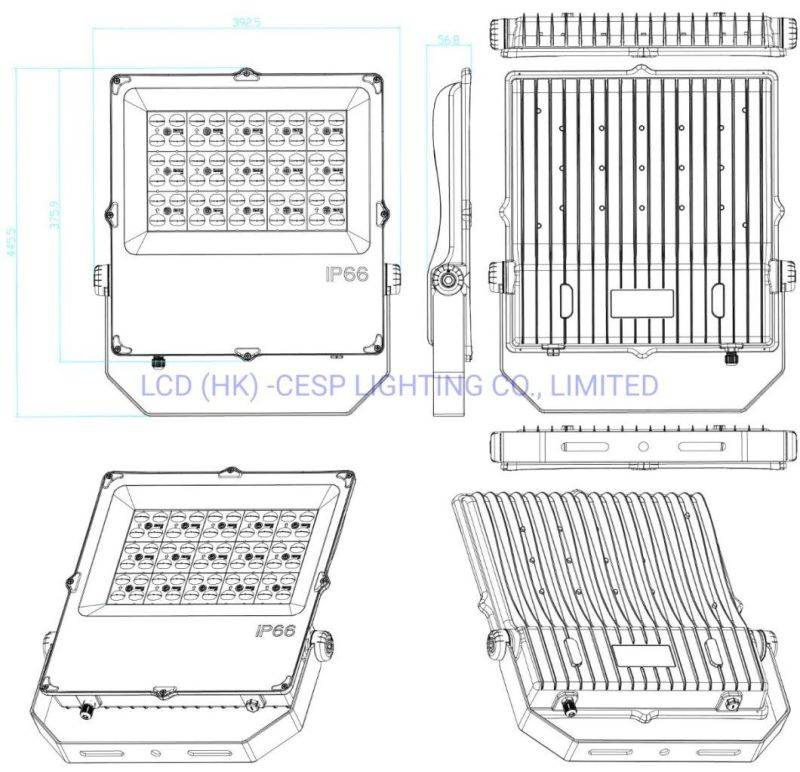

Dimensional drawing
