• Model NO.：RB-FLL-250WSD
• Certification：CE, EMC, LVD, RoHS, SAA, UL, VDE
• Operating Voltage：220-240V
• Input Voltage：AC100-277V
• LED Chips Brand：SMD3030
• Item No.：Rb-Fll-250wsd
• Voltage：AC 100-277V
• CCT：3000K, 4500K, 6000K
• Driver：Meanwell Hlg
• Luminous Flux：28000lm
• Material：Finned Radiator
• IP Rate：IP65
• Color Rendering Index：>80
• Working Life-Span：50000 H
• Waterproof：IP66
• Transport Package：1PCS,Box
• Specification：CE,RoHS,UL,SAA
• Trademark：rayborn
• Origin：China
• HS Code：9405409000
• Production Capacity：40, 000PCS,Month

200W LED Floodlight Main Technical ParametersItem No.:RB-FLL-250WSDInput Voltage:AC100-277VFreqency Range:50Hz~60HzPower Factor:>0.98Power Efficiency:>90%Lamp DriverMeanwell HLGLED Chip:SMD3030 ChipLED Power250WLED QTY:250PCS LEDLED Working Voltage:DC 30~36VSystem Consumption:255WLED Luminous FluxWarm White29400LMPure White29500LMCool White30000LMCenter Illuminance4 Meter538lux4.5 Meter425ux6 Meter239 luxViewing Angle:60/90/60*150°Illuminance Uniformity:>0.6Color TemperatureWarm White3000K~3300KPure White4000K~4500KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLED Junction Temperature:≤115ºCWorking Temperature:-40ºC~50ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 m three lineConnect WireBrownLBlueNyellow / GreenG

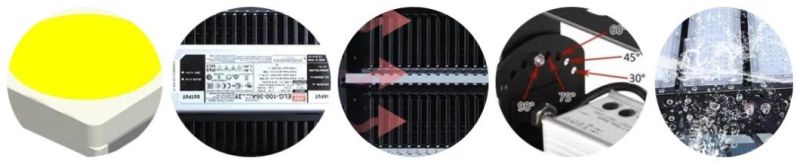

LED Flood light Features :

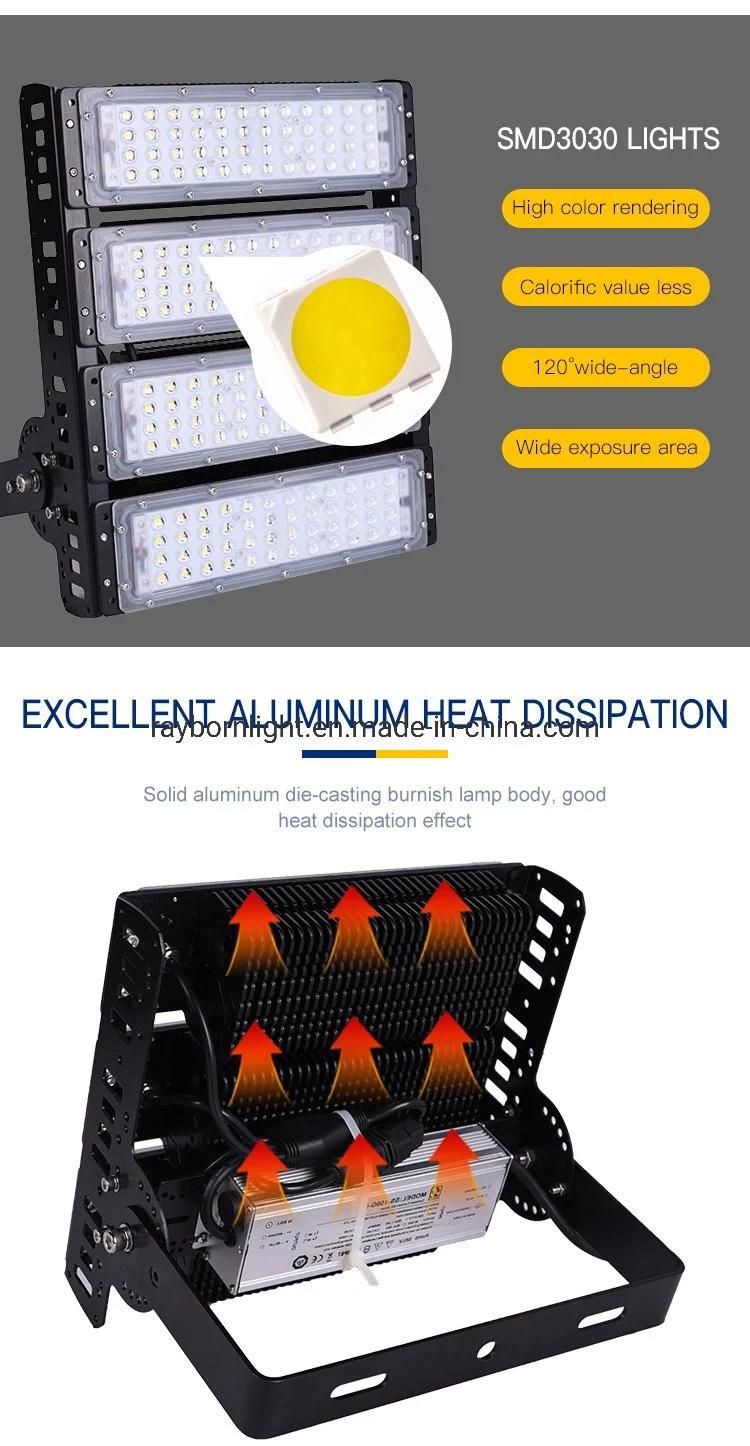

LED Chip: SMD LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.

Power Supply: SUPER LED flood light use Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

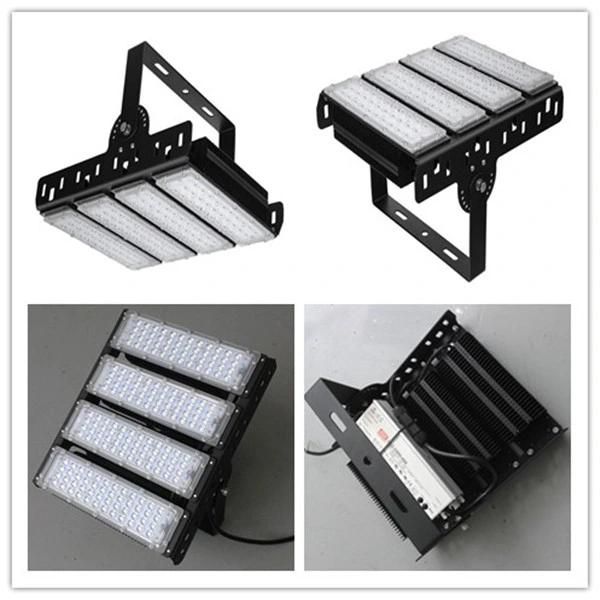

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

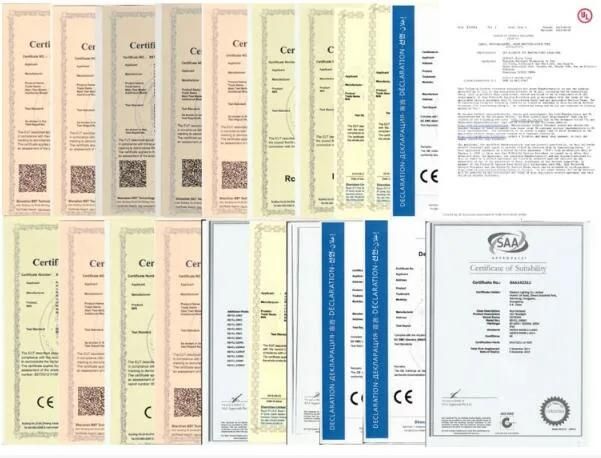

Certification: DLC FCC CE RoHS approval.

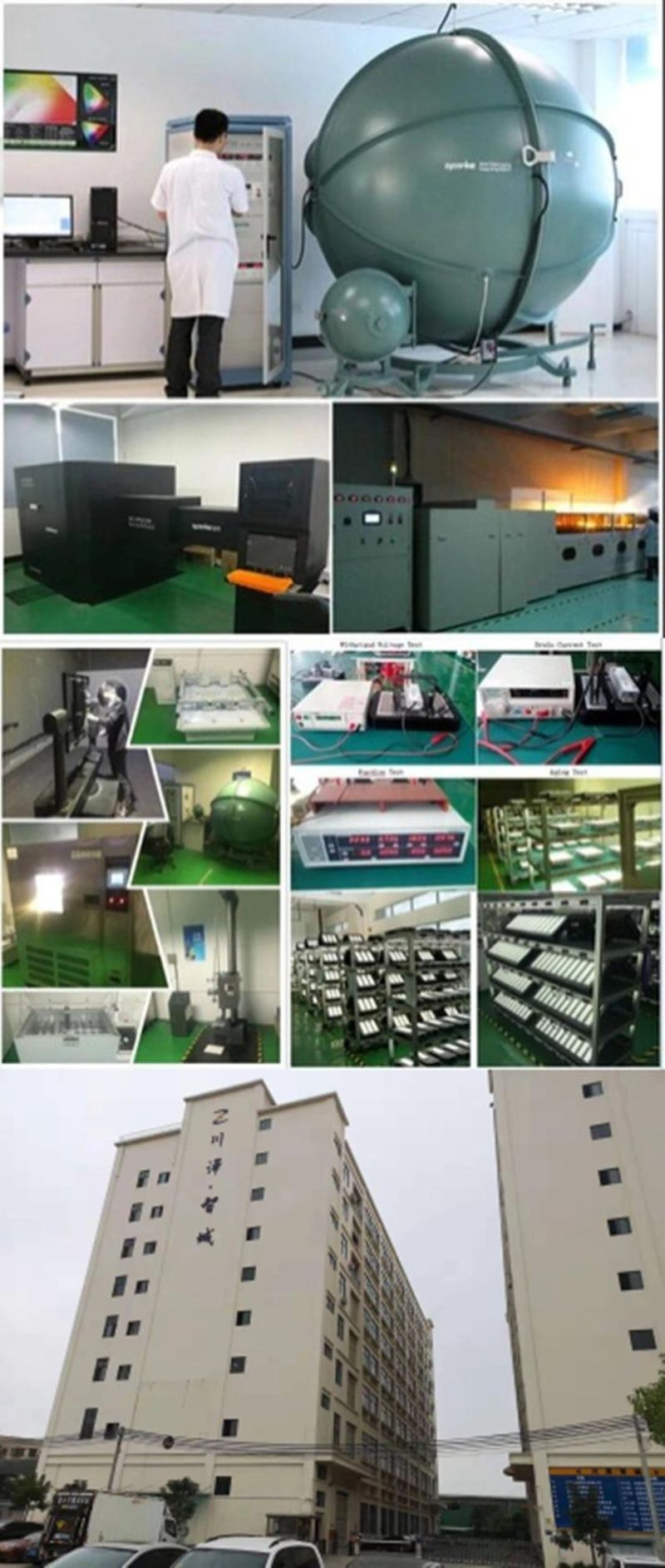

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.

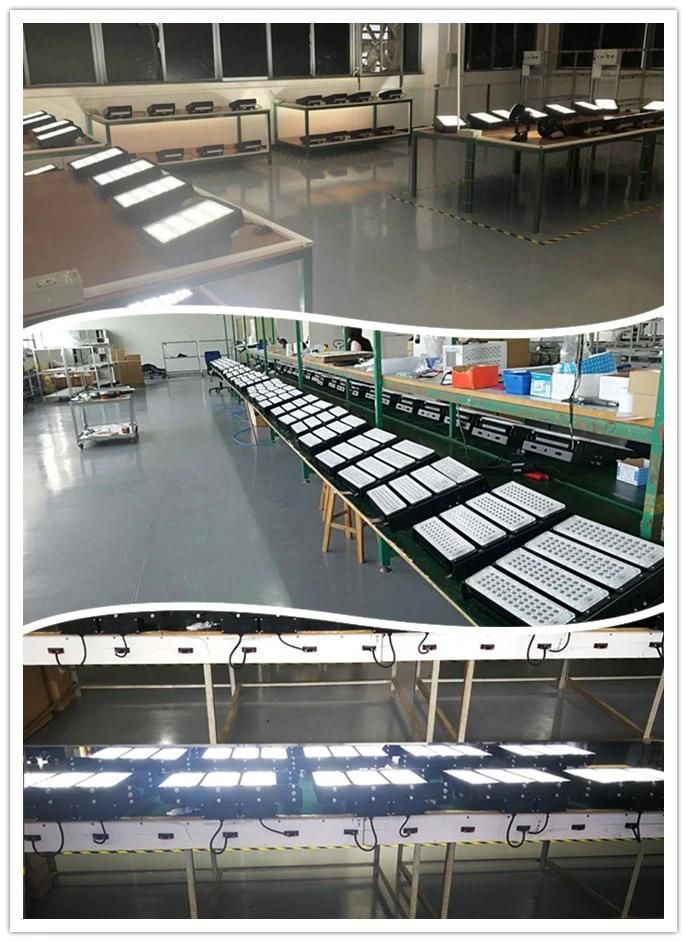

LED Flood light 12hours aging test :
Before shipping, all the LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.

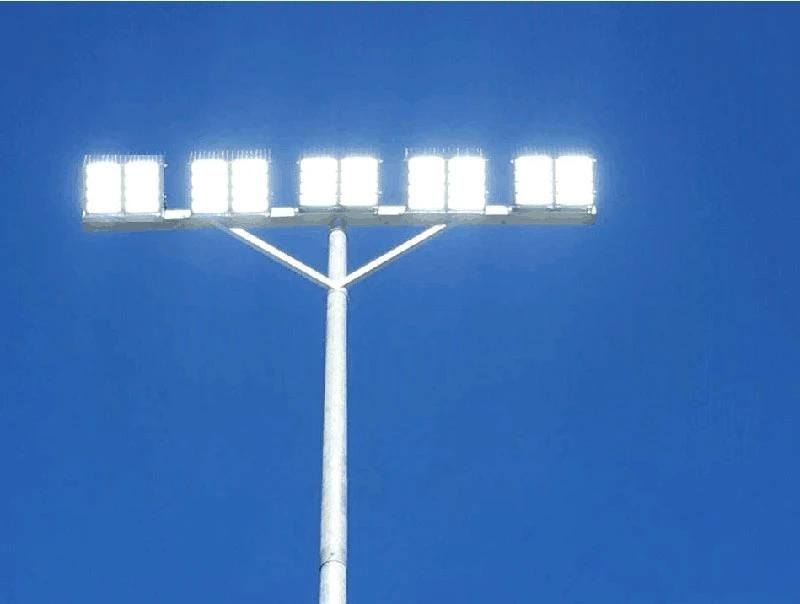

Outdoor LED Flood light Applications :

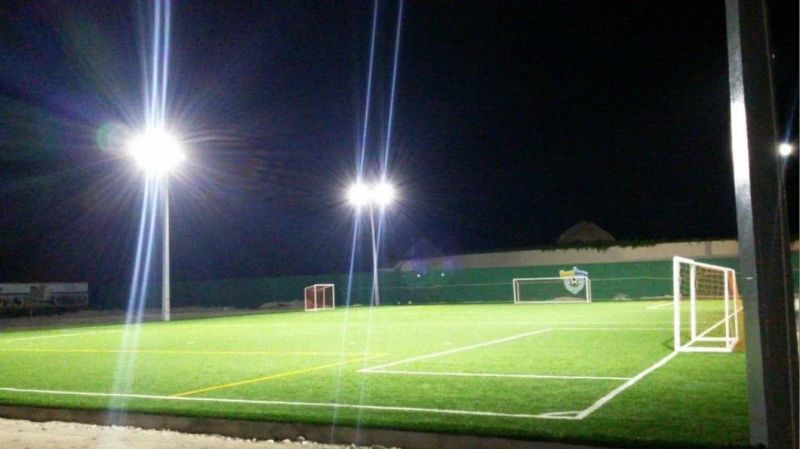

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.



Payment terms :
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities


FAQ :
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 3~5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
