• Model NO.：LCD-SCH-Module50-500-3K
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV Atex Iecex ETL UL
• Operating Voltage：85-265V
• Input Voltage：110V
• LED Chips Brand：CREE
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：85391000
• Production Capacity：50000PCS , Year

Wattage100W150W200W250WLight sourceLUXEON SMD 3030 or OSRAM SMD5050Lamp Luminous Efficiency(lm/w)145- 155 lm/wLamp Luminous Flux(lm)14500217502900036250Color Temperature(CCT)2800-3000K, 4000-4500K, 6000-6500K, 7000-7500KCRI (Ra>)>70 @ 6500K, >75 @ 4000K, >80 @ 3000KInput Voltage(V)AC85-265V 50/60Hz / 12V 24V 32V DCHousing MatrialCopper free die-cast Aluminum alloy ADC12DriverMeanwell driver ,SOSEN, MOSO, PH driver etcDriver efficiency≥0.9%Power Factory(PF)≥0.97Working Temperature(ºC)-70ºC~60ºCIP RatinIP66Angle Beam (Degree)10º 20º 30º 10x45º 60º 90º 120º TYPE I II III IVCertificateCE, ROHS, EMC, LVD, TUV, SAA, UL, cUL, IECWarranty(Years)5 Years

Area & Landscaping floodlight 100W 150W 200W

Brighten large outdoor spaces with our slim of high-power LED flood lights. Fixtures feature adjustable mounting brackets, allowing you to focus light output with precision. Quality-tested and built to last, our LED flood lights stand up against the elements and significantly outperform traditional halogen fixtures. A top choice for a wide range of applications, including billboard and subdivision sign lighting, architectural facades, parking lots, landscaping, and area lighting.

Operating and Electrical

 Input Voltage220-240 VAC / 110-277VAC or 12V 24V 32VDCInput Frequency50 /60 HzPower Factor (Min)>0.97Controls and DimmingPLC dimmer, 0-10V , DALI, Triac , motion sensor or Infrared induction



Mechanical and HousingHousing MaterialAluminum alloy ADC12 die-castedReflector materialPure polish aluminum reflectorOptic materialPolycarbonateOptical cover/lens materialPolycarbonateFixation materialCarbon steel with corrosion proof powder coating or Stainless steel #316 & 304Mounting deviceMounting bracket adjustableOptical cover/lens shape7° 10° 10x45° 30° Asymmetric 45° 60° 90° 120° TYPE I TYPE II TYPE III TYPE IV TYPE V etcOptical cover/lens finishtransparent or FrostedOverall lengthsee dimensional drawingOverall widthsee dimensional drawingOverall heightsee dimensional drawingEffective projected areasee data sheetColorWhite and black and grey



Approval and ApplicationIngress protection codeIP66 [ Dust penetration-protected, jet-proof]Mech. impact protection codeIK07 [ >4 J vandal-protected]Surge Protection (Common/Differential)Luminaire surge protection level until 3 kV



Initial Performance (IEC Compliant)Initial luminous flux (system flux)21750 lmLuminous flux tolerance+/-10%Initial LED luminaire efficacy145 lm/WInit. Corr. Color Temperature3000K / 4000K / 6500KInit. Color Rendering Index>75Initial chromaticitySDCM<=5<>Initial input power150 WPower consumption tolerance+/-10%<=5<>



Application Conditions / Product DataAmbient temperature range-70 to +50 °CMaximum dim levelon requestsFull product codeLCD-FL-150-LNXX-4K-PLCOrder product nameLCD-FL-Flood light 150WOrder codeNNumerator - Quantity Per Pack1 pcsNumerator - Packs per outer box1 boxMaterial Nr. (12NC)NNet Weight (Piece)5.7KG

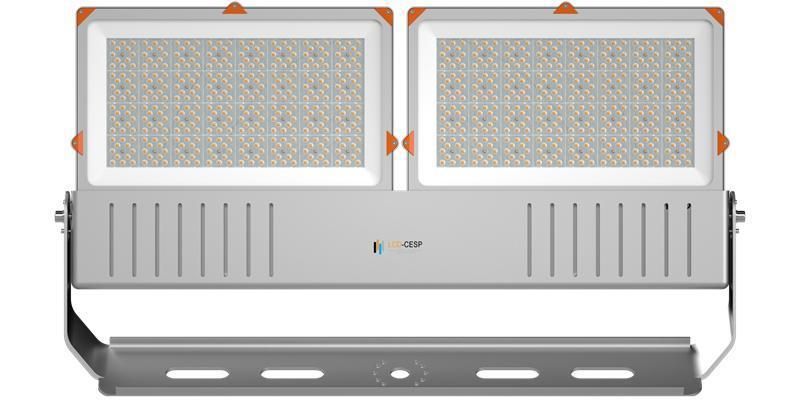

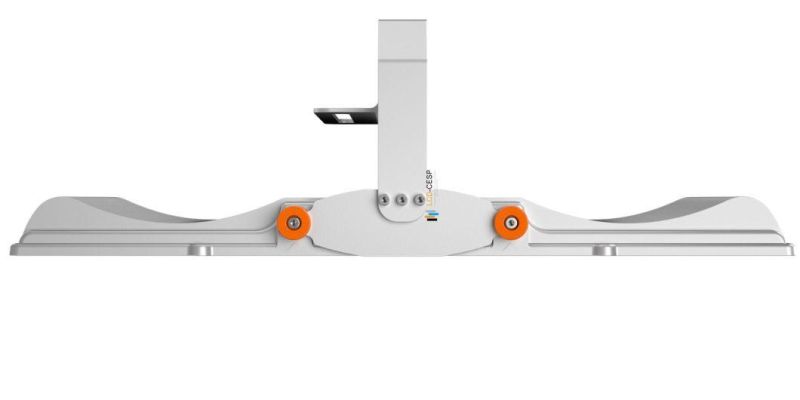

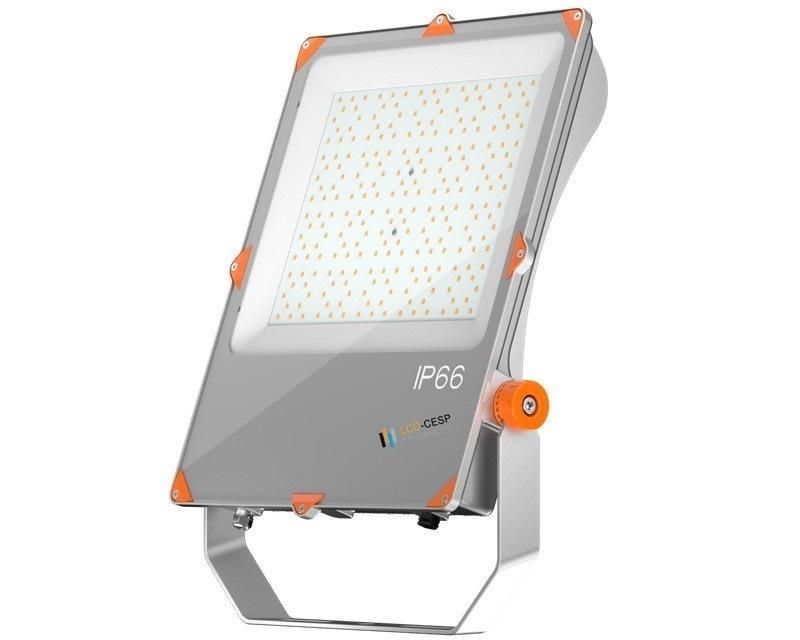

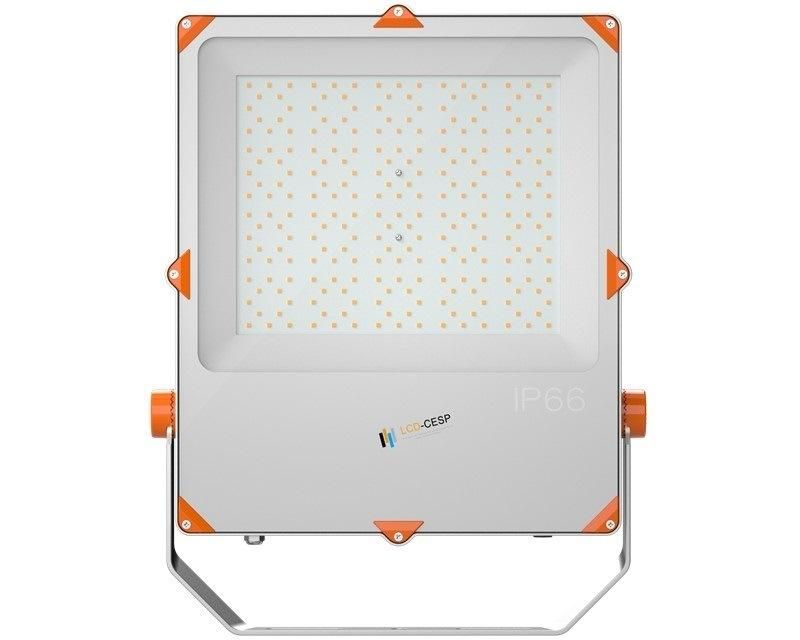

Product Photos:



Dimensional drawing

Outdoor Pure Aluminum housing dimmable 0-10V water-proof IP65
100 Watt LED Flood Light 100-277V 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 13500lm IK08
Car Parking or area lighting with Cree LUXEON OSRAM SMD3030 LEDs chip LED street Light
Pure Aluminum forming LED spotlight 100W for outdoor Security lighting with 5 years warranty



This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Feature

1. A simple, durable, reliable and efficient LED floodlight with Pure Aluminum forming tech. extrude the heat-sink housing for perfect thermal management than the die-casting's housing.
2. Low lifetime-cost Reduce power consumption and free maintenance
3. Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.

Product Specification review

A simple, durable, reliable and great thermal management and efficient LED floodlight

Consumo
ConsumptionAltura de montaje
Assembling height10w 20W 30W 50W 70W 100W 150W 200W2-15meterVoltaje
VoltageFrecuencia
Frequency100-277 V AC or 10-24VDC50/60 HzGrado de Protección
Protection level

Óptica

Optic

IP65 IK08Eficiencia / Efficiency : 90%FHS
UHFVida útil
Life span<1%<>L70 - 50.000h<1%<><1%<><1%<><1%<>

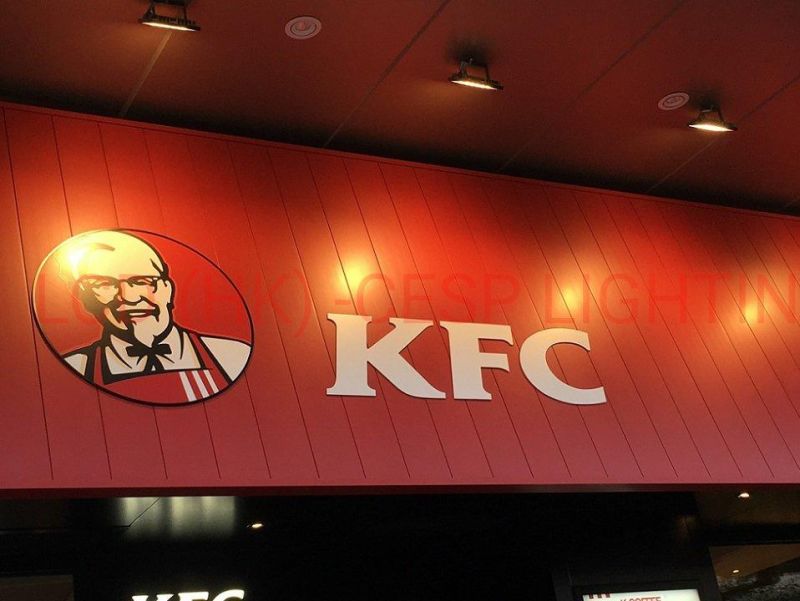

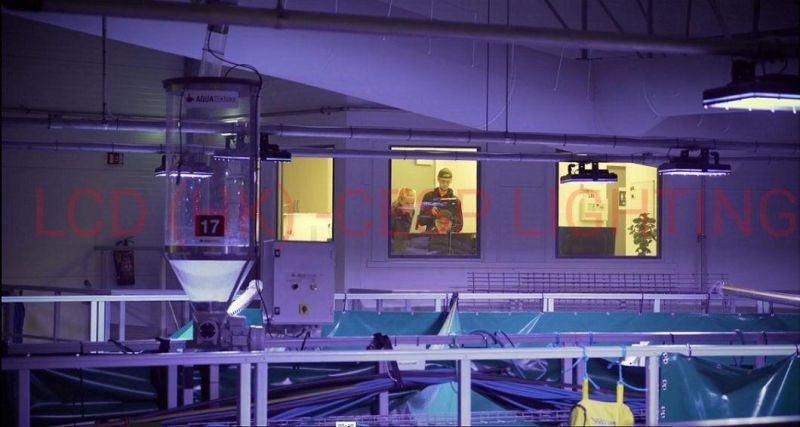

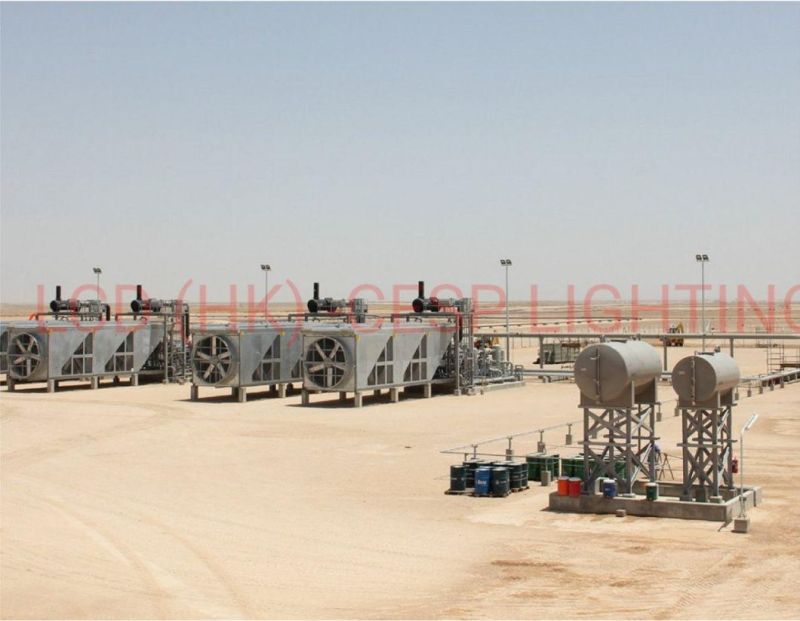

Application review

- Low area & job site lighting
- Building surrounds
- Façade lighting

- Car parking lighting

- Road & billboard lighting





Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.



Product dimension review

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

Mast & Post--Road & Car Parking



Installation review

FLY features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.





Outdoor Aluminum Dimmable 100 Watt LED Flood Light





Dimmable led fixture 100W 220VAC 50/60Hz Triac dimmable 4000K IP65 13000lm IK07



Over View:

The energy-saving LCD LYRL FS LED Floodlight is the perfect solution for a wide range of Area & site lighting applications. It teams with the dimmable driver, motion & Infrared sensor system, known to perfect thermal management heat sink housing and Meanwell or Phillips dimmable driver into one compact and robust and durable extruded Aluminum 1060 body that matches up globally high quality and safety standards. Its specially designed heat sink incorporates aesthetics and functionality to ensure excellent reliability and a long lifespan. Powered by new and modern LED technology, this luminance delivers superior performance and a longer lifetime, bringing area & site lighting to a whole new level.



100W LED Floodlight

• Wattage: 100W
• Lumens: 13000lm
• Efficiency: 130lm/w
• Application: Outdoor
• Dimmable: YES

General InformationLamp family codeLCD-LYRLFS-xxxx-LNxxxLight source colorwarm white, Neutral white, cool whiteLight source replaceableyesDriver/power unit/transformerdimmable driver / Meanwell driver / LCD brand driverDriver includedyesOptical cover/lens typereflector or Polycarbonate micro lens opticLuminaire light beam spread110° or 60ºx60º, 90ºx90º,30ºx30º,TYPE 3/4/5ConnectionFlying leads/wiresCableCable 1.5 m without plugProtection class IECSafety class ICE markyesWarranty period5 years warrantyOptic type outdoorSymmetrical wide beam or Asymmetric beam EU RoHS compliantNoLight source engine typeSMD 3030







Operating and Electrical

 Input Voltage220-240 VAC or 110-277VACInput Frequency50 or 60 HzPower Factor (Min)0.95Controls and Dimming1-10V , Triac , motion sensor or Infrared induction



Mechanical and HousingHousing MaterialAluminum 1060 extrudedReflector materialPure polish aluminum reflector Optic materialPolycarbonateOptical cover/lens materialPolycarbonateFixation materialCarbon steel with corrosion proof powder coatingMounting deviceMounting bracket adjustableOptical cover/lens shape-----Optical cover/lens finishtransparent or FrostedOverall lengthsee dimensional drawingOverall widthsee dimensional drawingOverall heightsee dimensional drawingEffective projected area0.076m²ColorAluminum and black



Approval and ApplicationIngress protection codeIP66 [ Dust penetration-protected, jet-proof]Mech. impact protection codeIK07 [ >4 J vandal-protected]Surge Protection (Common/Differential)Luminaire surge protection level until 3 kV



Initial Performance (IEC Compliant)Initial luminous flux (system flux)13000 lmLuminous flux tolerance+/-10%Initial LED luminaire efficacy130 lm/WInit. Corr. Color Temperature3000K / 4000K / 6500KInit. Color Rendering Index75Initial chromaticitySDCM<=5<>Initial input power100 WPower consumption tolerance+/-10%<=5<><=5<><=5<><=5<>



Application Conditions / Product DataAmbient temperature range-30 to +50 °CMaximum dim levelon requestsFull product codeLCD-LYRLFS-103-LNXX-4KOrder product nameLCD-LYRLFS-Flood light 100WOrder codeNNumerator - Quantity Per Pack1 pcsNumerator - Packs per outer box1 boxMaterial Nr. (12NC)NNet Weight (Piece)3.5KG

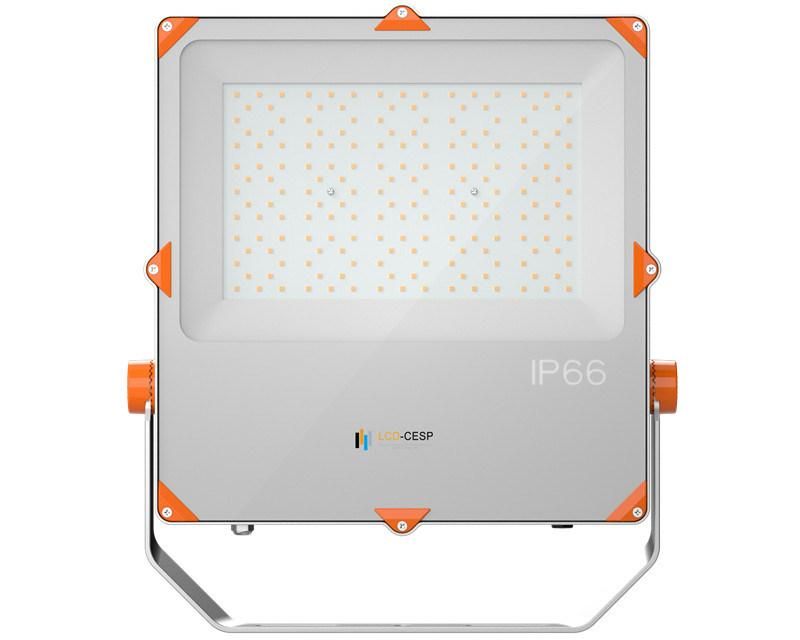

Product Photos:







Dimensional drawing







Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)

LCD-FLY-013 10W 1300 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 0.54Kg 179x145x32
LCD-FLY-023 20W 2600 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 0.65Kg 189x148x32
LCD-FLY-033 30W 3900 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.25Kg 261x194x47
LCD-FLY-053 50W 6500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.50Kg 350x265x69
LCD-FLY-083 80W 10400 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.70Kg 350x265x69
LCD-FLY-103 100W 13000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 2.85Kg 397x308x68
LCD-FLY-153 150W 19500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.18Kg 441x347x68
LCD-FLY-203 200W 26000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.50Kg 500x385x68

SUITABLE FOR: LED FLY Series, a professional, powerful,energy saving replacement for high intensity discharge lamps.With a compact and modern design, LUXEON(3030) SMD LED chips, a high lumen maintenance factor with Meanwell driver or LCD brand CE&TUV driver , we have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing corrosion resistant made of black Extruded aluminum,featuring high heat dissipation and superior aesthetics with longer lifetime. High transmission rate tempered glass increases rate up to 93%,anti-impact rating IK08. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. An overall IP65 grade to ensure fully water-proof. Our state of the art UL CE TUV etc driver, or be includes a built in 10kV surge suppressor with universal voltage capacity 100-277v 50/60Hz. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings,and parking areas. Works well for wall mounting or ground mounting.
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Highlight
Extruded aluminum heatsink housing body painted with epoxy powder prior to phosphating. Tempered anti-shock thermal silkscreen glass. Built-in electronic ballast Meanwell driver or TUV LCD brand driver, CE standard 1m cable. The polished anodized aluminum faceted louver.
***Extruded Aluminum housing thermal conductivity about 230w/(m.k) and 2.5 times of popular aluminum alloy's 97w(m.k),the more fast way spreading LEDs engine's heat into the air ensure a long lifespan for products.
***High quality housing surface ensure a perfect painted with epoxy powder for the strongest corrosion resistant.
***New hotspot thermal management technology.
***Definitely and incredible dust deposition prevention and easily simply cleaning.
Light source: LED multichip technology with LUXEON or OSRAM LEDs chip.
Direct light emission. Installation by mean of supplied bracket. Over-temperature control circuit inside.
