• Model NO.：QYTGL014
• Certification：CE, RoHS
• Operating Voltage：85-265V
• Input Voltage：24V
• LED Chips Brand：Epistar
• HS Code：94054090
• Production Capacity：5000

Basic Info.

Model NO. QYTGL014 Certification CE, RoHS Operating Voltage 85-265V Input Voltage 24V LED Chips Brand Epistar HS Code 94054090 Production Capacity 5000

Product Description

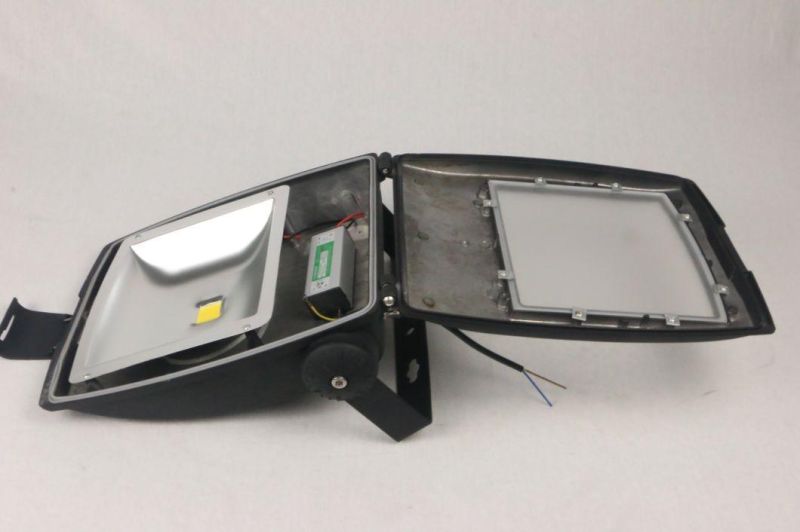

TGL014 led flood lighting

Quick Details

• Item Type: flood Lights
• Light Source: LED
• Input Voltage(V): AC85-265V
• Lamp Power(W): 50
• Lamp Luminous Flux(lm): 800
• Lamp Luminous Efficiency(lm/w): 80
• CRI (Ra>): 80
• Color Temperature(CCT): Pure White
• Working Temperature(ºC): -30 - 60
• Working Lifetime(Hour): 50000
• Lamp Body Material: Aluminum Alloy, Aluminum Alloy Led Tunnel Light
• IP Rating: IP65
• Certification: CCC, CE, CQC, RoHS, CCC,CE,CQC,RoHS
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: QIYA led floodlight
• Model Number: QYTGL014 led floodlight
• Color: Black/Grey/White/Others according ro your reguest
• Lam Luminous Efficiency (lm/w): 80
• Working Temperature (ºC): -30~60
• Working Lifetime (Hour): 50000
• Power Supply Efficiency: >90%
• lamp accessories(screw): stainless steel
• Electric protection level: class 1
• Glass: 5mm Tempered glass



1. operating voltage:110V-130V/60HZ

                220V-240V/50HZ

1. power:20-30W
2. Material:Die Casting Aluminum
3. Finishes:White,Black,Gray
4. IP Rating:IP65
5. high strength and corrosion resisting power coated surface
6. High purity aluminum reflector made through stretch,polish and anodize processes
7. Optional 5mm thick tempered, non-glare glass or clear glass.

8. Model NO.	COB	Votage	Color temperature	CRI	Power factor	Light efficiency	Operationg temperature	Packing (cm)	Pcs/Ctn	Volume
   TGL014-10W	1*10W	AC100-240V 50/60HZ	2700k-6000k	≥80	0.95	100lm	-40ºC~60ºC	45*37.5*42.5	20	0.072
   TGL014-30W	1*30W	AC100-240V 50/60HZ	2700k-6000k	≥80	0.95	100lm	-40ºC~60ºC	53*26.5*35.5	5	0.05
   TGL014-50W	1*50W	AC100-240V 50/60HZ	2700k-6000k	≥80	0.95	100lm	-40ºC~60ºC	48*34.5*43`	4	0.071

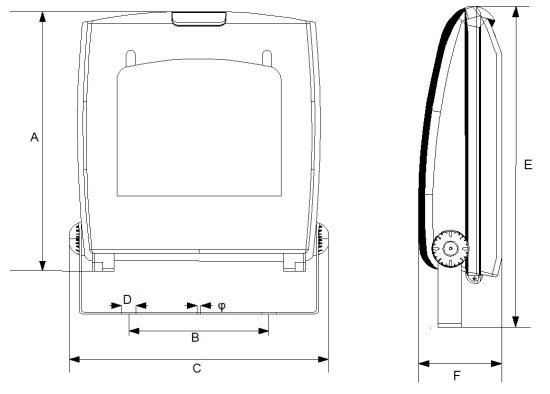

Model NO.	A	B	C	D	E	F	φ
10W	84	80	165	6	198	54	8
30W	294	120	242	32	323	79	10
50W	357	120	320	32	393	107	10
