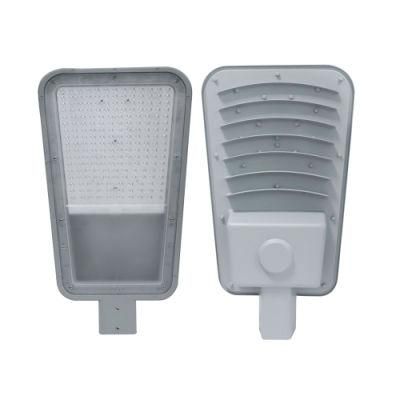

120W 150W 180W LED Street Sword Shaped Light

Jiaxing Sinolamp Electric Co., Ltd.
  • Power Supply：AC
  • Lamp Body Material：Aluminum Alloy
  • Power：60-180W
  • Application：Square, Highway, Garden
  • IP Rating：IP66
  • Certification：CE, EMC, RoHS

Base Info

  • Input Voltage：220v
  • With Light Source：With Light Source
  • LED Chips Brand：Bridgelux
  • Ra：>80
  • Transport Package：1PCS , Box
  • Specification：CE ROHS
  • Trademark：OEM
  • Origin：China
  • HS Code：9450459000
  • Production Capacity：5000PCS,Week

Description

Power Input VoltagePower efficiencyChip BrandChip QTYIuminous Flux(lm)Diameter of pipeLamp Size(MM)N.W(KG)G.W(KG)Outer packing Size(mm)
1pcs/CTN60WAC100-240V0.9Bridgelux 60*1W90LM /W60mm620*260*902.64.6KG62*26*8.560WAC100-240V0.9Bridgelux 60*1W90LM /W60mm620*260*902.64.6KG62*26*8.5120WAC100-240V0.9Bridgelux 60*2W90LM /W65-70mm720*280*12057.3KG72*28*8.5120WAC100-240V0.9Bridgelux 60*2W90LM /W65-70mm720*280*12057.3KG72*28*8.5180WAC100-240V0.9Bridgelux 60*3W90LM /W65-70mm880*340*1206.59.0KG88*34*9180WAC100-240V0.9Bridgelux 60*3W90LM /W65-70mm880*340*1206.59.0KG88*34*9Great features:
1) Certification: All the series LED street lights are CE and Rohs certified.
2) Full range wattage options: 30W to 180W
3) LED chips: Bridgelux and Epistar chips for your option. The system efficacy is up to 85-140lm/W.
4) Very big heat sink: using high quality aluminum material.
5) Reliable driver:  we use MEANWELL or MOSO to make sure the constant current
6) Maintenance. The driver could be plugged in and out easily. Only a few screws, no soldering point, while lots of high bays in the market is hard to replace the driver. So if the driver fails we can replace the new driver to you in three  to five years for free including shipping fee. No risk for you.

Quality Control:
All the products are inspected based CE standard.
Step 1: All the raw material will be inspected before assembling. Also do first inspection every day.
Step 2: All the products will go to our aging test room lighting for 48 hours before inspection.
Step 3: The products will be inspected by 100% after aging test(in Integrating sphere) ,including power,Voltage.
Step 4: The products will go to dark room to test Light distribution curve(IES file).
Step 5 : The products which is good will be labled with certification and go to next procedures(packing).
