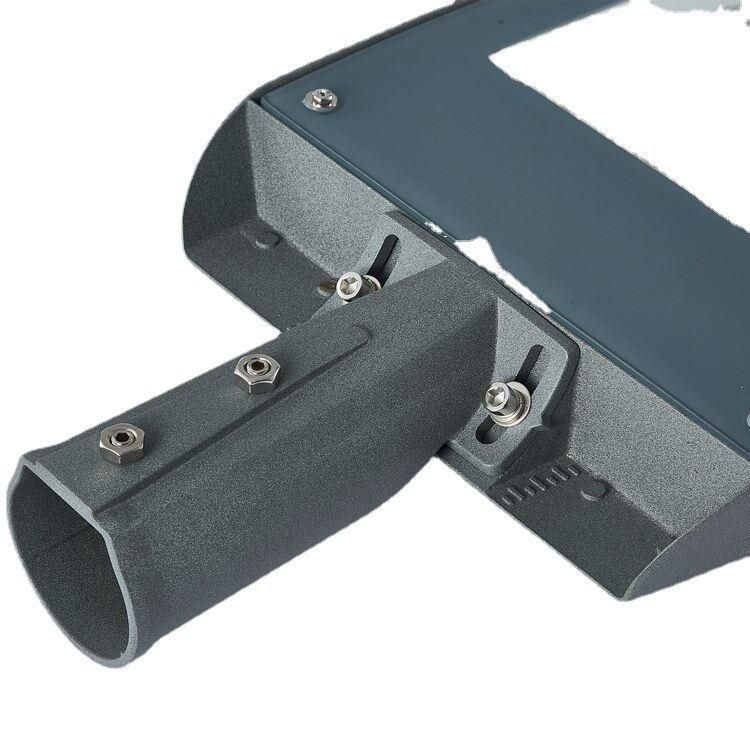

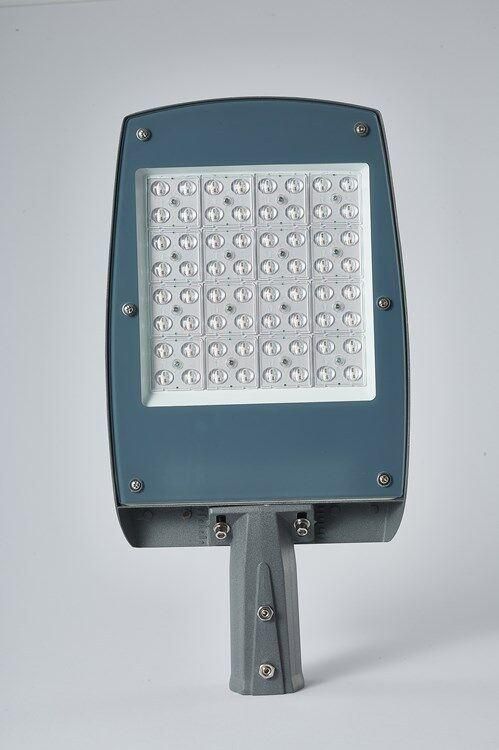

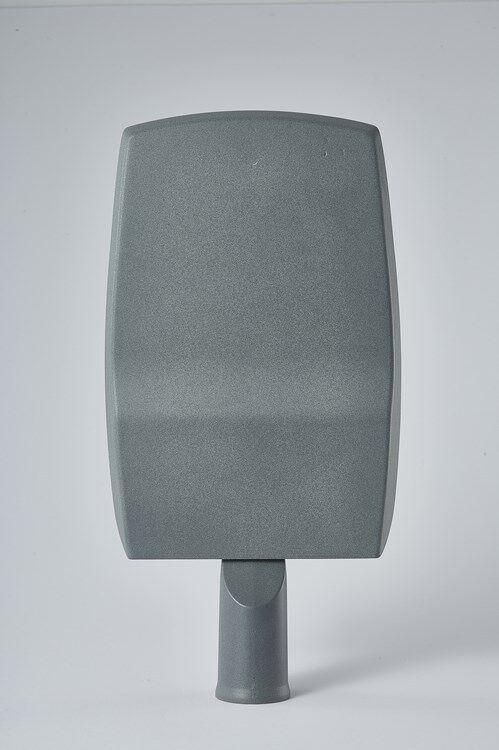

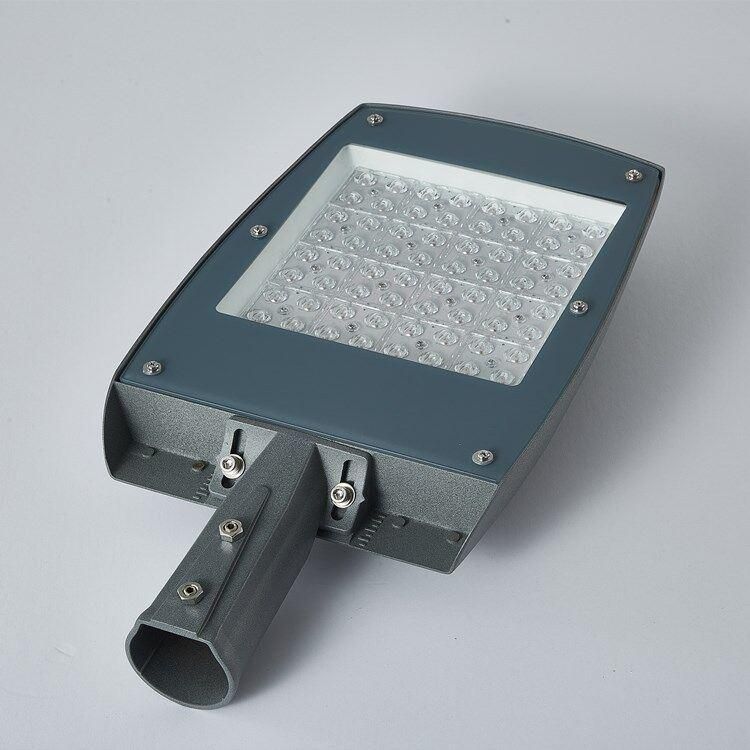

60W 80W 100W Slim High Lumen 5 Years Warranty Street Light

Peony Lighting Technology Co., Ltd.
  • Style：modern
  • Color Temperature：2700-6500K
  • Lamp Body Material：Aluminum
  • Lighting Area：>30m^2
  • Power：51-100W
  • Technics：Die-Cast Aluminum

Base Info

  • Model NO.：PL-LD-089-70W
  • Warranty：5 years
  • IP Rating：IP66
  • Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, ENEC CB
  • Light Source：With Light Source
  • Transport Package：59*50*16.5cm
  • Specification：D480*H525mm
  • Trademark：Peony
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：500000PCS,Year

Description

Arterial road; high ways; elevated road; city street; bridge; sidewalks road lighting; the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.
Packaging:

Item ModelCarton size(mm)N.W(KG)G.W(KG)QTY
PL-LD-089-30/40/50W500X230X80               3.003.50   1 PCS
PL-LD-089-60/70W600X280X100         3.604.20   1 PCS
PL-LD-089-80/100W620X330X1004.104.80   1 PCS
PL-LD-089-120/150W680X350X1004.705.50   1 PCS

60W 80W 100W Slim High Lumen 5 Years Warranty Street Light60W 80W 100W Slim High Lumen 5 Years Warranty Street Light60W 80W 100W Slim High Lumen 5 Years Warranty Street Light60W 80W 100W Slim High Lumen 5 Years Warranty Street LightPrecautions:
1, prior to installation or use, please read the instructions say;
2, when the lamp is working, do not touch;
3, when the lights do not work with water or a wet cloth to wipe lamp;
4. Consult require special installation technician or supplier;
5, artificial damage in the warranty period, free repair.
Maintenance:
1,The power must be cut off before maintaining.
2,Cleaning the glass of the product in regular time to ensure the good efficiency.
3,Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.
4,Can use the screwdriver open the cover and take out of the driver to change a new.And connection of the wires of AC driver please follow below: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, and the black wire connect the negative pole of driver. and don't mix the positive pole and negative pole.
5,Please take measures of lightning protection, and ensure the Input voltage which is stable.
6,Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
7,Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
8  Don't upside down when installing or lighting the lamp
  1. Please ask the qualified professional person for help.

Warranty

     All products use constant current power supply ,and have 5 years warranty(According to your requirement).
     Remark:The warranty on the base of right storing way,right installing way,right using way,right maintaining way.Any broken out of our rule,out of our warranty.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
     Please read the instruction carefully before you use the product.We keep the right of final explanation for the instruction and the product.The product will keep updating continues.And sorry for the no notice for the updating.sure the Input voltage which is stable.

 60W 80W 100W Slim High Lumen 5 Years Warranty Street Light


FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?



A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation, while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
