• Model NO.：HPZMGLW
• Warranty：5years
• IP Rating：IP67
• Certification：CE, CQC, EMC, FCC, LVD, RoHS
• Voltage：24V
• Light Source：With Light Source
• Chip：SMD 3030
• Driver：Meanwell or Hpzm
• Installation Pipe Dia.：50mm,60mm
• Transport Package：Normal Packing
• Specification：RGBW BY DMX512
• Trademark：HPZM or OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：1000,Day

Basic Info.

Model NO. HPZMGLW Warranty 5years IP Rating IP67 Certification CE, CQC, EMC, FCC, LVD, RoHS Voltage 24V Light Source With Light Source Chip SMD 3030 Driver Meanwell or Hpzm Installation Pipe Dia. 50mm/60mm Transport Package Normal Packing Specification RGBW BY DMX512 Trademark HPZM or OEM Origin China HS Code 9405409000 Production Capacity 1000/Day

Product Description

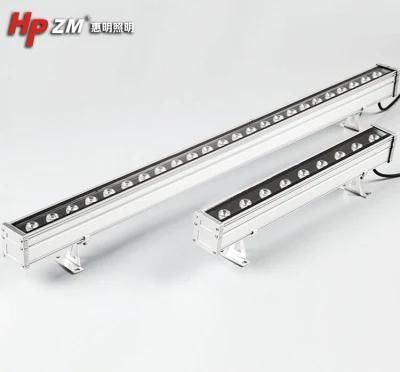

Lastest Design  IP67 LED Wall Wash Light

New Features:
1. The brightness is uniform and gradually fades; the continuous surface is installed without dark areas;
2. Grille net and shading board, double anti-glare;
3. Structure waterproof, IP grade can reach above IP66;
4. Equipped with air pressure valve (Respirator) to ensure the pressure balance inside and outside the lamp;
5. Multi color mixing, DMX512 control system, gray level: 65536 levels, refresh rate: 4K;
6. The dial adjustment bracket, the gear bite adjustment angle, stable and reliable; the irradiation angle can be adjusted by 180°;
7, 4mm flat tempered glass, lamp body without step design, with self-cleaning, no dust accumulation and other characteristics;
8. The lamps are powered by waterproof three-way power supply, and the power transmission at a longer distance;


Item NO.	HPZMGLW
Power	24W   18W    12W   9W   6W
Size	L1000*W39*H95MM  or  L500*W39*H95MM  or  L300*W39*H95MM
LED chip	Osram  or  Cree
Material	Aluminum    alloy
Light efficiency	100-130LM/W
Protection level	IP65
Power Factor	0.95
CCT	2700-7500K
Lamp cover	Dark gray
Light color	RGBW,  or  2700-7500K
Voltage	DC24V,
Beam angle	10*30 °
Life span	50,000hrs
Warranty time	2-3years
Certificate	CE&ROHS&CB&FCC

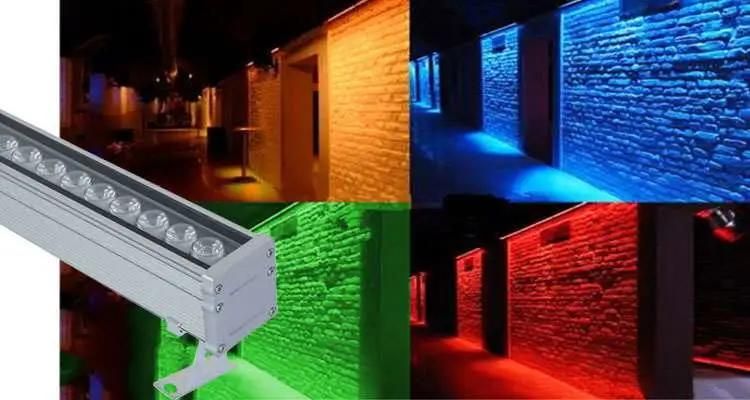

Applications:
1) Ambience lighting for bar, dance hall

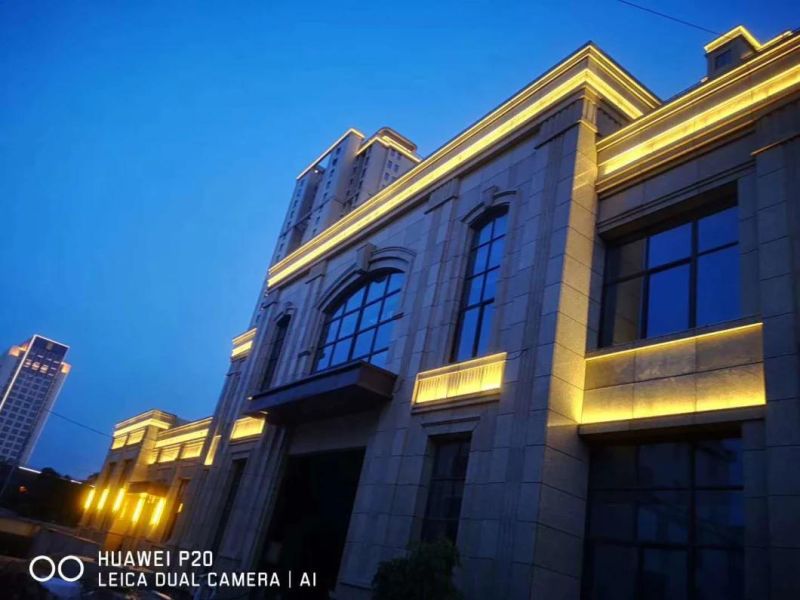

2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas




DMX Control System :

A:LED Wall Washer should be used in accordance the environment requirement

B: 1PCS DMX control could work 170pcs led lighting fixtures , all the light change same effect at the same time .

C: Automatic set the address code.

D: Double signal cables(3 cores),double power cables (2 cores).Female and Male connection.

E. The led lighting fixtures more than 30M, need to signal amplifier .

F: The input and output port should meet the requirements, otherwise it will damage fixture.




Advantages:

1. Low power consumption, high intensity, and stability.
2. Unique circuit design with strong resistance against static electricity ensures the stability of the light fixture for long lifespan guaranteed.
3. Fashion and pretty appearance and best waterproof design.
4. NO UV,No risk of mercury emission, NO pollution,environmental protection
5.70%-80% energy-saving
6. Easy to install and use

Packaging and Delivery:

1. Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product
2.  3-9workdays for 600-3000PCS after deposit, 1-3days for samples.

Manufacturer :
1.With good quality control systems, get FCC CB CE Certification, we always believe Quality is our Culture.
2.with good advance and high technology machine, with good experience staff, with good R&D team.
3.Factory workshop : Clean and Compliance 6S management system. Give employees a good working environment.

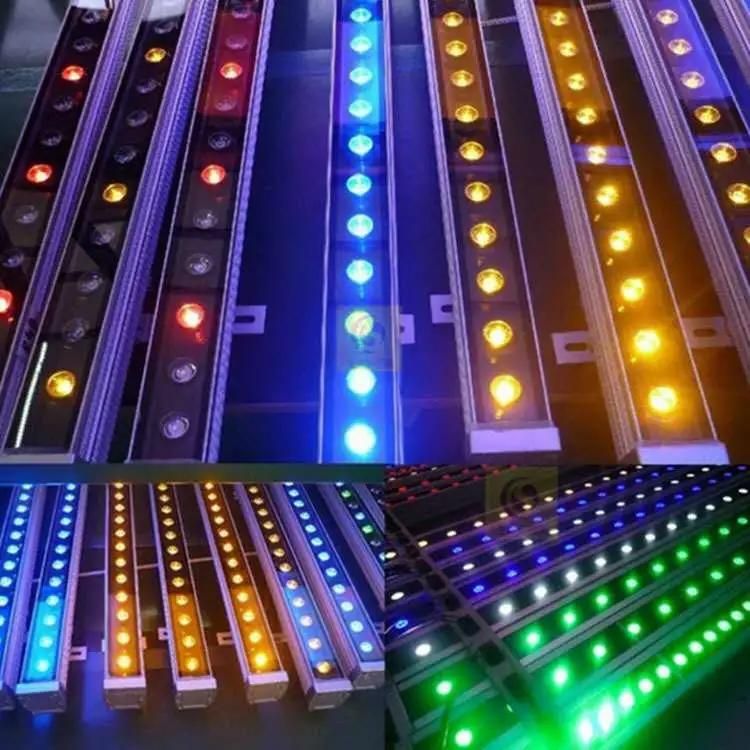

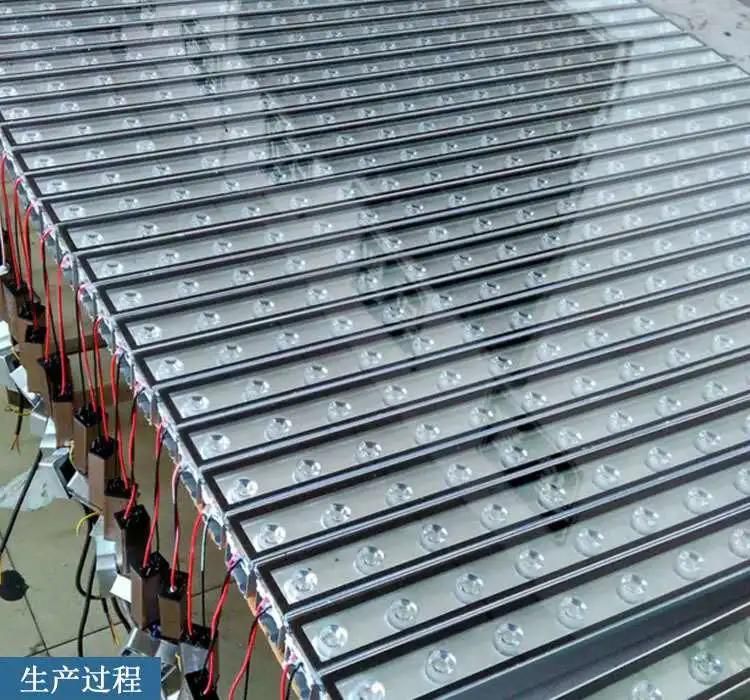

Aging before packing and delivery in our workshop:
To ensure all the led wall washer lights are good.

Services:
1. With your inquiry (technology, price, MOQ, quality etc), we will reply within 24 hrs.
2. We will protect your sales area.
3. Good after-serive, we will solute any question when you using our products.
4. Competitive price, we would negoti if you have mass order.
5. OEM,ODM can be accepted
