• Model NO.：LED Street Light Casing MLT-SLH-GM-II
• With Light Source：Without Light Source
• LED Chips Brand：Semileds
• Model No.：Street Light Casing Mlt-Slh-GM-II
• Dimension of Housing：69.5cm(L)*29.0cm(W)*10.6cm(H)
• Fixture Material：Die-Casting Aluminum Alloy
• Surface Finish Color：Sanded Gray or Customized Color
• Material of Diffuser：High Transmittance Tempered Glass
• Effective MCPCB Mounting Size：205.5mm(L)*155mm(W)
• Recommended LED Power：120W to 150W
• Driver Box Dimension：245mm(L)*100mm(W)*62mm(H)
• Pole Mounting：Accommodates up to Φ65mm Pipe
• Adjustable Slip Fitter：-15°to +15°
• Standard Photocell：Optional
• Quick Disconnection Terminal Block：Optional
• Transport Package：Form Box with Export Carton
• Specification：Street Light Casing MLT-SLH-GM-II
• Trademark：Moonlight
• Origin：China
• HS Code：9405990000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. LED Street Light Casing MLT-SLH-GM-II With Light Source Without Light Source LED Chips Brand Semileds Model No. Street Light Casing Mlt-Slh-GM-II Dimension of Housing 69.5cm(L)*29.0cm(W)*10.6cm(H) Fixture Material Die-Casting Aluminum Alloy Surface Finish Color Sanded Gray or Customized Color Material of Diffuser High Transmittance Tempered Glass Effective MCPCB Mounting Size 205.5mm(L)*155mm(W) Recommended LED Power 120W to 150W Driver Box Dimension 245mm(L)*100mm(W)*62mm(H) Pole Mounting Accommodates up to Φ65mm Pipe Adjustable Slip Fitter -15°to +15° Standard Photocell Optional Quick Disconnection Terminal Block Optional Transport Package Form Box with Export Carton Specification Street Light Casing MLT-SLH-GM-II Trademark Moonlight Origin China HS Code 9405990000 Production Capacity 5000PCS/Month

Product Description

Street Light Casing MLT-SLH-GM-II
Brief Introduction

This LED street light casing fixture MLT-SLH-GM-II is the large size of SMD LED street light casing fixture from Moonlight LED street light G series. Modern design, precision die-casting molded and superior corrosion resistant coating finish Shell with standard twist lock photocell mounting platform, make this Shell can be used for variety of LED roadway lighting applications.

Feature

• Durable aluminum alloy die-casting LED street light casing for heavy-duty outdoor lighting applications.
• Ribbon-free and compact design.
• Easy drainage system.
• Separate LED light engine and driver box for easy maintenance.
• Tool-less design for replace the LED driver without any tool.
• Large driver box complies with variety of drivers and dimming options.
• Both cover and bottom of the driver box have the GND bosses for security.
• Plastic electrostatic spraying to resist corrosion, chipping and fading.
• Adjustable knuckle slip fitter help to adjust the led street light fixture on-site for optimal photometric performance, which make sure that the light distributions, are specifically adapted to the real needs of the area to be lit.
• Side-entry or post-top mounting. Universal mounting pieces allows precise adjustment on-site.
• 5mm high light transmittance tempered glass diffuser.
• Silicon gaskets.
• SUS304 stainless steel bolts for fastening.
• The powder coated die-cast clips make it a harmonious overall with the rest of the luminaire.
• Twist lock photocell mounting platform for lighting control.
• Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
• IP66 rated, protect from all dust and harsh weather.
• Standard sanded gray finish.
• Easy to assemble, install and linemen friendly maintain.

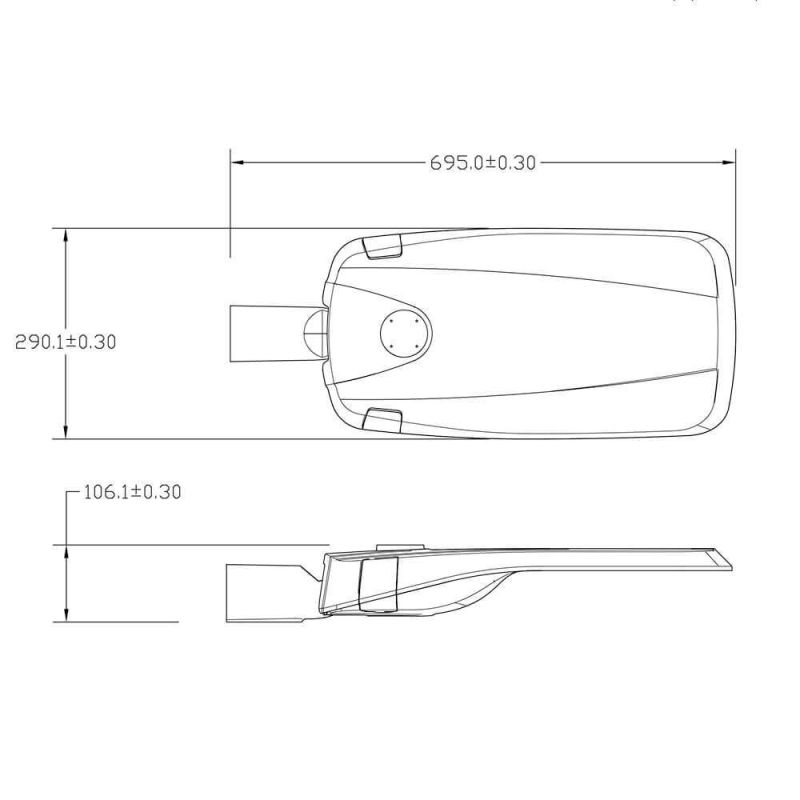

Mechanical Dimensions


 Parameter

Model No.	LED Street Light Casing MLT-SLH-GM-II
Dimension of Shell	69.5cm(L)*29.0cm(W)*10.6cm(H)
Fixture Material	Die-casting Aluminum Alloy
Surface Finish Color	Sanded Gray or Customized color
Material of Diffuser	High Transmittance Tempered glass
Effective MCPCB Mounting Size	205.5mm(L)*155mm(W)
Recommended LED Power	120W to 150W
Driver Box Dimension	245mm(L)*100mm(W)*62mm(H)
Pole Mounting	Accommodates up to Φ65mm pipe
Adjustable Slip Fitter	-15°to +15°
Standard Photocell	Optional
Quick Disconnection Terminal Block	Optional
IP Rating	IP66

Application

• This heavy-duty, modern design and cost-effective LED street light casing fixture is typically used as 120W-150W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections
