60W High Brightness Outdoor All in One Solar Street LED Light
Esavior (Guangzhou) Green Energy Co., Ltd.- Power Supply：Solar
- Color Temperature：Cool White 6000-6500K
- Lamp Body Material：Aluminum Alloy
- Power：18V,70wp (High Efficiency Polystalline PV)
- Application：Square, Highway, Garden, Parking Lot
- IP Rating：IP66
Base Info
- Model NO.：ISSL-BRZ-60W-0822V
- Certification：CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, MPPT Charging
- Input Voltage：12V,24V
- With Light Source：With Light Source
- Solar Panel Life-Span：25 Years
- Batteries Capacity/Type：12.80V,30.0ah(384.0wh),LiFePO4 Lithium
- Batteries Life-Span：8+ Years (2000 Circles)
- Controller Type：MPPT , Waterproof Class: IP68
- Sensor：Microwave Radar (PIR &Timing as Optional)
- LED Light Source Max LED Power：60W (36LEDs X 3modules)
- Max Lamp Lumen：5400-6000 Lm
- Life-Span：100, 000 Hous
- Viewing Angle：140°
- Full Charge Time by Solar：6 Hours Stc
- Discharge Time Bright Mode：More Than 11 Hours
- Discharge Time Dim Mode：More Than 55 Hours
- Mounting Height：7-8m
- Space Between Lights：30-35m
- Warranty：3 Years
- Transport Package：Customary Carton,OEM Acceptable
- Specification：1190*410*210mm
- Trademark：ESAVIOR
- Origin：Guangzhou, China
- HS Code：9405409000
- Production Capacity：50, 000 Sets,Year
Description
SUPERIOR (BRONZE) SeriesMODEL NO. ISSL-BRZ-60W Solar Panel Power 18V/70Wp (High Efficiency Monocrystalline PV) Life-span 25 years Batteries Capacity/Type 12.8V/30AH (338.00WH) / LiFePO4 Lithium Life-span 8+ years (2,000 circles) Controller Type MPPT / Waterproof class: IP68 Sensor Microwave Radar ( PIR & Timing as optional ) LED Light Source Rated Power 12V/60W (36LEDs X 3Modules) LED Brand (LED Lumen:195lm/W) Lumens(LM) 5400-6000lm Life-span 100,000 hours Viewing Angle 140° Full Charge Time By Solar 6 hours Discharge Time Bright Mode >11 hours Dim Mode >55 hours Working Temp. -30ºC~+80ºC Color Temp. Cool White 6000K (6000~6500k) / (Warm White 3000K, 4000K available) Mounting Height 7-8m Space Between Lights 30~35m Materials aluminium alloy Certificate CE / ROHS / IP66/TUV-SUD ISO9001/ISO14001 Warranty 3 years Packing & Weight Product Size 1135*355*140mm Net Weight 19.5kg Carton Type Customary Carton/ OEM Acceptable Carton size 1190*410*210mm Qty/ctn 1set per CTN GW. per Carton 21.0kg PCS per Container 20' GP 270pcs 40' GP 620pcs
Product Advantages
Wireless Application:
Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.
Micro-Computer Controlled:
Combine light control system and time control system perfectly, ensure whole system more energy-efficient.
Easy Installation:
No power required, no cables required, easy installation in 5 minutes.
Good Heat Dissipation:
The shell is aluminum with scientific cooling hole, and also built-in aluminum block on the back of the light source to support good heat dissipation .
Extreme light:
Light efficiency reach 195 lm/w, at same watt ,more Bright ,lighting area is expanded and more uniformity
Lithium battery:
Adopt LiFePO4 lithium battery to replace MnNiCo lithium battery, more than 8 years lifespan,longer lifetime.
Modular design:
All components are modular design and in standardized production. Battery can be easily replaced if needed.
Low cost:
Compared with traditional solar led lights, much lower cost, easy to transport.
Projects Show

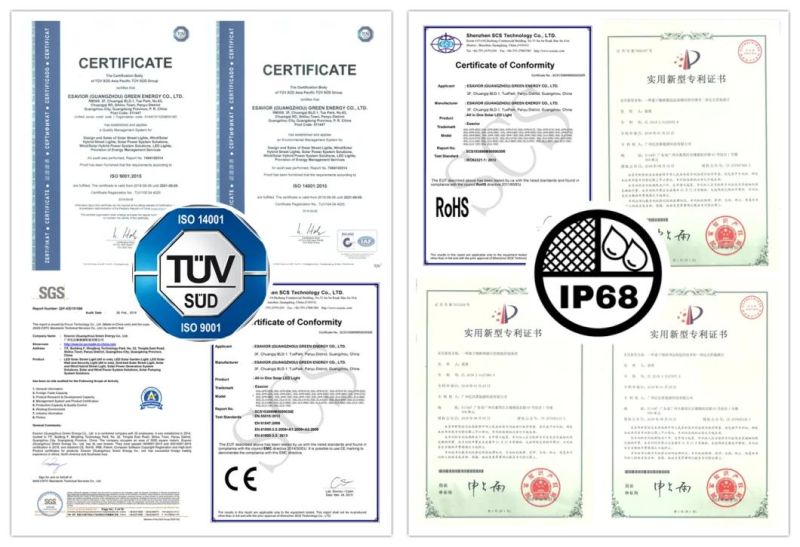

Certificate Show
Workshop Show
Overseas Exhibition
FAQ
Q1:Does the lamp light on automatically?
A:Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q2:Can I order samples for solar street light?
A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3:What about the lead time?
A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).
Q4:Do you offer guarantee for the products?
A:Yes, we offer 3-5 years warranty to our products.
Q5:Can the lamp be used in strong wind environment?
A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.
Q6:What's the difference between Motion sensor and PIR sensor?
A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.
Q7:How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.
Why choose ESAVIOR?
1. Exceeded 10 years' experience in with global successful project reference on the Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.
4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
Thank you for your attention! If there are any questions,please do not hesitate to contact us for freely!
