• Model NO.：HW-20W
• With Light Source：Without Light Source
• Light Pole Heigh：5~6m
• Pole Spacing：30meters
• Transport Package：Cartons and in Bulk
• Specification：CE, FCC, RoHS
• Trademark：HWAWIN
• Origin：Jiangsu, China
• HS Code：94054090
• Production Capacity：2000 Units , Month

Basic Info.

Model NO. HW-20W With Light Source Without Light Source Light Pole Heigh 5~6m Pole Spacing 30meters Transport Package Cartons and in Bulk Specification CE, FCC, RoHS Trademark HWAWIN Origin Jiangsu, China HS Code 94054090 Production Capacity 2000 Units / Month

Product Description

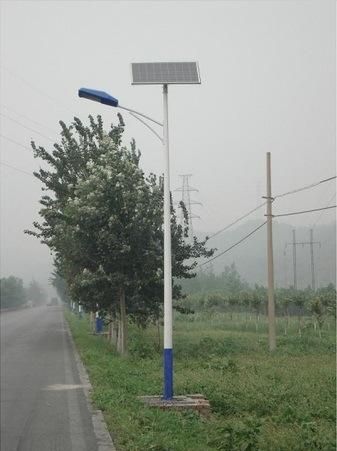

Economical 20W LED Solar Street Light





Description and main technical parameters of 5M-6M 20W Solar LED Street Light:

1. 90W high efficiency mono or poly crystalline silicon solar panel.
2. 20W super bright LED lamp, cool white, 2400 lumens, lifespan more than 80000hours.
3. 12V/24V auto solar controller for solar lighting, time control & light control, with energy saving modes, over-charging and discharging protections etc.
4. 12V/90AH gelled valve-regulated sealed battery, maintenance free and deep cycle.
5. Proposed light pole 5 meters or 6 meters, made of quality steel, plastic coated after hot dipped galvanizing, rust proof. Wind resistance ≥150KM/H
6. Ambient Temperature: -30 C----+60 C
7. 12V/80AH plastic waterproof buried battery box, IP68
8. DC12V system voltage

Above configuration of 5M-6M 20W Solar LED Street Light is designed on Averaged Insolation 5 kWh/m2/day
Lighting time 10-12 hours per night and 3-4 backup overcast or rainy days

In order to deisgn and quote the Solar Street Light exactly, please inform us below information:

1. Where is the final installation place (Country & City name)? or tell us the latitude and longitude of lighting place.
    The solar radiation will be checked according to the installation place to ensure the lighting time,and save the cost at the same time.

2. Lighting time per night & backup rainy or cloudy days?
    The lighting time usually is 8 hours, 10 hours or 12hours, or choose half power design according to actual conditions.
    Besides, how many backup days under rainy or cloudy weather will be required too.

3. Light pole height, and pole style?
    Please choose your favorite pole style in our solar street lights, and tell us the pole height you need.
    Solar street lights usually adopt light poles from 4M-10M.

4. The power of light source?
    The light sources for solar street lights are usually 15W~120W LED.

Please contact us for more information, we will reply you in the earliest time!
