• Model NO.：BDhml--007
• IP Rating：IP65
• Certification：CCC, CE, CQC, FCC, SASO
• Input Voltage：220V
• LED Chips Brand：Bridgelux
• Height of Pole：15m-50m
• Type：Lifting System and Climbing Platform
• Light Source：LED, High Pressure Sodium,Metal Halide
• Allocation Design：According to Clients Requirment
• Shape：Round or Polygon
• Tolerance：+-2%
• Pole of Color：According to Clients Requirment
• Surface Treatment：Galvanized or Powder Coating
• Transport Package：Bubble
• Specification：CE ISO airport certificate
• Trademark：LU YOU
• Origin：Yangzhou China
• HS Code：940540900
• Production Capacity：1000set One Month

Basic Info.

Model NO. BDhml--007 IP Rating IP65 Certification CCC, CE, CQC, FCC, SASO Input Voltage 220V LED Chips Brand Bridgelux Height of Pole 15m-50m Type Lifting System and Climbing Platform Light Source LED, High Pressure Sodium,Metal Halide Allocation Design According to Clients Requirment Shape Round or Polygon Tolerance +-2% Pole of Color According to Clients Requirment Surface Treatment Galvanized or Powder Coating Transport Package Bubble Specification CE ISO airport certificate Trademark LU YOU Origin Yangzhou China HS Code 940540900 Production Capacity 1000set One Month

Product Description

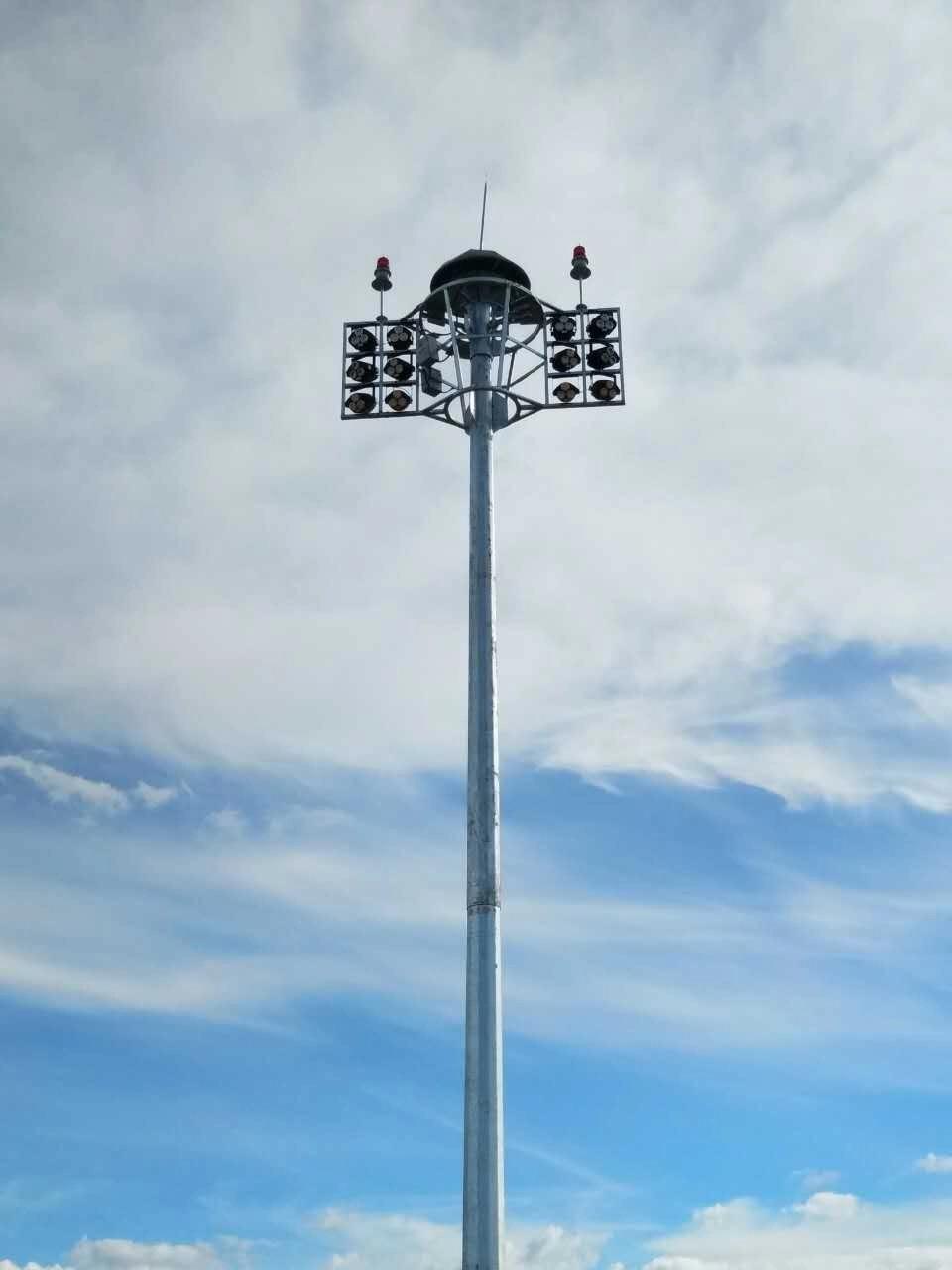

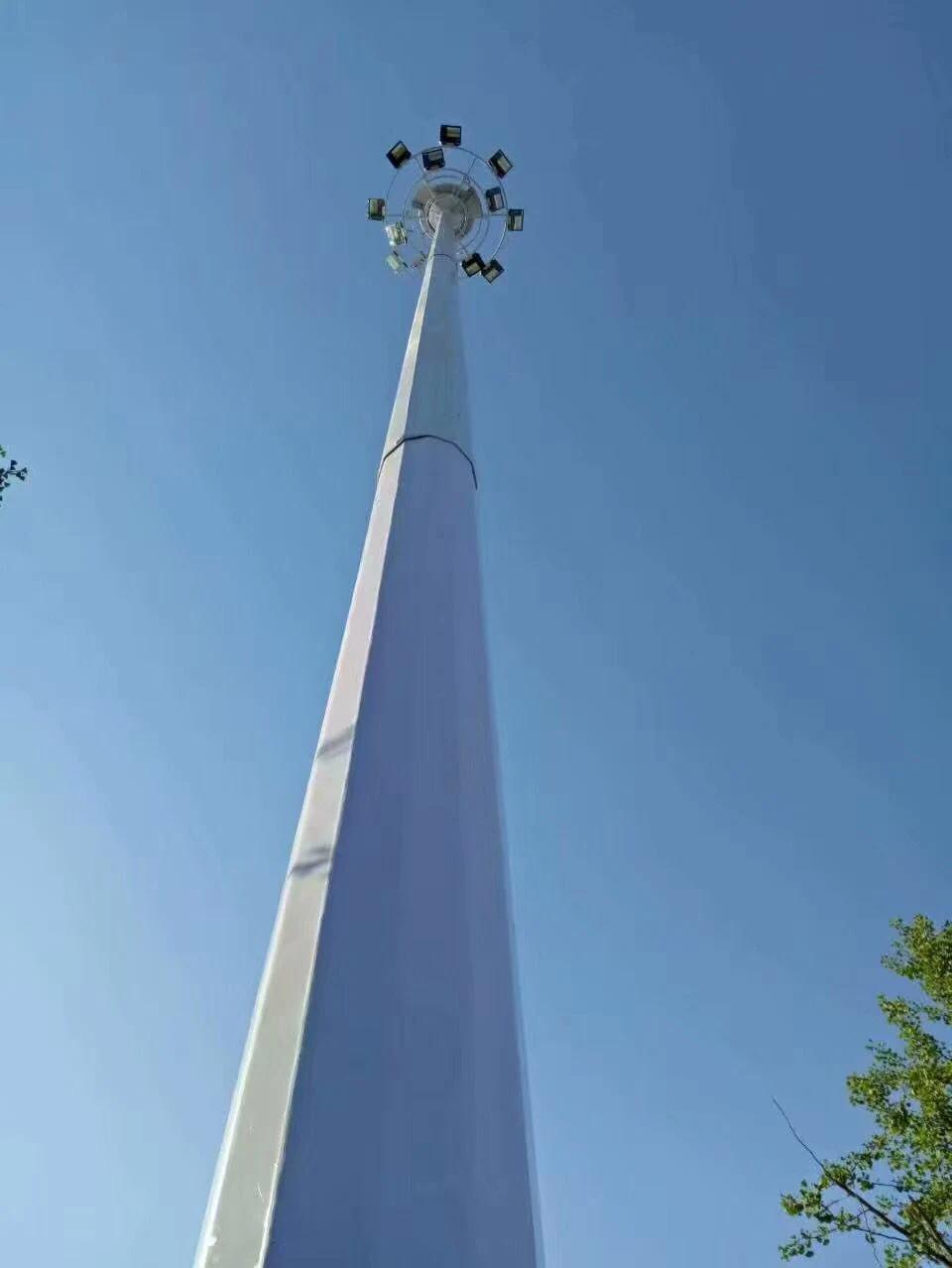

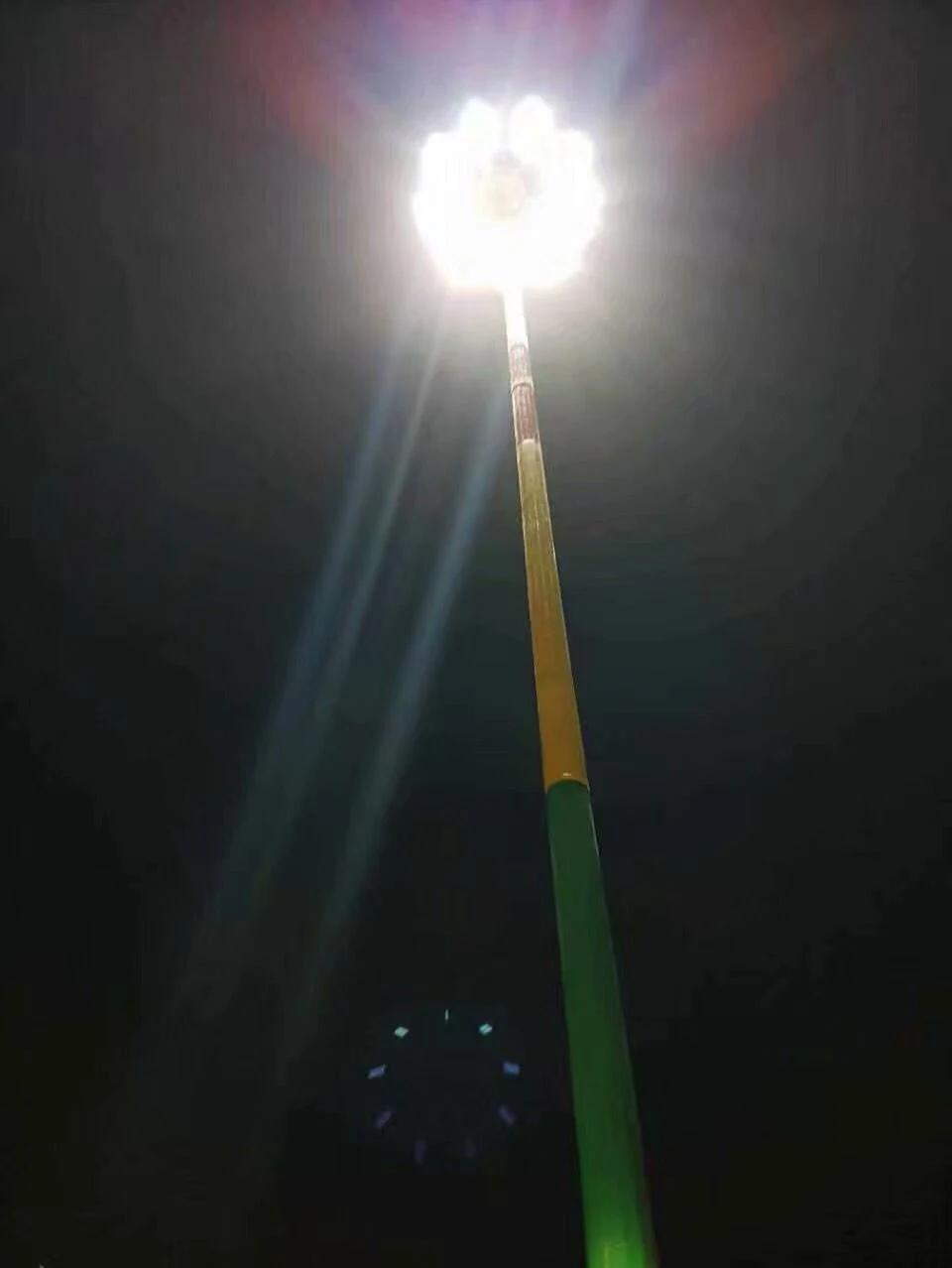

High Quality of High Mast Pole Lighting

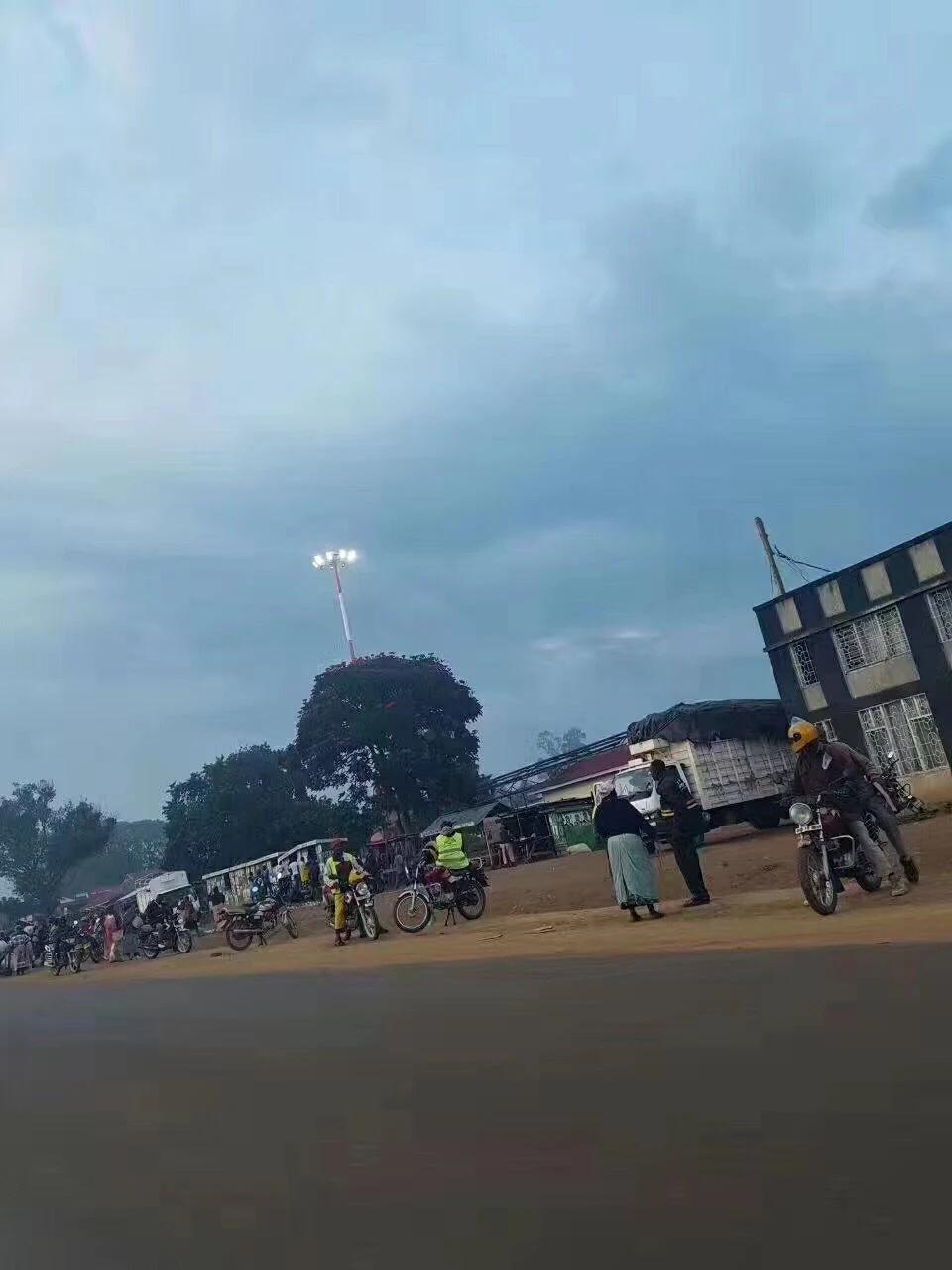

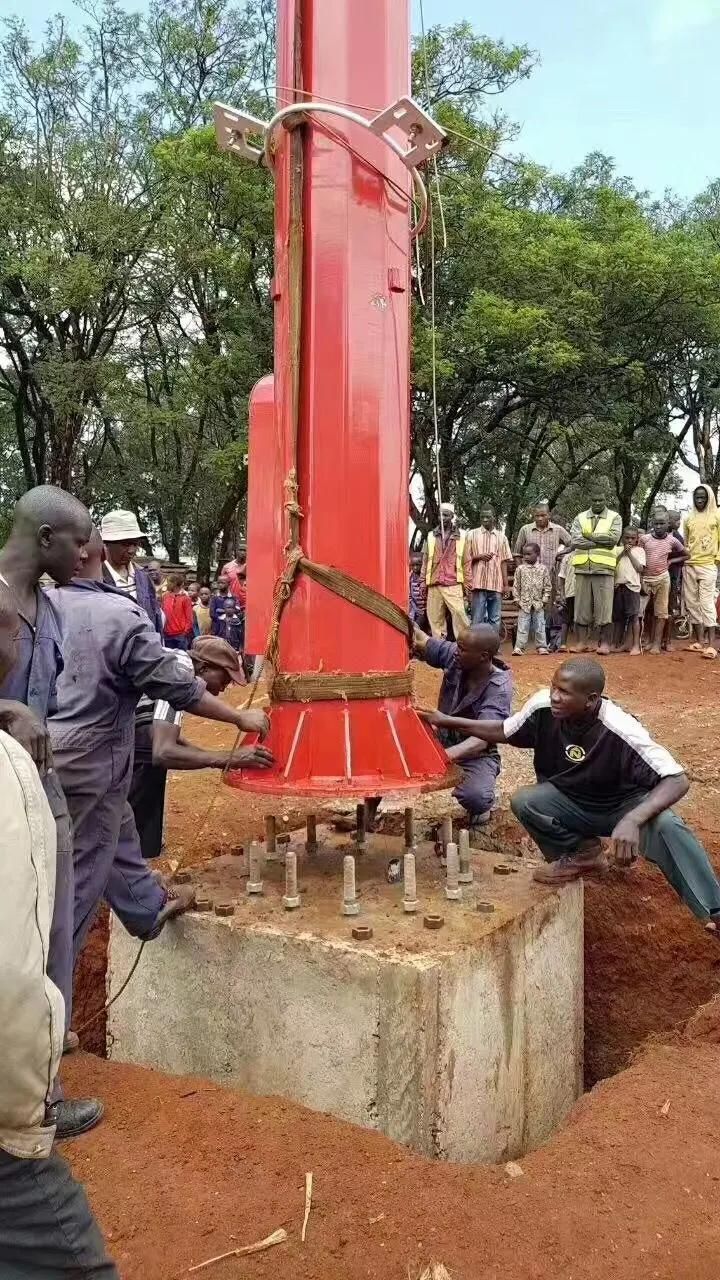

We have over 15 years experience of manufacturing High Mast Lights. We are one of THREE manufacturers that own AIRPORT EQUIPMENT CERTIFICATION in China. You can find our high mast lights in tens of airports in China, and they are also installed in Kenya Airport, Bangladesh airport and etc.
Products Details

HeightFrom 18 m to 50m
Suit for Airport, seaport, plaza, stadium, square, highway station, street way, etc
Shape round or polygon
MaterialQ345B/A572, minimum yield strength>=345n/mm2
Q235B/A36, minimum yield strength>=235n/mm2
Torrance of dimension+- 2%
Lighting Source400 W- 5000 W high pressure sodium flood light, light extension: Up to 30 000 m²
Light plateVarious figure of selection, material with hot DIP galvanization steel frame
Lifting system Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute
Equipped e; Antiferromagnetism brake and break proof device, manual operation applied under power cut
Electric appliance control device Electric appliance box to be be the hold of the pole, lifting operation could be 5 meter away from the pole through wire. Time control and light control could be equipped to realize full-load lighting mode and part lighting mode
Surface treatment Hot DIP galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles Insert mode, inner flange mode, face to face joint mode.
Design of poleAgainst earthquake of 8 grade
Wind Speed 80 Km/Hour
WeldingWe has past flaw testing. Internal and external double welding makes the welding in shape
Thickness 6 mm to 20 mm
Production Process Raw material testCuttingMolding or bending Welding (longitudinal )Dimension verifyFlange weldingHole drillingCalibrationDeburrGalvanization or powder coating, paintingRecalibrationThreadPackages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom, anyway also can following by client require

About BAODE
BAODE Solar Lighting Co., Ltd., as one of the most professional solar LED outdoor lighting manufacturers, is your reliable solar lighting solution provider. BAODE has obtained the ISO9001: 2000 International Quality System Certification and our products comply with CE and SGS criteria...Since 2008, BAODE has introduced over 80, 000 reliable and cost-effective solar powered lighting systems in more than 50 countries all over the world.


Height	From 18 m to 50m
Suit for	Airport ,seaport,plaza,stadium ,square,highway station,street way ,etc
Shape	round or polygon
Material	Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
Torrance of dimension	+- 2%
Lighting Source	400 W- 5000 W high pressure sodium flood light,light extension :up to 30 000 m²
Light plate	Various figure of selection ,material with hot dip galvanization steel frame
Lifting system	Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute  Equipped e;antiferromagnetism brake and break -proof device,manual operation applied under power cut
Electric appliance control device	Electric appliance box to be be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,inner flange mode,face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	80 Km/Hour
Welding	We has past flaw testing.Internal and external double welding makes the welding  in shape
Thickness	6 mm to 20 mm
Production Process	Raw material test→Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding→Hole drilling→Calibration→Deburr→Galvanization or powder coating ,painting→Recalibration→Thread→Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required






Why Us
One-stop Service
You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.
Vertically Integrated Production System
You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.
15 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 15 years' experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc...
Advanced Technology
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University, Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Cost Efficiency
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.






Baode lights ,light up your way
