High Quality LED Street Light IP66 Outdoor Waterproof 40W Aluminum Body
Hangzhou Longlux Electronic Technology Co., Ltd.- Color Temperature：Pure White,Warm White,Cool White
- Lamp Body Material：Aluminum
- Power：40w
- No. of Light Source：≥20PCS
- IP Rating：IP66
- Application：Road
Base Info
- Model NO.：LLX-LY-1201
- Certification：CCC, CE
- Input Voltage：90-305V
- LED Chips Brand：Bridgelux
- Lumen Flux：6320
- Lumen Efficacy：158lm,W
- CRI：>70
- Beam Angle：150*70°
- Working Environment：-40-50°
- Lifetime：>50000h
- Transport Package：Carton
- Specification：440*273*86mm
- Trademark：LONGLUX
- Origin：Zhejiang
- Production Capacity：50000,Year
Description
Basic Info.
Model NO. LLX-LY-1201 Certification CCC, CE Input Voltage 90-305V LED Chips Brand Bridgelux Lumen Flux 6320 Lumen Efficacy 158lm/W CRI >70 Beam Angle 150*70° Working Environment -40-50° Lifetime >50000h Transport Package Carton Specification 440*273*86mm Trademark LONGLUX Origin Zhejiang Production Capacity 50000/YearProduct Description

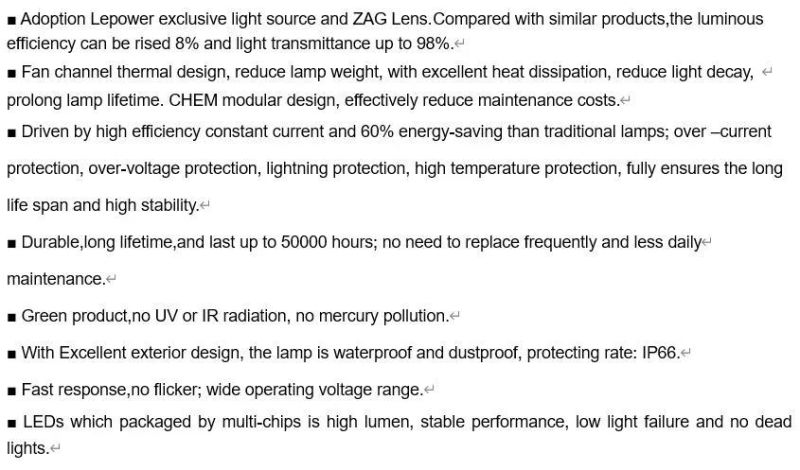

Feature:
Application:This product mainly applies to highway,urban roads and secondary roads,stadium,sidewalk, residential area,industry sites, square area,park ,school ,villa and courtyard,etc.street lighting.

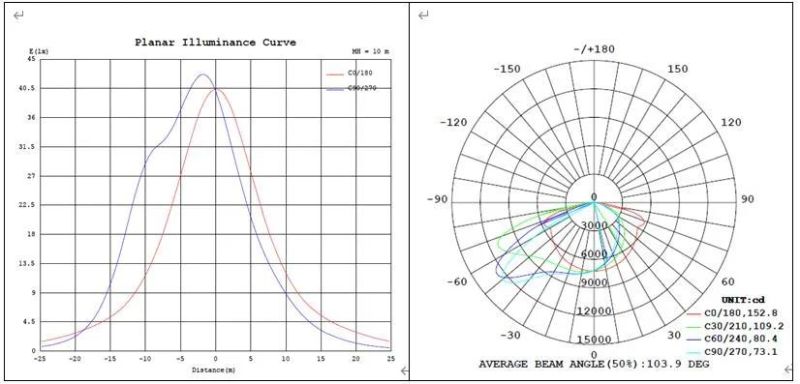

Plane illuminance & Destribution Corve:

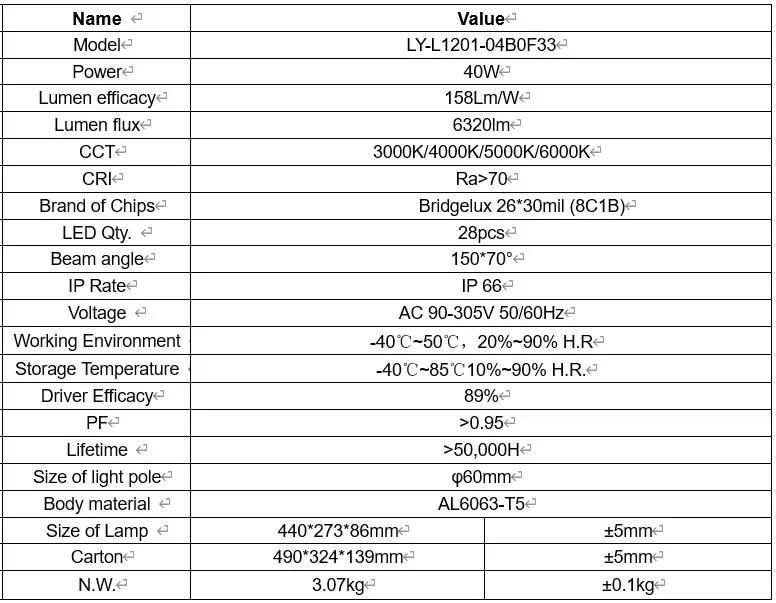

Technical parameter:

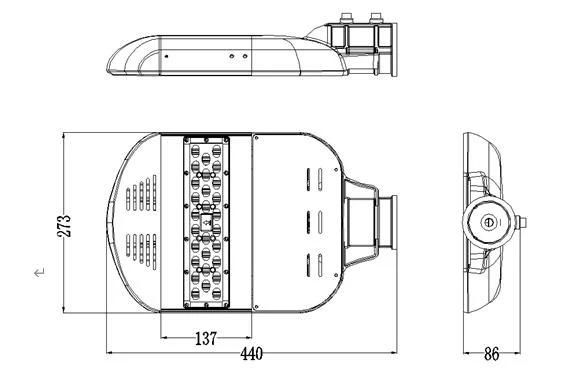

Dimension:

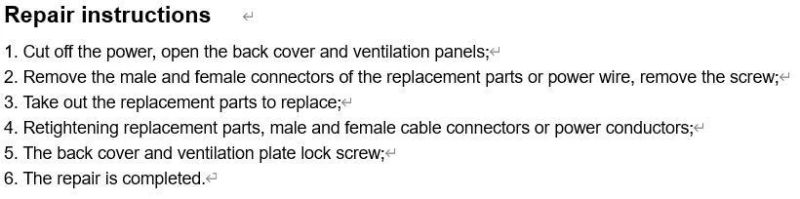

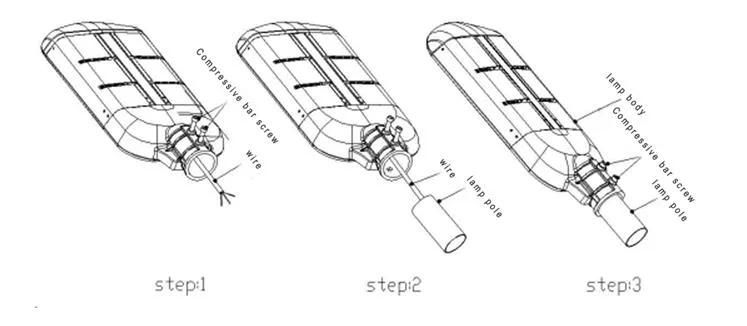

Installation diagram and instruction:
