• Model NO.：30M high mast
• IP Rating：IP65
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
• Input Voltage：220V
• Transport Package：Plastic Foam
• Specification：CE ROHS FCC ISO
• Trademark：LUYOU
• Origin：Jiangsu Yangzhou
• HS Code：9054090
• Production Capacity：5000sets,Month

Height

From 18 m to 50m

Suit for

Airport ,seaport, plaza, stadium, square, highway station, street way ,etc

Shape

Round, Multi-pyramidal, Column form, polygonal or conical

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Torrance of dimension

+- 2%

Lighting Source

400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²

Light plate

Various figure of selection ,material with hot dip galvanization steel frame

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute

Equipped e; ant ferromagnetism brake and break -proof device, manual operation applied under power cut

Electric appliance control device

Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles

Insert mode, inner flange mode, face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

80 Km/Hour

Welding

We has past flaw testing. Internal and external double welding makes the welding in shape

Thickness

6 mm to 20 mm

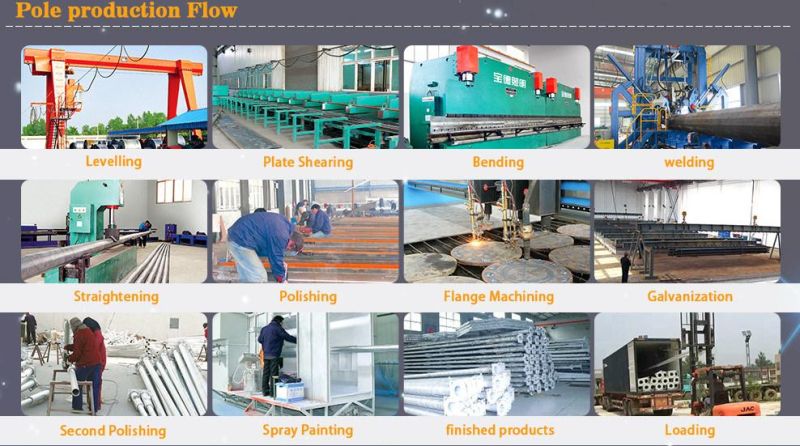

Production Process

Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required

High Mast Lighting Pole Details

Lifting system

Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.

Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.

The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.

The leveling device for luminary support bracket is easy to operate and convenient to adjust level.

Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.

Applications

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

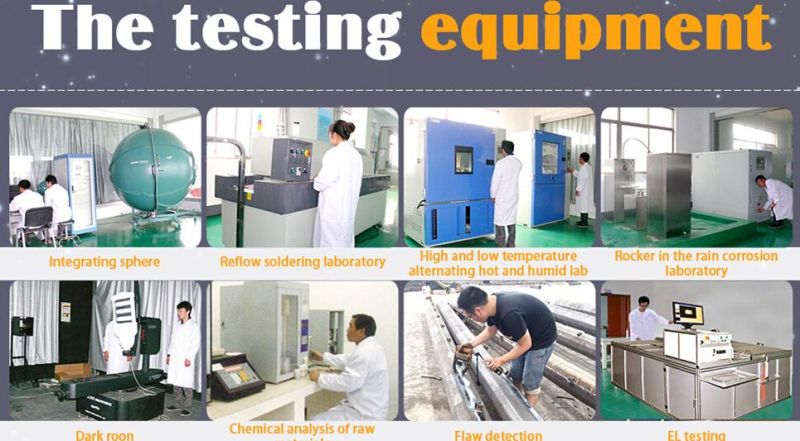

Testing:

Packages:

Bulb wrappings for high mast lighting poles, individual cartons for lamps and controlling equipments, etc. A 40' HP loads 7-20M/ 6-25M/ 5-30M/ 4-35M high mast lights.

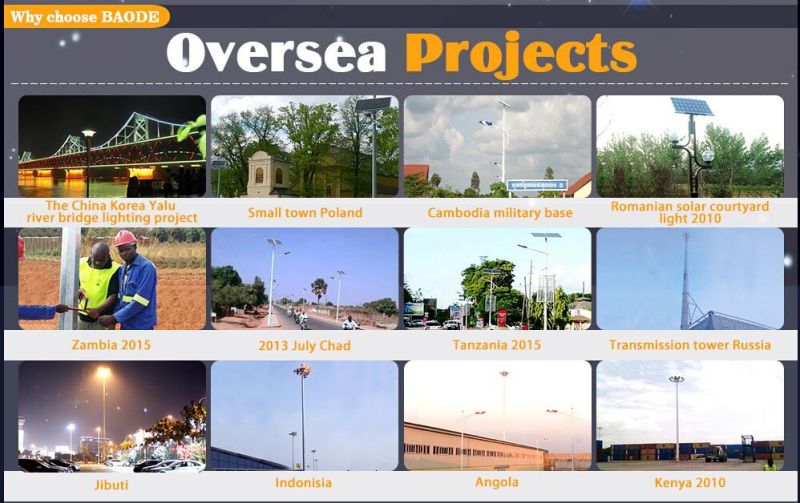

Our projects:

Lead Time
20 days on receipt of payment for 10 high mast lighting poles

Payment Terms
30% in advance and 70% before shipment for our products

Why Us

One-stop Service

You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.

Vertically Integrated Production System

You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source,
light fixture, solar panel, pole and even painting powder to control the cost and quality.

15 Years Manufacturing Experience

Since 1998, we have started manufacturing street lighting. The 15 years' experiences have been a persuasive insurance for us to offer reliable products.

Large Factory with Complete Facility

We have 400 staffs with factory area 6000 m². We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine,
Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .

Advanced Technology

Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products.
We have obtained over 20 national patents and built our own brand LUYOU.

Cost Efficiency

Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.

Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.

FAQ:

1. What information should I offer for solar lighting solution?

a. the installation city b. the width of the road c. the length of the road

2. The warranty

Solar Panel: 5 years LED Lamp: 5 years Lamp Pole: 5 years

LED Driver: 2 years Solar Controller: 2 years Storage Battery: 2 years

The Whole Solar Light: 2 years

3. Payment terms

30% in advance and 70% before shipment

4. Delivery time

Generally, it is 20 working days but it varies with order quantity.

5. The MOQ?

Our MOQ is 1, but for sample orders there would be more shipping&packaging fees per unit.

6. The packaging

Individual package for each component of solar light. Wooden box for LED lamp and solar panel for LCL goods. 80 poles load a 40' container for 8M solar street lights and 60-3.5m solar garden lights in a 20' container.
