• Model NO.：LCD-FA-085-3K-LN8,10*45
• Certification：CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, UL, TUV
• Operating Voltage：24V
• Input Voltage：24V
• LED Chips Brand：Osram
• Transport Package：Carton Box
• Specification：261x194x47 mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Product100W FloodlightCodeFA-105 & 103Color Consistency (SDCM)<5<>Power Consumption (W)100WBrightness (lm)15000lmHalogen Equivalent(W)600-800LED Quantity48Light ColorDaylight WhiteColor Temperature (K)2700K-6500KDimmableNon-dimmable or dimmableCRI> 70Beam Angle (Degree)15°, 30°, 60°, 90°, 120°Input Voltage (v)100-305V ACFrequency (hz)50/60HzPower Factor> 0.95Length (in)/Width (in)/Height (in)/Net Weight (lb)3MaterialTemper Glass, Aluminum alloyWaterproofIP66, IP67 or IP68 Protection RatingIP08Package QuantityPack of 1 UnitWarranty5-7 YearsWeight5Motion Sensoron requests

Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.

Other options available
Optional precabling
Other RAL colours available on request

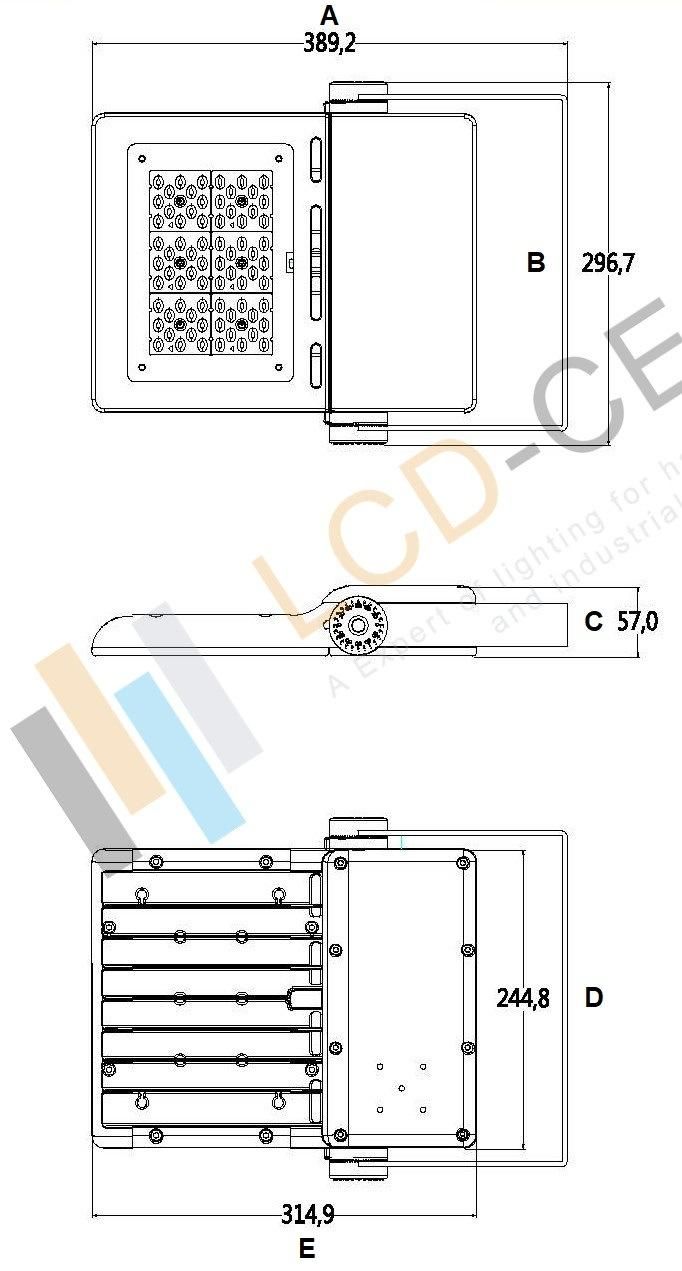

Product DIMENSIONS
AxBxC (mm ):

Item NameAxBxC (MM)FA-085/105/153 IP67 flood light389.2x296.7x57FA-205 IP67 flood light436.6x345.7x57FA-255 IP67 flood light436.6x345.7x57FA-305/353 IP67 flood light582x385x60

Weight (kg ):

Item NameWeight (KG)FA-085/105/153 IP67 flood light3.4FA-205 IP67 flood light4.8FA-255 IP67 flood light7.2FA-305/353 IP67 flood light7.5

Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM

This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Outdoor Pure Aluminum housing dimmable driver 1-10V water-proof IP65
30 Watt LED Flood Light  110-305V 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 4050lm IK07
Car Parking or area lighting with Cree LUMILEDs OSRAM SMD3030 or SMD5050 LEDs chip for LED street Light & working site
Pure Aluminum forming LED spotlight 30W for outdoor Security lighting with 5-7 years warranty



This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Feature

1. A simple, durable, reliable and efficient LED floodlight with Pure Aluminum forming tech. extrude the heat-sink housing for perfect thermal management than the die-casting's housing.
2. Low lifetime-cost Reduce power consumption and free maintenance
3. Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.

Product Specification review

A simple, durable, reliable and great thermal management and efficient LED floodlight

Consumo
ConsumptionAltura de montaje
Assembling height10w 20W 30W 50W 70W 100W 150W 200W2-15meterVoltaje
VoltageFrecuencia
Frequency100-277 V AC or 10-24VDC50/60 HzGrado de Protección
Protection level

Óptica

Optic

IP65 IK08Eficiencia / Efficiency : 90%FHS
UHFVida útil
Life span<1%L70 - 50.000h

Application review

- Low area & job site lighting
- Building surrounds
- Façade lighting

- Car parking lighting

- Road & billboard lighting





Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.



Product dimension review

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

Mast & Post--Road & Car Parking

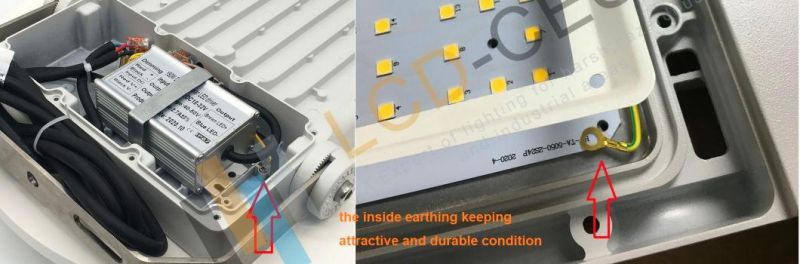

Installation review

HYLY features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.





Low Voltage 30W DC12V 4050 Lumen Outdoor LED Flood Lights



led outdoor flood light bulbs 30W DC12V 4050lm IP66 Aluminum die cast ADC12



Slim Floodlight specifications:
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body
-- Installation with bracket on surface and floor.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Narrow, medium and wide beam angles available.
-- Led colour temperatures optionally 3000K, 4000K and 6000K.
-- Suitable for illumination up to 8 meter height.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 120lm/W efficiency (4000K - 800mA)
-- High colour consistency: <3 SDCM

Application:

Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.



Products features

 MaterialAluminium die cast ADC12 housing +4mm temper glass faceEfficacyup to 178 lumen /wattLEDs chipLUMILEDs SMD5050SDCM<5  Optic beam7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40Ingress protectionIP66Mech. impact protection codeIK08 Impact ratingMounting"U" bracket / slipfitter

without compromising light quality or a sense of security for those in the area.





Power saving and free maintaining





Floodlight configurations





Mounting





Optical distributions

Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40







Dimension





Products Specification
