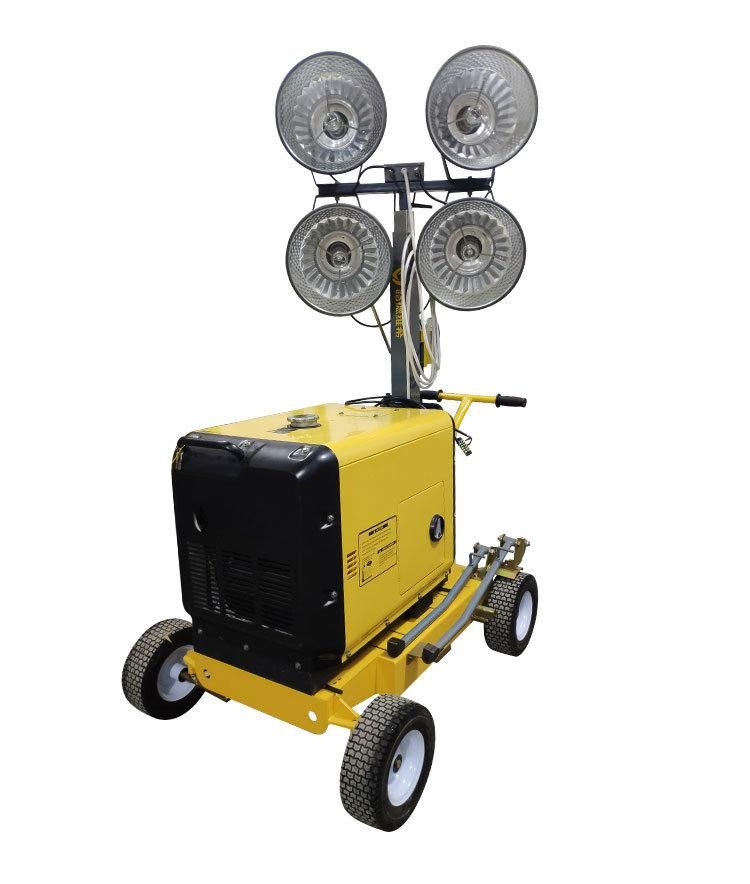

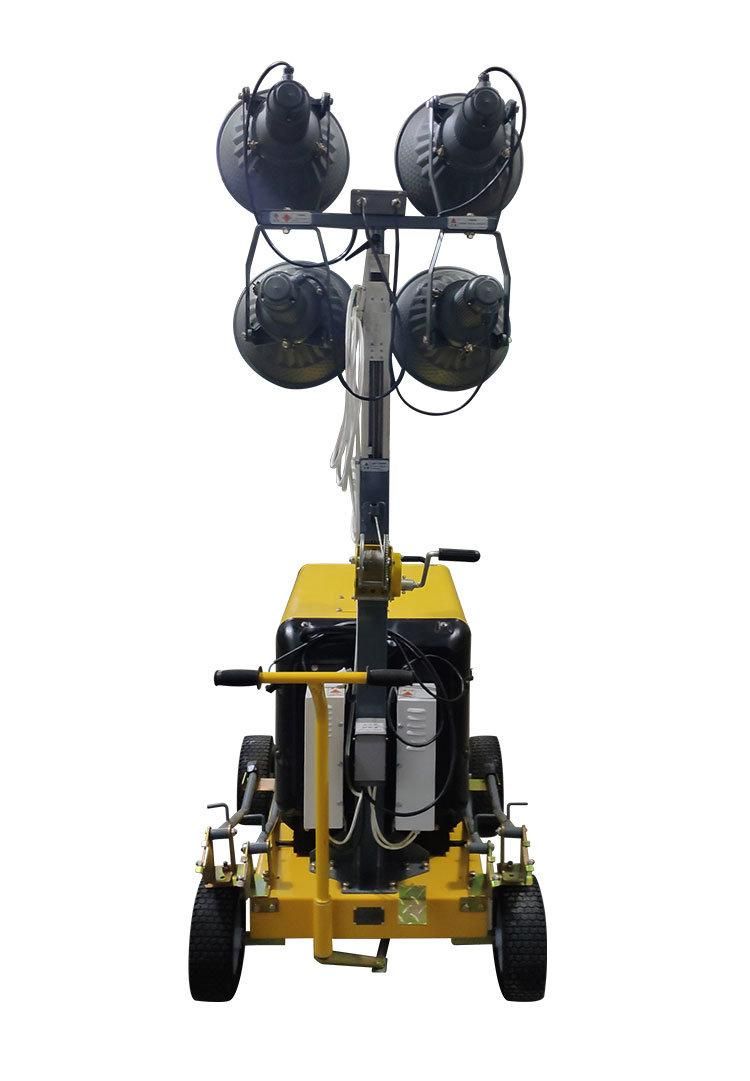

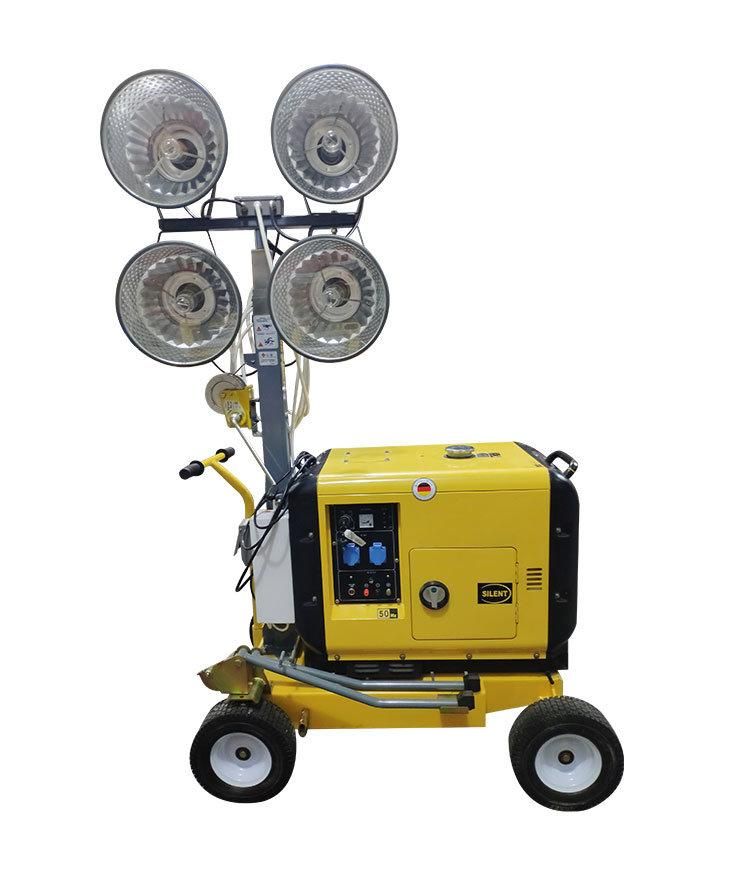

Metal Halide Lamp Light Tower with Diesel Generator
Ludwig Engineering Machinery Manufacturing Co., Ltd.- Lamp Body Material：Stainless Steel
- Certification：CE, RoHS, UL
- Color Temperature：Cool White
- IP Rating：IP65
- Transport Package：Woodeen Box
- Trademark：LUDWIG
Base Info
- Origin：Anhui
Description
Basic Info.
Origin AnhuiProduct Description
Metal halide lamp light tower with diesel generatorFeatures
Environmental protection;
Advertisement can be painted in body of bollon light;
Famous motor and generator, excellent performance, start easily;
Metal halide lamp has long service life;
Anti-fall, safe and solid;
Hand-operated winch, lockable at any moment;
Elevating frame is made of Stsainless steel square pipe;
Elevating frame can rotate, east to light waving, overturn to intake, easy transport and store;
Plastic treated, anti-rust, anti-corrosion and beautiful.
Parameters
| Model | GLT440G | GLT440D |
| Mast | ||
| Maximum height of mast M | 6 | 6 |
| Turnine Angle degree | 360 | 360 |
| Stage | 4 | 4 |
| Operate for extends | head operated winch with safety brake | head operated winch with safety brake |
| Inclination degree | 10 | 10 |
| Windproof ability grade | <8 | <8 |
| Lamps | ||
| Total power of lamps Watt | 4x400 | 4x400 |
| Type of lamp | Mtal halide | Mtal halide |
| light capacity lumen | 4x11,000 | 4x11,000 |
| Lifetime of lamp hr | 5,000 | 5,000 |
| Protection grade | IP54 | IP54 |
| Lighting fitting | Aluminium | Aluminium |
| Characteristics of generator set | ||
| Model | GE3900 | GE6500X/GE6700LN |
| Rated power KW | 3.0 | 5.0 |
| Engine model | WILSON 170F | Diesel, GE WILSON 186F |
| Type | Gasoline, single cylinder, 4-cycle air-cooled | Diesel, single cylinder, 4-cycle air-cooled |
| Voltage&Frequency V(HZ) | 120,220,230,240(at 50/60) | 120,220,230,240(at 50/60) |
| Fuel tank capacity L | 15 | 15 |
| Max continuous running time hr | 12 | 12 |
| Power outlets | 2 | 2 |
| Package size cm | 180x80x150 | 180x80x150 |
| New weight kg | 220 | 320/380 |
