• Model NO.：PL-LD-058S-100W
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Input Voltage：AC90-305V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds 5050SMD
• Transport Package：Export Standard Cartons
• Specification：600*380*136mm
• Trademark：PEONYLIGHTING
• Origin：China
• HS Code：940510000
• Production Capacity：500000PCS,Year

Basic Info.

Model NO. PL-LD-058S-100W Certification CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE Input Voltage AC90-305V With Light Source With Light Source LED Chips Brand Lumileds 5050SMD Transport Package Export Standard Cartons Specification 600*380*136mm Trademark PEONYLIGHTING Origin China HS Code 940510000 Production Capacity 500000PCS/Year

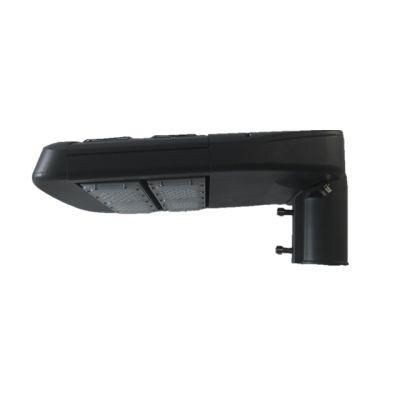

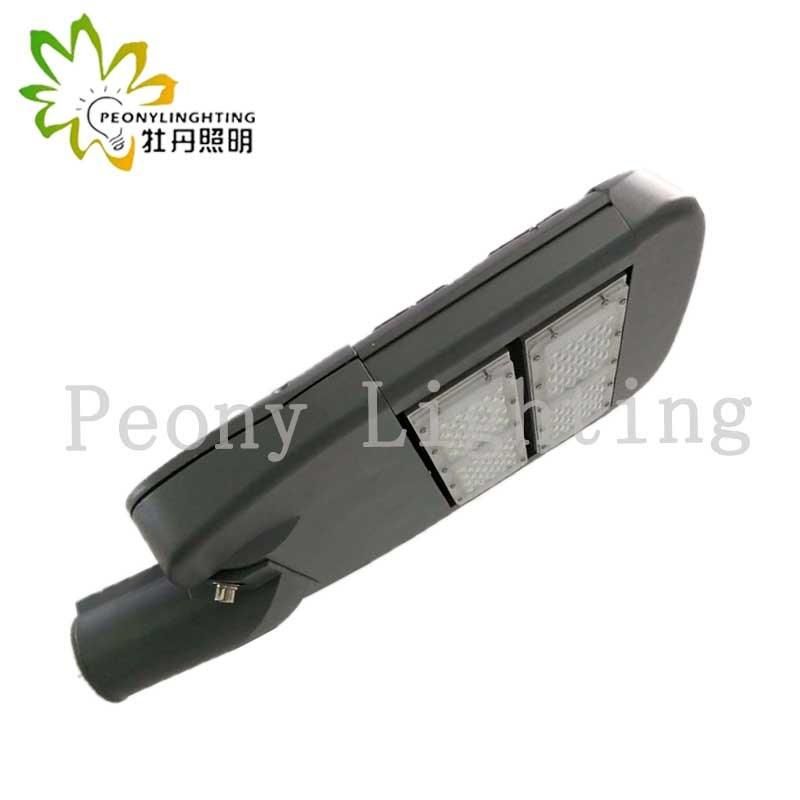

Product Description

100w outdoor adjustable LED street light, cheap led street light solar led street lamp with CE& ROHS approval



Key Features

1).Adopting high-power 5050smd as light source. Energy-saving, environment protecting and long life.

2). 5mm toughened transparent lens , high temperature resisting, easy for lights penetration, transmittance as hight as 92%.

3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.

4).Constant current supply, good stabilize and high security.

5).Energy sawing up to 80%.

6).Good-Looking shape, easy installation

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..

8).Lampshade material: Die cast aluminum housing, Toughened safety lens, painting coating.

9).The metal part which is between pole and street light is designed as original pole size.

Datesheet

Specification

Power: 100W

CRI:>70/80

LED Qty:56PCS*lumileds 5050smd

Driver:Meanwell SOSEN

Imput Voltage: AC100-265V

Luminous Flux (lm):160-170lm/w

Light color: 3000/4000/6000k

IP Rating:IP65

View Angle:150*70°

Power Factor: ≥0.90

working temperature :-50°C-60°C

Warranty :5-8 years

Package: lamp size:500*360*90mm,     ctn size:555*335*120mm , net weight: 5.5KG                         gross weight:6.5KG                       qty/ctn:1 PCS

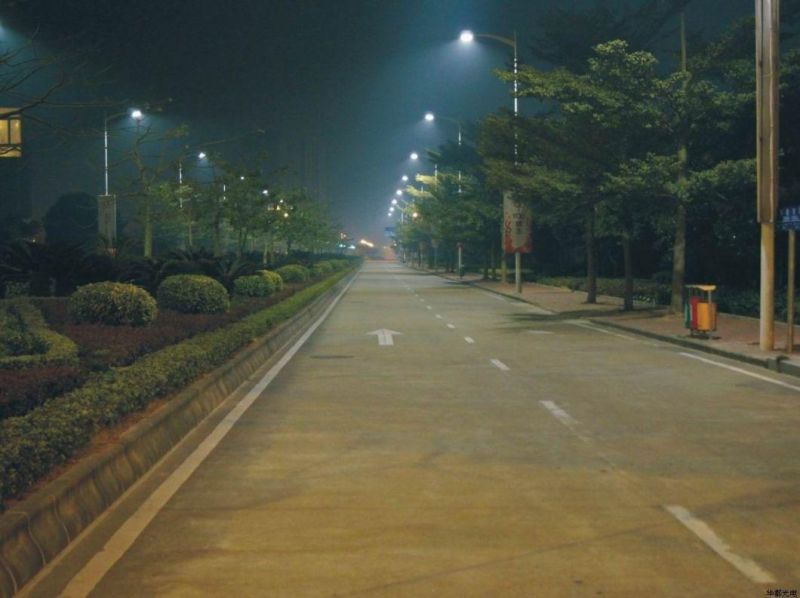

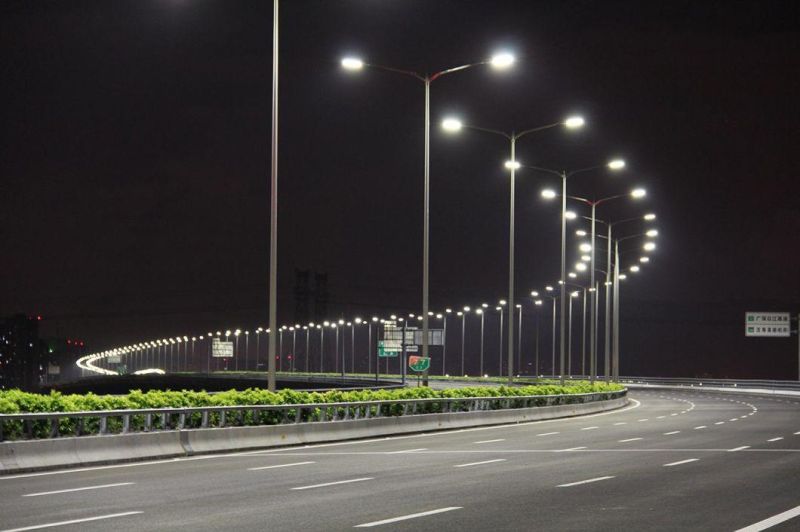

Application
road, park, highway ,country yard etc.

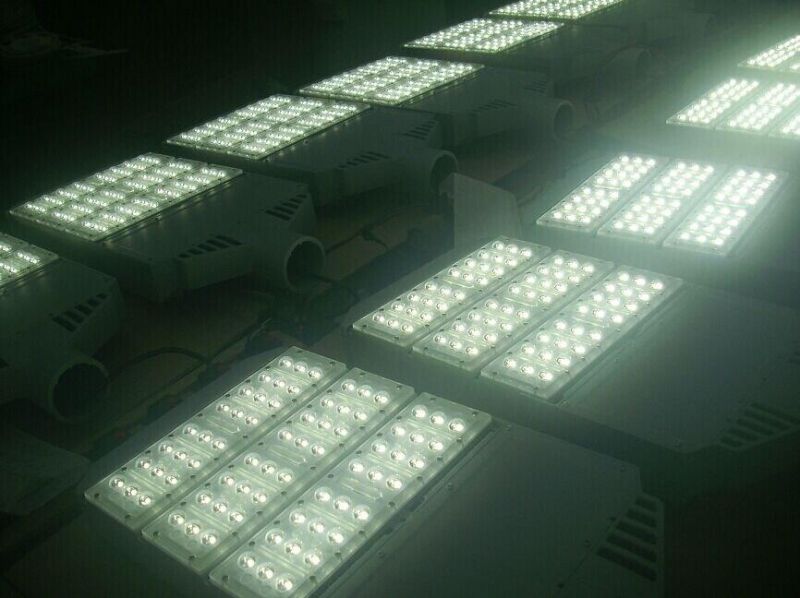

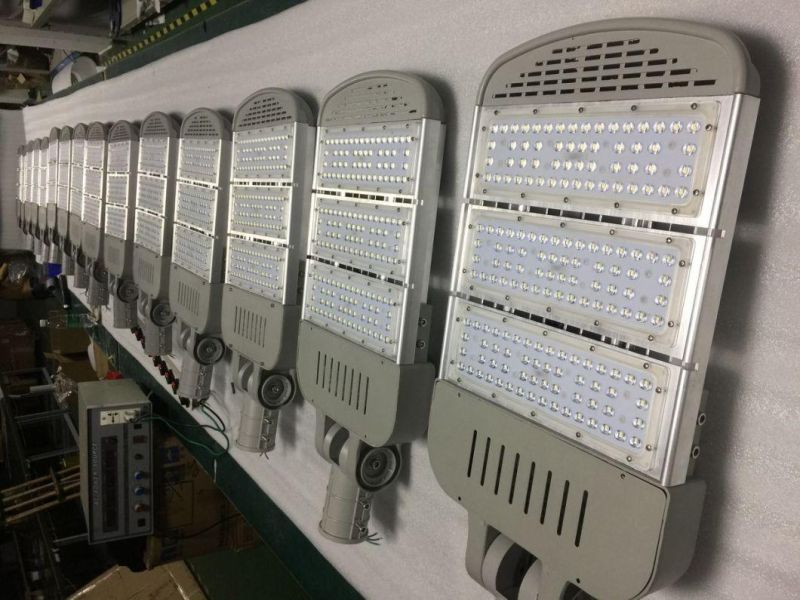

Workshop




FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
