• Model NO.：FDL-S3B-10W
• Certification：CE, EMC, LVD, RoHS
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：Lum-Ileds
• Item：10W LED Floodlight
• Input Power：10W
• Driver：Done
• Lumen：1150-1200lm
• Power Factor：>0.95
• CRI：80ra
• Beam Angle：30, 60, 90, 120 Degrees Optional
• Warranty：3 Years
• Housing Color：Black
• Operating Temperature：(- 40 ~ + 65 ) Degrees Celsius
• MOQ：1 Piece
• Transport Package：Export Standard Paper Carton
• Specification：182*122*47mm
• Trademark：RYGH Tech
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：50000 Pieces,Month

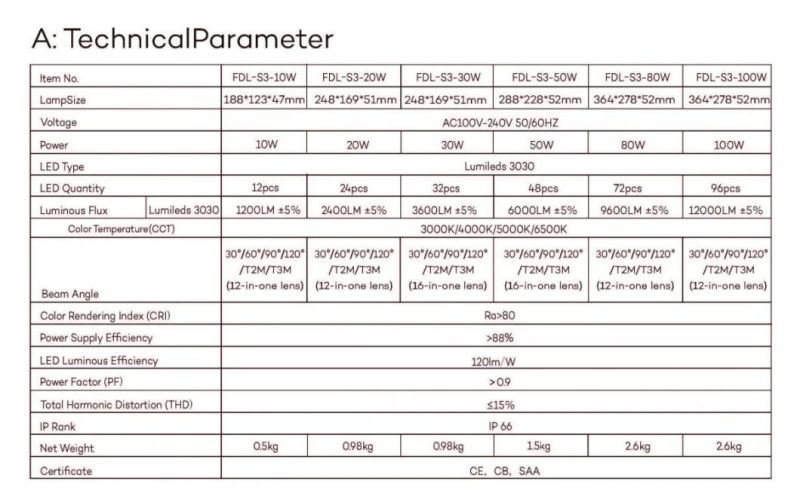

ItemFDL-S3B-10W1Dimension188x123x47mm2Net Weight0.6KG3VoltageAC85-265V4Current Frequency50/60 Hz5Power10W6LED TypeEMC 30307Beam Angle30 degree ,60 degree,90 degree,120 degree8Color Temp.Warm white2800-3500K  Neutral white3800-4500K  Cool white5500-6500K9LumenWarm white> 1000lm  Neutral white> 1150lm  Cool white> 1200lm10Color Rendering Index>8011MaterialAL + Glass12Power Supply Efficiency>85%13Power Factor (PF)>0.914IP RankIP6615CertificateCE, RoHS, GS, CB



Attention before installation:
1. Open the packing and check the product tenderly
2. If any damage, please contact your seller.
3. Do not use the defective product.
4. Installed by licensed electrician
5. Disassembly and repair is prohibited by non professional person, warranty is not offered to those products which are disassembled and repaired

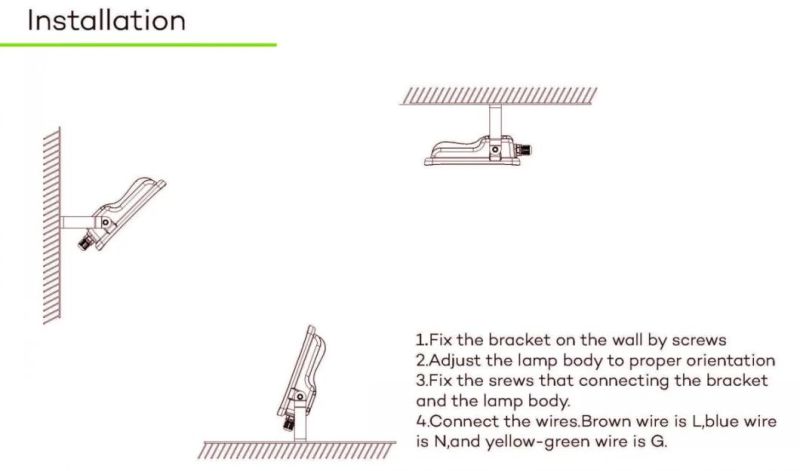

Installation:
1. Make sure power is off before installation
2. Make two holes as "A" and tight with screws
3. Rotate the light to adjust the needed lighting angle
4. Connect light with LED driver.
5. Connect cable
6. Turn it on

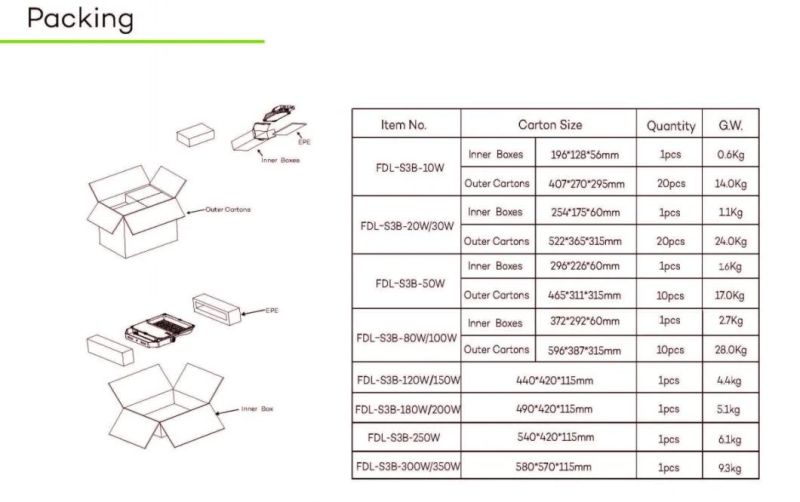

Packing Information

Single Box PackingCarton Package QTY/BoxBox SizeGWQTY/CTNCarton SizeG.W.FDL-S3-10W1 pc196x128x56mm0.6KG20pcs407x270x29514 KG





Warranty

3-5 year warranty since the date of purchase is offered for all LED FLOOD Light .
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. RYGH will not provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.


Company Information:
Shenzhen RIYUEGUANGHUA Technology Co., Limited is a professional LED light manufacturer for 8 years,
which is specializing in researching, designing, manufacturing and exporting LED industrial and commercial lighting.
"Honesty is the best policy" is the spirit of our company.
We are driven by the satisfaction of our customers. All of our productsare made of top quality materials and all of
our production is under strict supervisory control, and all products are fully inspected during all process.
Clients would be put in the first place for consideration all the way.
Prompt replies and strict lead-time from RIYUEGUANGHUA would make perfect services possible.

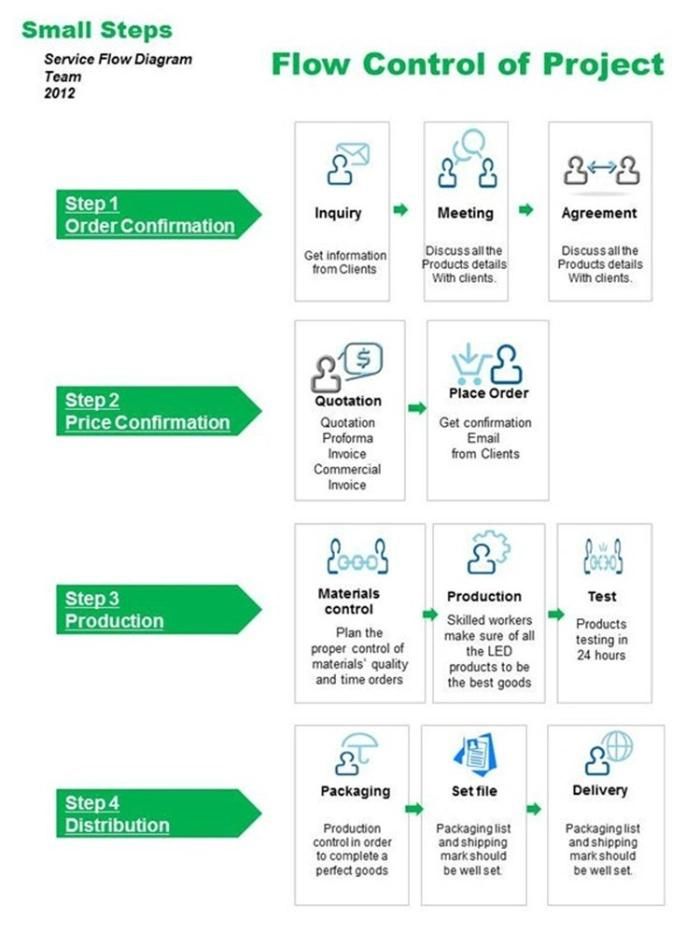

Our Services:



FAQ:

Q1:What is the warranty for your lights?

A1:For the lights,we have 3 years warranty, some products 5 years warranty.



Q2:How do you ensure the quality?

A2: We get three QC processes:1.For raw materials;2.During the half of production; 3.Final QC test one by one after aging 12 hours.



Q3:How to do if any quality problems on your side in the warranty time?

A3: First, take pictures or videos as proof and send to us.We will replace new ones for free.



Q4:OEM OR ODM accepted?

A4:Yes,we can do OEM & ODM,logo on the light or package both are available.



Q5: How many days will samples be finished?And how about the mass production?

A5: Generally 1-7 days for samples making. The leading time of mass production will depend on the quantity.



Q6:What is your trade assurance?

A6:100% product quality protection 100% product on time shipment protection 100% payment protection for your covered amount.
