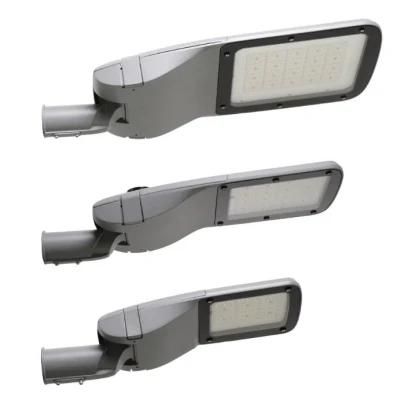

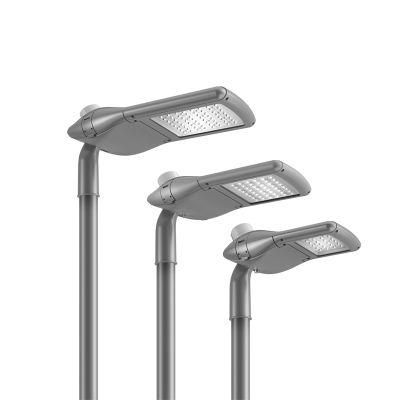

L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp

Hangzhou Longlux Electronic Technology Co., Ltd.
  • Color Temperature：Warm White
  • Lamp Body Material：Aluminum
  • Power：60W
  • No. of Light Source：≥20PCS
  • IP Rating：IP66
  • Application：Road

Base Info

  • Model NO.：LLX-LY-1803
  • Certification：CCC, CE
  • Input Voltage：90-305V
  • LED Chips Brand：Bridgelux
  • Lumen Flux：14000,21000,28000,35000,49000
  • Lumen Efficacy：140lm,W
  • CRI：>70
  • Beam Angle：150*70°
  • Working Environment：-40-55°
  • Lifetime：>50000h
  • Transport Package：Carton
  • Specification：745*336*185mm
  • Trademark：LONGLUX
  • Origin：Zhejiang
  • Production Capacity：50000,Year

Description


1. Adoption Lepower exclusive light source and ZAG Lens. Compared with similar products,the luminous efficiency can rise 8% and light transmittance up to 98%.
2.Fan channel thermal design, reduce lamp weight, with excellent heat dissipation, reduce light decay, prolong lamp lifetime. CHEM modular design, effectively reduce maintenance costs.
3.Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over -current protection, over-voltage protection, lightning protection, high temperature protection, fully ensures the long life span and high stability.
4.Durable,long lifetime,and last up to 50000 hours; no need to replace frequently and less daily maintenance.
5.Green product,no UV or IR radiation, no mercury pollution.
6.With Excellent exterior design, the lamp is waterproof and dust proof, protecting rate: IP66.
7. Fast response,no flicker; wide operating voltage range.

Application:
This product mainly applies to highway,urban roads and secondary roads,stadium,sidewalk, residential area,industry sites, square area,park ,school ,villa and courtyard,etc.street lighting.
L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp

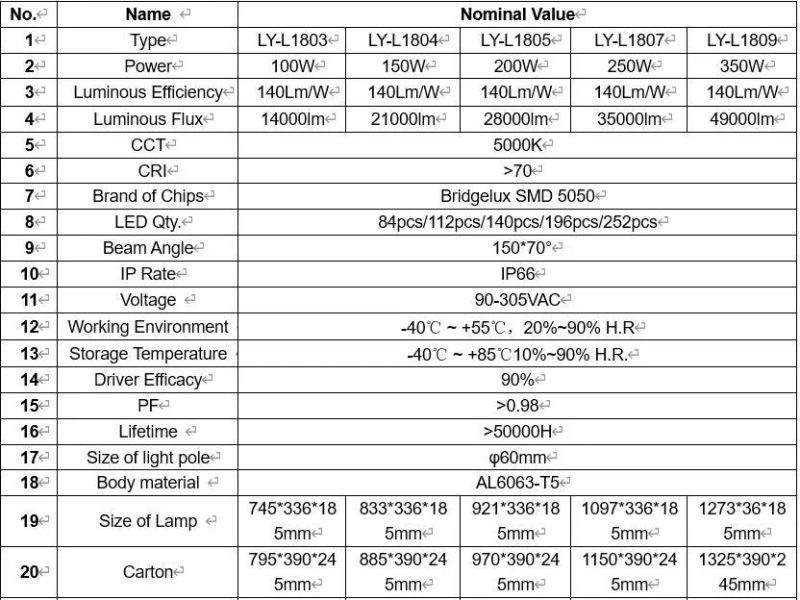

Technical parameter:
L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp

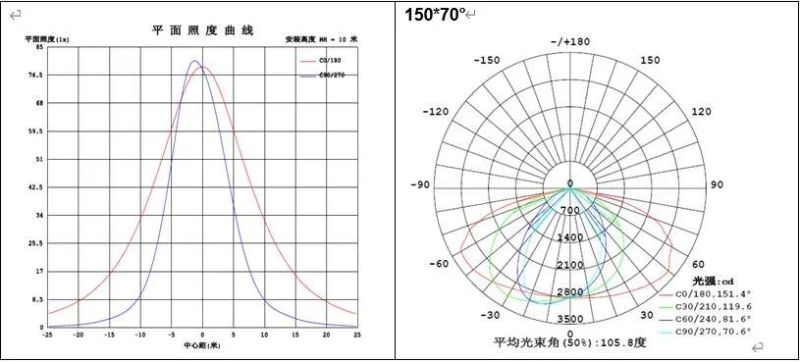

Plane illuminance & Destribution Corve:

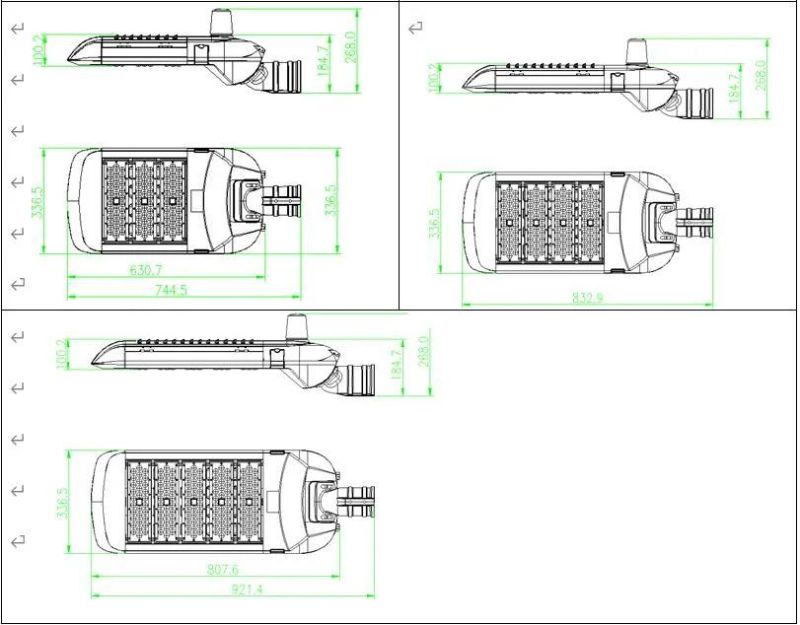

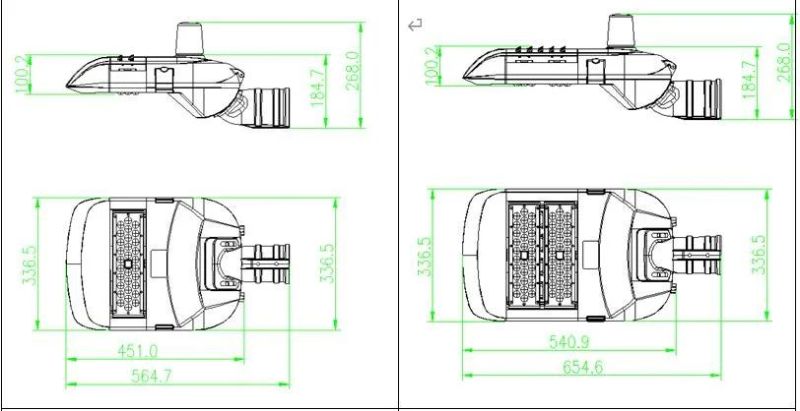

L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road LampDimension:
L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp
L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp

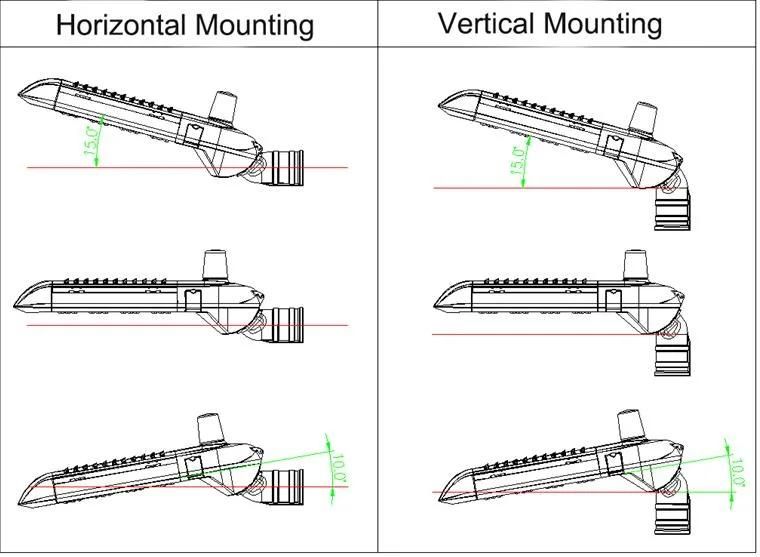

Installation diagram and instruction:
L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp
  1. Unscrew the connector end two M10*30 screw and nut;
  2. Put the light pole into the connector;
  3. Tighten the screws,lamps and lanterns is firm on the light pole;connect the wire to AC line (make sure the yellow and green reliable grounding line).

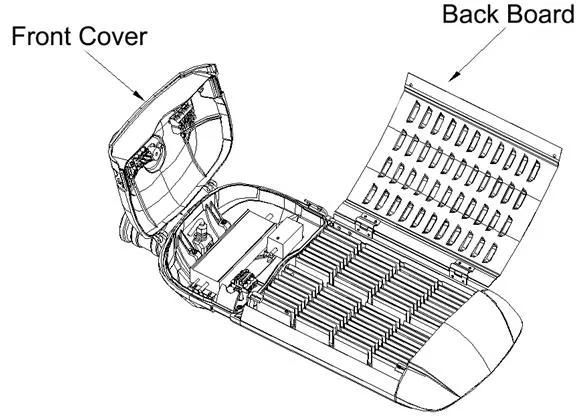

L18 LED Street Light 100W 150W 200W 250W 350W IP66 Solar Road Lamp
  1. Cut off the power.
  2. Remove the bad parts hermaphrodite connectors or power wire, remove the screw.
  3. take out the bad parts to replace.
  4. Re-tighten new replacement parts and connect hermaphrodite connectors or power wire
  5. Lock the screw.
  6. Repairs is completed.
