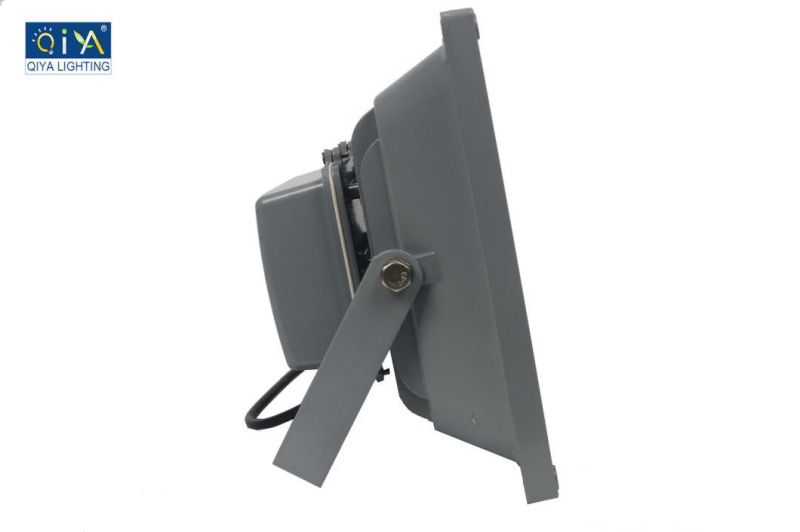

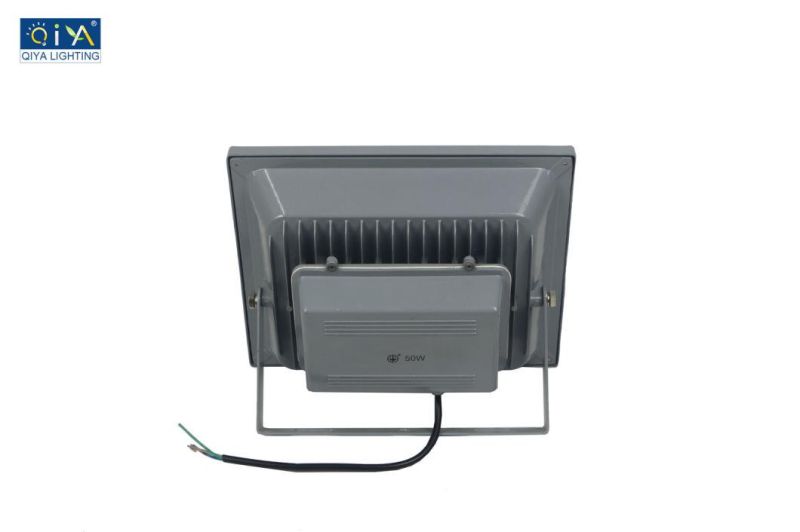

Classic LED Flood Light
Wuxi Qiya Lighting and Electric Appliance Factory- Color Temperature：Warm White
- Lamp Body Material：Aluminum
- Power：60-99W
- Projection Distance：25-35m
- Application：Park, Square, Factory, Garden
- IP Rating：IP65
Base Info
- Model NO.：QYTGL010
- Certification：CE, RoHS
- Operating Voltage：24V
- Input Voltage：220V
- LED Chips Brand：Epistar
- HS Code：94054090
- Production Capacity：20000
Description
Basic Info.
Model NO. QYTGL010 Certification CE, RoHS Operating Voltage 24V Input Voltage 220V LED Chips Brand Epistar HS Code 94054090 Production Capacity 20000Product Description
Item Type: flood lightLed light source:LED
Input Voltage(V):86-240V
Lamp Power(W):10W,20W,30W,50W,70W,100W,150W,200W
Lamp Luminous Flux(lm):8000
Lamp Luminous Efficiency(lm/w):100
CRI:85
Color Temperature:warm white
Beam Angle:180
Working Temperature:-20~50
Working Life time: 20000hours
Lamp Body Material: Aluminum
IP Rating: IP66
Certification:CE,CCC,RoHs,UL
Brand Name: QIYA LIGTHING/OEM
MODEL Number:QYTGL010
Warrant:2years
OEM:welcome
Power factor:>90%
- Die casting Aluminum body
- Tempered glass:heat-proof,crash-proof
- Reflector in pure aluminum
- Steel bracket
- Stainless steel external nuts and screws
- Available in Class I
- Application:Ad. Boards,flood lighting illumination, tennis courts,parking areas, stadiums,container yards and piers.
| Modle NO. | COB | Voltage | Color temperature | CRI | Power factor | Light efficiency | Operating temperature | Packing | Pcs/Ctn | Volume |
| QYTGL010-10W | 1*10W | AC100-240V 50/60hz | 2700k-6000k | ≥80 | 0.95 | 100lm | -40ºC~60ºC | 50*21.5*27 | 20 | 0.029 |
| QYTGL010-20W | 1*20W | AC100-240V 50/60hz | 2700k-6000k | ≥80 | 0.95 | 100lm | -40ºC~60ºC | 51*16*40 | 8 | 0.033 |
| QYTGL010-30W | 1*30W | AC100-240V 50/60hz | 2700k-6000k | ≥80 | 0.95 | 100lm | -40ºC~60ºC | 61*23*49 | 8 | 0.069 |
| QYTGL010-50W | 1*50W | AC100-240V 50/60hz | 2700k-6000k | ≥80 | 0.95 | 100lm | -40ºC~60ºC | 65*27*31.5 | 4 | 0.055 |
| QYTGL010-100W | 2*50W | AC100-240V 50/60hz | 2700k-6000k | ≥80 | 0.95 | 100lm | -40ºC~60ºC | 43*33.2*19.5 | 1 | 0.028 |
| QYTGL010-150W | 3*50W | AC100-240V 50/60hz | 2700k-6000k | ≥80 | 0.95 | 100lm | -40ºC~60ºC | 43*33.2*19.5 | 1 | 0.028 |

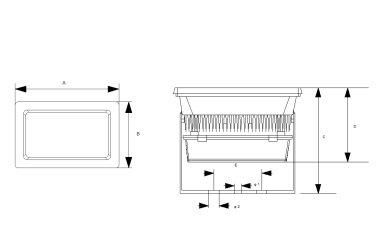

| Model NO. | A | B | C | D | E | Φ1 | Φ2 |
| QYTGL010-10W | 115 | 90 | 104 | 86 | 60 | 10 | 6 |
| QYTGL010-20W | 183 | 142 | 134 | 102 | 60 | 10 | 13 |
| QYTGL010-30W | 227 | 188 | 155 | 128 | 150 | 13 | 10 |
| QYTGL010-50W | 288 | 236 | 176 | 146 | 150 | 13 | 10 |
| QYTGL010-100W | 425 | 324 | 235 | 185 | 150 | 13 | 13 |
| QYTGL010-150W | 425 | 324 | 235 | 185 | 150 | 13 | 13 |
