• Model NO.：FJ-FL-300W-G07
• Certification：CE, EMC, LVD, RoHS
• Operating Voltage：100-240V
• Input Voltage：100-240V
• LED Chips Brand：Lumileds
• Ik：Ik10
• CRI：>70
• Lighting Efficacy：>140lm,W
• Beam Angle：10,15,30,60°
• LED Driver：Meanwell,Inventronic,Osram,Sosen
• Dimmable：0-10V,Dail,Zigbee Smart Control,Bluetooth Mesh
• SPD：10kv,15kv,20kv
• Transport Package：Carton + EPE
• Specification：Dia369*356mm
• Trademark：FUJING
• Origin：China
• HS Code：9405409000
• Production Capacity：100000,Year

Basic Info.

Model NO. FJ-FL-300W-G07 Certification CE, EMC, LVD, RoHS Operating Voltage 100-240V Input Voltage 100-240V LED Chips Brand Lumileds Ik Ik10 CRI >70 Lighting Efficacy >140lm/W Beam Angle 10/15/30/60° LED Driver Meanwell/Inventronic/Osram/Sosen Dimmable 0-10V/Dail/Zigbee Smart Control/Bluetooth Mesh SPD 10kv/15kv/20kv Transport Package Carton + EPE Specification Dia369*356mm Trademark FUJING Origin China HS Code 9405409000 Production Capacity 100000/Year

Product Description

Features:

. LED: Highest Quality CREE XML LED

2. Meanwell driver: High efficiency and power factor,PF:0.95

3. Long life time,more than 50000 hours working time;

4. IP65 Grade, good for both indoor and outdoor waterproof projects.

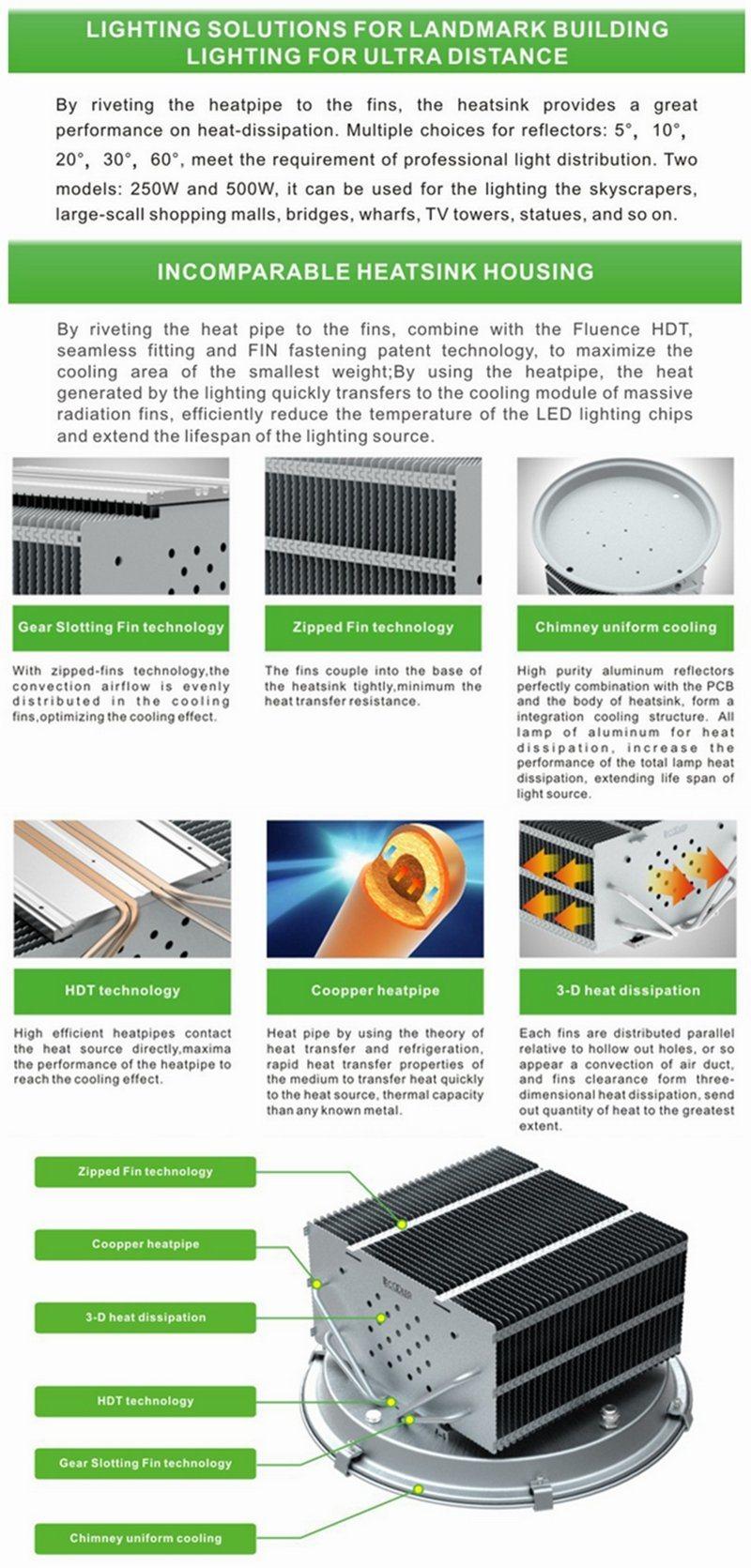

5. Whole body in big heat sink, perfect 3D radiating.

6. The PTTE and fin-shaped heat sink are special sparckle.

7. Die-casting Aluminum Body, Anti-corrosion screws/accessaries

8. Very strong package allows long way international shipment.

Specifications:

Item No.	Led watt	LED Brand	Lumen	Working voltage	PF	IP	Beam angle	CCT	Size
FJ-FL-300W-G07	300W	CREE	120lm/w	AC180-265V	0.95	IP65	10/15/30/60°	2700-7000K	Φ369*356mm
FJ-FL-500W-G07	500W	CREE	120lm/w	AC180-265V	0.95	IP65	10/15/30/60°	2700-7000K	Φ471*407mm
FJ-FL-800W-G07	800W	CREE	120lm/w	AC180-265V	0.95	IP65	10/15/30/60°	2700-7000K	Φ479*496mm
FJ-FL-1000W-G07	1000W	CREE	120lm/w	AC180-265V	0.95	IP65	10/15/30/60°	2700-7000K	Φ479*502mm



Details:

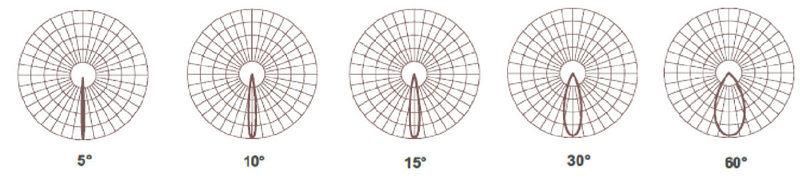

Distribution Curve :

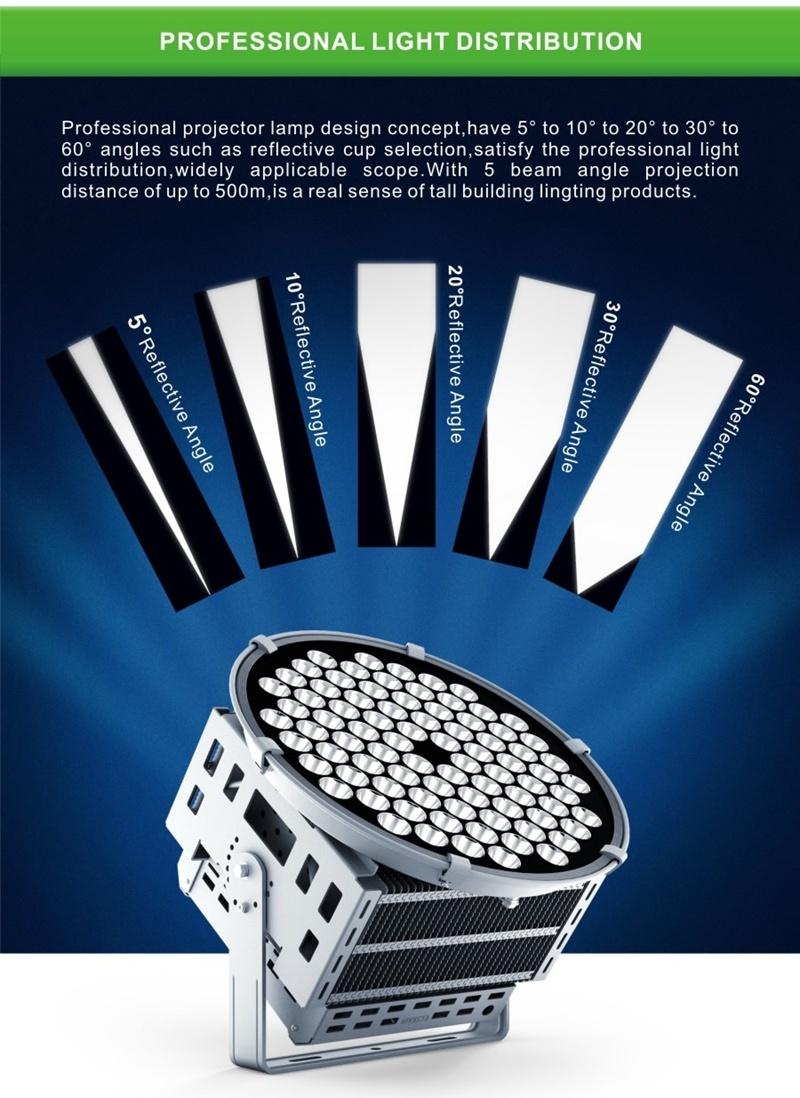

For Different application requirement, Fujing customised different types of beam angles for customers,at the moment we have 5°,10°,15°,30°,60°  beam angle available.

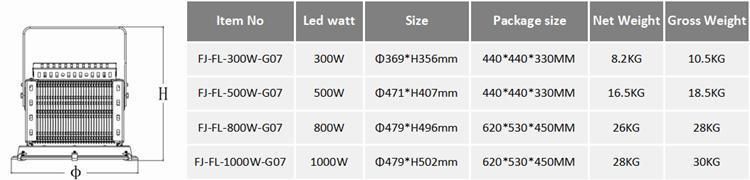

Size:

Application:

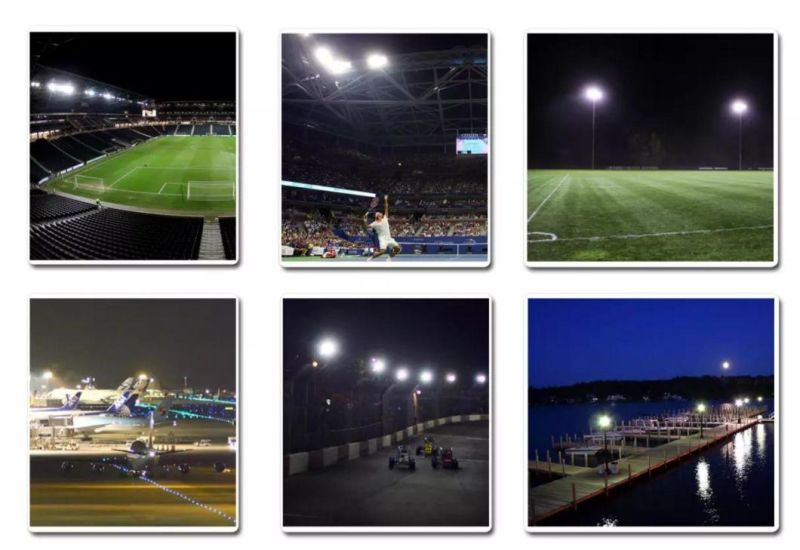

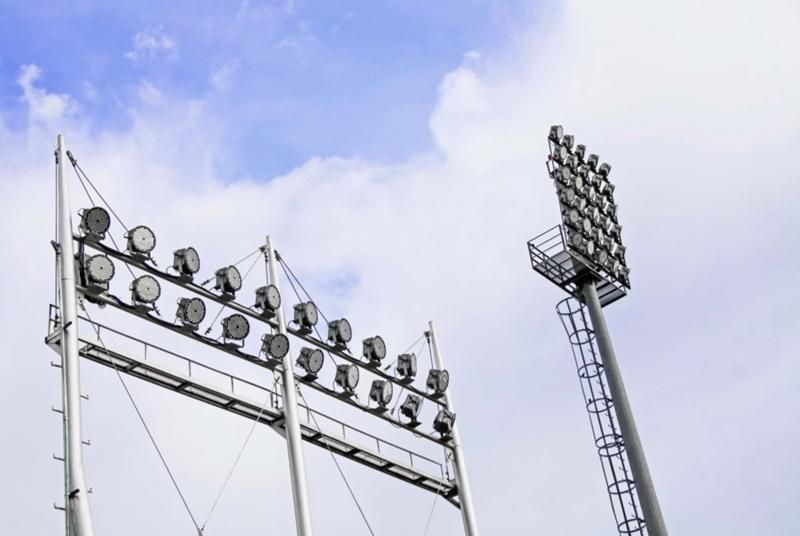

Stadium ,airports, docks, large buildings, golf courses, architectural lighting, squares and landscape lightings and other places

Our Service:

As A Professional LED  Light Manuafacturer We Promise

• Quick respond:For all your inquires, we will reply you in detail within 24 hours.
• Professional Lighting Proposal: a professional lighting proposal by our optical engineer is firmly good for your sale. Full range IES file, testing report provide ,Free Dialux simulation service
• Strong R&D Dept: Provide ODM/OEM service, Laser Engrave.



Quality Control

• Stability TEST: make sure 100% of the lamps aging test at least 48 hours.
• Lighting TEST: make sure 100% of the lamps could be lighted before packing.
• Drop TEST: make sure every single light have been well protected by box.

Trade Terms

• Flexible Payment term:L/C, D/A, D/P, T/T, Western Union, PayPal.
• Lead time: normally in 10~15 days after deposit received
• Sample policy: Samples are always available for each model

FAQ:



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LED light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
