• Model NO.：FJ-FL1000W-G09
• Certification：CE, EMC, LVD, RoHS, SAA, SASO
• Operating Voltage：100-240V
• Input Voltage：220V
• LED Chips Brand：Epistar
• Ik：Ik10
• CRI：>70
• Lighting Efficacy：>140lm,W
• Beam Angle：15,30,60°
• LED Driver：Meanwell,Inventronic,Osram,Sosen
• Dimmable：0-10V,Dail,Zigbee Smart Control,Bluetooth Mesh
• SPD：10kv,15kv,20kv
• Item No：LED Stadium Light
• Transport Package：Carton + EPE
• Specification：Dia562*652mm
• Trademark：FUJING
• Origin：China
• HS Code：9405409000
• Production Capacity：100000,Year

Basic Info.

Model NO. FJ-FL1000W-G09 Certification CE, EMC, LVD, RoHS, SAA, SASO Operating Voltage 100-240V Input Voltage 220V LED Chips Brand Epistar Ik Ik10 CRI >70 Lighting Efficacy >140lm/W Beam Angle 15/30/60° LED Driver Meanwell/Inventronic/Osram/Sosen Dimmable 0-10V/Dail/Zigbee Smart Control/Bluetooth Mesh SPD 10kv/15kv/20kv Item No LED Stadium Light Transport Package Carton + EPE Specification Dia562*652mm Trademark FUJING Origin China HS Code 9405409000 Production Capacity 100000/Year

Product Description

Features:

1. Adopt high-power LED patch (3030/5050) light source, the power supply can match any brand.

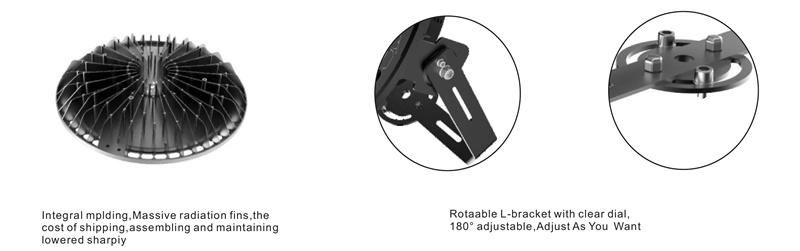

2. The integrated design of radiator and lamp shell, LED is directly connected with the shell, and heat dissipation through the shell heat dissipation wing and air convection, fully ensuring the 50,000-hour service life of LED street lights.
3. The lamp shell is formed by aluminum die-casting, which can effectively dissipate heat and prevent water and dust through reasonable structure design.The surface of the lamp has been treated with anti-ultraviolet anti-corrosion powder spraying, and the whole lamp has reached IP65 standard.
4. Adopt standard ADC12 die-casting aluminum, green and pollution-free, free of lead, mercury and other pollution elements, and free of any pollution to the environment.

Specifications:

Item No	Led watt	LED Brand	Lumen	Working voltage	PF	IP	Beam angle	CCT	Size
FJ-FL-300W-G09	300W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ379*H463mm
FJ-FL-500W-G09	500W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ565*H652mm
FJ-FL-800W-G09	800W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ565*H652mm
FJ-FL-1000W-G09	1000W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ640*H730mm
FJ-FL-1200W-G09	1200W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ640*H730mm

Details:

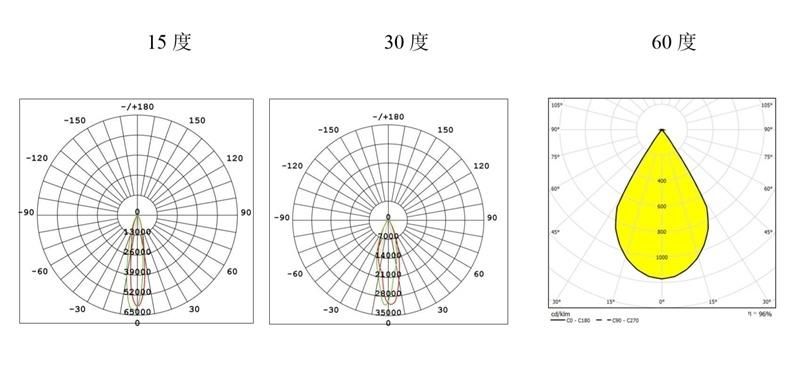

Distribution Curve :

For Different application requirement, Fujing customised different types of beam angles for customers,at the moment we have 15°,30°,60°  beam angle available.

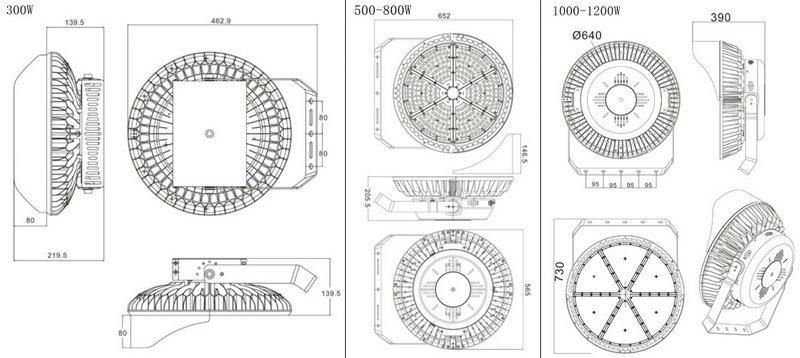

Size:

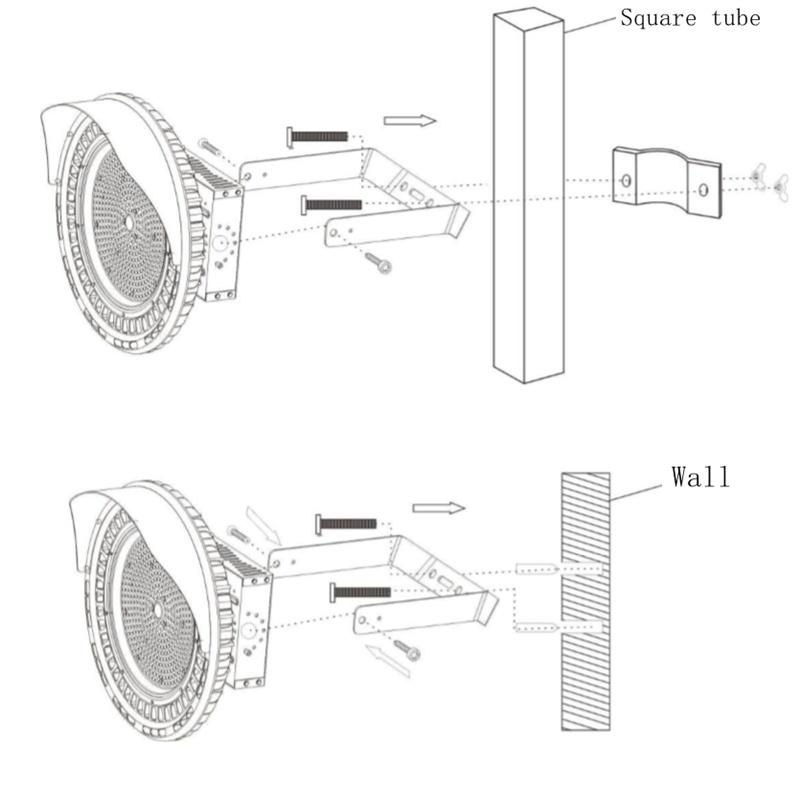

Installation:

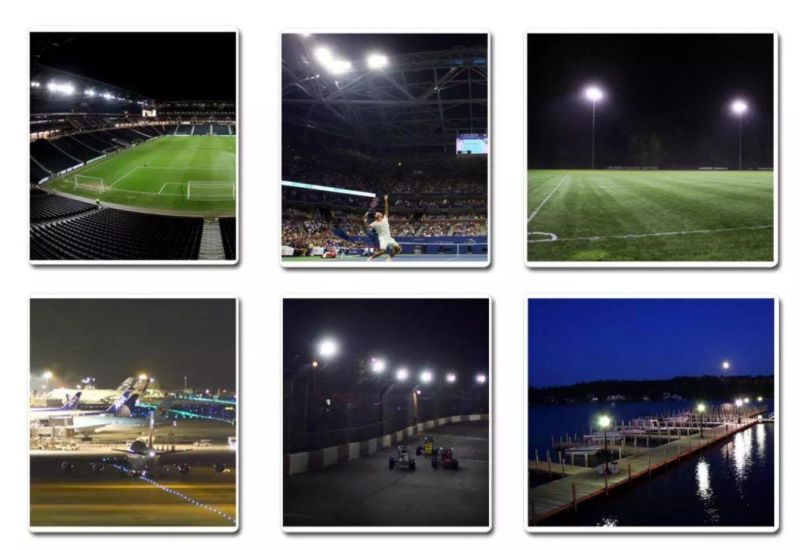

Application:

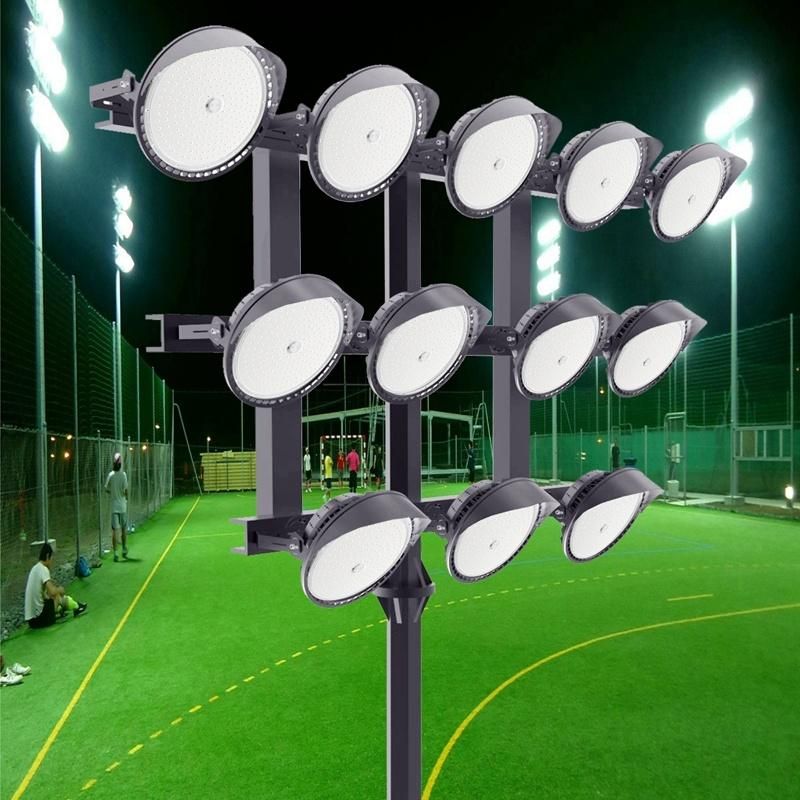

Stadium ,airports, docks, large buildings, golf courses, architectural lighting, squares and landscape lightings and other places

Our Service:

As A Professional LED  Light Manuafacturer We Promise

• Quick respond:For all your inquires, we will reply you in detail within 24 hours.
• Professional Lighting Proposal: a professional lighting proposal by our optical engineer is firmly good for your sale. Full range IES file, testing report provide ,Free Dialux simulation service
• Strong R&D Dept: Provide ODM/OEM service, Laser Engrave.



Quality Control

• Stability TEST: make sure 100% of the lamps aging test at least 48 hours.
• Lighting TEST: make sure 100% of the lamps could be lighted before packing.
• Drop TEST: make sure every single light have been well protected by box.

Trade Terms

• Flexible Payment term:L/C, D/A, D/P, T/T, Western Union, PayPal.
• Lead time: normally in 10~15 days after deposit received
• Sample policy: Samples are always available for each model

FAQ:



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LED light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
