• Model NO.：stage light
• Diffuser：Polycarbonate
• Beam Angle：6
• Lifespan：50000 hours
• Warranty：2 Years
• Electric Current Type：AC
• Input Voltage：220V
• Transport Package：Box
• Specification：1270x320x220mm
• Trademark：Dragon Stage
• Origin：Guangdong Guangzhou, China(Mainland)
• Package size per unit product：127.00cm * 32.00cm * 22.00cm
• Gross weight per unit product：10.000kg

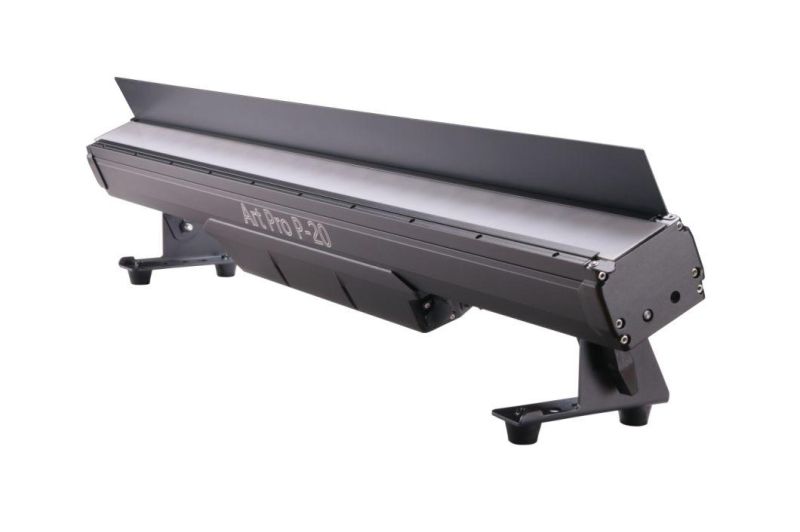

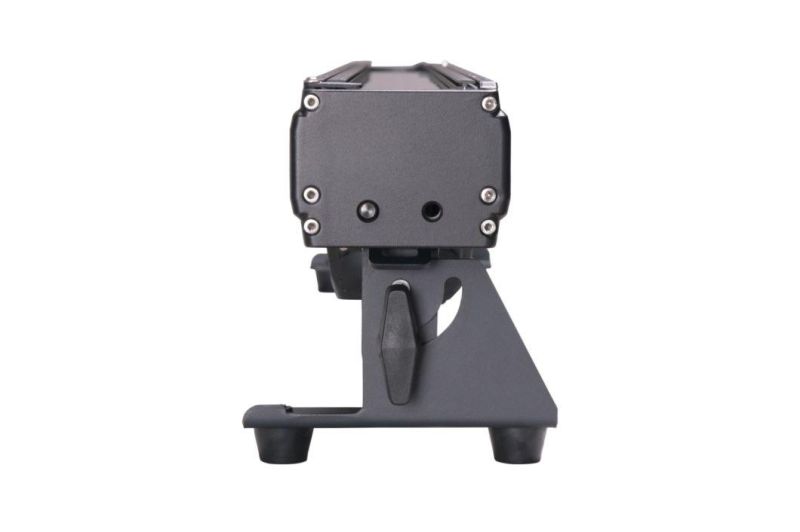

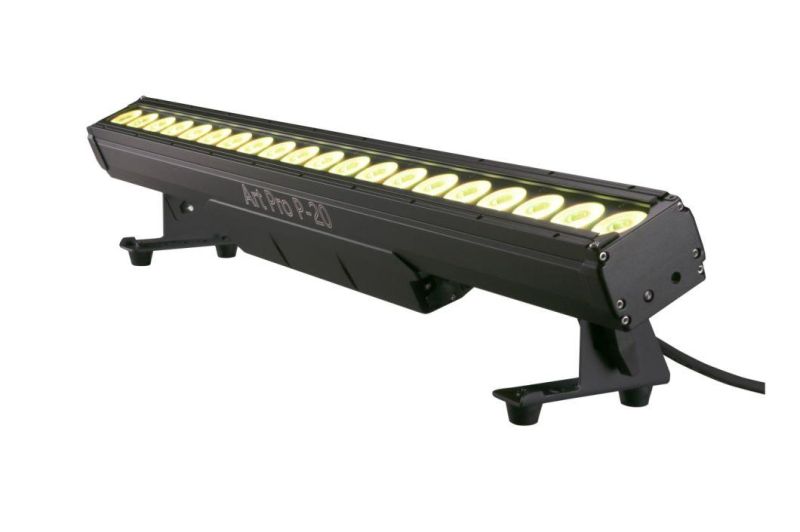

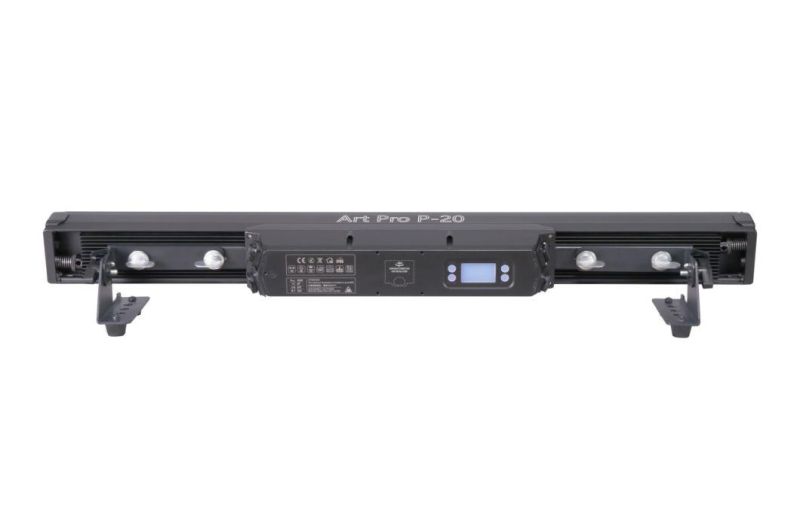

dragonstage Art Pro Series Pixel 20 Bar led linear light ip65
Product Description
SpecificationPixel-mapping, Multi-layer, dynamic patternsSpecifications
Power supply: 100-240V - 50/60Hz
Power consumption: 400W
LED power: 300W
LED source: 20 x 15W RGBW 4in1
Optic: High efficiency optic system
Effect: 80.Pixel Control RGBW
Luminous flux: >10000lm
Field angle: 6° (optional 8°,12°, 15°, 25°, 45°)
Dimmer mode: 8&16 Bit
Dimmer curve: Linear, curve
DMX mode: 11,27,80,91CH
Control mode: DMX, Auto, Master-slave
Protocol: DMX, RDM
Light style: Pixel-mapping, Multi-layer, dynamic patterns

Structure

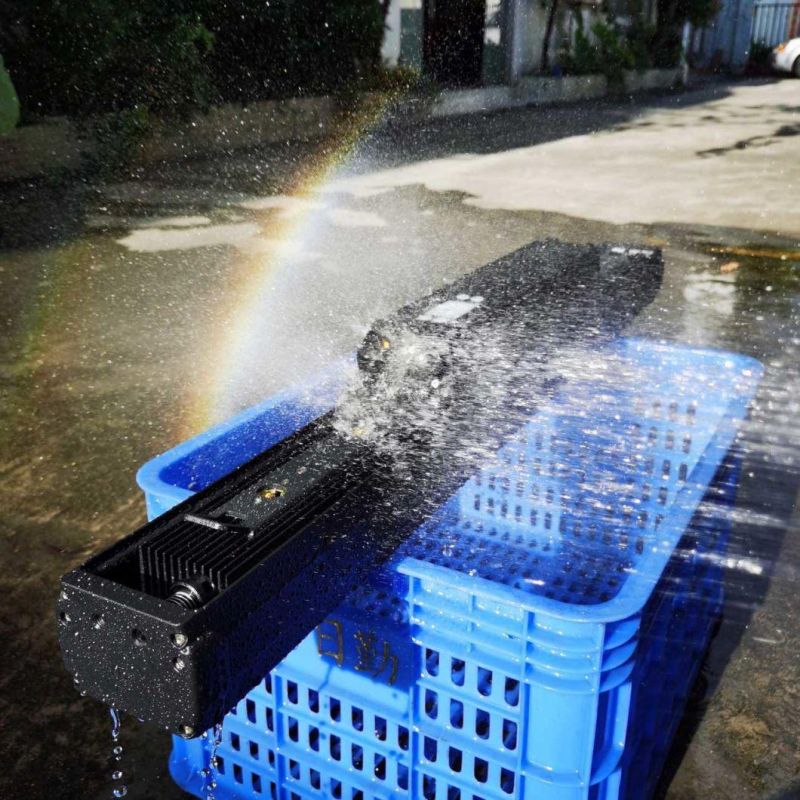

IP rating: 65
Body: Die-cast aluminum
Free light CON: Yes
Stand CON: 2 Max.
Hang drop CON: 4 Max.
Rotation 360: Yes
Working Condition: -30° ~ 70°C

Connection
Power: True1 in & out
DMX: 3pin DMX in & out
Power cable: CCC 2.5mm2, 8 power link Max
Power and DMX cable type: Customized

Box Info
- Quick lock omega brackets
- Safety cable
- Floor stand
- Power & DMX cables

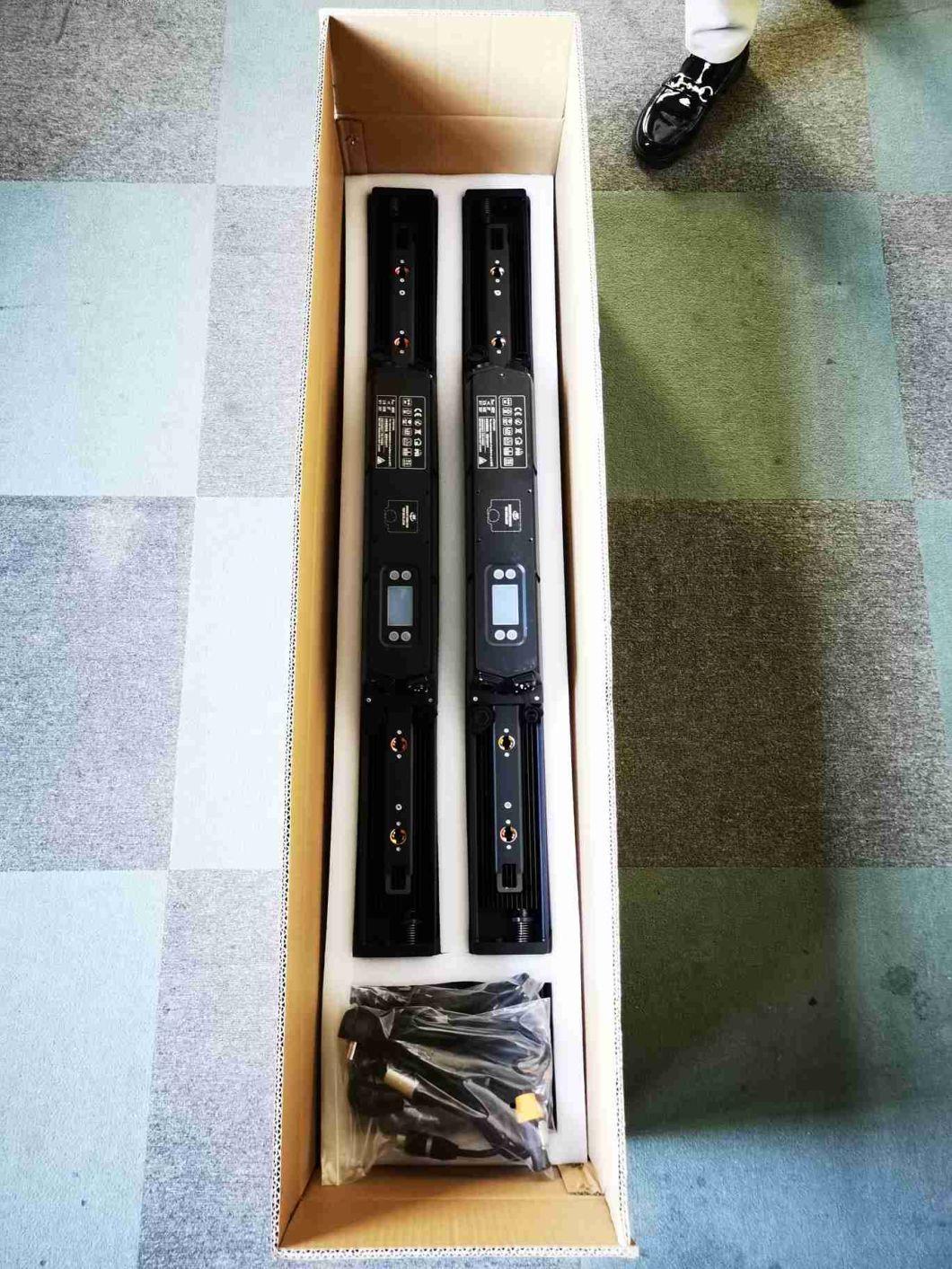

Carton: 2 in 1, Case: 4 in 1 or 8 in 1
Light: L1004 x W96 x H130(Bracket H178) mm

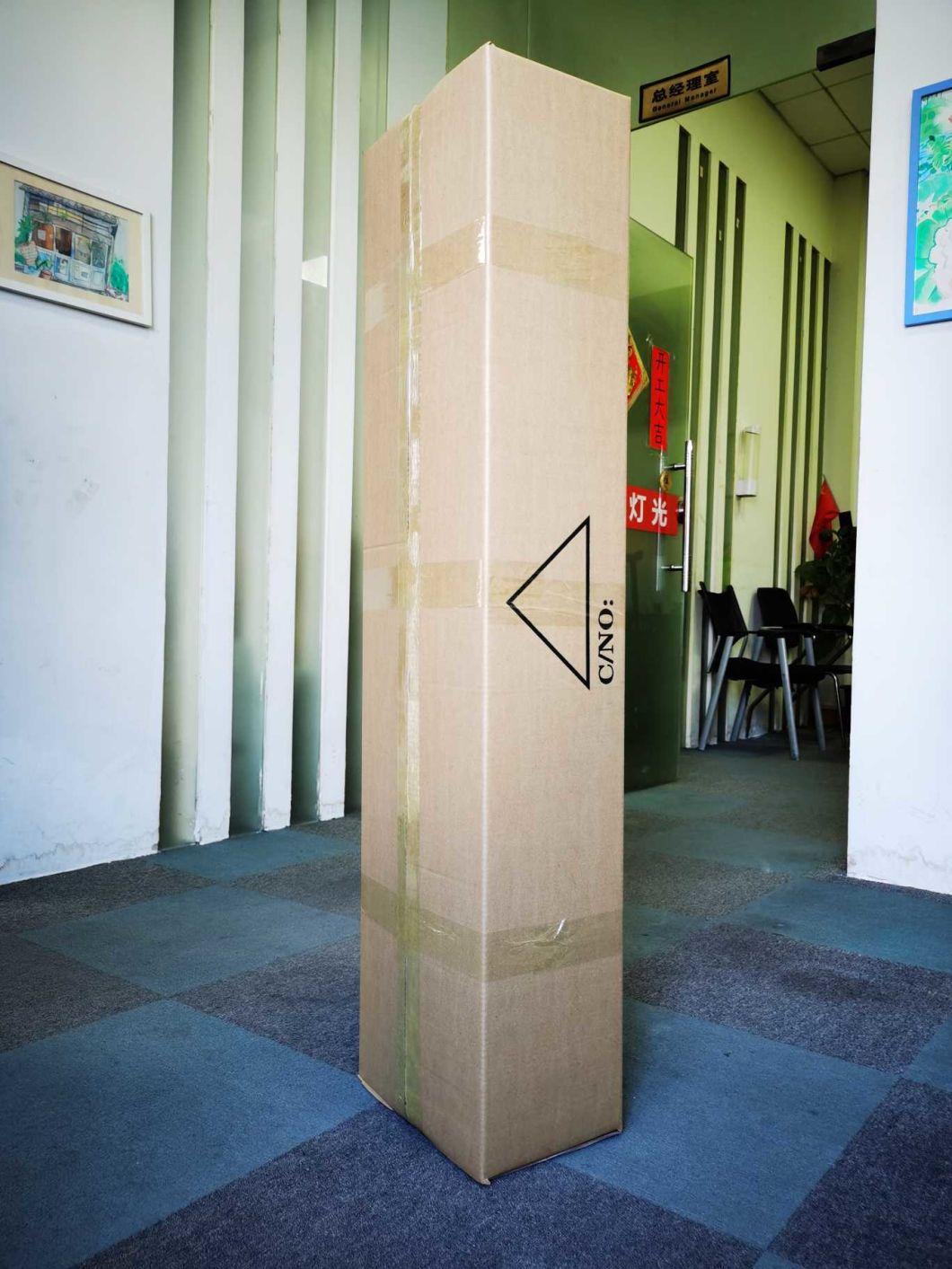

Carton size(2in1): 1270x320x220mm
Light Net Weight: 9.5KG (Gross 2in1 22.5KG)

Optional Accessories
- PMMA froster
- PMMA cover
- Barndoor
- Infinite rotation engine

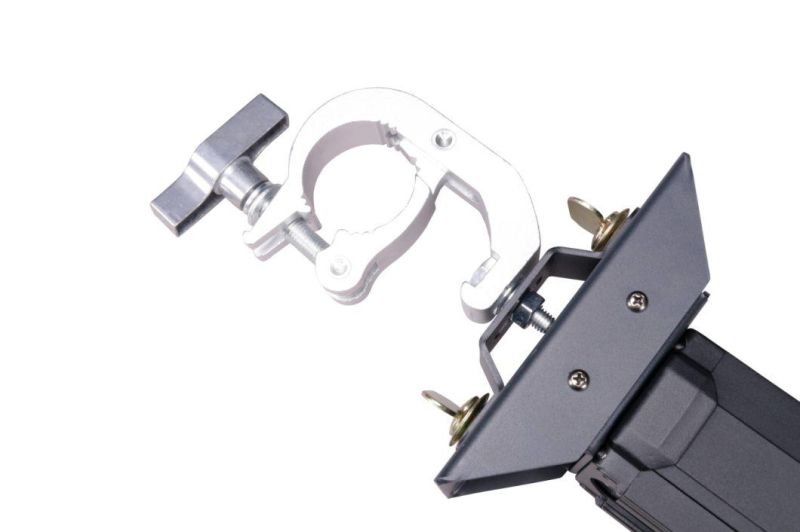

- Clamp
- Flight case
