LED Module Light
Wuxi Qiya Lighting and Electric Appliance Factory- Color Temperature:Cool White
- Lamp Body Material:Aluminum
- Power:30-59W
- Projection Distance:18-25m
- Application:Park, Square, Factory, Garden
- IP Rating:IP67
Base Info
- Model NO.:QYLM
- Operating Voltage:24V
- Input Voltage:24V
- LED Chips Brand:CREE
- HS Code:94054090
- Production Capacity:5000
Description
Basic Info.
Model NO. QYLM Operating Voltage 24V Input Voltage 24V LED Chips Brand CREE HS Code 94054090 Production Capacity 5000Product Description
QYLM64KH/SPower: 30-70W
Luminous effect: 100lm-150lm
Input voltage:48-50V DC
Color temperature:3000k,4000k,5000k,5700k,6500k
Ra: RA70 RA80
IP grade:IP68
Led chips : Osram , ,Nichia,Seoul,
Led type:EMC3030-8C8B
Size of model:298*70*47mm
△ Temperature Radiator: △T32K@1.2A
N.W. :665g
QYLM64KH/S
Power:30-45W
Luminous effect:100lm-150lm
Input voltage:48-50V DC
Color temperature:3000k,4000k,5000k,5700k,6500k
Ra: RA70 RA80
IP grade:IP68
Led chips : Osram , ,Nichia,Seoul,
Led type:EMC3030-8C8B
Size of model:298*70*33mm
△ Temperature Radiator: △T32K@1.2A
N.W. :510g
QYLM64LH/S
Power: 30-70W
Luminous effect: 100lm-150lm
Input voltage:48-50V DC
Color temperature:3000k,4000k,5000k,5700k,6500k
Ra: RA70 RA80
IP grade:IP68
Led chips : Osram , ,Nichia,Seoul,
Led type:EMC3030-8C8B
Size of model:298*70*47mm
△ Temperature Radiator: △T30K@0.9A
N.W. :665g
QYLM64LH/S
Power:30-45W
Luminous effect:100lm-150lm
Input voltage:48-50V DC
Color temperature:3000k,4000k,5000k,5700k,6500k
Ra: RA70 RA80
IP grade:IP68
Led chips : Osram , ,Nichia,Seoul,
Led type:EMC3030-8C8B
Size of model:298*70*33mm
△ Temperature Radiator: △T30K@0.9A
N.W. :510g
QYLM28LH/S
Power:30-70W
Luminous effect:100lm-150lm
Input voltage:42-45V DC
Color temperature:3000k,4000k,5000k,5700k,6500k
Ra: RA70 RA80
IP grade:IP68
Led chips : Osram , ,Nichia,Seoul,
Led type:2525/3535?5050 14C2B
Size of model:298*70*47mm
△ Temperature Radiator: △T30K@1.2A
N.W. :665g
QYLM28LH/S
Power:30-45W
Luminous effect:100lm-150lm
Input voltage:42-45V DC
Color temperature:3000k,4000k,5000k,5700k,6500k
Ra: RA70 RA80
IP grade:IP68
Led chips : Osram , ,Nichia,Seoul,
Led type:2525/3535/5050
Size of model:298*70*33mm
△ Temperature Radiator: △T30K@0.9A
N.W. :510g

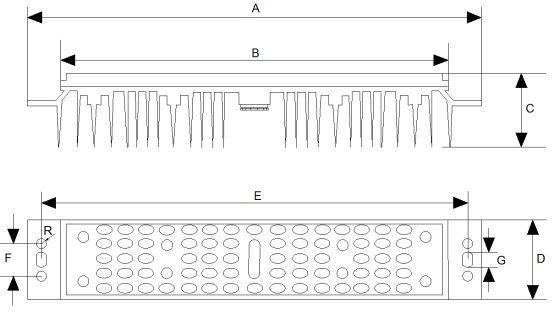

Type | A | B | C | D | F | G | R |
QYLM64KH/S | 298mm | 240mm | 47mm | 70mm | 30mm | 15mm | 2.5mm |
QYLM64KH/S | 298mm | 240mm | 33mm | 70mm | 30mm | 15mm | 2.5mm |
QYLM64LH/S | 298mm | 240mm | 47mm | 70mm | 30mm | 15mm | 2.5mm |
QYLM64LH/S | 298mm | 240mm | 33mm | 70mm | 30mm | 15mm | 2.5mm |
QYLM28LH/S | 298mm | 240mm | 47mm | 70mm | 30mm | 15mm | 2.5mm |
QYLM28LH/S | 298mm | 240mm | 33mm | 70mm | 30mm | 15mm | 2.5mm |

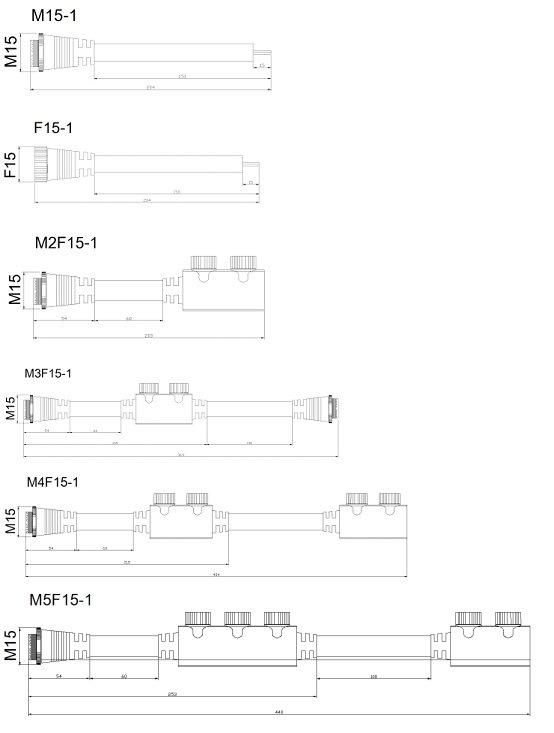

Connector
connector type | Specification |
M15-2 | S15 Male connector 2*1.0mm² |
F15-2 | S15 Female connector 2*1.0mm² |
M2F15-1 | power strip S 1502 with male connector(Series,parallel) |
M3F15-1 | power strip S 1503 with male connector(Series,parallel) |
M4F15-1 | power strip S 1504 with male connector(Series,parallel) |
M5F15-1 | power strip S 1505 with male connector(Series,parallel) |
