3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories

Shenzhen Heguang Lighting Co., Ltd.
  • Color Temperature：Cool White
  • Lamp Body Material：Stainless Steel
  • Power：3W
  • No. of Light Source：4PCS
  • IP Rating：IP689, IP68
  • Application：Swimming Pool, park

Base Info

  • Model NO.：HG-UL-3W-SMD-G2
  • Certification：CE, EMC, FCC, RoHS, VDE, CE, RoHS, ISO, FCC, EMC, IP68, Ik10
  • Input Voltage：DC24V, 24v
  • Light Source：With Light Source
  • LED Chips Brand：CREE
  • Waterproof Standard：IP68
  • Technics：Drawbench
  • Emitting Color：White
  • Lampshade Material：Stainless Steel
  • Base Type：AR111
  • Voltage：24V
  • Style：Modern Chinese Style
  • with Light Source：No
  • Current：170mA
  • LED Chip：SMD3030LED(CREE)
  • LED (PCS)：4PCS
  • Warranty：2 Years
  • Length：98X88mm
  • The Weight of The：27.95kg
  • Life-Span：50, 000 Hours
  • Over-Current Protection：Yes
  • Constant Driver：Yes
  • Use：The Street
  • Material：SS316L Body+Tempered Glass Cover
  • The Shape of：Square
  • Installation：Underground
  • Transport Package：Box Size
  • Specification：104x104x133mm
  • Trademark：birmate
  • Origin：Shenzhen China
  • HS Code：9405409000
  • Production Capacity：50000pieces,Year

Description

LED Grond light (Min)Working temperature 28ºCWorking temperature 40ºCLand test(Min)48060LED edge temperature(ºC)6072Advantages

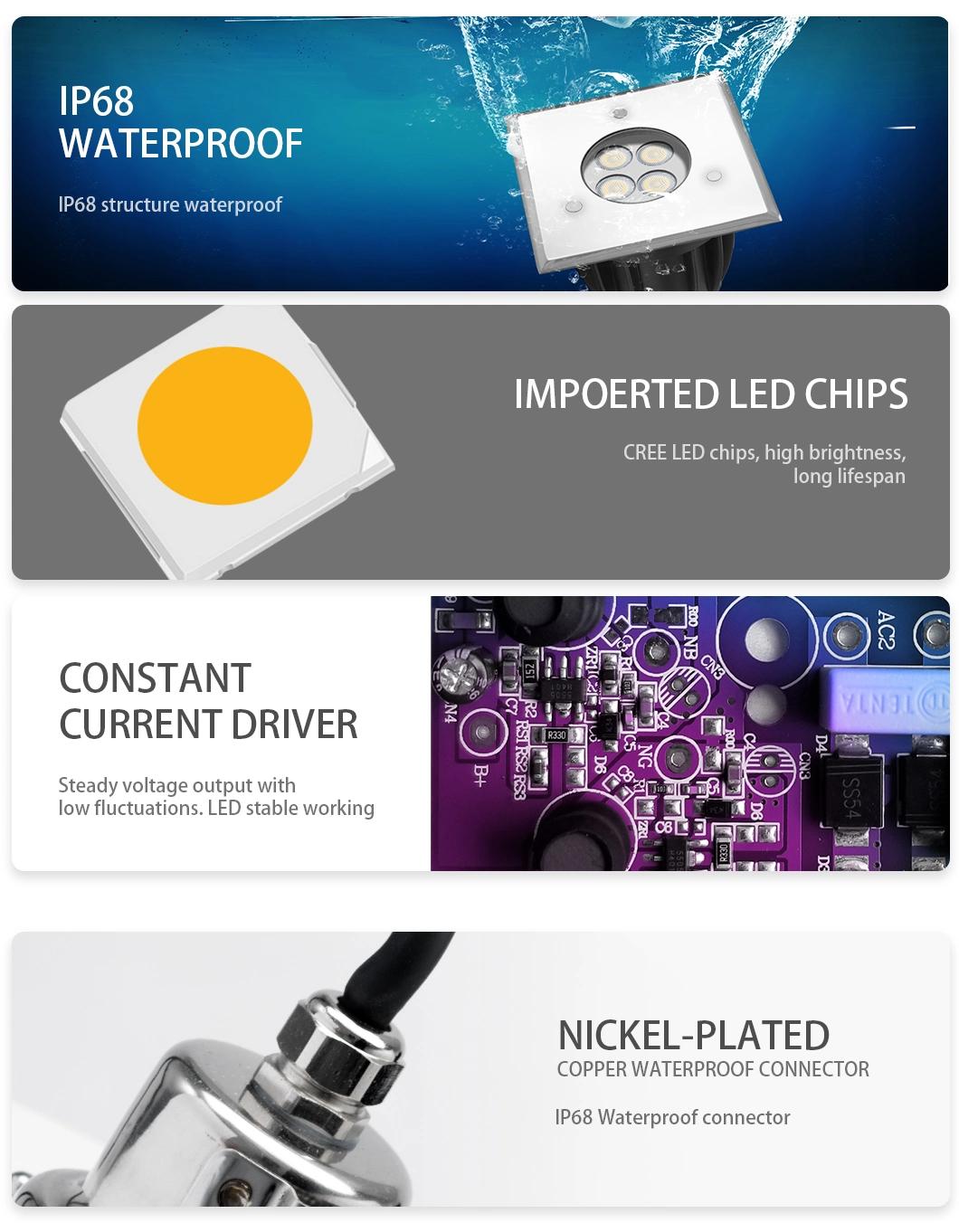

1. IP68 Structure waterproof, can be installed underwater

2. Made of 316L stainless steel, strong corrosion-resistance

3. 8mm IK10 transparent tempered glass has great Impact resistance, and high light transmittance > 90%

4. Imported highlight CREE LED chip, CRI>80. Low light degradation and long lifespan

5. Optical LED lens, 15/30/45/60°for optional

6. Constant current driver, high efficiency>90%, assure the LED stable working without input fluctuation

7. 2mm aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity

8. VDE standard cable, high voltage resistance at 2000V, temperature resistance at -40ºC to 90ºC

9. 8 hours aging testing, 30 steps quality inspections, assure the great quality products

10. Lamp succeeded in the IES and Temperature rise test

11. LED underground light, widely used for square, park

led underground light ip68 Compared to others :

3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories

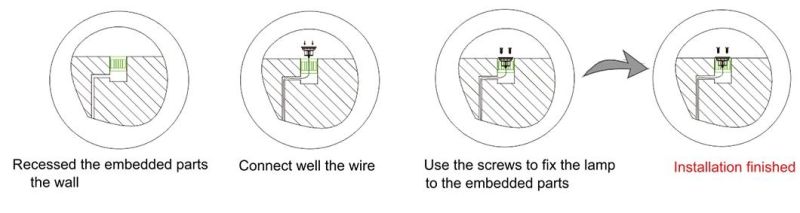

installation:
3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories

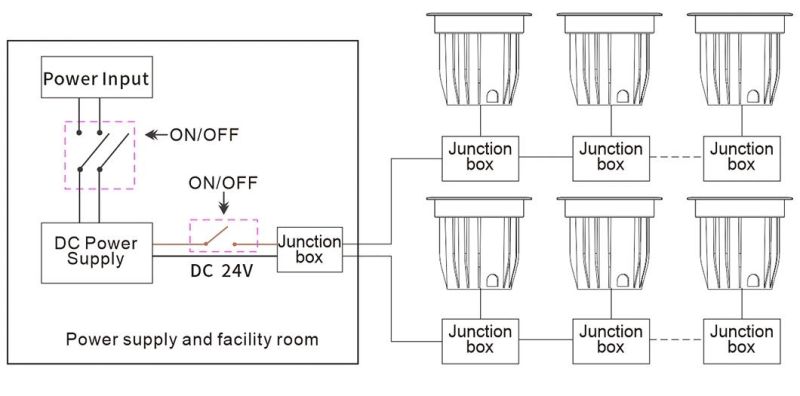

Connection Diagram:
3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories

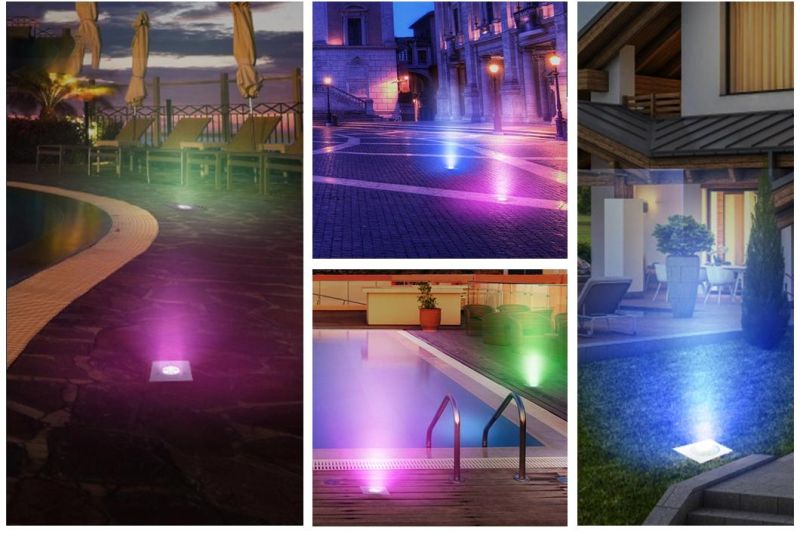

Application:
led underground light ip68 applicated in outdoor, garden, park, etc.
3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories
About Company
In 2006, we began working on LED Underwater product development and production. factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is
listed in the UL certificate in Led Swimming pool light industry.

MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spotlight
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10.RGB Led Controller
11. IP68 par56 housing/Niche/fixture

CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68 , IK10.VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Our factory always adheres to the quality first, constantly develops new products to adapt to the development of the market, and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit the factory.
3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories
The exhibition:
3W 24V Square Light Fixture LED Buried Pool Light Pool Light Accessories





FAQ
Q1: How to choose the right LED energy-saving lamps?
Low wattage with high Lumen. This will save more electricity bills.

Q2: What are the advantages of LED?
Environmental friendly, Energy saving, and Long lifespan.

Q3: The key factor that influences LED lifespan.
Temperature: It requires that the junction temperature of the LED chip should be ≤120ºC, so the center temperature at the LED bottom of the light board should be ≤ 80 ºC.

Q4: Why choose us?

1. Lower wattage with high Lumen and more energy-efficient.

2. All lamps are self-developed patent products.

3. IP68 structure waterproof without glue and lamps dissipate heat through the structure.

4. According to the LED characteristic, the center temperature at the LED bottom of the light board must be controlled strictly( ≤ 80 ºC).

5. High-quality driver of lamps to ensure a long lifespan.

6. All products have passed CE, ROHS, FCC, IP68, IK10 and our Par56 pool light have got UL certification.

7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousa
