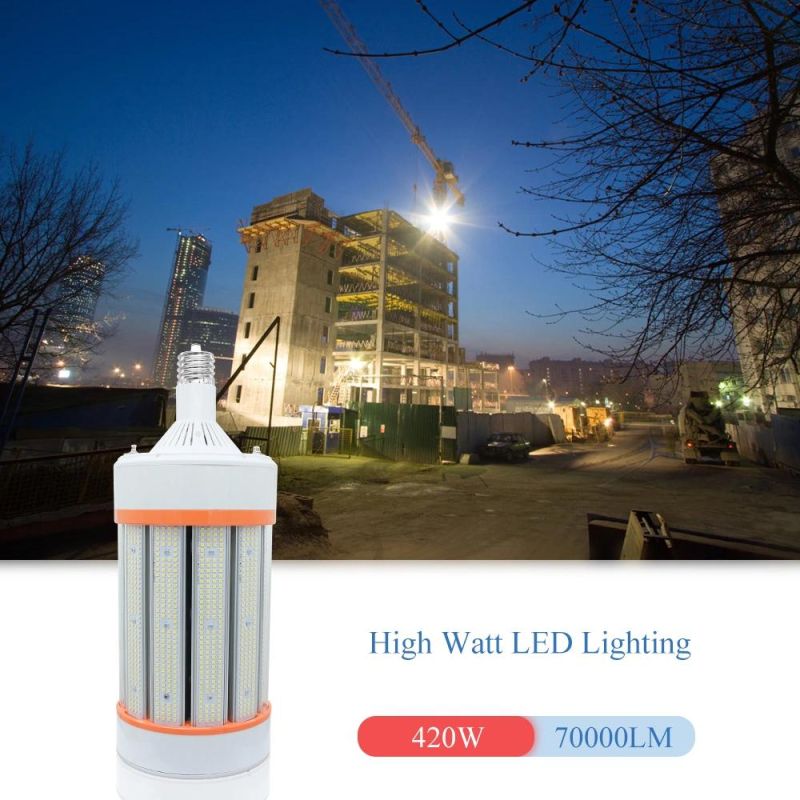

420W LED Corn COB 480V 70000lm Ex39 Base Lamp
Dongguan Zhao Peng Lighting Technology Co., Ltd.- Power Supply：AC
- Color Temperature：3000K-5000K
- Lamp Body Material：Aluminum
- Power：420W

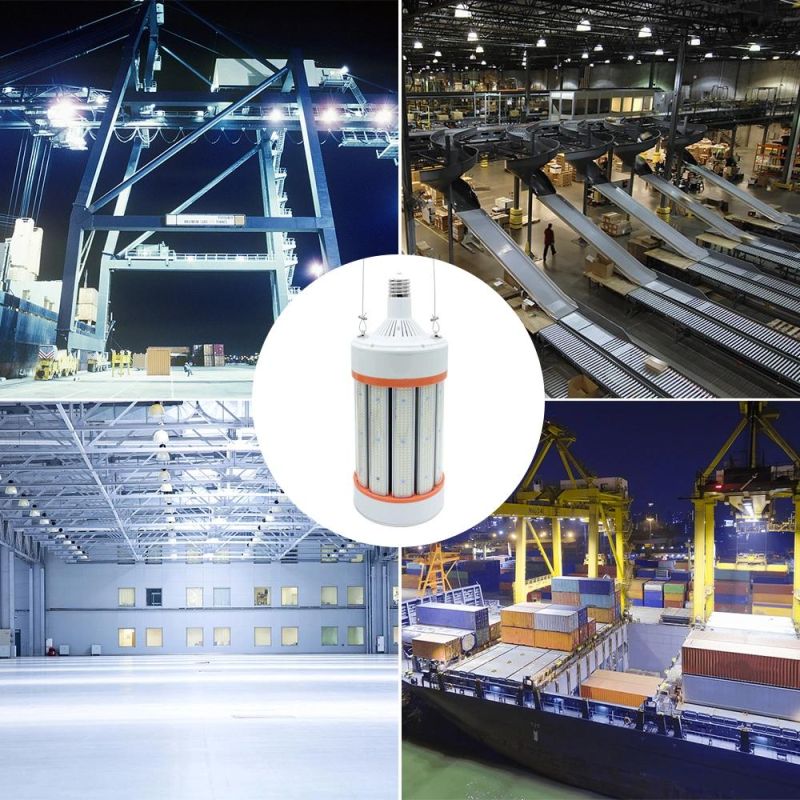

- Application：Square, Highway, Garden, Parking Lot, Stadium

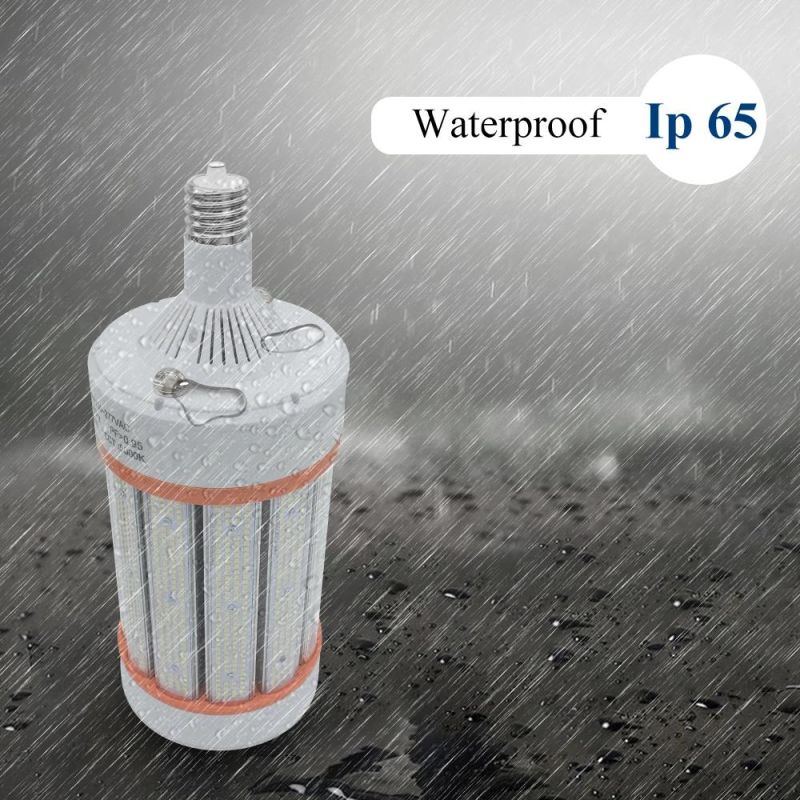

- IP Rating：IP65
Base Info
- Model NO.：NS-ACL-420W-02CH

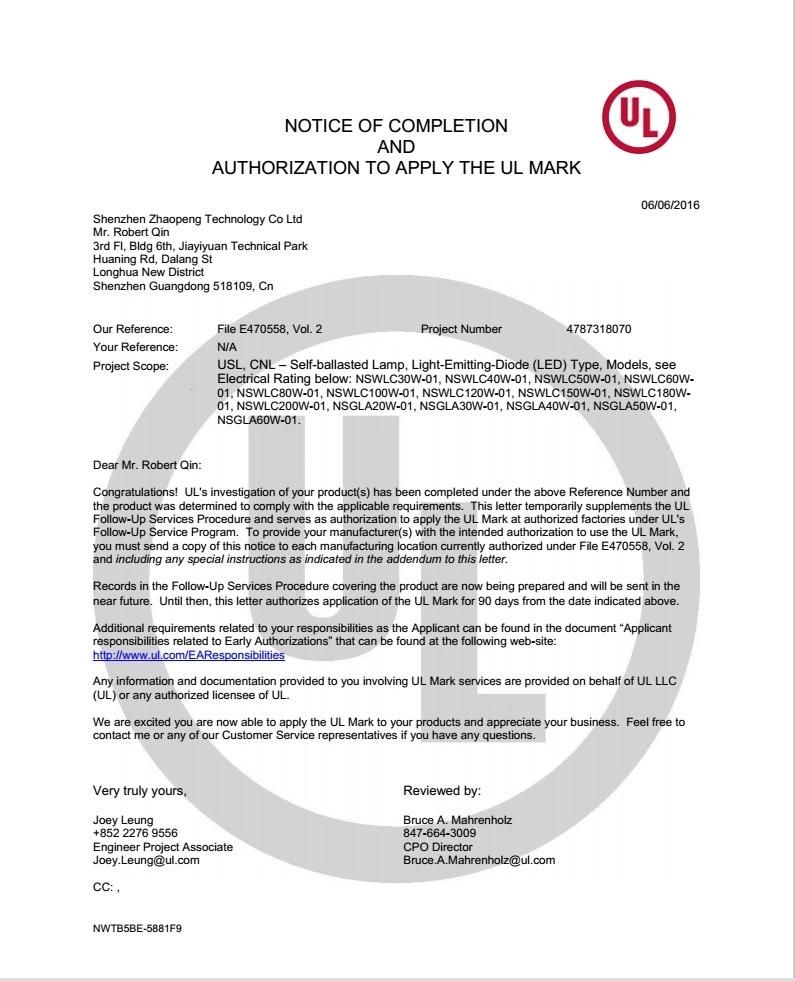

- Certification：CE, EMC, ETL, FCC, LVD, RoHS, UL
- Input Voltage：480V
- With Light Source：With Light Source
- LED Chips Brand：Epistar

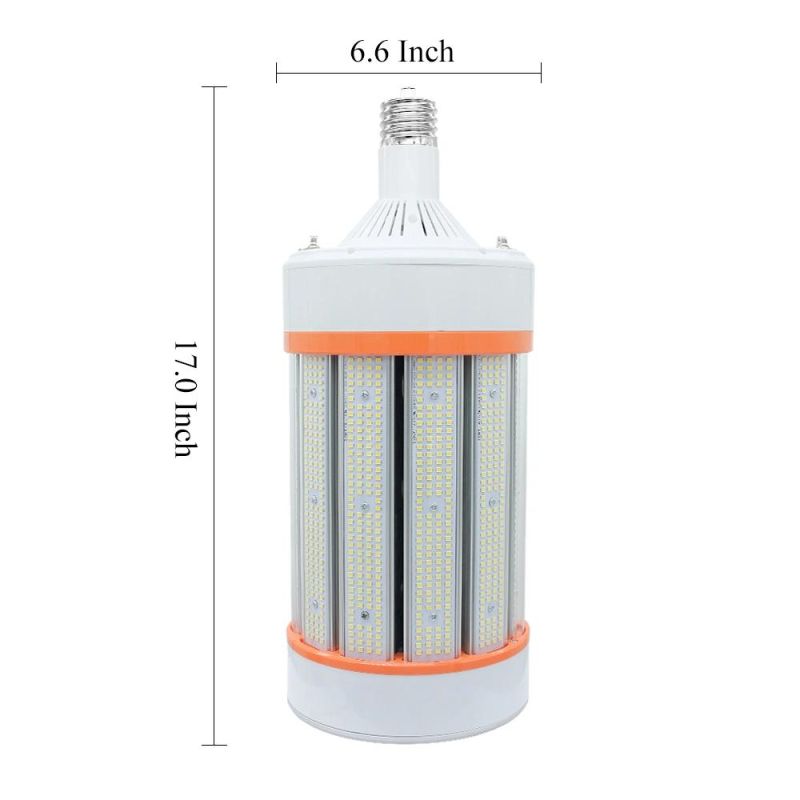

- Size：6.6*17in
- Total Lumens：70000lm
- Lumenous Effc.：160lm,W
- Lifespan：50000 Hours
- Heat Sink：Aluminum Fin-Shap Heat Sink
- Driver：Internal Driver with UL Standard
- Certificate：Ce UL Dlc RoHS
- Transport Package：1 in Color Box, 4 in One Carton
- Specification：18.9*16.93*16.93in GW: 13.2kg,29.1lbs
- Trademark：NS
- Origin：China
- HS Code：9405409000
- Production Capacity：20000PCS,Month
Description

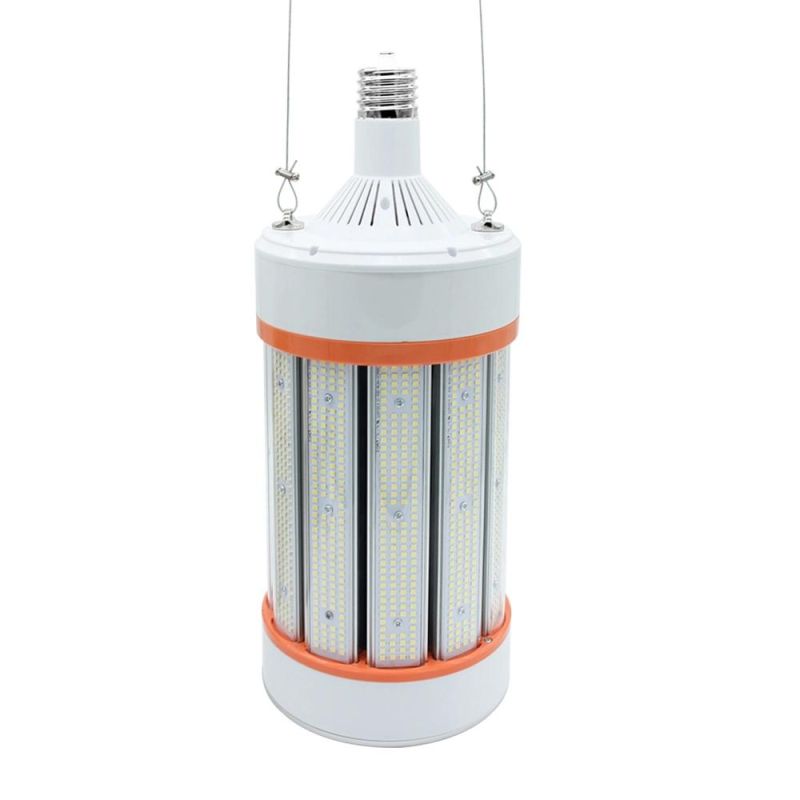

Features1. 360-degree beam angle, using aluminum profile riveting and stamping aluminum combination to speed up heat dissipation;.2. Sturdy and durable plastic component structure, embedded copper column nut fixed hook, with lanyard kit, Improve the safety when using lamps;3.Isolated constant current power supply, 6000V surge protectioncircuit to avoid the product being damaged by surge current;
4. Use two sets of high performance fans to ensure the rated life of the lamp; 5. Long life span, more than 50,000 hours, reducing the times of replacements, saving time, money and energy; 6.Under the Same output luminous flux circumstances, save 60% -65% of electrical energy and reduce energy costs than HID;7. Working ambient temperature rating is -25ºC to 50ºC; 8. Suitable for indoor open and closed fixtures; easy to install, a good replacement for traditional HID, MH and HPS.

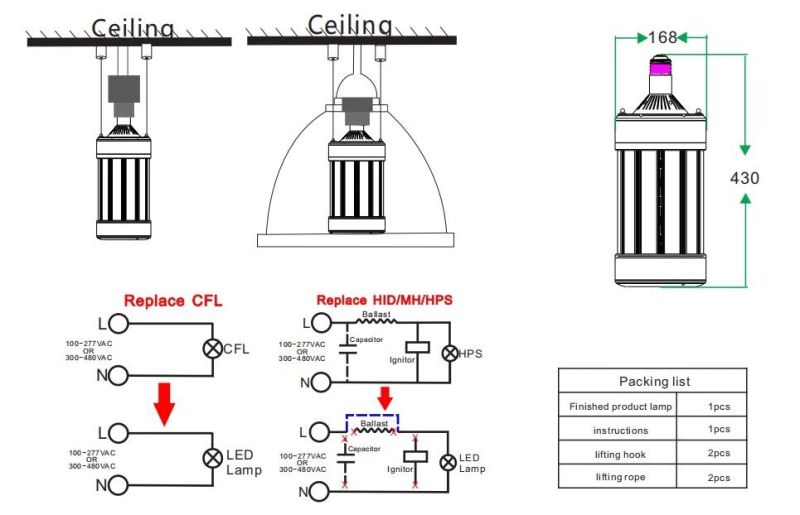

Installation
