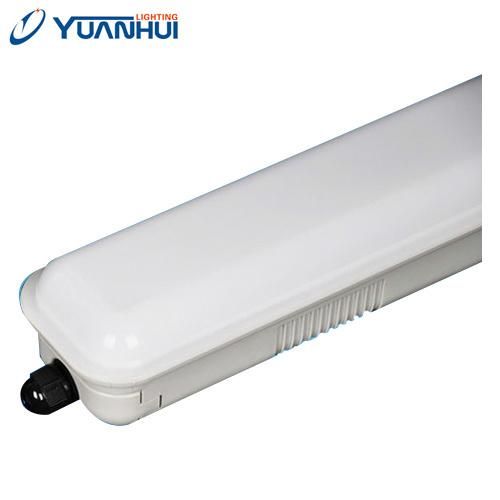

• Model NO.：SF-18W SF-36W SF-50W
• Certification：CCC, CE, CQC, C-tick, EMC, RoHS, SAA, UL, Dic
• Operating Voltage：220-240V
• Input Voltage：220V
• LED Chips Brand：Samsung
• CRI：80
• IP：65
• Ik：08
• Material：Polycarbonate Material
• Lens：Opal or Clear
• Transport Package：in The Box,Cotton
• Specification：GS SAA CCC UL EMC ROHS CE CUL etc
• Trademark：Yuan Hui
• Origin：Cixi, Zhejiang, China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

LMF12-600LMF24-600LMF24-1160LMF36-1160LMF48-1160LMF34-1560LMF54-1560LMF70-1560LensOPALCLEAROPALCLEAROPALCLEAROPALCLEAROPALCLEAROPALCLEAROPALCLEAROPALCLEACCT@Lumen
Output(lm)                                          2700K-6500K(Standard: ANSI  C78.377)1372153726482967252728313716416348405423320735935082569462917048Certificate              CE-LVD   EMC  ROHS   GS   CB   ENEC   SAA   C-TICK   CCC   ULPower(W±10%)          12W        24W         24W         36W         48W         34W         54W         70W     LED
No./Spec.(SMD)        24PCS       50PCS       50PCS       75PCS      104PCS       78PCS       120PCS      156PCSInput Voltage(V)                                                                                     AC220-240V,50/60HzCRI                                                                                                 80Beam Angle(°)                                                                                                120Driver Type                                                                                              OSRAMLED Chips                                                                             EVERYLIGHT 2835/LEXTAR 2835Operating
Ambient
Temperature(ºC)                                                                                            -20ºC~40ºCOperating
Humidity(ºC)                                                                                            10-%~90%Warranty                                                                                     Up to 5 YearsIP                                                                                            IP66IK                                                                                              08GLOW WIRE TEST                                                                                         Pass 850ºCMaterial                                                                                 Polycarbonate materialNet Weight(kg)0.961.961.781.921.922.562.562.56Product Size(mm)               600*120*108                           1160*120*108                            1560*120*1082.Product Descroption:

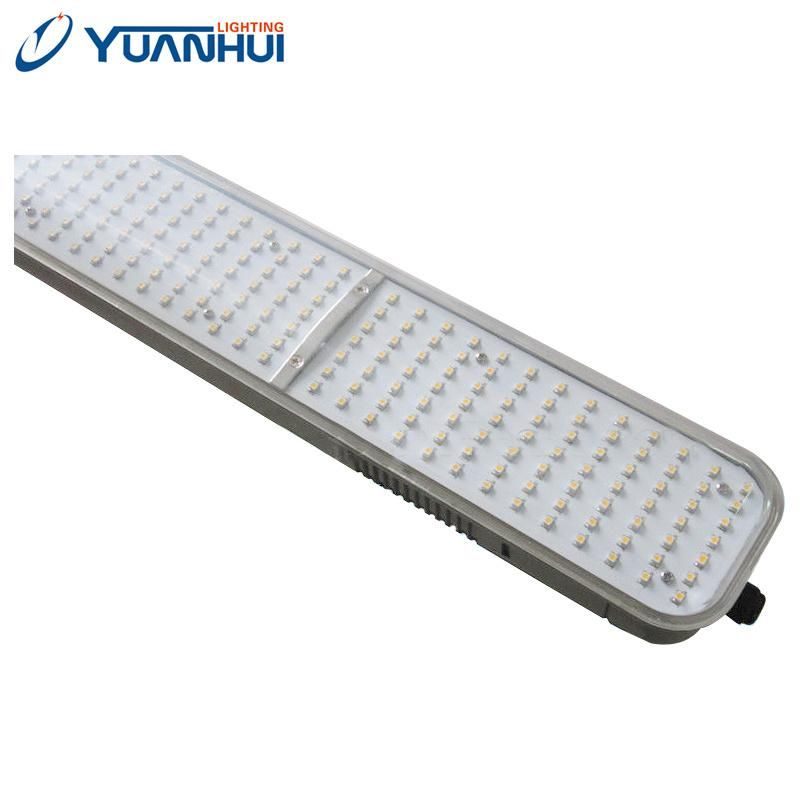

    1.INPUT VOLTAGE: AC220V-240V, 50/60Hz.
    2.HIGH PERFORMANCE- OSRAM DRIVER for maximum efficiency.
    3.EFFICACY- High Quality LED chips: from EVERYLIGHT /LEXSTAR for maximun light output and life.

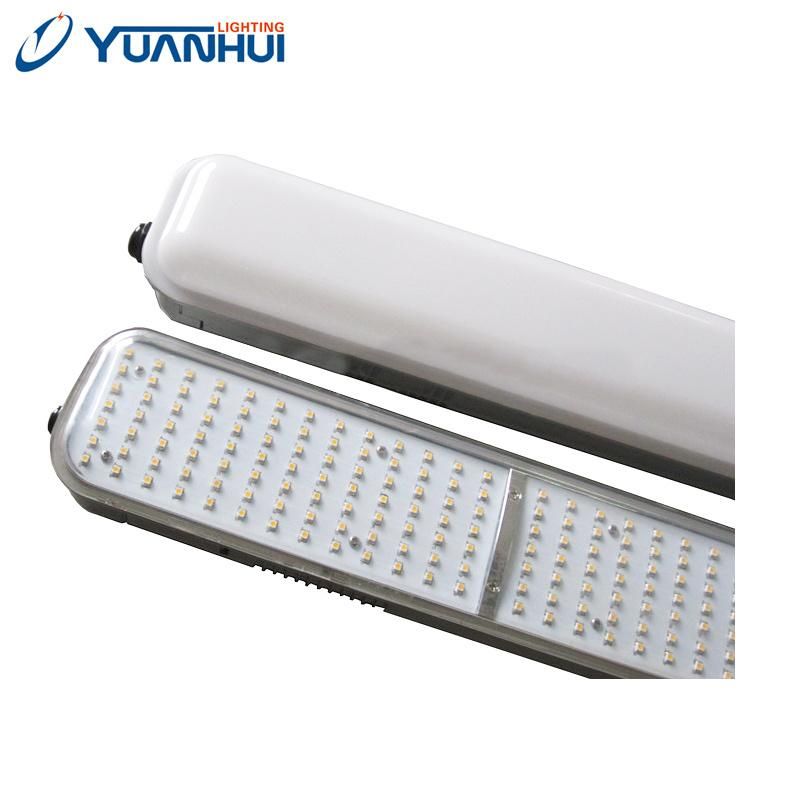

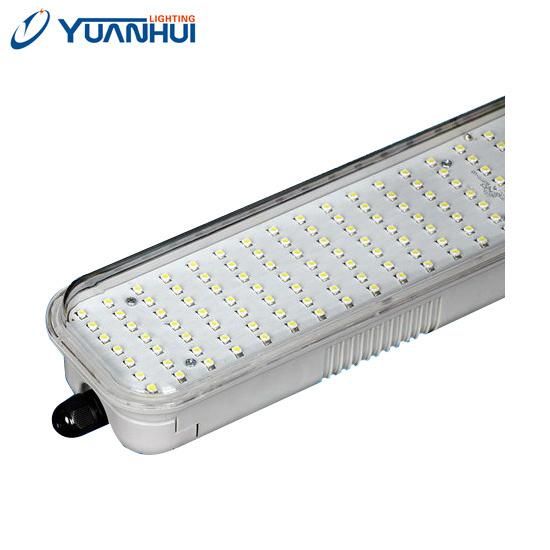

    4.RELIABILITY- Reflector with MCPCB as heat sink.
    5.RUGGED- Body & Diffuser have an High Impact Rating IK08 and GLOW WIRE TEST Inflammability Test to 850ºC.
    6.PERFECT REPLACEMENT for the whole set of T8 fluorescent lightig fixture.
    7.SAVE UP to 60% in electricity consumption compared to fluorescent lighting fixture.
    8.LONG LIFETIME- 50,000 hours or typically Ten Years before replacement.
    9.LIGHTWEIGHT body material, corrosion resistant, waterproof and dustproof.
  10.EASY INSTALLATION with fast connection design, shorten the installasion process and save labor cost.
  11.FLEXIBILITY- Module can be fitted with Microwave sensors and an Emergency Battery to meet your special order requirement.
  12.WIDE OPERATING RANGE- IP66 Dust, Dirt and water jet proof and temperature from -20ºC~40ºC.
3.Applications:
Multi-storey Car Parks, Warehouse and Factories, Farm Buildings & Stables, Transport Hubs(platforms), Schools & Hospitals (walkways & kitchens) ,Glasshouses/Horticultural buildings, Sports Stadiums etc.

FAQ:

Q1: Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What is the lead time?
A2: Samples need 3-5 working days, mass products need 7-10 days.


Q3: Do you have any MOQ limit for led light order?
A3: Low MOQ, 1pc for sample checking is available.

Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: How to proceed an order for led light?
A5: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6: Is it OK to print my logo on led light product?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
