• Projection Distance：>35m
• Application：Park, Factory, Garden
• IP Rating：IP65
• Certification：CCC, CE, ETL, FCC, RoHS, SAA, UL
• Operating Voltage：220-240V
• Input Voltage：220V
• LED Chips Brand：Samsung
• Cover：PS,PC
• Body：PC,ABS
• IP：65
• Ik：08
• Lifespan：50000hours
• Cable Gland：PC or Brass or Stainless Steel
• Lock：PC or Stainless Steel Clips
• Warranty：5years
• Length：2FT,4FT,5FT
• Width：Single,Double T8
• Transport Package：Carton
• Specification：ABS,PC+PS,PC
• Trademark：longlux
• Origin：China
• HS Code：9405920000
• Production Capacity：1000000

Basic Info.

Projection Distance >35m Application Park, Factory, Garden IP Rating IP65 Certification CCC, CE, ETL, FCC, RoHS, SAA, UL Operating Voltage 220-240V Input Voltage 220V LED Chips Brand Samsung Cover PS/PC Body PC/ABS IP 65 Ik 08 Lifespan 50000hours Cable Gland PC or Brass or Stainless Steel Lock PC or Stainless Steel Clips Warranty 5years Length 2FT/4FT/5FT Width Single/Double T8 Transport Package Carton Specification ABS/PC+PS/PC Trademark longlux Origin China HS Code 9405920000 Production Capacity 1000000

Product Description

Feature1. Unique design,CE, ROHS listed.

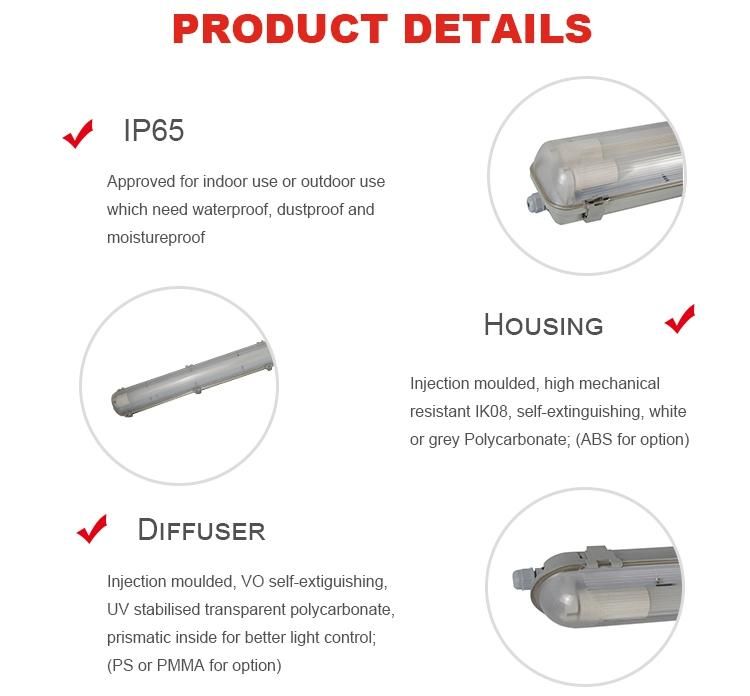

2. Water-proof , Dust-proof, Vapor - proof.
3. Body and diffuser meet IK08 and 850ºC glow wire test requirement

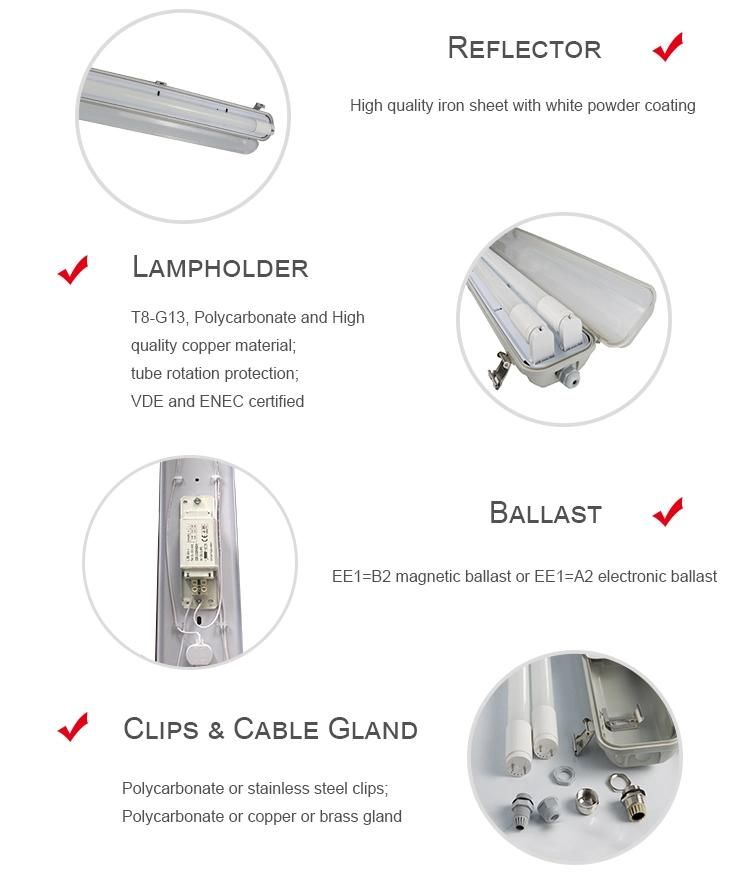

4. ABS/PC body, PS/PC Transparent diffuser & Micky diffuser, PC & stainless steel clips for your option

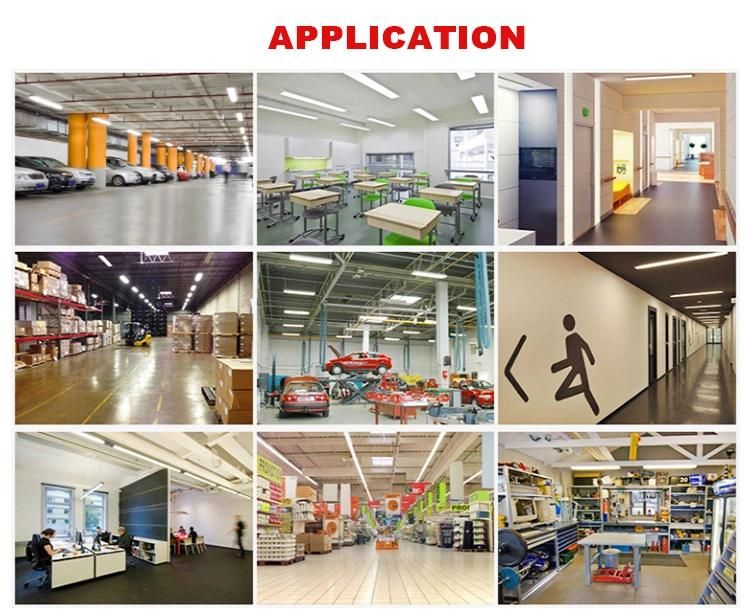

5. Application: Parking place, Tunnel, Railway Station,Warehouse.

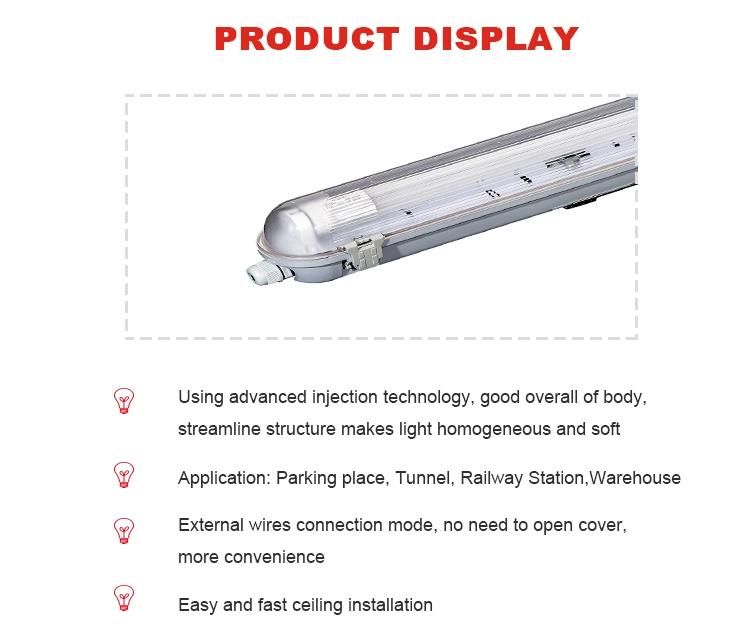

6. Easy and fast ceiling installation
7. Suitable for electronic ballast and tube according to client's requirements
 Specification

Model	LLX-TriProof-118B	LLX-TriProof-218B	LLX-TriProof-136B	LLX-TriProof-236B	LLX-TriProof-158B	LLX-TriProof-258B
Watt(W)	1*18	2*18	1*36	2*36	1*58	2*58
IP Rating	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65
N.W.(Kg/Ctn)	9	8	16	15	18	17
G.W.(Kg/Ctn)	10	9	17	16	19	18
Box Dim(L*W*H)	670*68*53	670*98*53	1270*68*53	1270*98*53	1570*68*53	1570*98*53
Carton Dim(L*W*H)	690*290*220	690*290*210	1290*290*220	1290*290*210	1590*290*220	1590*290*210
Qty/Carton(PCS)	15	10	15	10	15	10
