• Model NO.：JP-83511-H
• Warranty：2 YEARS
• IP Rating：IP65
• Certification：CE, EMC, LVD, RoHS
• Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Color：2700-6500K,Red,Green,Blue,Yellow
• Product Size：Dia42mm*H75mm
• Driver：Built-in Constant Current Output
• Beam Angle：25,30 Degrees
• Operating Temperature：-20-40 Centigrade
• Lighting Source：1*3W LED
• Optional Accessories：Aluminum Anti-Glare Hood
• Housing Color：Black,Silver,Customized
• Transport Package：49X27X30(24PCS,CTN)
• Specification：CE & RoHS
• Trademark：JP lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：100000 PCS,Year

Basic Info.

Model NO. JP-83511-H Warranty 2 YEARS IP Rating IP65 Certification CE, EMC, LVD, RoHS Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Color 2700-6500K/Red/Green/Blue/Yellow Product Size Dia42mm*H75mm Driver Built-in Constant Current Output Beam Angle 25/30 Degrees Operating Temperature -20-40 Centigrade Lighting Source 1*3W LED Optional Accessories Aluminum Anti-Glare Hood Housing Color Black/Silver/Customized Transport Package 49X27X30(24PCS/CTN) Specification CE & RoHS Trademark JP lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 100000 PCS/Year

Product Description

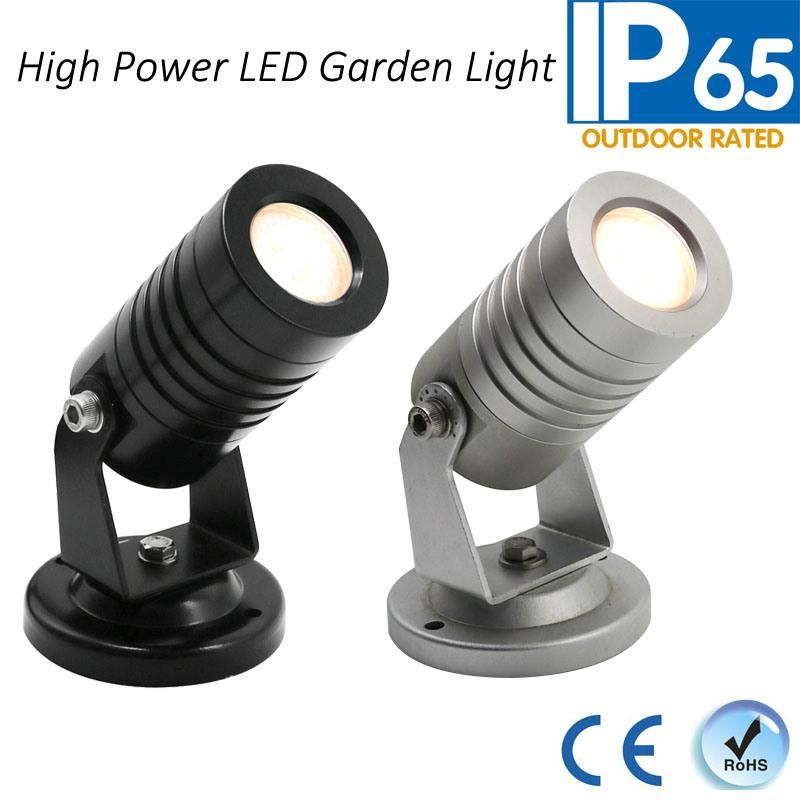

1W/2W/3W DC12V/24V/AC100-240V  IP65 LED Landscape Light LED Tree Light LED Lawn Light LED Garden Spotlight with Base for Architectural and Landscaping Lighting

Feature and Benefits:
1. High power, high brightness 1x1W/1x2W /1x3W/1x3W RGB3in1 LED;
2. Housing: Aluminum anodized finshing or powder painting;
3. Housing color option: Black/Silver/Customized color;
4. Easy to install and operate;
5. Energy-saving, low power consumption;
6. Tiny package and lighter,lower freight cost,more competitive in the market;
7. Using high-quality and high-precision material and structural waterproof, easy to maintain.

Main Specifications:
Housing: Aluminum anodized finshing or powder painting
Glass: Tempered glass.T=3mm
Lens: Optical lens, efficiency≥85%
Cable gland: Copper and nickel coated
Gasket: Tooling shaped seal
LED: EDISON OR CREE power LED
PCB:  Excellent heat conductivity aluminum,
coefficient of Heat Conductivity≥2.0w/mk
LED Colour Temperature: ·2700K·3000k / ·4000K·6000k
Driver :  Constant current output
Single color LED=1-circuit output
RGB 3in1 LED =3-circuit output
Power cable:  H05RN-F2x0.75mm²,L=1m(low voltage)
                       H05RN-F3x0.75mm²,L=1m(high voltage)
                       H05RN-F4x0.75mm²,L=1m(for RGB)
Operating Temperature: -20ºC~40ºC

Products Model:

Item No.	Light source	Lens beam angle (°)	Consumption (watt)	Input Voltage (V)	Ik rate
83511	1x1W	8°/15°/25° /30° /45°/60° /90°	1.1	DC12/DC24V	02
83511H	1x1W	8°/15°/25° /30° /45°/60° /90°	1.3	AC100-240V	02
83512	1x2W	8°/15°/25° /30° /45°/60° /90°	2.2	DC12/DC24V	02
83512H	1x3W	8°/15°/25° /30° /45°/60° /90°	3.2	AC100-240V	02
83516	1x3WRGB3in1	8°/15°/25° /30° /45°/60° /90°	3.2	DC12/DC24V	02

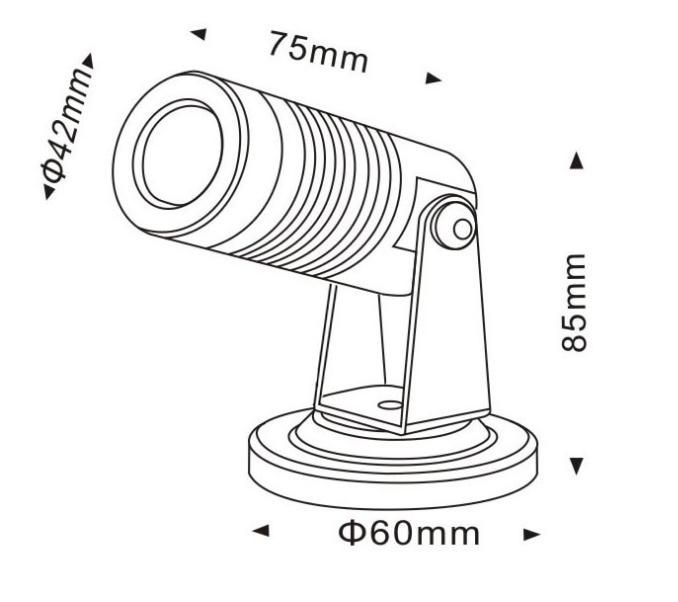

Products Size:

Products Picture:

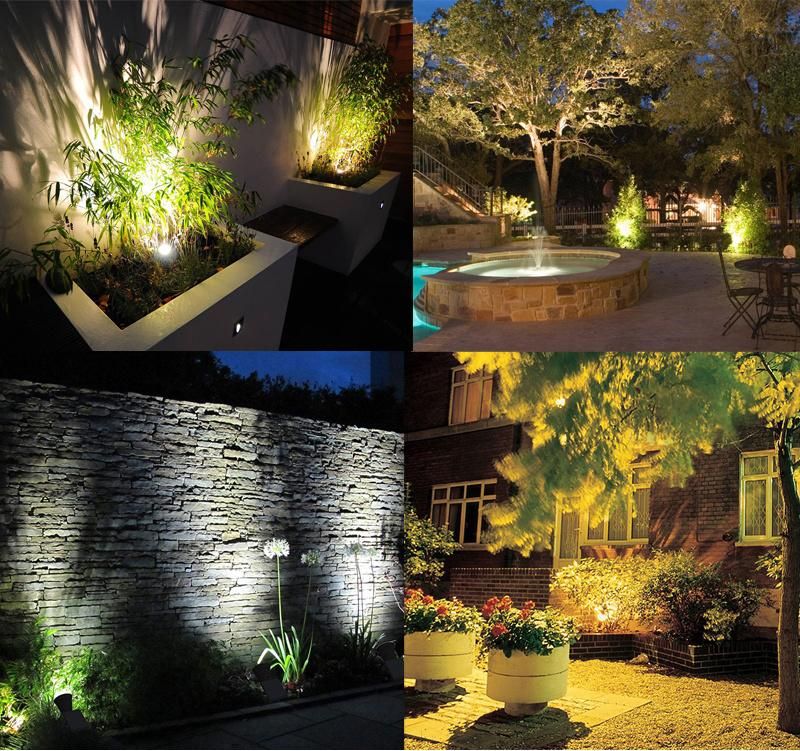

Application:Garden lighting,Park lighting,Residential lighting,Square lighting and so on.

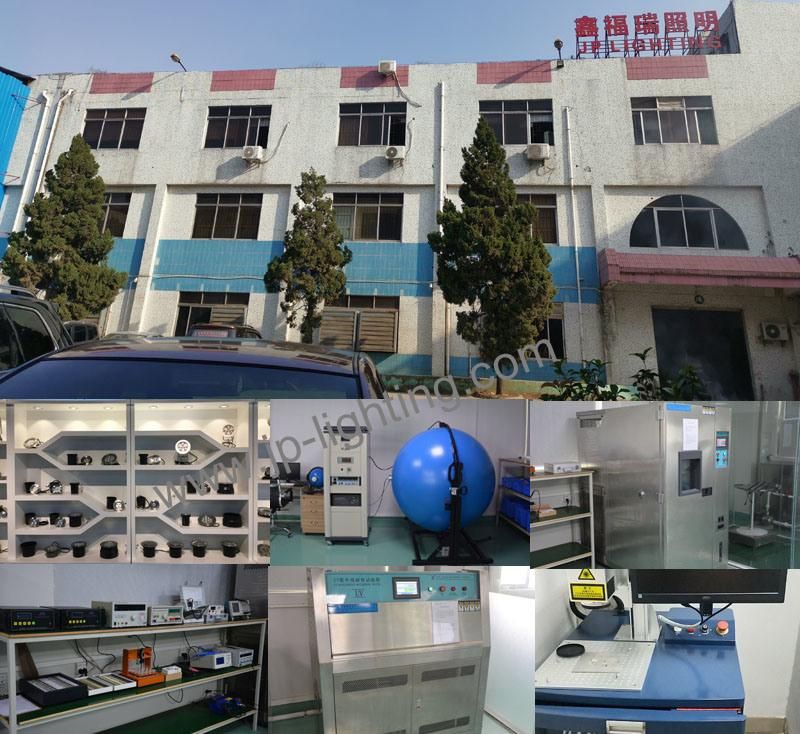

Factory Picture

Packaging and shipping

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
