• Model NO.：1E826068
• Base Type：LED+MPCB
• IP Rating：IP67
• Shade Type：Frosted Glass
• Certification：CE, EMC, LVD, RoHS
• Voltage：DC12c,DC24V,AC100-240V
• Front Cover：304#,316# stainless Steel
• Housing：Powder Coated Aluminum
• Diameter：170mm
• LED Source：8W,10W,12W,15W,18W,20W CREE COB LEDs
• LED Chip：CREE
• Input Voltage.：DC12,24V or 120,240VAC
• G.W.：8kgs,CTN,4PCS,CTN
• Transport Package：36X19X31cm (4PCS,CTN)
• Specification：CE, RoHS.
• Trademark：JP lighting
• Origin：Guangdong Dongguan
• HS Code：94054090
• Production Capacity：100000PCS,Year

Basic Info.

Model NO. 1E826068 Base Type LED+MPCB IP Rating IP67 Shade Type Frosted Glass Certification CE, EMC, LVD, RoHS Voltage DC12c/DC24V/AC100-240V Front Cover 304#/316# stainless Steel Housing Powder Coated Aluminum Diameter 170mm LED Source 8W/10W/12W/15W/18W/20W CREE COB LEDs LED Chip CREE Input Voltage. DC12/24V or 120/240VAC G.W. 8kgs/CTN,4PCS/CTN Transport Package 36X19X31cm (4PCS/CTN) Specification CE, RoHS. Trademark JP lighting Origin Guangdong Dongguan HS Code 94054090 Production Capacity 100000PCS/Year

Product Description

IP67 8W 10W 12W 15W 18W 20W CREE COB LED Park Light LED Pathway Light LED Driverway Light LED Wall Light Side View LED Inground Light With 304#/316# Stainless Steel Front Cover .

 Feature and Benefits: 1. IP67 waterproof for outdoor walk/path/ square/parking lot/garden lighting use;2. High bright Cree COB LED
3. Input Voltage:12V/24VDC standard (High voltage 100-240VAC can be available);
4. 316 Stainless steel front cover+tempered glass+aluminum alloy can be withstand car traffic.5. One side emitting,two side emitting and four side emitting optional.6. Using high-quality and high-precision material and structural waterproof, easy to maintain
Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class/ASTM class 4B
Front Cover: Hard chrome plate 304# or 316# Stainless Steel
LED Source: 1x8W/1x10W/1x15W1x18W/1x20W Cree COB LED
Luminous Flux: 80-90lm/w
Lens: Optical lens, efficiency ≥85%
Glass: PMMA diffuser
Glass pressure capacity: >2000kgs
Gasket: Molding shaped silicone seal
Operating : -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
           H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
Mounting sleeve: ABS

Products Model:

Item No.	Lighting Source	Consumption(Watt)	Input Voltage(V)	IK rate
1E826068/2E826068/4E82068	1x 8W Cree COB LED	8.1	DC12V/DC24V	10
1E826068H/2E826068H/4E82068H	1x 8W Cree COB LED	8.1	AC100-240V	10
1E826108/2E826108/4E826108	1x 10W Cree COB LED	10.8	DC12V/DC24V	10
1E826108H/2E826108H/4E826108H	1x 10W Cree COB LED	10.8	AC100-240V	10
1E826158/2E826158/4E826158	1x 15W Cree COB LED	15.2	DC12V/DC24V	10
1E826158H/2E826158H/4E826158H	1x 15W Cree COB LED	15.2	AC100-240V	10

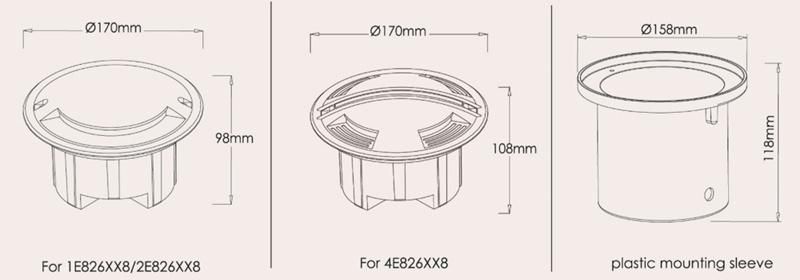

Products Size:

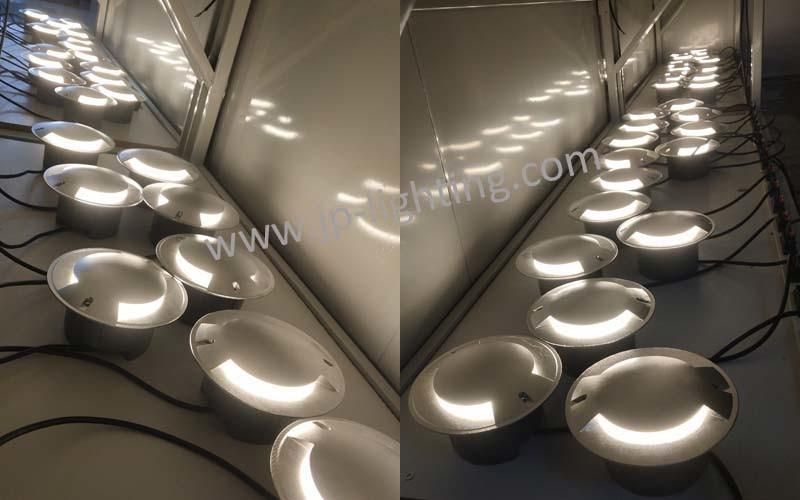

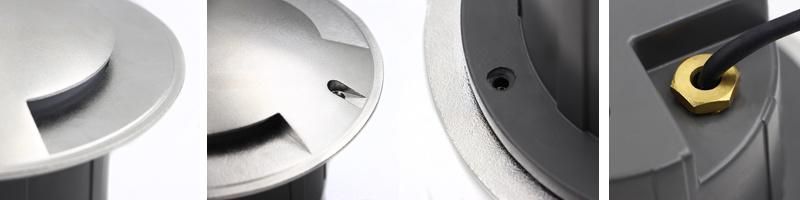

Products Picture

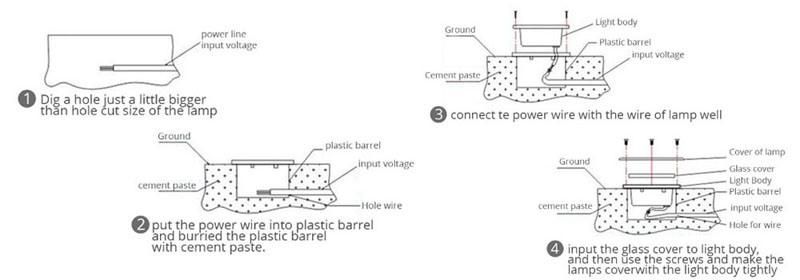

Product Installation:

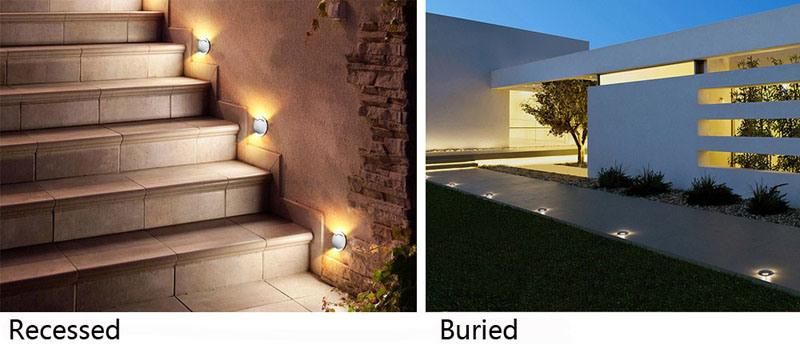

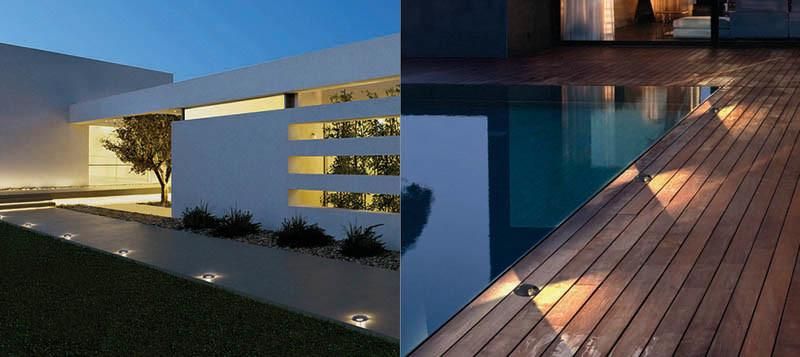

Application:

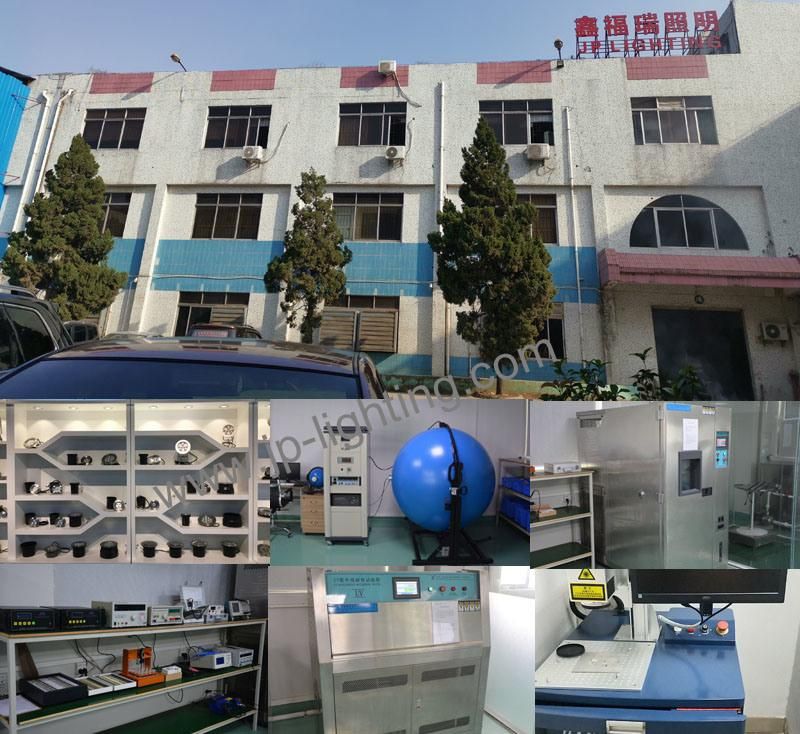

Factory Picture

Packaging and shipping

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
