• Model NO.：SH14
• Certification：CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Input Voltage：12V,24V
• With Light Source：With Light Source
• LED Chips Brand：Lumi@LEDs
• Efficiency (Lm/W)：170m,W
• CRI(Ra)：70
• PV Voltage(V)：18V,36V
• Battery Type：LiFePO4
• Ik Degree：Ik09
• Solar Panel：Mono
• Operating Temperature：-20ºC to 60ºC
• Light Distribution：II-S, II-M, III-M
• Charge Time：6 Hours
• Working Time：2-3 Days (Auto Control)
• Warranty：5 Years
• Transport Package：Standard Sea-Worthy Box
• Specification：82.5*45*16.5cm
• Trademark：oem,odm
• Origin：Jiangsu, China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

ItemSH1401SH1402SH1403SH1404SH1405SH1406Power30W40W50W60W80W100WSolar panel parametersMonocrystalline 18V 30WMonocrystalline 18V 40WMonocrystalline 18V 50WMonocrystalline 18V 60WMonocrystalline 18V 80WMonocrystalline 18V 100WBattery parametersLifePO4 12.8V 12AHLifePO4 12.8V 18AHLifePO4 12.8V 24AHLifePO4 12.8V 30AHLifePO4 12.8V 36AHLifePO4 12.8V 42AHSystem voltage12V12V12V12V12V12VLED BrandLumi@leds 5050Lumi@leds 5050Lumi@leds 5050Lumi@leds 5050Lumi@leds 5050Lumi@leds 5050Light DistributionII-S,II-M,III-MII-S,II-M,III-MII-S,II-M,III-MII-S,II-M,III-MII-S,II-M,III-MII-S,II-M,III-MCCT2700K-6500K2700K-6500K2700K-6500K2700K-6500K2700K-6500K2700K-6500KCharge Time6 Hours6 Hours6 Hours6 Hours6 Hours6 HoursWorking Time2-3 days(Auto Control)2-3 days(Auto Control)2-3 days(Auto Control)2-3 days(Auto Control)2-3 days(Auto Control)2-3 days(Auto Control)Protection GradeIP66 IK09IP66 IK09IP66 IK09IP66 IK09IP66 IK09IP66 IK09Luminous Efficiency170LM/W170LM/W170LM/W170LM/W170LM/W170LM/WOperating Tempreture-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºCWarranty5 years5 years5 years5 years5 years5 yearsMaterialHigh class Integrated die-casting Aluminum alloy caseHigh class Integrated die-casting Aluminum alloy caseHigh class Integrated die-casting Aluminum alloy caseHigh class Integrated die-casting Aluminum alloy caseHigh class Integrated die-casting Aluminum alloy caseHigh class Integrated die-casting Aluminum alloy caseLuminous Flux5100LM6800LM8500LM10200LM13600LM17000LM

Why Choose This Product?

The solar street lights are switched on automatically at night and switched off automatically at dawn. It adopts super full aluminum frame, light weight, high strength, corrosion resistance, and can resist 12 levels of strong typhoons. All in one solar street light is aluminum with excellent heat dissipation. It has been used for many years in desert cities..
There are two brightness modes of solar street light, infrared body induction and time control (optional).
Infrared body induction working mode: when no one is there automatically reduce brightness to save energy. When you are near, it will illuminate you with four times brightness immediately, effectively extend the lighting time.

Product Features

1.Integrated design,all in one solar LED street light, solar panel,Led chips, battery,cotroller,motion sensor,etc, all in(on) a light,without extra cable, save shipping cost and labour cost.
2.Easy to ship,carry and install.
3.Energy saving and environment friendly by perfect combination of solar power and LED lighting.
4.High capacity and long life Lithium battery,5-year theoretical working life and high-temperature resistance, make the whole light a longer life.
5.Safe and reliable rain-proof & water-proof design.
6.Alumina Alloy is used for main structure in order to preventing dusty and corrosion,is also good for heat dissipation.
7.Different power control according to time period, lower brightness when less people after midnight, in order to saving energy and improve practicability.
8.Pure ternary low internal resistance lithium battery, the life is up to five years, the temperature adaption scope is -20ºC ~ 60ºC.
9.Double battery charging and discharging protection ensures that battery life is guaranteed while customer property is guaranteed.
10.Waterproof switch, one key operation, simple installation.
11.Solar photovoltaic conversion provides electricity, environmental protection, no pollution, no noise.
12.Self developed R & D and produced controller with good compatibility and low failure rate.
13.The price is lower than traditional solar street lamps, one investment and long-term use.

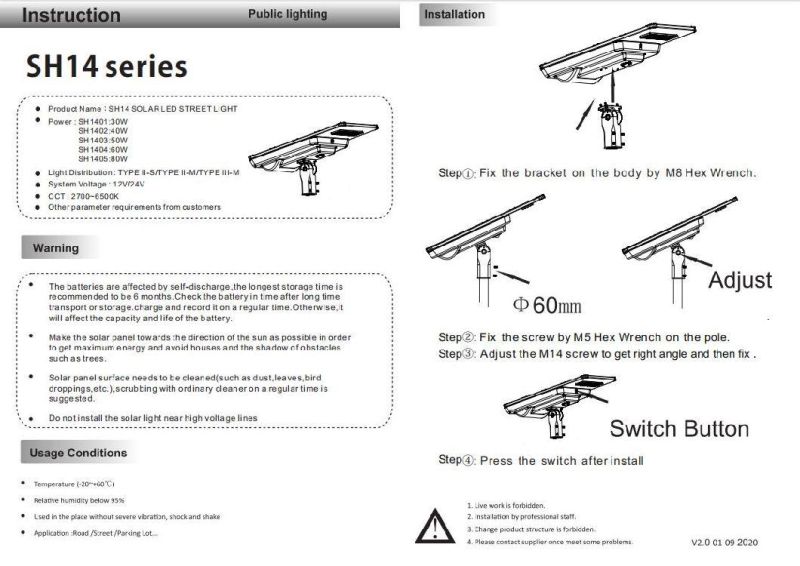

Instruction Manual




Company Introduction
SHINE is a national hig-tech enterprise devoted to research and development, production and sales of LED lighting and photovoltaic energy
storage.
SHINE has two factories. SHINE OPTO produces LED street lights and solar LED street lights, SHINE ENERGY produces photovoltaic panels,
lithium batteries, inverters and energy storage systems etc.
SHINE OPTO is located in Suzhou, Jiangsu province, covering more than 12,000 square meters. We have been cooperating with domestic
universities and research institutions to develop high efficient, energysaving, innovative LED lighting with excellent performance and unique
 design. Our R&D laboratory, Cooperative Testing Laboratory of TUV Rheinland  Group,  isequipped with  high  and  low temperature tester,
darkroom,  IES tester, integrating sphere, IK/IP test instrument and so on.
SHINE has passed ISO9001: 2015 ISO14001: 2015 system certification and owns more than 200 patents in radiating structure, electronics and optics. Our led lighting is ENEC, TUV, CB, CE, EMC, LVD, UL/CUL, DLC approved and sold in more than 70 countries and areas.



Shipping
We ship to worldwide by DHL,UPS,FEDEX,EMS or by Air or by sea. We will select the fast and reliable way for delivery. Save on shipping and safer on delivery.
1.Items will ship within 2-7 business days after payment received.
2.You can mix all the items freely to place an order, thus you can save shipping cost.
3. Import duties,taxes and charges occured in buyer's country are not included in the item price
or shipping charges.These charges are the buyer's responsibility.

Return & Warranty
1. Items will be tested before shipping.
2. 3~5 years manufacturer's limited warranty for defective items( NOT excluding items wrong operated
 or physical damaged by buyer).
3.Defective items MUST BE reported and returned within the warranty period in the original
packaging, also must provide us the return tracking number.

Feedback
We keep high standard of excellence and strive 100% customer satisfaction. Your satisfaction and positive feedback is very important to our business development. Please leave positive feedback if you are satisfied with our items and service. If you are not satisfied with this purchase, please be free to contact with u. We will try our best to help you until the problem is solved.
