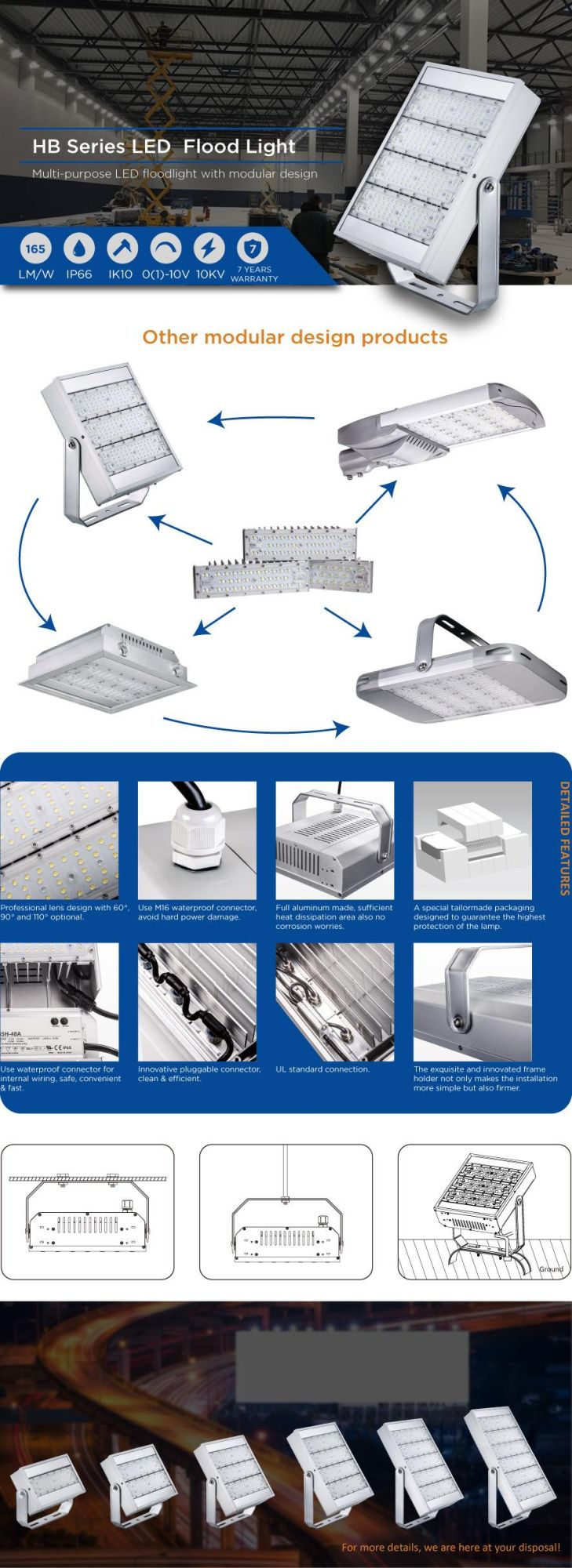

UL cUL Dlc Approved 277-480VAC High Voltage Flood Light
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Color Temperature：3000K, 4000K, 5000K, 5700K
- Lamp Body Material：Aluminum Alloy
- Power：80W
- Projection Distance：25-35m
- Application：Park, Square, Factory, Garden, Stadium
- IP Rating：IP66
Base Info
- Model NO.：ZGSM-FGD80H4B
- Certification：CE, EMC, GS, LVD, RoHS, SAA, UL, Dlc, CB
- Operating Voltage：AC 100-240V ,277V
- Input Voltage：AC 100-240V ,277V
- LED Chips Brand：Bridgelux
- Lumen Output：11200 Lm
- CRI：Minimum 70 CRI
- Ik Rating：Ik10
- Packing Type：1 Unit ,CTN
- Transport Package：Cartons
- Specification：80W
- Trademark：ZGSM
- Origin：China
- HS Code：94054090
- Production Capacity：50000PCS,Month
Description
Basic Info.
Model NO. ZGSM-FGD80H4B Certification CE, EMC, GS, LVD, RoHS, SAA, UL, Dlc, CB Operating Voltage AC 100-240V /277V Input Voltage AC 100-240V /277V LED Chips Brand Bridgelux Lumen Output 11200 Lm CRI Minimum 70 CRI Ik Rating Ik10 Packing Type 1 Unit /CTN Transport Package Cartons Specification 80W Trademark ZGSM Origin China HS Code 94054090 Production Capacity 50000PCS/MonthProduct Description
| Series No | Series HB |
| Power | 40W,50W, 60W,80W,100W,120W,150W,160W, 180W,200W,240W,300W,360W |
| Efficacy | 125-165lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Build-in Driver) /Extra 10KV SPD (Available on request) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | 60°, 90°, 110° or Asymmetrical |
| Mounting Option | Bracket mounted |
| Warranty | 5 Years |
| Certification | UL, CE, CB, ROHS, LM79, LM80,TM-21, ISTMT, IEC62471/62788 |
| Control | DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee Control |
