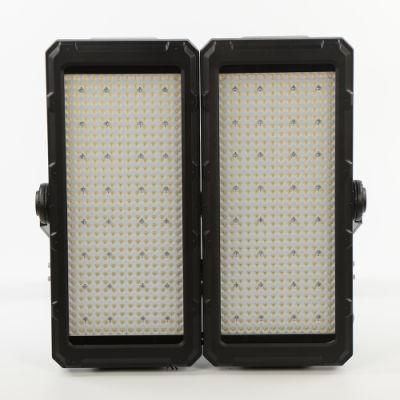

840W Outdoor LED High Mast Light Soccer Field Lighting to Replace 2000W
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Color Temperature：3000K,4000K,5000K,5700K
- Lamp Body Material：Aluminum
- Pole Height：20-25m
- Power：280W 560W 840W
- Projection Distance：60m
- Usage：Airport, Stadium, Square,Sport Field, Public Works
Base Info
- Model NO.：ZGSM-TGD840M
- IP Rating：IP66
- Certification：CE, CQC, EMC, Energy Star, GS, LVD, RoHS, SAA, UL
- Input Voltage：100-277V AC
- LED Chips Brand：Lumileds
- Driver：Meanwell Hlg Series
- PF：>0.95
- Luminous Efficiency：>110lm,W
- CRI：>70
- Beam Angle：30,45,60
- Material：Die-Casting Aluminum,Toughened Glass and PC
- Transport Package：1PC,Carton
- Specification：280w 560w 840w
- Trademark：ZGSM
- Origin：China
- HS Code：94054090
- Production Capacity：60000 PCS,Month
Description
Basic Info.
Model NO. ZGSM-TGD840M IP Rating IP66 Certification CE, CQC, EMC, Energy Star, GS, LVD, RoHS, SAA, UL Input Voltage 100-277V AC LED Chips Brand Lumileds Driver Meanwell Hlg Series PF >0.95 Luminous Efficiency >110lm/W CRI >70 Beam Angle 30/45/60 Material Die-Casting Aluminum,Toughened Glass and PC Transport Package 1PC/Carton Specification 280w 560w 840w Trademark ZGSM Origin China HS Code 94054090 Production Capacity 60000 PCS/MonthProduct Description
840W Outdoor LED High Mast Light Soccer Field Lighting to Replace 2000W
| Series No | Series M |
| Power | 280W,560W, 840W |
| Efficacy | 150lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Default) / 20KV (available on request) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | 15°, 30°, 45°, 60° |
| Installation | Whole fixture 0-360º adjustable; Single module 0-90º adjustable |
| Warranty | 5 Years |
| Certification | CE, ROHS, LM80, TM-21 |
| Control | DALI Dimmable, Photocell, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control |
