IP66 Module Designed 65 Watts Solar LED Street Light with UL Dlc Optical Sensor

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Power Supply：AC
  • Color Temperature：2700-6500K
  • Lamp Body Material：Aluminum Alloy
  • Power：35W-230W
  • Application：Square, Highway, Garden, Parking Lot
  • IP Rating：IP66

Base Info

  • Model NO.：ZGSM-LD65H
  • Certification：CE, EMC, ETL, GS, LVD, RoHS, SAA, UL, CE, FCC, RoHS, TUV
  • Input Voltage：90-264V, 277V, 347V, 480V AC,12,24V DC
  • With Light Source：With Light Source
  • Life Span：100, 000hrs
  • Power Source：AC
  • Electric Current Type：AC
  • Emitting Color：White
  • Usage：Street, Parking Lot, High Way, Expressway
  • Base Material：Aluminum
  • Diffuser：Tempered Glass
  • Ik Rating：Ik10
  • Transport Package：EXPORT CARTON
  • Specification：ISO 9001, ISO14001, CE, ROHS, FCC,TUV, SGS
  • Trademark：ZGSM
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：5000PCS,Month

Description

Basic Info.

Model NO. ZGSM-LD65H Certification CE, EMC, ETL, GS, LVD, RoHS, SAA, UL, CE, FCC, RoHS, TUV Input Voltage 90-264V, 277V, 347V, 480V AC/12/24V DC With Light Source With Light Source Life Span 100, 000hrs Power Source AC Electric Current Type AC Emitting Color White Usage Street, Parking Lot, High Way, Expressway Base Material Aluminum Diffuser Tempered Glass Ik Rating Ik10 Transport Package EXPORT CARTON Specification ISO 9001, ISO14001, CE, ROHS, FCC,TUV, SGS Trademark ZGSM Origin China HS Code 9405409000 Production Capacity 5000PCS/Month

Product Description

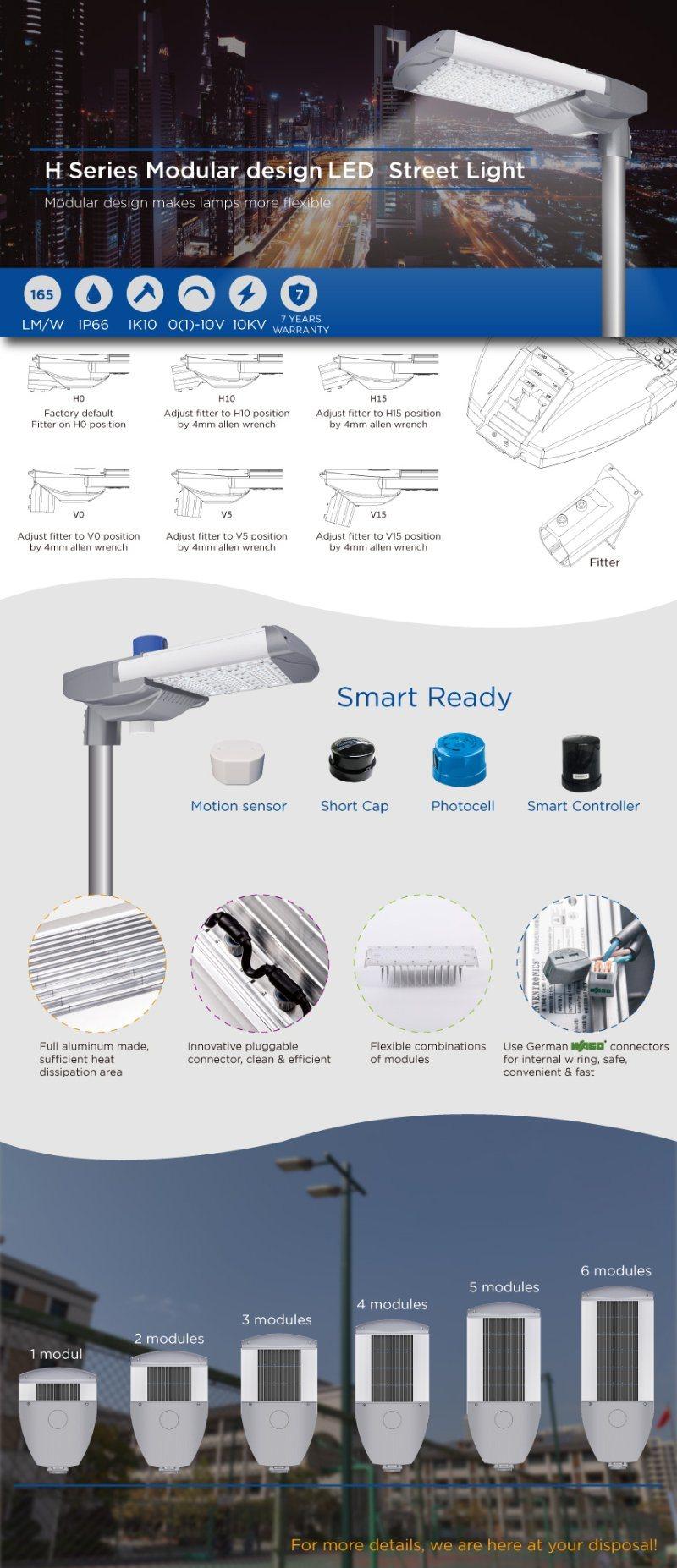

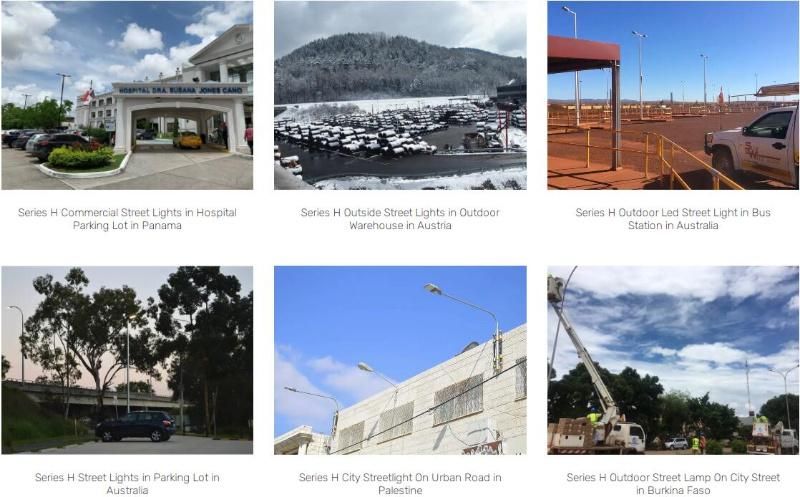

ZGSM H series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
IP66 Module Designed 65 Watts Solar LED Street Light with UL Dlc Optical SensorIP66 Module Designed 65 Watts Solar LED Street Light with UL Dlc Optical Sensor
Series NoSeries H
Power40W, 50W, 60W, 80W, 100W,120W, 150W, 160W, 180W, 200W, 240W, 300W
Efficacy125-165lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam AngleType I, Medium; Type II, Medium; Type III, Medium; Type V, Short;
Mounting OptionSide entry or Vertical pole mounted
Warranty5 Years
CertificationENEC, CE, CB, ROHS, SAA, UL, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
ControlPhotocell, DALI Dimmable, NEMA /Zhaga Socket, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or LORA control
