• Model NO.：LCD-FM-103
• Warranty：5 Years
• Certification：CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, TUV SAA
• Voltage：85-265VAC
• With Light Source：With Light Source
• Transport Package：Carton Box
• Specification：305x250x125mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

LED Light Power200WLED Efficiency≥130LM/WLED BrandBridgelux  LumiledLumen20000Lm-28000LmPIR Sensor Distance7-10MInstallation Height15m-25mColor temperature2700K-6000KView Angle

120°



Technical data

ModelPower(W)Current(A@230VAC)IP-protectionDimensions(mm)Weight(KG)LCD-FT-013       10          0.045  IP65 / IK08   185x135x68     0.75LCD-FT-023       20          0.091  IP65 / IK08   185x135x68     0.85LCD-FT-033       30          0.137  IP65 / IK08   220x180x88     1.30LCD-FT-053       50          0.228  IP65 / IK08   220x180x88     1.50LCD-FT-073       70          0.320  IP65 / IK08   260x195x105     1.80LCD-FT-103      100          0.460  IP65 / IK08   305x250x125     4.80LCD-FT-123      120          0.550  IP65 / IK08   305x250x125     5.00LCD-FT-153      150          0.690  IP65 / IK08   305x250x125     5.30LCD-FT-203      200          0.910  IP65 / IK08   400x360x140     8.10

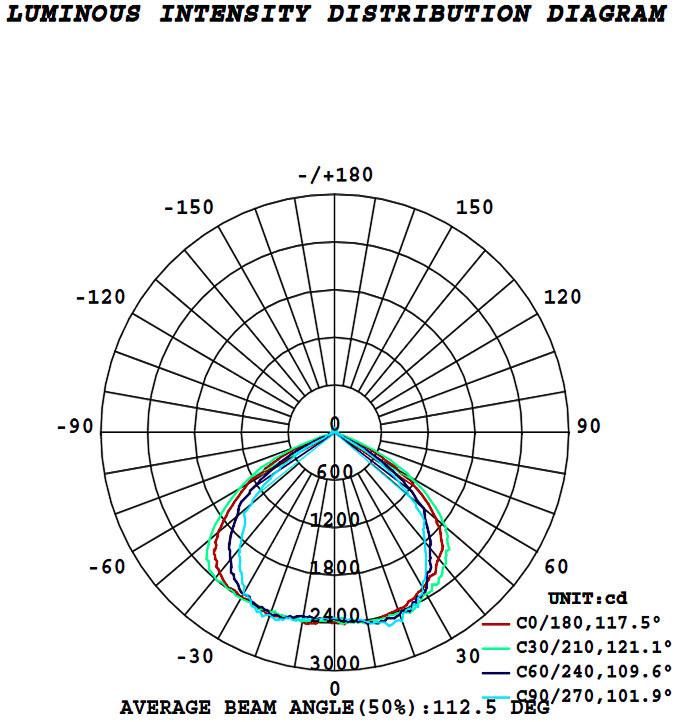

illumination distribution Product dimension
installation


1. Carefully take the product out of the packaging removing any transport safeguards.
2. The product is solely suited for installation on the wall, ceiling and floor.
3. This product must be installed by a preofessional electrician.

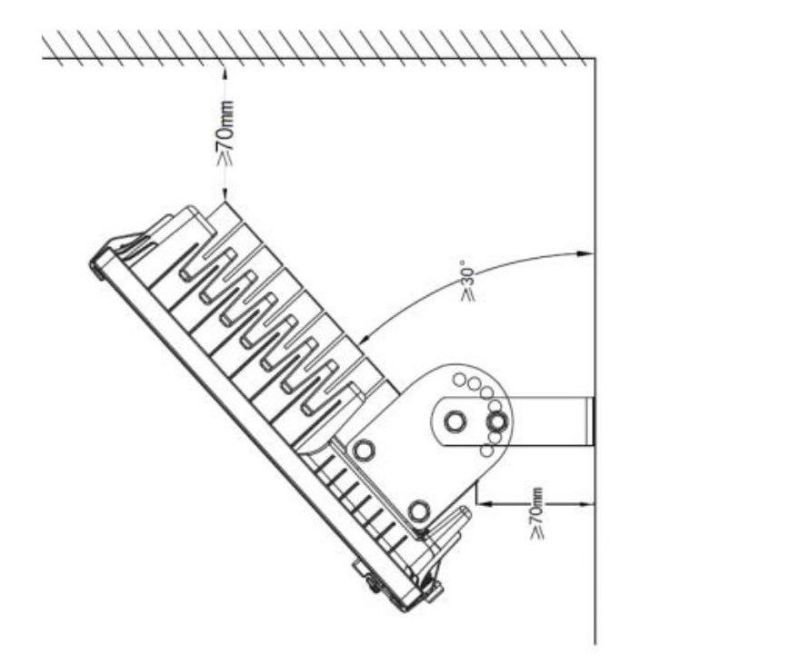

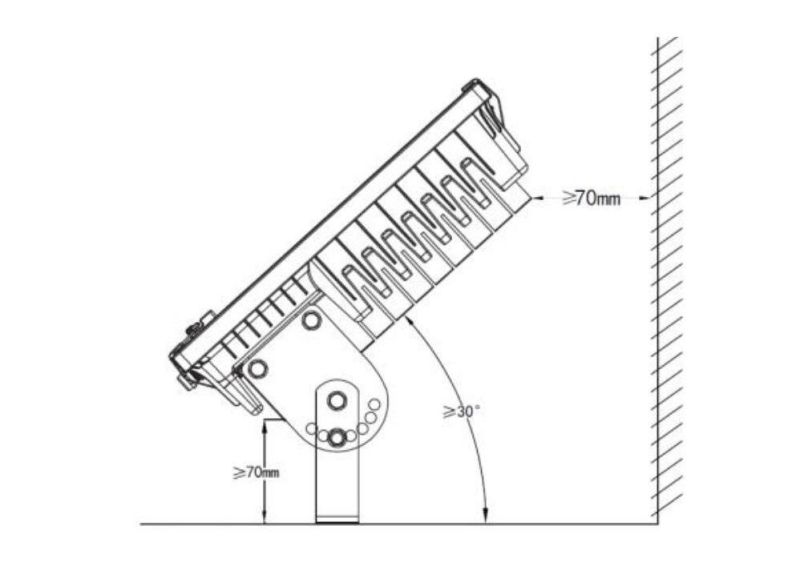

4. Please make sure that the thermal management can work without problem. Take a look at picture below.
5. Fasten the fixture to the installation place using properly dimensioned fastening materials.
6. Connect the floodlight with a power source.
7. Check if the product functions properly and if it is securely fixed

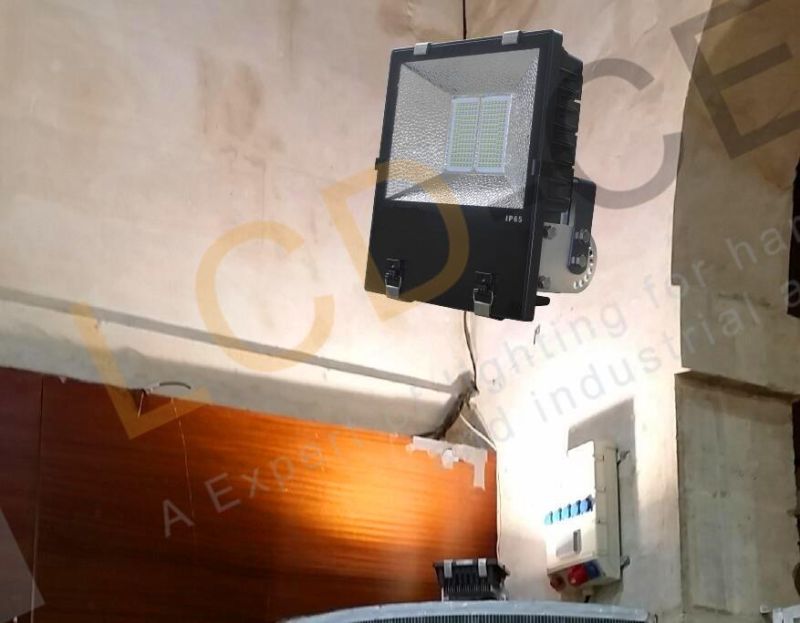

8. The product is now ready for operation.Wall mountedSurface mountedCeiling mounted



III. warning
The installation should only be done by a professional electrician!
Warranty for this product is 5 years.
The warranty expires by abnormal usage, connection or change of the structure. Damage by high voltage is not covered by the warranty: >4kV(L,N to PE) / 2kV(L to N)
For more technical information, please contact our customer support!

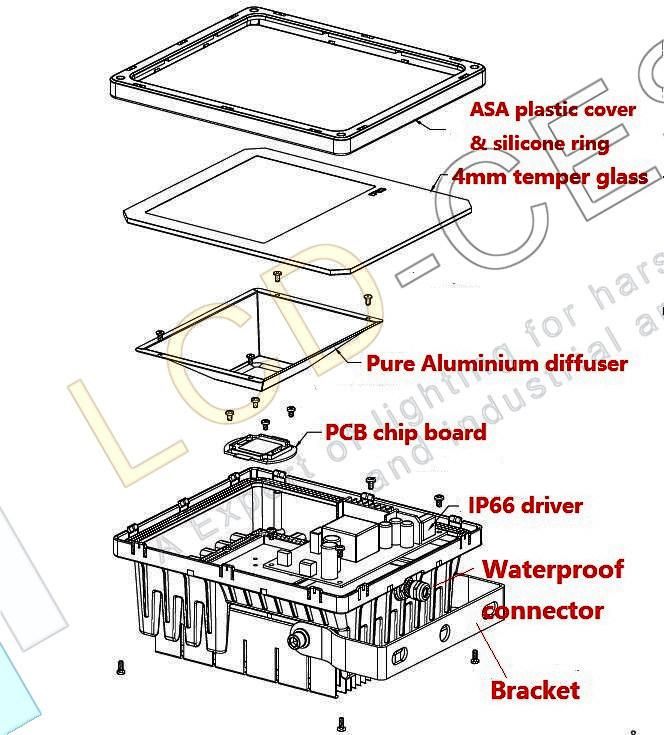

Product exploded view



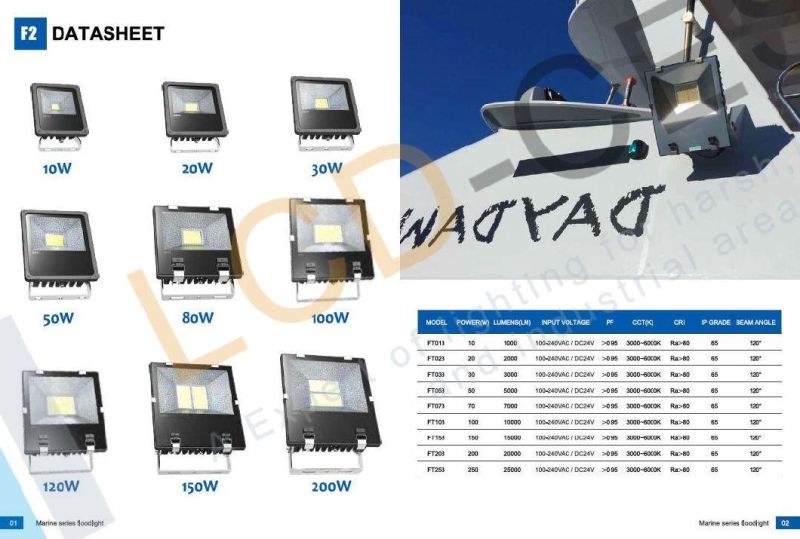

Model No.           Power(W)      Lumens(lm)      Color temperature                     Input Voltage     Current      Weight(kg)        Dimensions (mm)

LCD-FM-013       10W               1300              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        0.8Kg                    200x200x147
LCD-FM-023       20W               2600              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        0.8Kg                    200x200x147
LCD-FM-033       30W               3900              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        1.5Kg                    200x200x147
LCD-FM-053       50W               6500              3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        1.5Kg                    300x300x165
LCD-FM-073       70W              10400             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        1.8Kg                    300x300x165
LCD-FM-0103    100W             13000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        5.5Kg                    300x300x165
LCD-FM-0123    120W             19500             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        5.5Kg                  400x400x169
LCD-FM-0153    150W             26000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        5.5Kg                  400x400x169
LCD-FM-0203    200W             39000             3000k / 4000k / 6500K              85 ~ 265VAC         0.12A        8.0Kg                  400x400x169

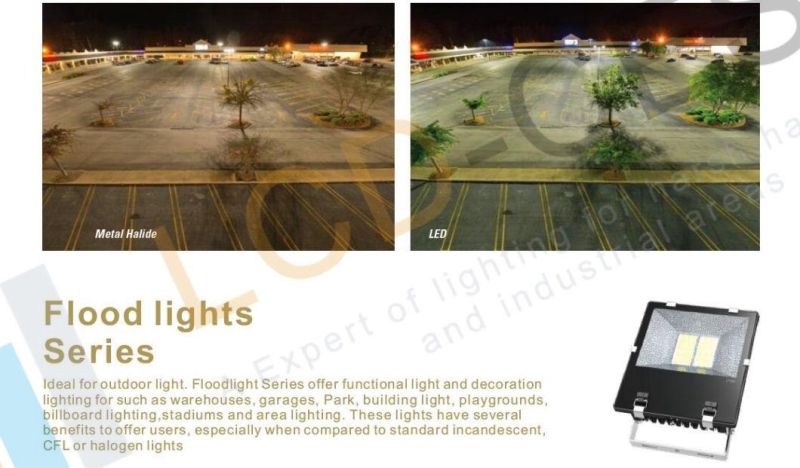

SUITABLE FOR: The FM series is a new series of waterproof LED flood lights made in the high quality factory - ideal for saving energy while illuminating stairs, parking
garages, driveways, tunnels, and virtually any building exterior and Marine and Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or where wind, water, snow or high ambient can be expected. They can be used in locations made harsh by the presence of weather.LCD-FM Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.

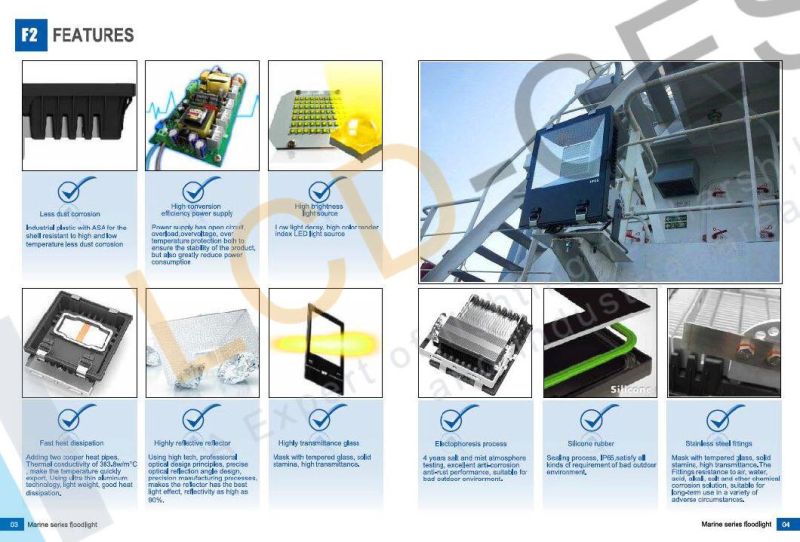

Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 30 C to + 50 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T5
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with Carbon steel or high quality stainless steel#316
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty

(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
