IP68 LED Light Triac Dimmer Dimmable Smart System LED Job Site LED Flood Light for Warehouse Working Field LED Lights IP67 Warm White Marine LED Lighting 80W
LCD (HK) -CESP LIGHTING CO., LIMITED- Color Temperature：3000K 4000K 6500K
- Lamp Body Material：Aluminum Alloy
- Power：80-350W
- Projection Distance：12-18m
- Application：Park, Square, Factory, Garden, Fishing Boat, Crane, Marine, Offshore Rig etc
- IP Rating：IP68
Base Info
- Model NO.：LCD-FA-083-LN30x70
- Certification：CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, UL, TUV
- Operating Voltage：85-265V
- Input Voltage：260V
- LED Chips Brand：Luxeon
- Transport Package：Carton Box
- Specification：220x180x88 mm
- Trademark：LCD brand
- Origin：Shenzhen City, China
- HS Code：9405409000
- Production Capacity：50000PCS , Year
Description
- Asymmetric Forward
- Asymmetric Narrow
- Asymmetric Wide
- Asymmetric Extra Wide Flood
- Asymmetric Forward Throw Narrow
- Symmetrical Wide Flood
- Symmetrical Narrow Spot
- Symmetrical Wide
- Symmetrial Forward
- 4000K - CIE(x= 0.38, y= 0.38) 5SDCM
- 6500K - CIE(x= 0.34, y= 0.35) 5SDCM
ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz or 12-24VAC
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2-4KV (10KV / 20KV on requests)
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request
Product DIMENSIONS
Weight (kg ):
Product Construction
In collaboration with the Scotland, Norway and Denmark engineering experts team, the LCD-FA Offshore Series Marine LED Deck Lights are specifically designed with the extra protections required to survive life on the open ocean. The stainless-steel #316 brackets, copper circuit boards, tinned extra-long sheathed cables and marine-grade gloss coating are all there to protect the fixture from corrosion and other harmful elements encountered on the water. Additional safeguards such as EMC shielding and transient voltage suppression set these fixtures far above our competition. Each model is available in 17 style beam angle configurations from narrow to extra wide flood. We also offer elliptical beam options for side deck applications.
For Architects and OEMs, we also offer our exclusive engineered solutions featuring Deck Lighting Simulation & Design Services. Please feel free to ask our Lighting Product sales person for details on how we may design the most efficient lighting layout for your vessel.
Products Features
- Anodized low copper die-cast aluminum housing
- Marine grade hydrophobic gloss powder coating
- Impact & UV resistant PCB lens
- Electronic thermal management system
- Vibration dampened & shock proof: 50-65 Grams
- Upgraded 316 trunnion bracket with graduated aiming marks
- Supplied with 6' x 16awg duplex boat cable

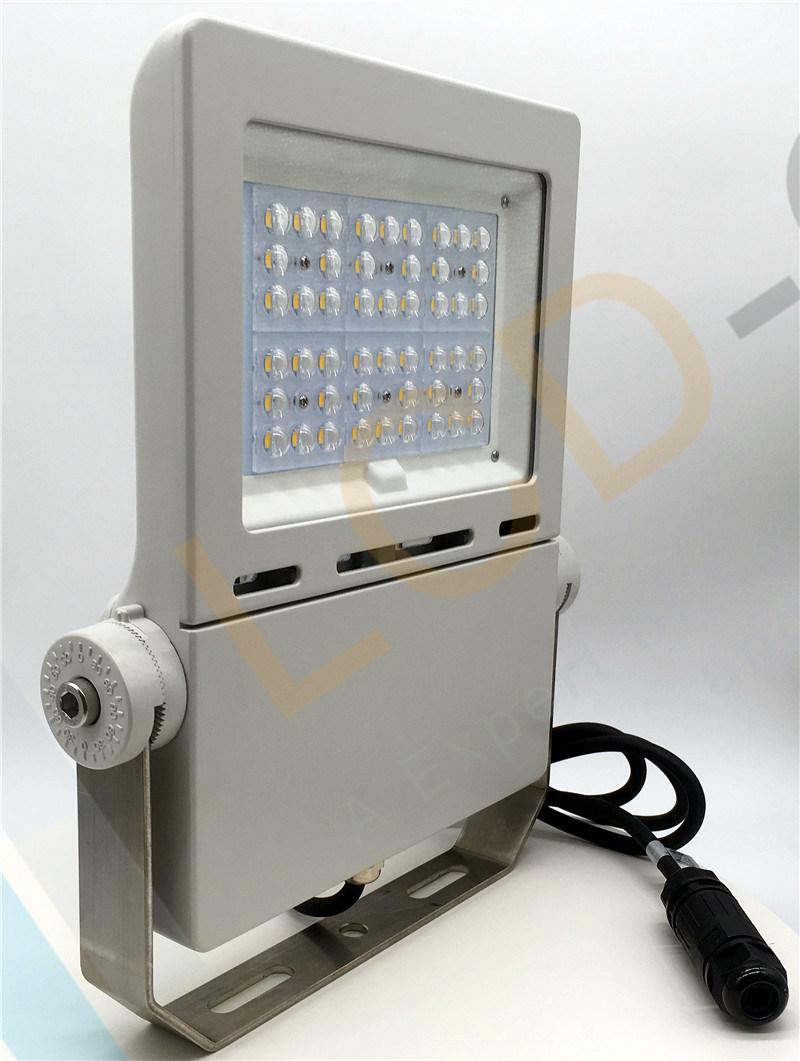

Product Photos
FA SPECIFICATION
| Model Number | LCD-FA-083/103-LNXXX | LCD-FA-153-LNXXX | LCD-FA-203-LNXXX | LCD-FA-253-LNXXX |
| Fitting Colour | RAL 9010 white | RAL 9010 white | RAL 9010 white | RAL 9010 white |
| Input Voltage | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz |
| Output Load | 80W | 100W | 150W | 200W |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Lumens | 12000-15000lm | 22500lm | 30000lm | 37500lm |
| Beam Angle | 16 different optic beams | 16 different optic beams | 16 different optic beams | 16 different optic beams |
| Colour (K) | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K |
| CRI | >75 | >75 | >75 | >75 |
| Efficacy (lm/W) | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w |
| Housing | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case |
| Working Temperature | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C |
| Protection | IP67 | IP67 | IP67 | IP67 |
| Weight | 4KG | 4.3KG | 5.4KG | 6.5KG |
| Dimensions | 315 x 245 x 57mm | 315 x 245 x 57mm | 4 x 290 x 57mm | 420 x 329 x 57mm |
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-FA-083 80W 11200 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-FA-103 100W 14000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-FA-153 153W 21000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-FA-203 200W 28000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-FA-253 253W 35000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-FA-303 300W 42000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-FA-323 320W 44800 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
SUITABLE FOR: The FA series is a new series of waterproof LED flood lights made in the high quality factory - ideal for saving energy while illuminating stairs, parking
garages, driveways, tunnels, and virtually any building exterior and Marine and Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or where wind, water, snow or high ambient can be expected. They can be used in locations made harsh by the presence of weather.LCD-FA Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 30 C to + 50 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T5
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with Carbon steel or high quality stainless steel#316
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***INDUSTRIEL PROJECTEUR
PROJECTEUR IP65
FOURNI AVEC UN CONNECTEUR DE LIAISON IP67
Extérieurs ou intérieurs. Éclairage de forte puissance
EXTERNAL PROJECTOR
PROJECTEUR INDUSTRIEL
PROJECTEUR HAUTE PUISSANCE 100W - 150W & 200W
Étanche LED ultra performant à choix de puissance intégré.
ILLUMINAZIONE INDUSTRIALE
FARETTI
Proiettore rettangolare
Proyector rectangular / Proyector cuadrado
Proiettore Quadro
Proiettore a LED
Proyector a LED
LED PER ILLUMINAZIONE COMMERCIALE E INDUSTRIALE
un proiettore a led dimmerabile 1-10V dotato di un driver 1-10V
lampade a led, faretti led da interno, plafoniere led, luci led da incasso, spot a led
L'illuminazione industriale led
lampade industriali
lampade led industriali
lampadario industrial
l'illuminazione led industrial
l'illuminazione industriale a led
l'illuminazione industriale
L'illuminazione industriale led
dell'illuminazione per ufficio
lampada ufficio
l'illuminazione led industrial
plafoniere industriali led
plafoniera led industrial
L'illuminazione led industrial
lampade industriali led - lampade a led per capannoni industriali, fari a led per capannoni industriali, luci led per ufficio
luci industriali
l'illuminazione capannoni
fari industriali a led
Iluminación Industrial Exterior
Iluminación Industrial Exterior
Iluminación Exterior
PROYECTOR LED
Iluminación Led Industrial
Eclairage extérieur
Projecteurs de dernière
projecteurs
Eclairage technique
Eclairage commercial
Projecteurs linéaires professionnels
Projecteurs professionnels
LED Industri belysning
LED industri taklamper
LED 75 watt Modul Lyskaster 75W
LED industri taklampe 100watt
LED Taklampe 100 watt
LED 300watt 4bay lyskaster
LED lineær industri taklampe 50watt
LED Idrettplass/ Flyplass
LED 200 watt lyskaster 200W
LED 1000 watt lyskaster arena 1000W
LED 30watt og 50watt lyskaster med bærestativ 30W 50W
LED 30 watt 12/24volt lyskaster 12/24VDC
LED Lyskaster 100 watt 24 Volt 24VDC
LED tunnel lys
LED tunnel lys modell
LED nødlys
LED nødlys lampe modell
LED nødlys IP66 model
SUITABLE FOR: With LCD-FKJ series LED site & area and floodlight luminaires, high output lighting doesn't have to mean high energy and maintenance costs. FKJ series provides your outdoor area with bright, uniform illumination while slashing energy and maintenance costs compared to traditional lighting technologies. And instill a sense of security and attract attention in any large area or floodlighting application without the hassle of frequent relamping or high utility bills.A wide variety of sizes, lumen outputs, modules, optics and other features offer increased flexibility without under- or over-lighting the space. LCD-FKJ's application-specific optics, such as automotive front row and airport apron, ensure that light is directed exactly where it is needed to maximize efficiency and minimize operating costs. With the highest lumen output available on the market today,LCD-FKJ series can help you achieve optimal light levels with fewer luminaires compared to traditional 1000W HID solutions without compromising light quality or a sense of security for those in the area.LCD-FKJ's full illumination lets your inventory sparkle and shine at night without unnecessary light trespass. LCD-FKJ area and site luminaires are available with a color rendering index (CRI) of 80, ensuring your inventory will look its best day and night. Longlasting,
energy-efficient LED technology helps to significantly lower energy and maintenance costs compared to traditional lighting technologies, while optional programmable
dimming and motion response sensors further enhance energy savings without compromising a sense of security.LCD-FKJ casts bright, uniform light across the entire parking lot, eliminating dark zones between poles, so that pedestrians and drivers feel a sense of security as they drive and walk throughout the area. While dimmable LED
technology significantly reduces operating and maintenance expenses, the simple retrofit onto existing poles means that initial expenses are minimized, too. And as the number of luminaires can be reduced without compromising light quality, poles can be eliminated from the space to reduce clutter.LCD-FKJ has a variety of mounting options and optical distributions to ensure a sense of security throughout any outdoor area, such as airport terminals, parking lots, docks and piers.LCD-FKJ's Airport Bracket optics, available in the floodlight configuration, are designed to address the specific needs of this application, minimizing spill light and glare, and may be aimed to achieve cut off requirements.
(1)DC available on special request
(2)Warm white Neutral White and cool white available indent only
***AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Housing
Main body castings made of a low copper die cast Aluminum alloy (A360) for a high resistance to corrosion, 1.0-1.5mm minimum thickness. Main body extrusions
made of corrosion resistant low copper extruded anodized aluminum alloy (Anodized 6063-T5).
***Driver/Electrical Door
Removable die cast aluminum door made of a low copper alloy (A360) for a high resistance to corrosion. Provides access to electronic components/LED drivers. Designed for robust IP66 rated seal using one-piece silicone rubber gasket surrounding the entire perimeter of the electronics compartment. Door secured with 8 captive screws outside of gasket perimeter.Driver/electrical compartment is IP67 sealed/ rated in all aiming positions including upward aiming floodlighting applications and including when PCB option is installed.
***Light Engine
Composed of 4 main components: Heat Sink / LED Module / Optical System / Driver. Electrical components are RoHS compliant. IP66 sealed light engines. LEDs tested by ISO 17025-2005 accredited lab in accordance with IESNA LM-80 guidelines extrapolations in accordance with IESNA TM-21. Metal core board ensures greater heat transfer and longer lifespan.
***Heat Sink
Anodized 6063-T5 Aluminum for a high resistance to corrosion, designed to ensure high efficacy and superior cooling by natural vertical convection. Air flow pattern always close to LEDs and driver optimizing their efficiency and life. Product does not use any cooling device with moving parts (only passive cooling).
***LED Module
Composed of high performance white LEDs. Color temperature as per ANSI/NEMA bin Neutral White, 4000 Kelvin nominal (3985 +/-275K or 3710K to 4260K), CRI 70 Min.
***Optical System
Choice of differents distributions including Spot (SP), Asymmetric 33° Flood (A33), Rectangular Medium Flood (RM) distributions and a specialty distribution designed for Airport bracket applications featuring a wide 80-130° horizontal and narrow 15-20° vertical beam. Composed of high performance UV stabilized optical grade polymer refractor lenses to achieve desired distribution optimized to get maximum spacing, target lumens and a superior lighting uniformity. System is rated IP66. Performance shall be tested per LM-79, LM-80 and TM-21 (IESNA) certifying its photometric performance. Designed and tested to rating IK10 in accordance with European standard EN 62262 (equivalent of international standard IEC 62262 2002).
***Driver
With Meanwell or LCD brand TUV driver,high power factor of 90% min. Electronic driver, operating range 50/60 Hz. Auto adjusting universal voltage input from 85 to 277 VAC or 347 to 480 VAC rated for both application line to line or line to neutral, ClassI, THD of 20% max. 0-10V dimming driver included, dimming leads pre-wired to controls except when DD option is selected. The current supplying the LEDs will be reduced by the driver if the driver experiences internal overheating as a protection to the LEDs and the electrical components. Output is protected from short circuits, voltage overload and current overload. Automatic recovery after correction. Standard built in driver surge protection of 2.5kV (min).
