• Model NO.：ZGSM-FGD200H5B
• Certification：CE, C-tick, EMC, FCC, GS, LVD, RoHS, SAA, UL, ISO9001, ISO14001
• Operating Voltage：100-240V
• Input Voltage：AC 100-240V ,277VAC
• LED Chips Brand：Lumileds
• LED Driver：Meanwell Driver
• Luminous Efficiency：130lm,W
• CRI：Ra>70
• Warranty：5 Years Warranty
• Transport Package：Export Cartons
• Specification：505 x370 x200 mm, 6.3 kg
• Trademark：ZGSM
• Origin：China
• HS Code：9405429000
• Production Capacity：20000PCS,Month

Basic Info.

Model NO. ZGSM-FGD200H5B Certification CE, C-tick, EMC, FCC, GS, LVD, RoHS, SAA, UL, ISO9001, ISO14001 Operating Voltage 100-240V Input Voltage AC 100-240V /277VAC LED Chips Brand Lumileds LED Driver Meanwell Driver Luminous Efficiency 130lm/W CRI Ra>70 Warranty 5 Years Warranty Transport Package Export Cartons Specification 505 x370 x200 mm, 6.3 kg Trademark ZGSM Origin China HS Code 9405429000 Production Capacity 20000PCS/Month

Product Description

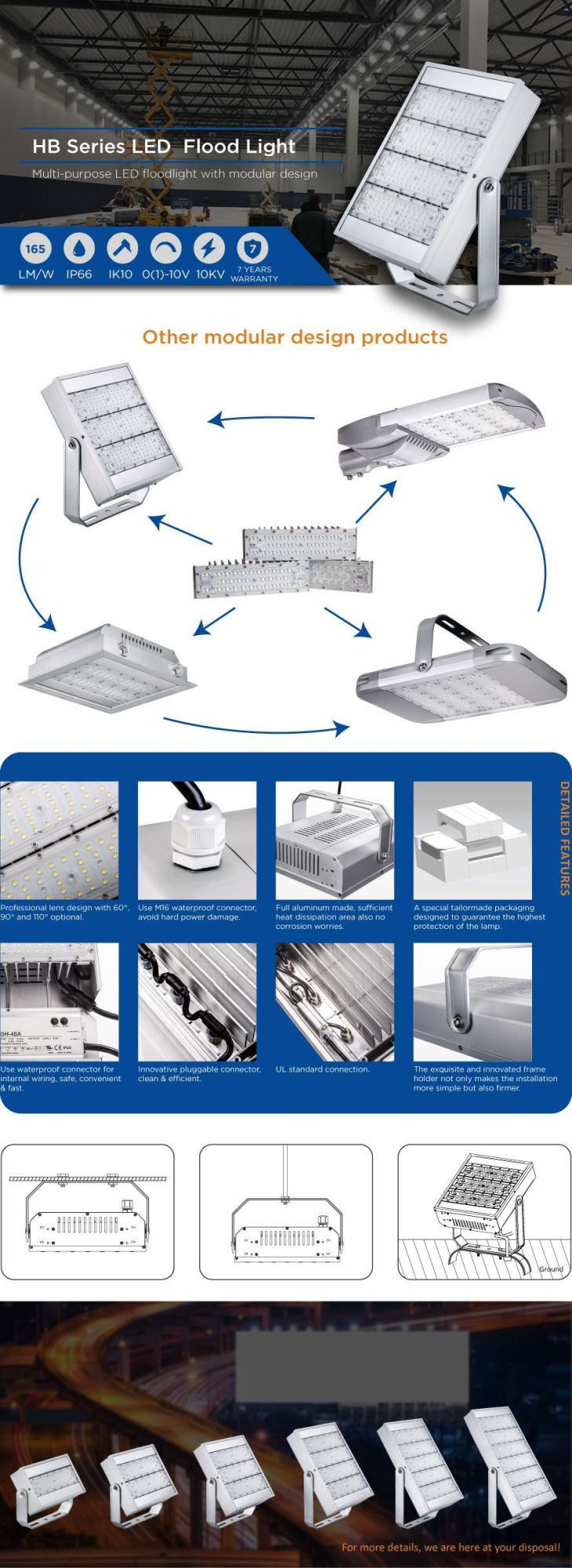

[ZGSM] 50W/100W/150W/200W/240W LED Flood Light with 130lm/W 5 Years Warranty

Series No	Series HB
Power	40W,50W, 60W,80W,100W,120W,150W,160W, 180W,200W,240W,300W,360W
Efficacy	125-165lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Build-in Driver) /Extra 10KV SPD (Available on request)
IP Rating	IP66
IK Rating	IK10
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	60°, 90°, 110° or Asymmetrical
Mounting Option	Bracket mounted
Warranty	5 Years
Certification	UL, CE, CB, ROHS, LM79, LM80,TM-21, ISTMT, IEC62471/62788
Control	DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee Control

FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
