• Model NO.：820432H
• Certification：CE, LVD, RoHS
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：CREE,Bridgelux,Osram
• Ik Rate：08
• Driver：Built-in Constant Current Output
• Glass：Tempered Glass T=7mm
• LED Source：3*1W,3*2W*3*3W LEDs
• Transport Package：45*25*25mm,CTN(12PCS,CTN, 12kg,CTN))
• Specification：12PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 820432H Certification CE, LVD, RoHS Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand CREE/Bridgelux/Osram Ik Rate 08 Driver Built-in Constant Current Output Glass Tempered Glass T=7mm LED Source 3*1W/3*2W*3*3W LEDs Transport Package 45*25*25mm/CTN(12PCS/CTN, 12kg/CTN)) Specification 12PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

Outdoor LED Focus Recessed Spotlight IP67 6W Waterproof LED Floor Underground Lamp Inground Light For Garden
Feature and Benefits:
1.symmetrical Linear inground light is designed for inground integration and offers various design possibilities in architectural illumination.
2.Input voltage 24VDC and 100~240VAC for options.
3. SUS 304/316 stainless steel front cover and aluminum lamp body.
4.Asymmetrical light output and diffused glass optional.
5.Black back Plastic mounting sleeve included.
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.

Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class1 /ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 3x1W/3x2W/3x3W/6PCS 3030 Cree/Bridgelux/Osram LEDS
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=7mm
Glass pressure capacity:  Full area= 1700kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
                           H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
Mounting sleeve: ABS

Products Model:

Item No.	Lighting Source	Lens beam angle (°)	Consumption(Watt)	Input Voltage(V)	IK rate
820431	3x 1W LED	15°/25°/30°/45°/60°/Asymmetrical lens	3.2	DC24V	08
820431H	3x 1W LED	15°/25°/30°/45°/60°/Asymmetrical lens	3.2	AC100-240V	08
820432	3x 2W LED	15°/25°/30°/45°/60°/Asymmetrical lens	6.6	DC24V	08
820432H	3x 3W LED	15°/25°/30°/45°/60°/Asymmetrical lens	9.0	AC100-240V	08
820467	6PCS Osram 3030 LEDS	120° (Diffused/Frosted glass)	3.0	AC120V/AC240V	08

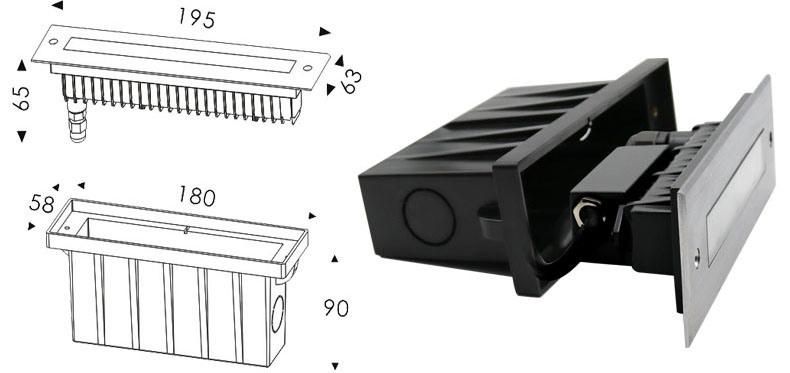

Products Size(MM):

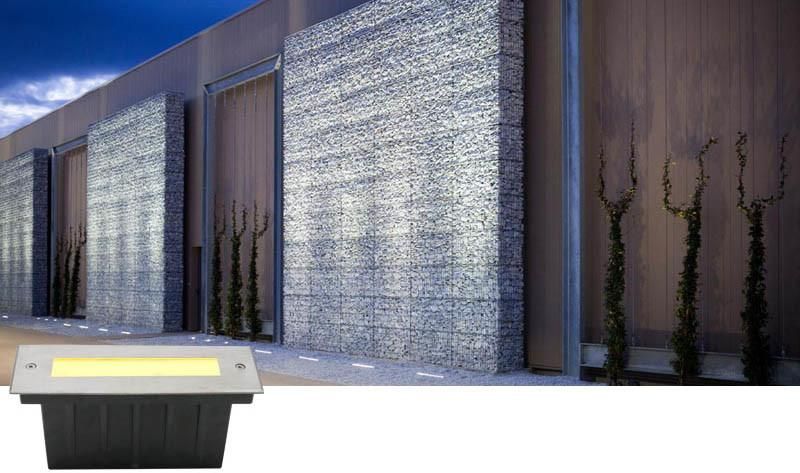

Products Picture:

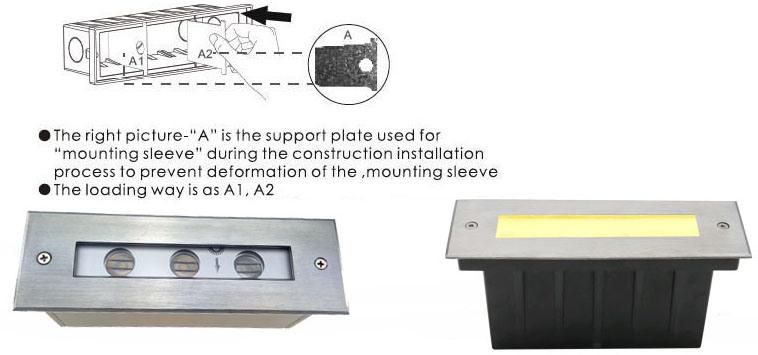

Product Installation:

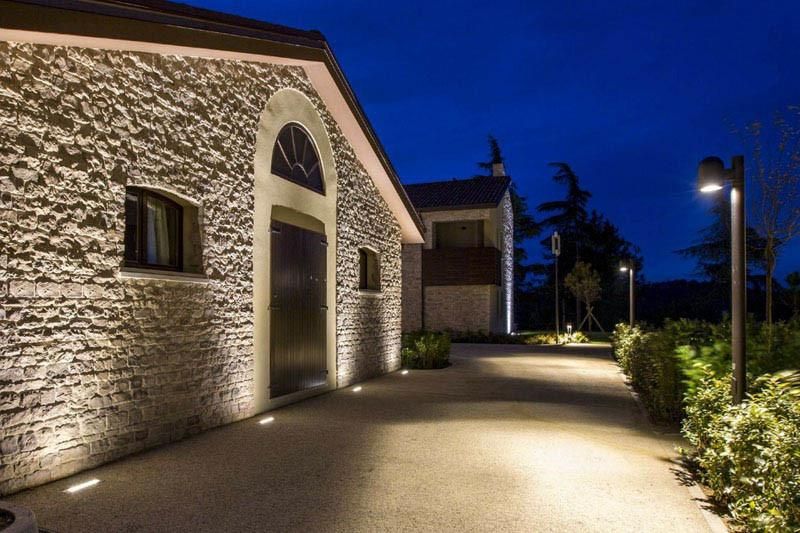

Application:
Used for Parking lot,Garden, Corridor, Pathway, Road, square,Stair, Step and other outdoor lighting.
FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?
