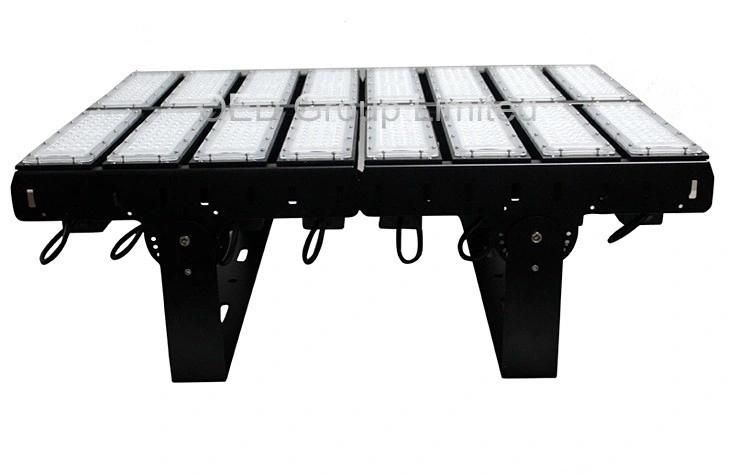

IP65 800W High Bay Outdoor Tunnel Lighting Module LED Flood Light
LUOHE HILIGHT TECHNOLOGY CO., LTD.- Color Temperature：2700-6500K
- Lamp Body Material：Die-Casting Aluminum
- Power：800W
- Application：Park, Square, Factory, Garden, Tunnel,Park,Bridge,Plant, Workshop,Stadium
- IP Rating：IP65
- Certification：CE, EMC, ETL, LVD, RoHS, SAA
Base Info
- Model NO.：OED-FL08-800
- Operating Voltage：85-265V
- Input Voltage：220V
- LED Chips Brand：Filips SMD3030
- Item Name：800W LED Module Flood Light
- Color Temperature(CCT)：2700-6500K
- Lamp Luminous Flux(Lm)：96,000-104,000lm
- Lamp Luminous Efficiency(Lm/W)：120-130lm,W
- Working Temperature(ºC)：-25 - +50
- CRI：80
- PF：0.95
- Lifetime：50,000 Hours
- Warranty：3 Years
- Transport Package：Carton
- Specification：720 x 570 x 130mm
- Trademark：OED
- Origin：China
- HS Code：9405409000
- Production Capacity：10, 000PCS,Month
Description
Product Description:

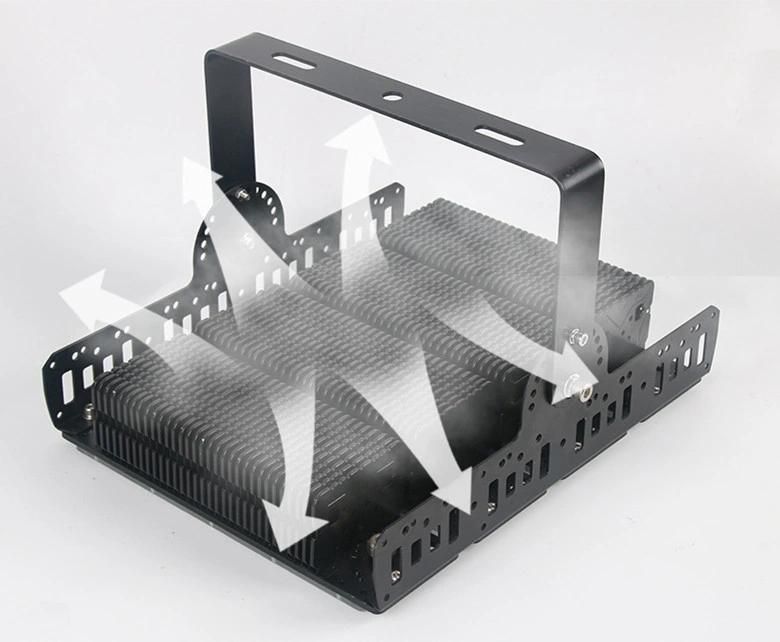

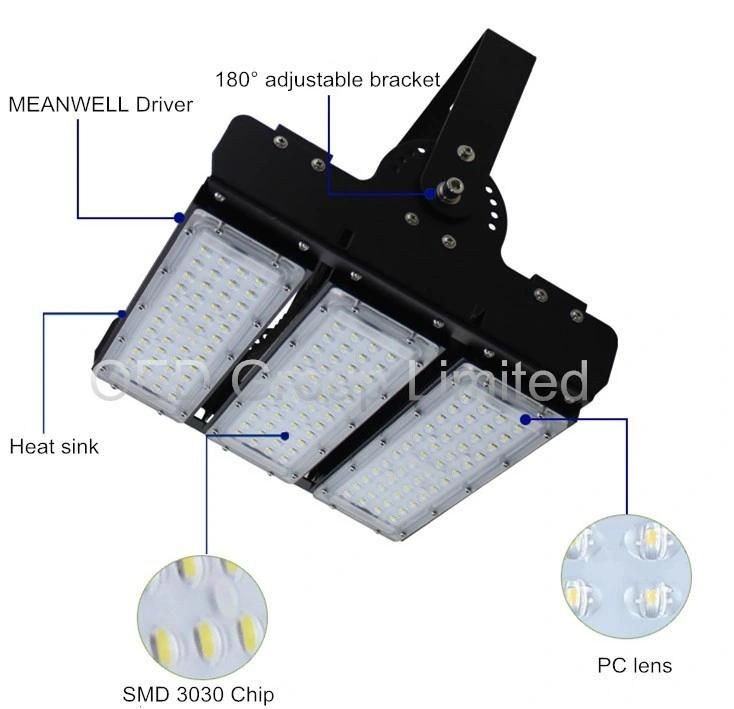

-Die-cast Aluminum is combined with the 1060 aluminum fin.
-Optical PC material lens, 60° / 90° / 120° multi beam angles optional.
-Surface powder treatment, with anti corrosion,rust functions.
-IP65, dustproof and waterproof, to meet all kinds of outdoors harsh environment requirements.
-Surge protection: 6KV
-50W x 16pcs Standard LED module, each module with one power supply, All modules and drivers are easy to replace.
Product Details:

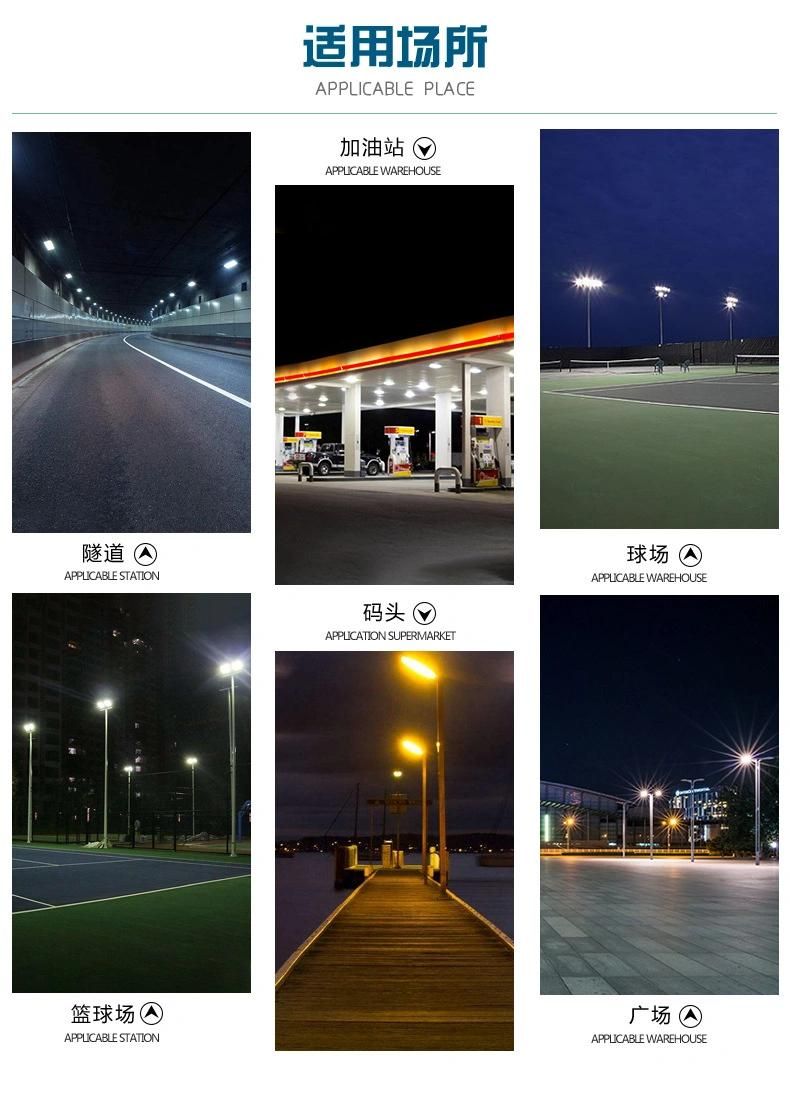

Application:

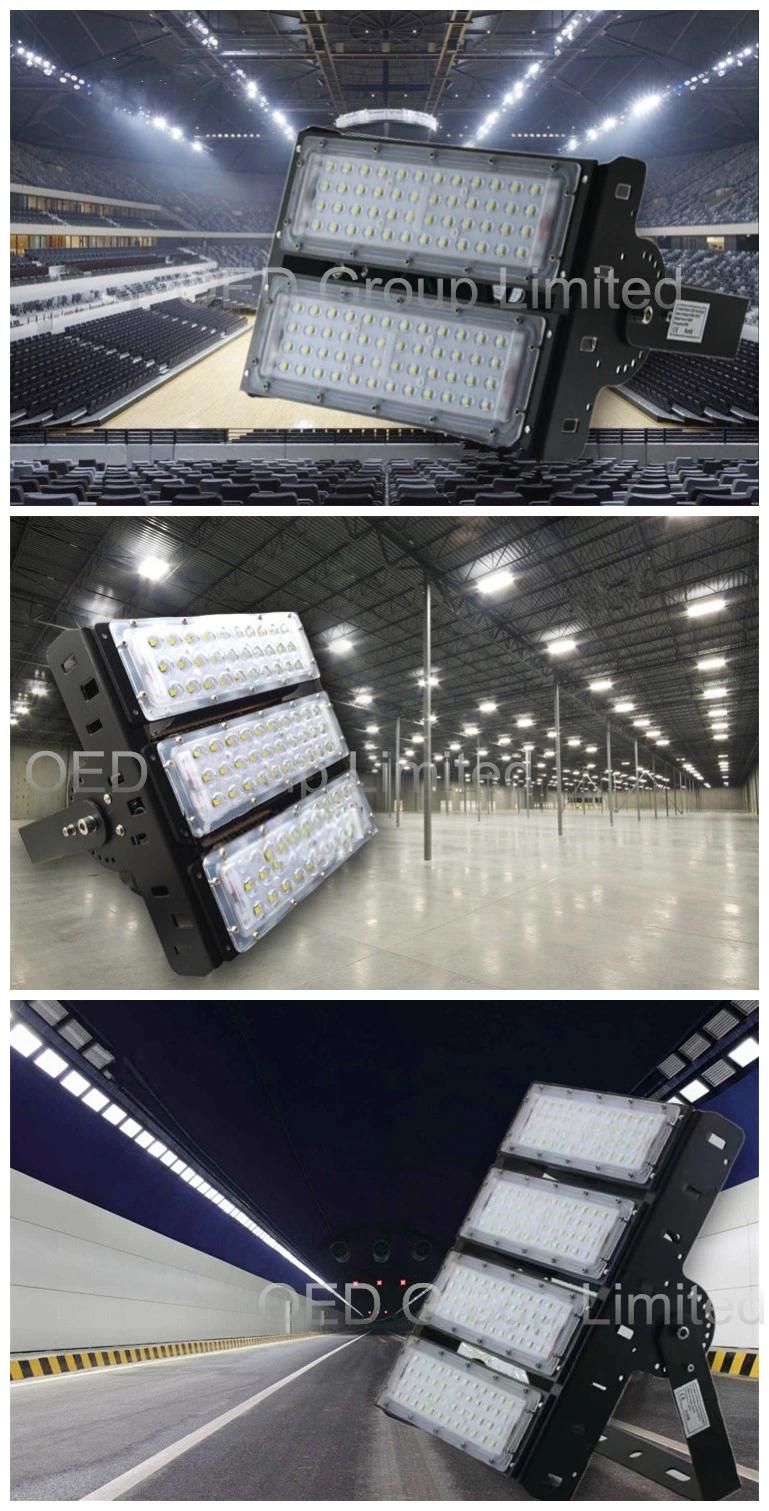

It can be widely used in Tunnel,Square,Plaza,Garden,Lawn,Playground,Tennis Stadium,Golf Course,Bus Station,Airport,Sculpture,Architecture,Arts Work,Street,Factory offices,Show Room,Work Shop,Parking lot etc.
Installation Notes:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.
About us:

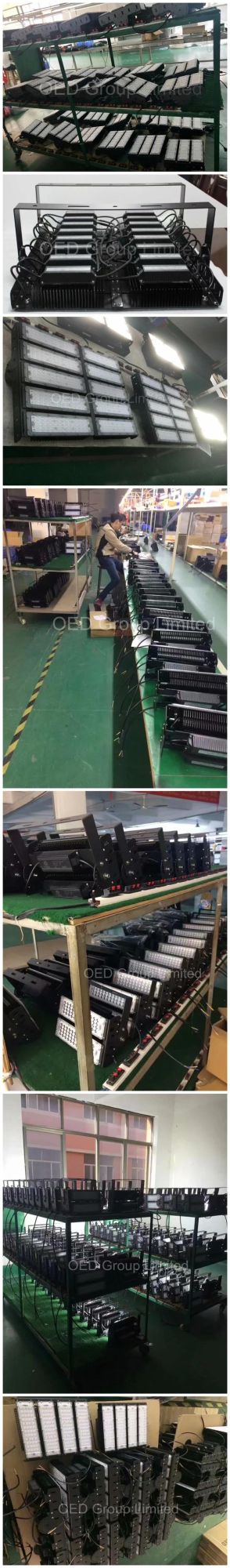

We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED flood light 50W waterproof, and 10-15 working days for 1000pcs LED flood light at common requirements.
Each Lamp must pass 24 hours aging test and high voltage (3KV) surge test before we make packing and make delivery.
Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3. 5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.
Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.
Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
1000pcs in 15 working days.
About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
