• Model NO.：Wind Street Lights
• Input Voltage：220v
• With Light Source：With Light Source
• LED Chips Brand：CREE
• Solar：Monocrystalline Solar Panel 80-200W * 2
• Battery：12V,50-200ah*2 Gel Storage Battery
• Light Source：36-100W LED
• Average Lighting Time：1-3 Rainy Days, Everyday 8 Hours
• Height of Pole：4-10m
• Specification：CE, RoHS, REACH
• Trademark：OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000

Solar panel80-200W*2 Mono/Polycrystalline siliconBattery12V/50-100AH*2 Gel storage batteryLight source36-100W LED with half power(first 4 hours full power, last 4 hours half power)Controller24V/15A Temperature-40-50ºCAverage lighting time3 rainy days, everyday 8 hours Height of Pole10M height, high quality plstic coated hot galvanizing steel Q235, 4.5mm thicknessLight pole support1setBattery box1set(to be put underground)Accessories, cable etc.1setWe can also make the product according to your request.
We warrant 5 years for pole, 3 years for LEDs, 1 year for controller, 1 year for battery and we assure you that the fading rate of solar panel will be less than 10% in 20 years.

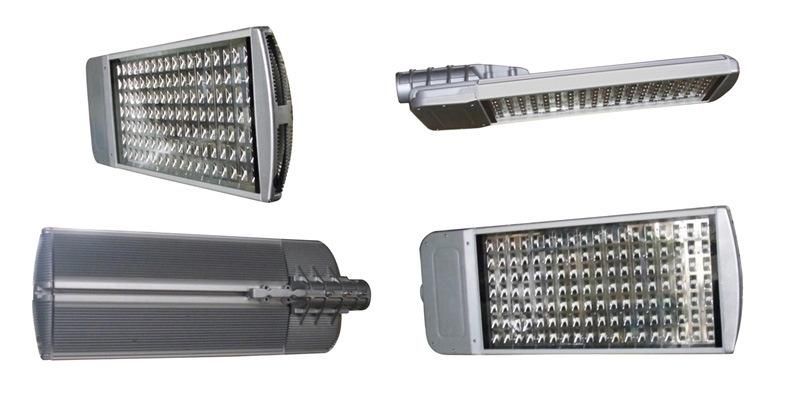

LED lamp's technology parameter  ComponentsParameter1ModelSCSL-TRL0052SourceDie-casting Aluminum3LED Amount84 pcs4Color temperatureaccording to customers' requests5Light Flux9600lm6Rated Power100W7Centre for illumination7m-32lx/8m-24lx8Illuminate Range26m/32m9Rated VoltageDC24V10Suitable temperature -40ºC-65ºC11Work Temperature Rise<20ºC13N.W.8kg14G.W.8.6kg Typical Electrical Characteristics of solar panel TSMSC200MMaximum PowerWp200Power Tolerance(%)±3Optimum operating voltageVm(V)35.8Optimum operating currentIm(A)5.55Open circuit voltageVoc(V)45.6Short circuit currentIsc(A)5.87Module Efficiency(%)15%Cell Efficiency(%)17%Withstanding Voltage(VDC)1000Number, Type and Arrangement of Cells 72pcs, Mono-Crystalline silicon(6*12)Cell Size(mm)125*125No. Of Bypass Diodes(Pcs)3Max. Series Fuse(A)10Temperature Coefficients of Isc(%)0.04Temperature Coefficients of Voc(%)-0.38Temperature Coefficients of Pm(%)-0.47Temperature Coefficients of Im(%)-0.04Temperature Coefficients of Vm(%)-0.38Temperature Range(ºC)-40~+85
