840W Stadium LED Lighting 126000lm High Mast Lights for Aairport

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Color Temperature：Cool White
  • Lamp Body Material：Aluminum
  • Power：280W,560W,840W
  • Usage：Stadium
  • IP Rating：IP66
  • Certification：CE, RoHS

Base Info

  • Model NO.：ZGSM-QCD840M
  • Input Voltage：AC 100-240V ,277V, 50,60Hz
  • LED Chips Brand：Lumileds
  • Driver Brand：Inventronics Driver
  • Protection：Class I
  • SPD：10kv (20kv Optional)
  • Optional Function：Olc, Ntc, Stepdim, 0(1)-10V, Dali
  • Optic：15 30 45 60
  • CRI：Ra70 (80 Optional)
  • Trademark：ZGSM or OEM
  • Origin：China

Description

Basic Info.

Model NO. ZGSM-QCD840M Input Voltage AC 100-240V /277V, 50/60Hz LED Chips Brand Lumileds Driver Brand Inventronics Driver Protection Class I SPD 10kv (20kv Optional) Optional Function Olc, Ntc, Stepdim, 0(1)-10V, Dali Optic 15 30 45 60 CRI Ra70 (80 Optional) Trademark ZGSM or OEM Origin China

Product Description

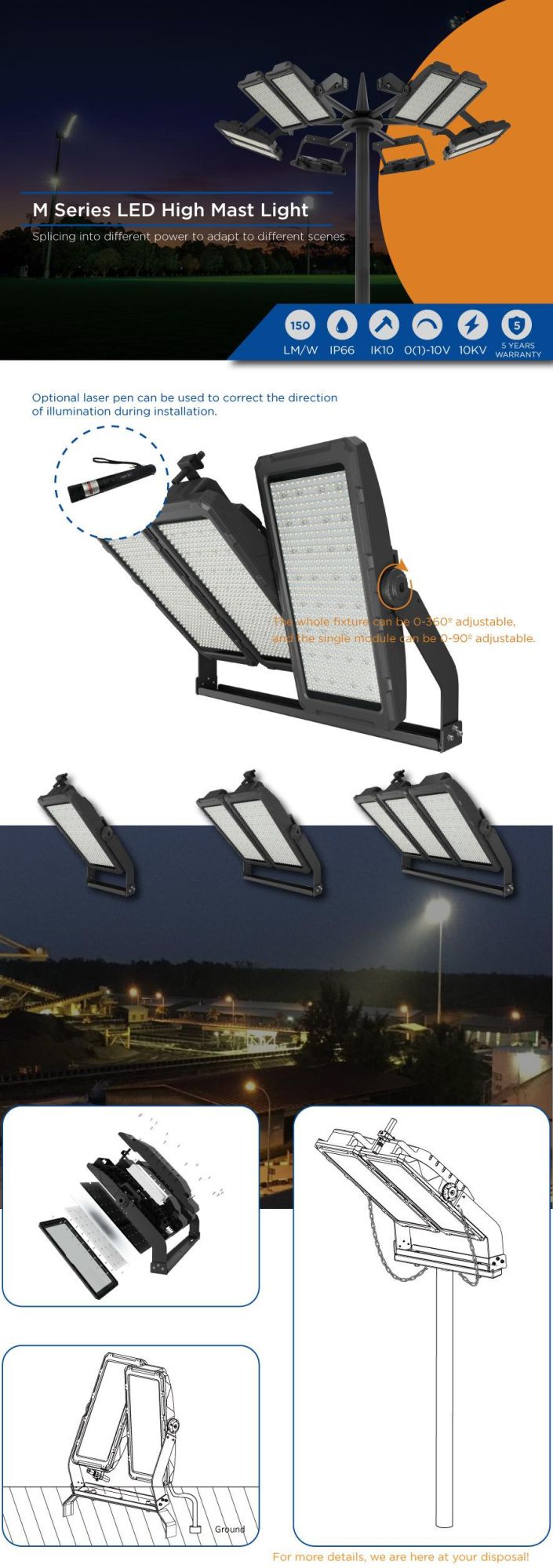

840W Stadium LED Lighting 126000lm High Mast Lights for Aairport
840W Stadium LED Lighting 126000lm High Mast Lights for Aairport
Series NoSeries M
Power280W,560W, 840W
Efficacy150lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam Angle15°, 30°, 45°, 60°
InstallationWhole fixture 0-360º adjustable; Single module 0-90º adjustable
Warranty5 Years
CertificationCE, ROHS, LM80, TM-21
ControlDALI Dimmable, Photocell, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control
