• Model NO.：OED-YX-D400
• IP Rating：IP66
• Certification：CE, FCC, RoHS
• Input Voltage：220V
• LED Chips Brand：Filips Chip 3030
• Item Name：IP66 LED Stadium Light 400W
• Lamp Luminous Efficiency(Lm/W)：140
• Lamp Luminous Flux(Lm)：56, 000lm
• Working Temperature(ºC)：-25 ~+50
• Power Factor：0.95
• LED Qty：730PCS
• Lifetime：50, 000 Hours
• Quality Warranty：5 Years
• Transport Package：Carton
• Specification：493*439*421MM
• Trademark：OED
• Origin：China
• HS Code：9405409000
• Production Capacity：10, 000PCS,Month

Product manual:
1.LED high pole lamp adopts Lumleds SMD3030 chip, energy saving and environmental protection, high brightness and long life.
2. ADC12 die-casting aluminum material, the surface is subjected to special oxidation treatment and heat conduction treatment to improve the heat generated by the lamp board and the power source of the lamp, which can be quickly exported to the outside the lamp, life expectancy 50,000 hours.
3. Constant current supply, high efficiency, low heat, high constant current accuracy.
4. Unique structure, high efficiency and energy saving, green and environmental protection.

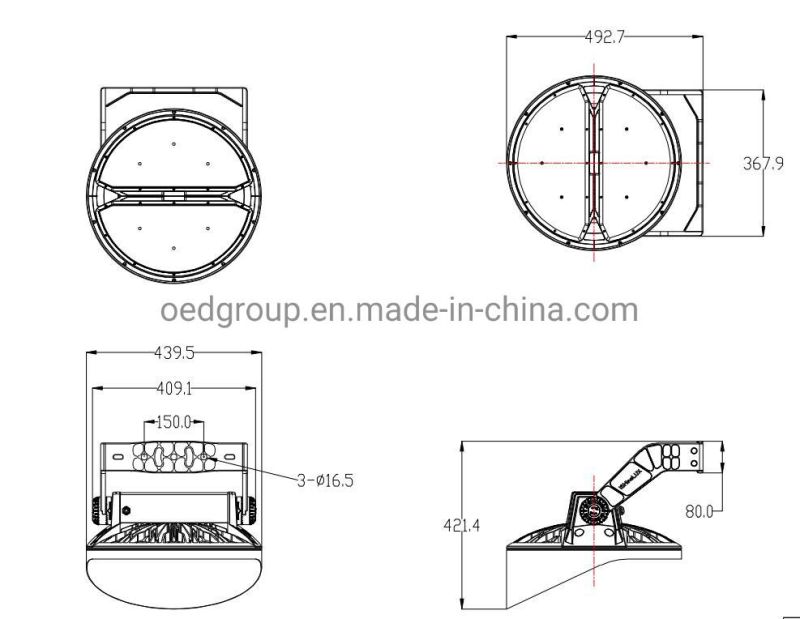

IP66 Dimensions:


Features:
1. Aluminum material, the light with narrow beam angle can be more focused and goes more far away.
2. Waterproof IP66 rating is applicable to outdoor.
3. Optical PC lens material, the transmittance is 94%, 10 / 25 / 45 / 60 / 90 beam angles for option.
4. 3030 chips, superior efficiency, lumen effect reach 140 LM/W, 50,000hours lifespan.
5. Every unit independent heat sink design increase air contact and area, which makes better ventilstion and heat dissipation.
6. IP66 waterproof, 10KV surge protection. Wide input voltage AC85-277V. Offering superior performance and reliability.

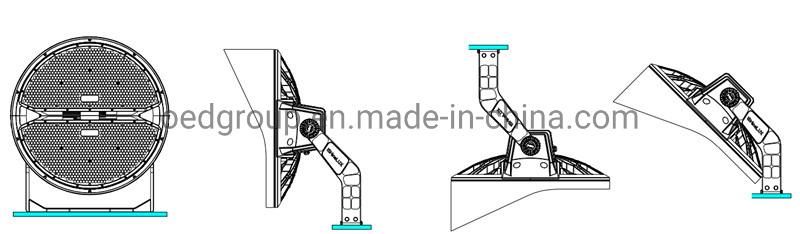

7. Bracket can be adjustable with 180 degree,for various angles of irradiation.
8. Driver cover,protect drivers and make better in heat-dissipation.


Application:
Applicable to Outdoor football stadium, rugby field stadium, airport, sea dock, large park leisure venues etc.



Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

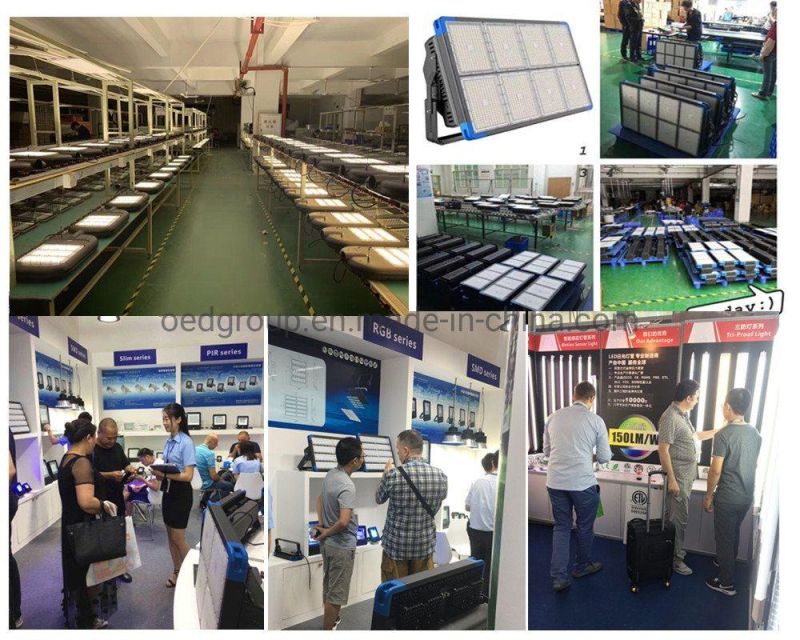

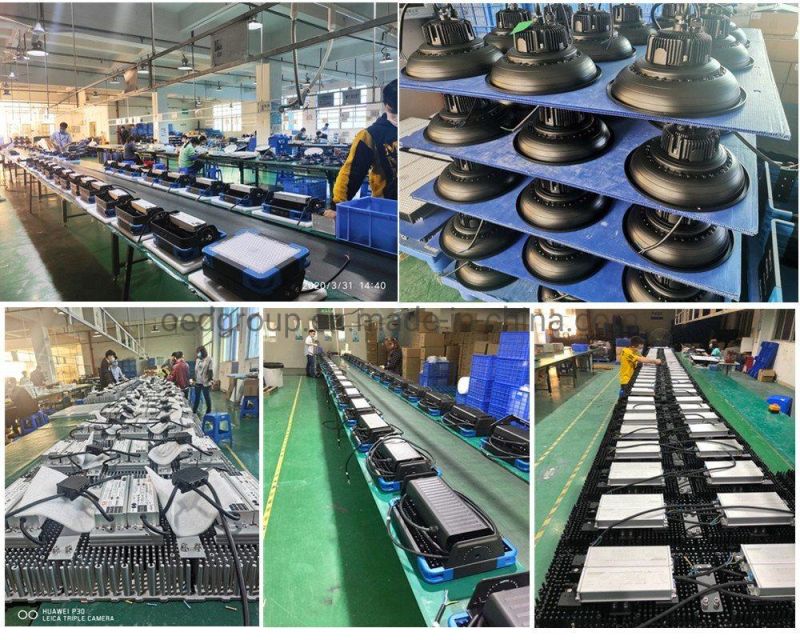

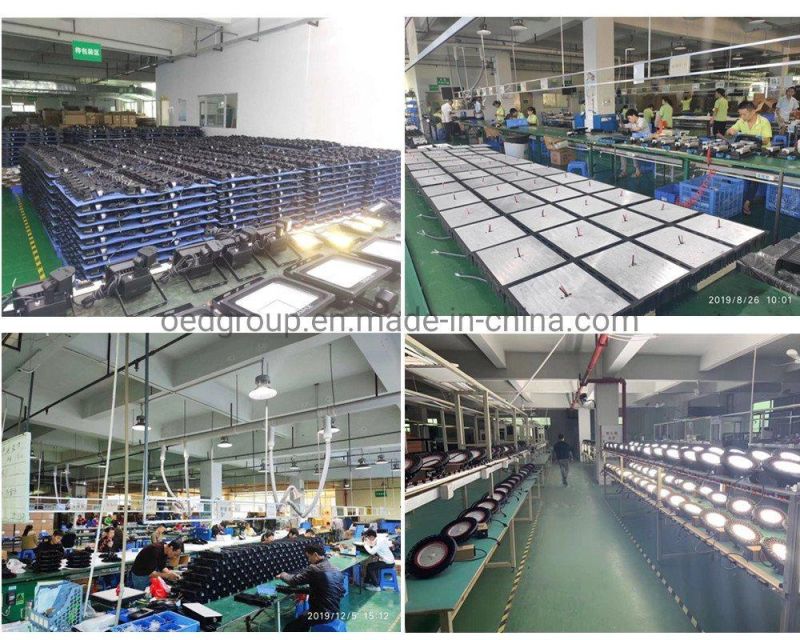

Our workshop:
We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 12-15 days for 200pcs LED stadium light, and 20-25 working days for 1000pcs LED stadium Light at common requirements.

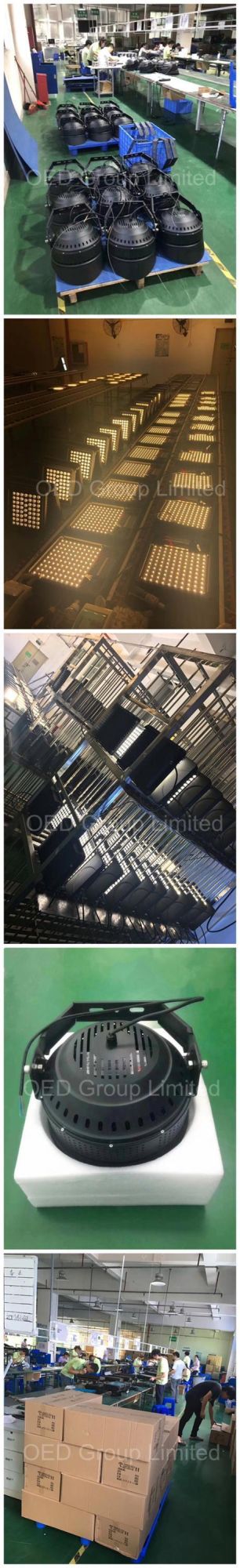

Packing & Aging test :
Each Lamp must pass 24 hours aging test and high voltage surge test before we make packing and make delivery.



Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 8 production lines meet your shipping requirement;
5. Export port Shenzhen, or Guangzhou;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 13-15 working days;
200pcs in 17-18 working days;
1000pcs in 25 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.


FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 5-8 days for samples at common requirements, and 20-25 days for big order such as 1000pcs stadium light.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this stadium light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
