• Model NO.：ZGSM-QD150A5
• Input Voltage：100-240V AC
• Light Source：With Light Source
• LED Chips Brand：Lumileds
• Life：100, 000h
• Power Source：AC
• Electric Current Type：AC
• Emitting Color：White
• Usage：Industrial, Commercial
• Base Material：Aluminum
• Diffuser：PC
• Transport Package：1 Unit,Carton
• Specification：CE, RoHS
• Trademark：ZGSM
• Origin：Linglong, Lin′an, Hangzhou, Zhejiang, China
• HS Code：94054090
• Production Capacity：50000 PCS,Month

SpecificationsModelZGSM-QD150A5LED BrandLUXEON® 3030 2DDriver BrandMeanwell HLG DriverNorminal Wattage150WLED Quantity240 pcsInput Voltage100-240/277VACPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>135lm/wLamp Rated Lumen output20250lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000K,4000K,5000K,5700KPhotometric Type110 degreeOptimal Operating Temperature25°Storage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 10%Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)Wind IndexForce 12Body and Shell MaterialsAnodized AluminumIP RatingIP65 with test reportIK RatingIK10with test reportCertificationCE,ROHSLM-80Optional Function1-10V DC or PWM Signal or Resistance DimmingTimer/Photocell ControlWarranty7 yearsPacking DetailsFixture Dimension330x365 x130 mmFixture Weight6.7 kgPacking Dimension415 x365 x195 mmPacking Weight8.7 kg

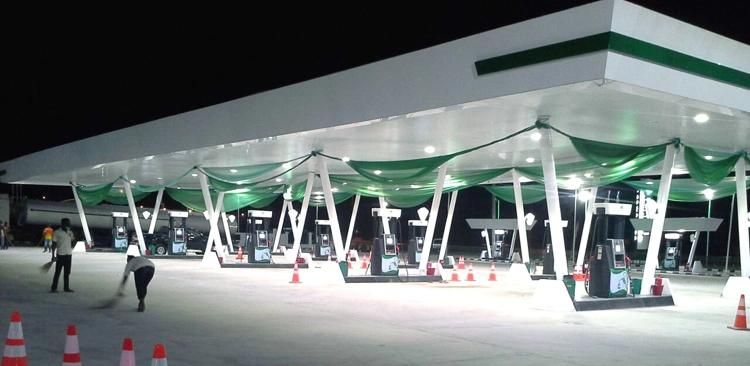

3. Application

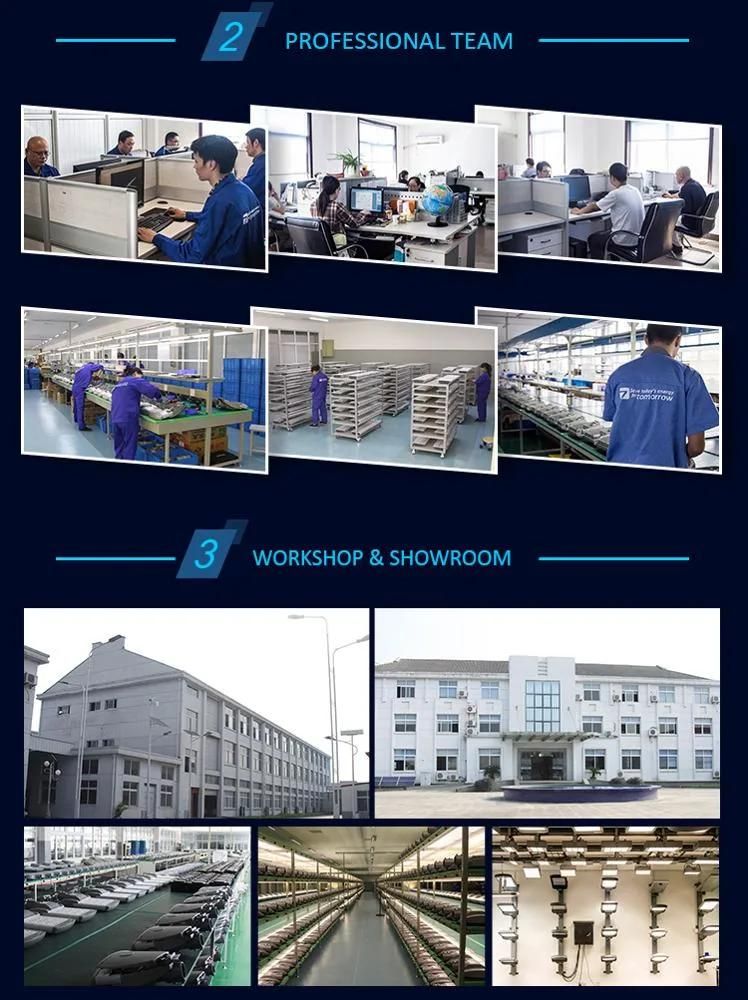

4. Factory show







5. Exhibition show



6. Certificate Show


7. Contact us

- Reply your inquiry in 24 working hours.
- Customized design is available, OEM and ODM are welcomed.
- Delivery the goods to our customer all over the world with speed and precision.
- Offer customer the lowest price with high quality product.
- We can supply C/O(Certificate of Origin), saving approx 20% import duty.
