• Model NO.：820219
• Certification：CE, EMC, LVD
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：Osram,CREE,Bridgelux
• Front Cover：304# or 316# Stainless Steel
• Beam Angle：8,15,25,30,45,60 Degree Otpional
• Lighting Size：D65mm*H62mm
• Glass：Tempered Step Glass T=12mm
• Mounting Sleeve：ABS
• Honeycom Louver：Optional
• Ik Rate：09
• Operating Temperature：-20 to 40 Degree
• Installation Method：Recessed and Buried

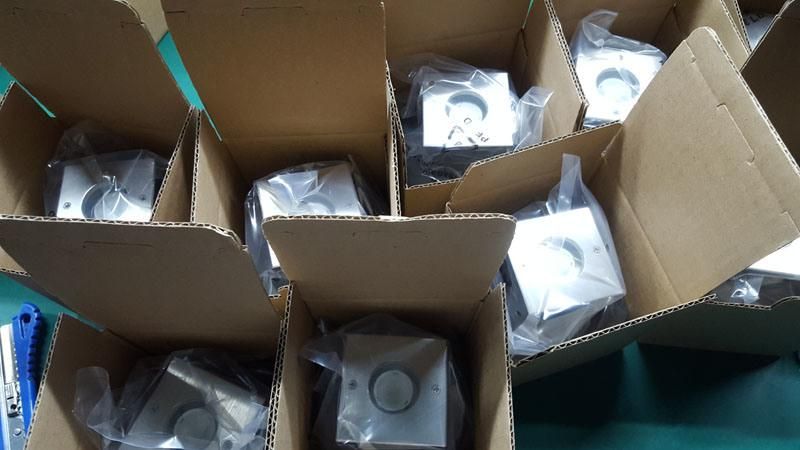

• Transport Package：Carton
• Specification：24*24*25CM(8PCS,CTN 4.5KG)
• Trademark：JP lighting
• Origin：Dongguan China
• HS Code：9405409000
• Production Capacity：100000PCS,Year

Basic Info.

Model NO. 820219 Certification CE, EMC, LVD Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand Osram/CREE/Bridgelux Front Cover 304# or 316# Stainless Steel Beam Angle 8/15/25/30/45/60 Degree Otpional Lighting Size D65mm*H62mm Glass Tempered Step Glass T=12mm Mounting Sleeve ABS Honeycom Louver Optional Ik Rate 09 Operating Temperature -20 to 40 Degree Installation Method Recessed and Buried Transport Package Carton Specification 24*24*25CM(8PCS/CTN 4.5KG) Trademark JP lighting Origin Dongguan China HS Code 9405409000 Production Capacity 100000PCS/Year

Product Description

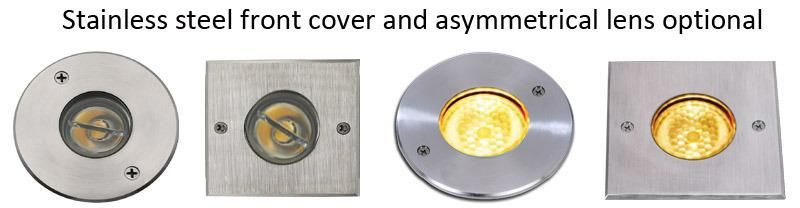

IP67 1W 2W 3W 5W Single color/RGB/RGBW LED Underground Light RGBW LED Deck Light Floor Light Buried LED Step Light D65MM LED Landscape Up Light  With Asymmetrical Lens and Stainless Steel Front Cover.

Feature and Benefits:1. IP67 waterproof for outdoor walk/path/ parking lot/garden/square lighting use.
2. Input Voltage:12V/24VDC and 100-240VAC optional.
3. Rich Color for options: Single Color and RGB/RGBW Color.4.1w,2w,3w RGB 3in1, 5w RGBW 4in1 LED optional.
5.Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support.
 Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 1x1W/1x2W/1x3W RGB 3in1/1x5w RGBW 4in1 LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=12mm
Glass pressure capacity: Full area=2600kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
                              H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
                     H05RN-F 4x0.75mm² L=0.5m (for RGB)
                     H05RN-F 5x0.50mm² L=0.5m (for RGBW)

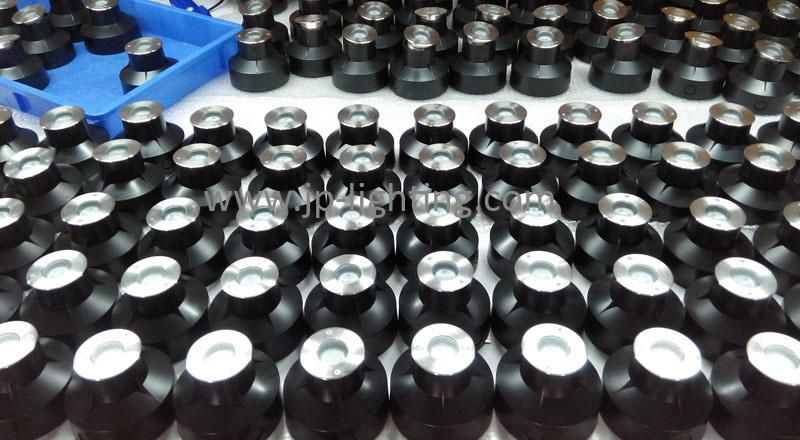

Mounting sleeve: ABS

Products Model:

Item No.	Lighting Source	Lens beam angle (°)	Consumption(Watt)	Input Voltage(V)	IK rate
820211/82311(AS)	1x1W LED	15°/25°/30°/45°/60°/ 90°	1.2	DC12V/DC24V	09
820211H/82311H(AS)	1x1W LED	15°/25°/30°/45°/60°/ 90°	1.2	AC100-240V	09
820212/82312(AS)	1x2W LED	15°/25°/30°/45°/60°/ 90°	2.6	DC12V/DC24V	09
820212H/82312H(AS)	1x2W LED	15°/25°/30°/45°/60°/ 90°	2.6	AC100-240V	09
820216/82316(AS)	1x3W RGB 3in1 LED	15°/25°/30°/45°/60°/ 90°	3.1	DC12V/DC24V	09
820219/82319(AS)	1x5W RGBW 4in1 LED	15°/25°/30°/45°/60°/ 90°	5.0	DC12V/DC24V	09

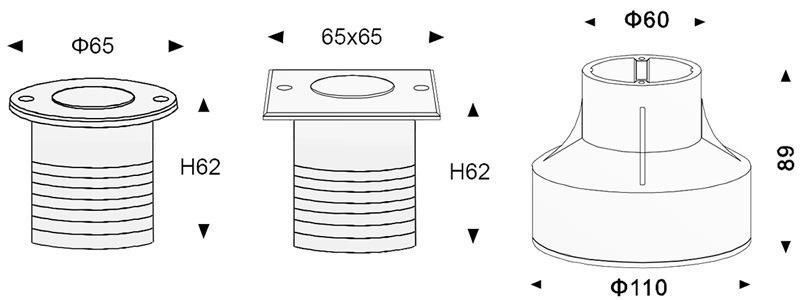

Products Size (Unit: MM):

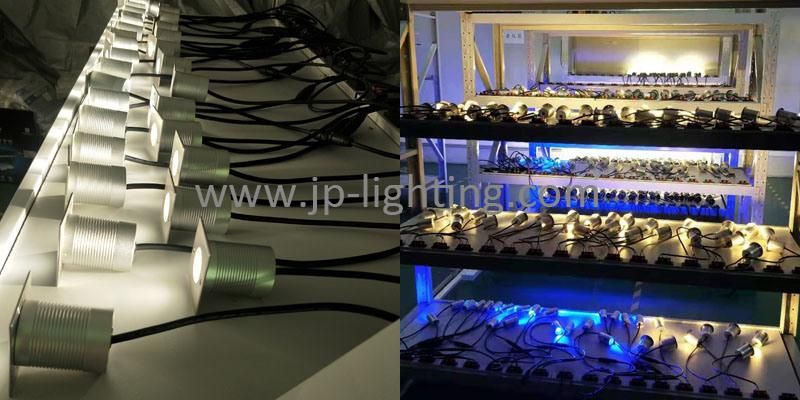

Products Picture

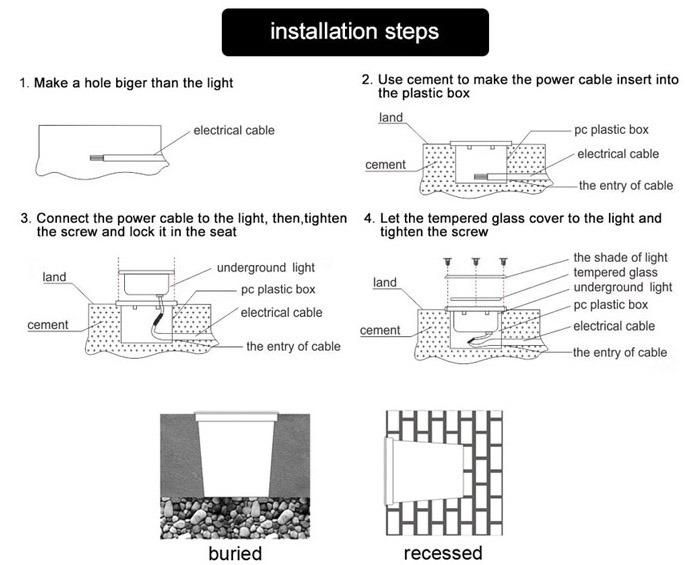

Products Installation:

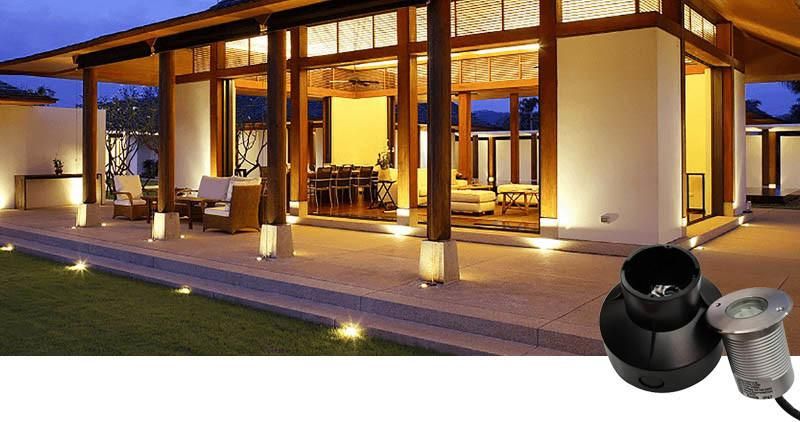

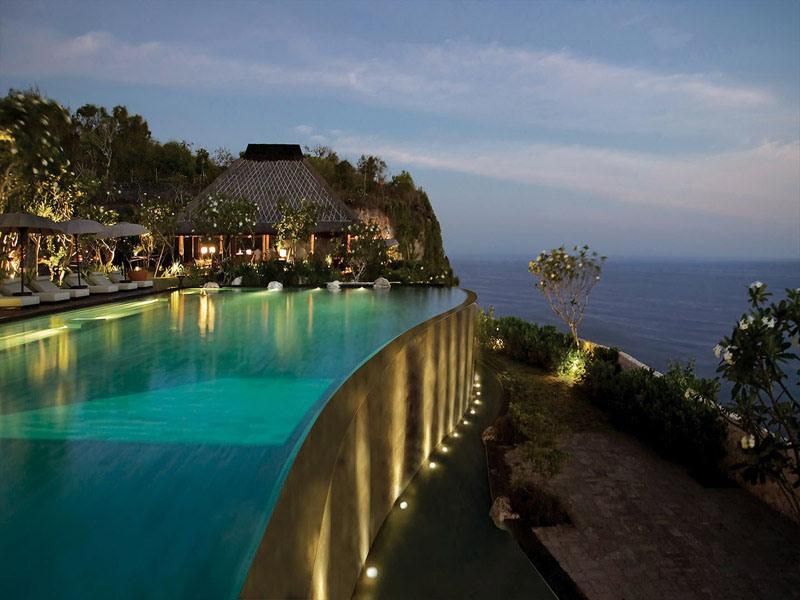

Application:
Used for Step, Stair,Garden, Corridor, Pathway, Road and other outdoor lighting.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
