• Model NO.：LCD-FXH-S1-603
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
• Operating Voltage：24V
• Input Voltage：24V
• LED Chips Brand：CREE
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405421000
• Production Capacity：50000PCS , Year

ProductPower50W +/-10%Luminous flux6500-7250lm +/-10%CRI≥75Calculated Lumen Maintenance>100000hoursColor Temperature3000/4000/6500K



lens optional

Symmetrical PC lens:20/40/60/60/90˚

Asymmetrical PC lens:100*140˚

1060 Aluminum Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.

LED quantity60pcs x 1module / 25pcs x 1 moduleInput Voltage100-277 VAC DriverMeanwell driverTHD<20%Power Factor>95%Power-supply Efficiency>90%Weight4.0kgLensPolycarbonateFixation material bracketstainless Steel#316WaterproofIP66Protection class IECSafety class I (I)Corrosion-proof gradeMarine gradeOperating Temperature-35ºC-+55ºCHumidity10-90% RHSurge Protection4KVDimension340*125*176mmMaximum Exposed Surface0.0425m²



Key Points:




Long lifespan: 110.000Hr and free maintenance.

High lumen: 130lm/watt to offer a bright world and protect eyes.

Energy saving: 60% compare to traditional ML and HID Lights

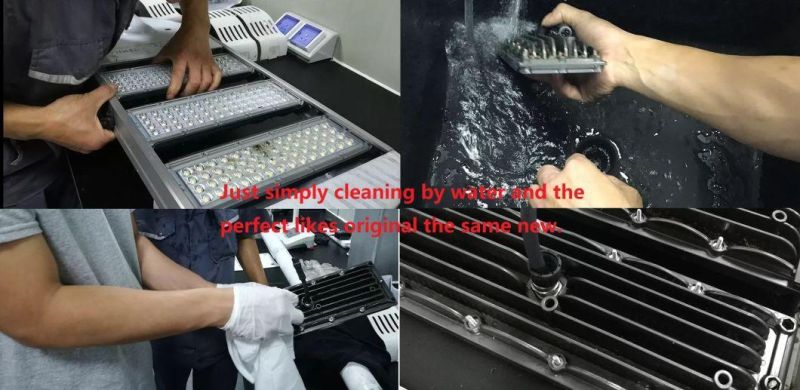

Power saving and Maintaining:

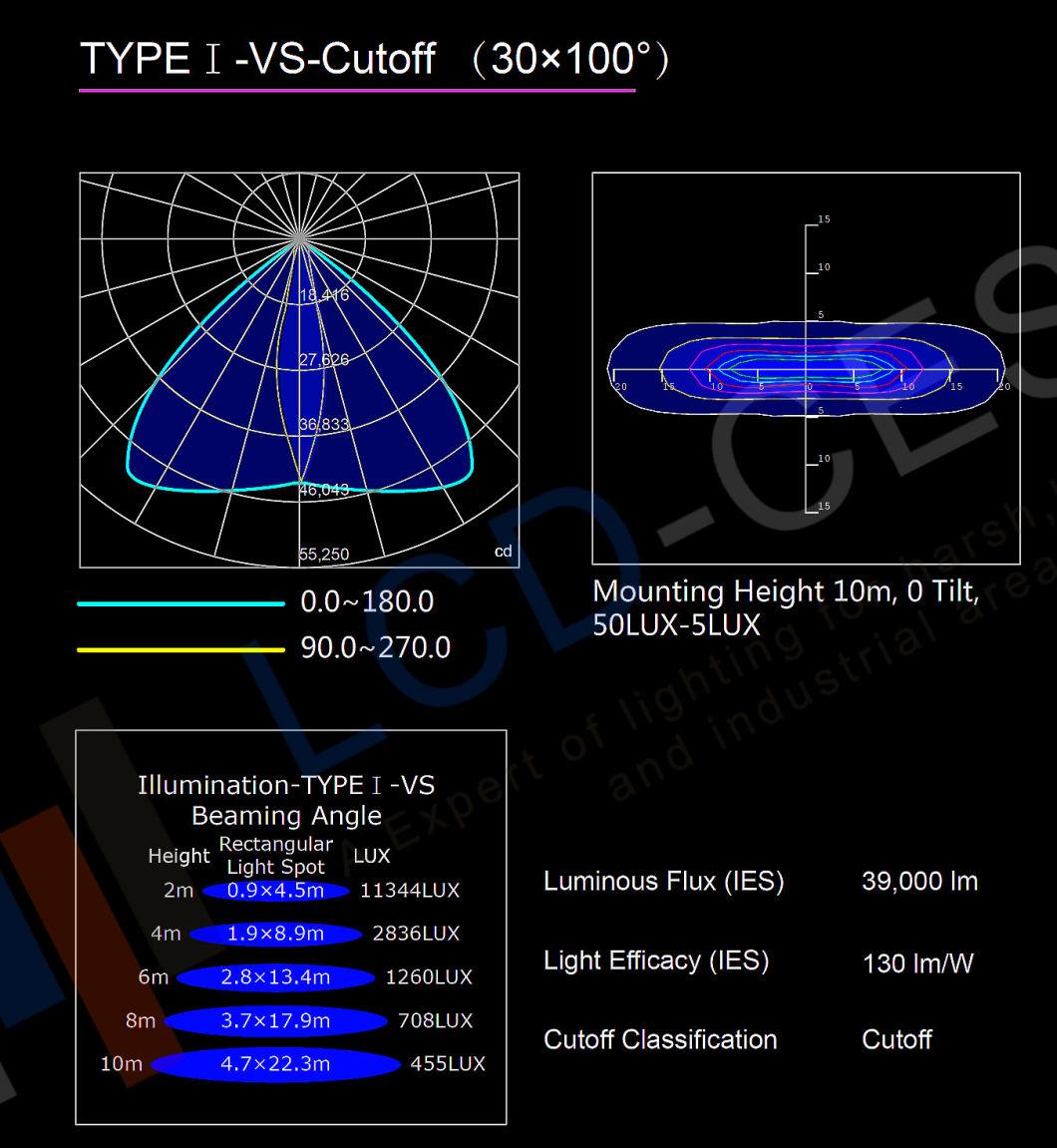

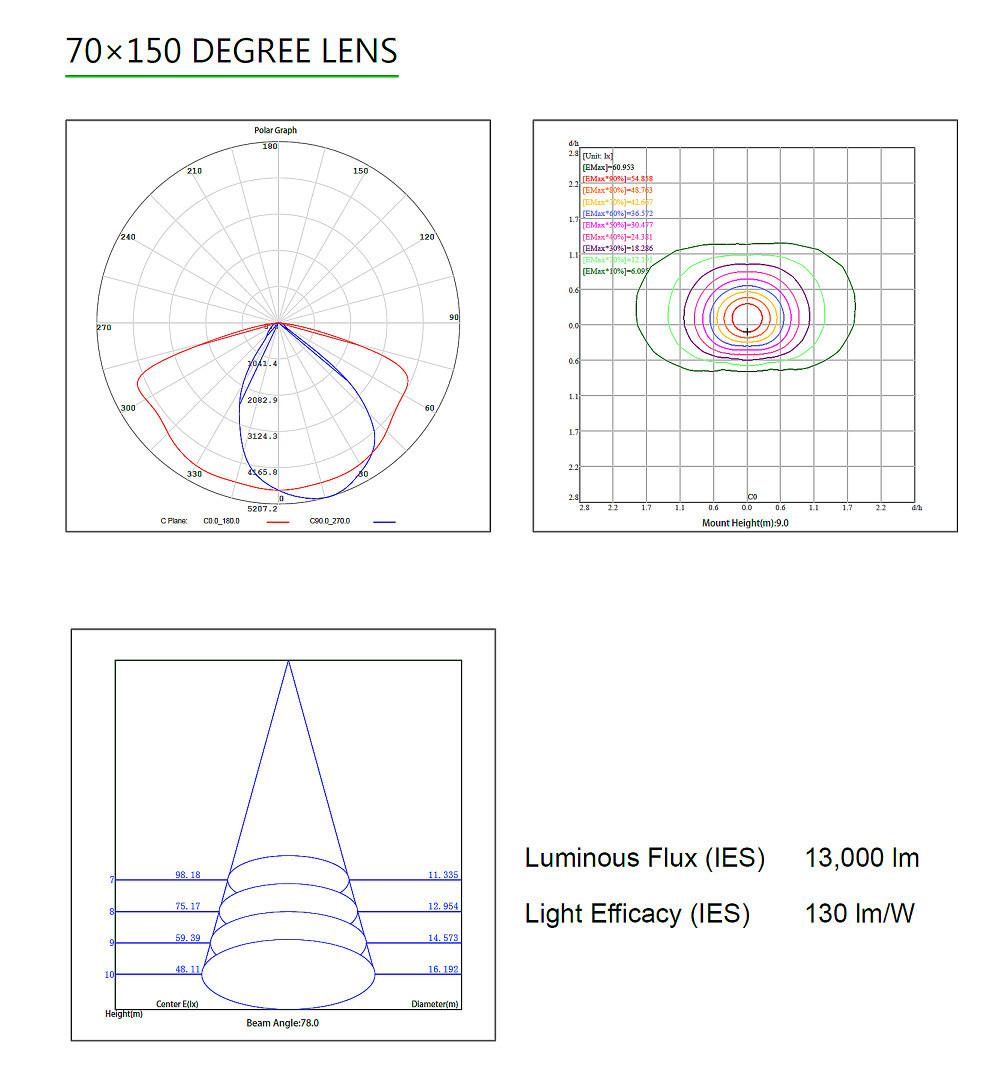

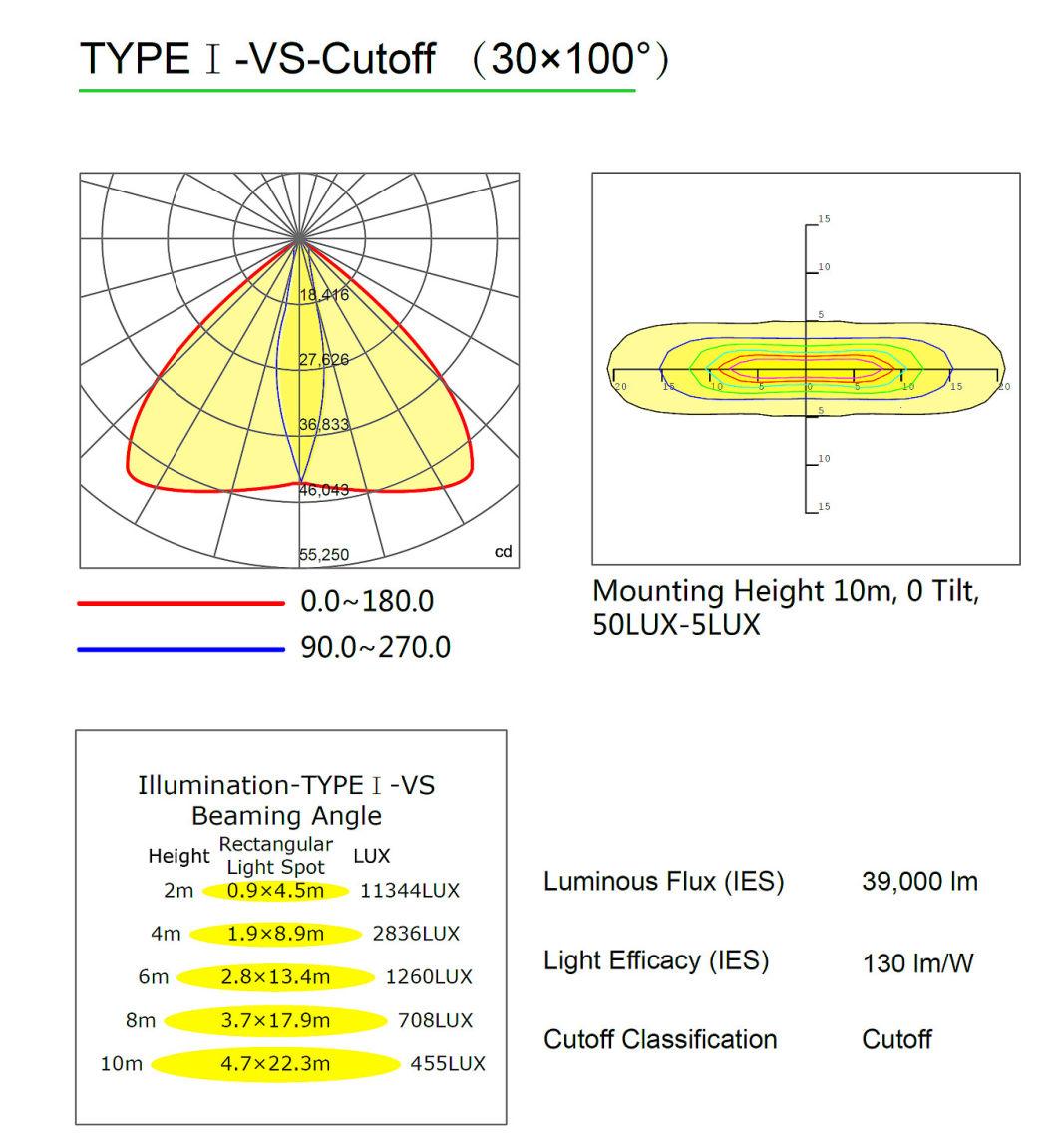

Photometric:











Test

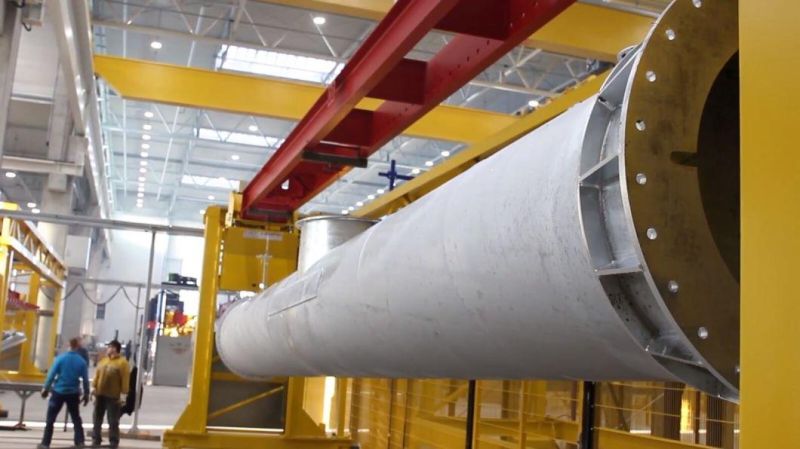

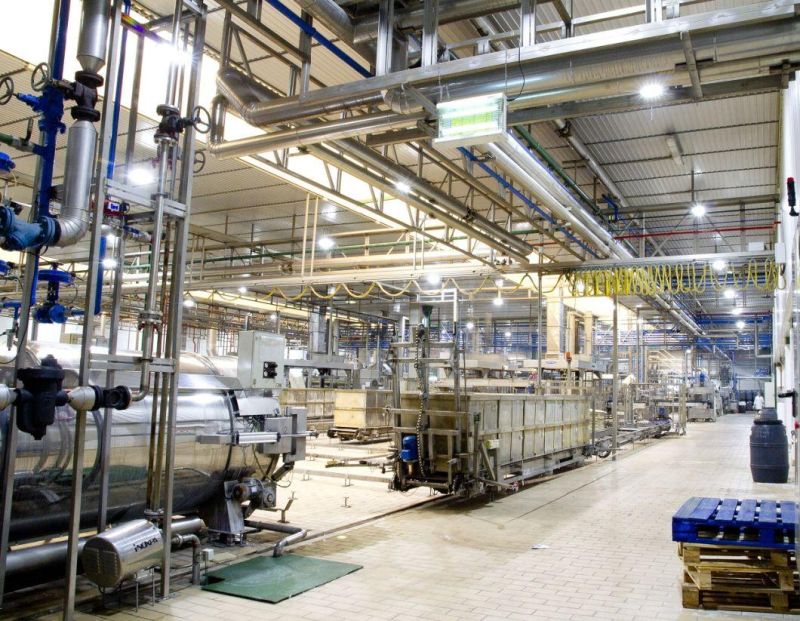

Application





FAQ

1. What 's your payment method?

In general, we use Paypal and Western Union for the total order less than US$ 500 in order to reduce the extra fee, Bank Tranfer payment can be accepted for large order too.



2. How long will it take to execute my order ?

This depends on the order quantity.Our nornal delivery time is 5-7 working days.



3. How much will the shipping charges be ?

This will depend on the size of your shipment and the method of shipping. Whe inquiriedabout shipping charges, we hope that you let us know the detailed information such as the post code and quantity, your favorable method of shipping (by air or by sea ) and your designated port or airport.



4. Do you provide samples ?

Yes, we can provide samples of all the items listed.In general of facture rule, the sample cost and shipping cost will be in buyer side. We can send the sample by DHL, FEDEX, EMS and UPS .



5. Do you have products in stock?

For most common items we have stock but we could not reserve all the items in stock. If there is any in stock, we will inform you with details.



6. What the warranty term for your products?

All of our products have at least one year warranty in normal use. Please provide or video ia any quality problem during this period.We will replace a new one to you in thenext order.



7. Can I visit you?

Sure, please let us know if you wanna visit our factory, we will arrange it for you.



8. Do I need to send the defective products back to you for warranty.

No, you don't need to send it back for warranty for the defective products. If any damage happens not caused by misure or vandalism, then we 'll send you a new one.

Type                                                                                               LCD-FXH-S1-6x50W
Material                                                                                        Stainless steel, Plastic
Wattage                                                                                                     300 W
Power                                                                                                        6 x 50 W
Voltage                                                                                                      230 V
Voltage min. (V)                                                                                        100 V
Voltage max. (V)                                                                                        277 V
Type of Voltage                                                                                          AC
Frequence                                                                                              50/60 Hz
Protection class                                                                                    IP66 / IP67
Temp. range min                                                                                       -30 °C
Temp. range max                                                                                       55 °C
Operational areas                                                                            Indoor / Outdoor
Mounting                                                                                       Wall, Ceiling, Upside
Lamp                                                                                                          LED
Lamp                                                                                                       included
Luminous flux                                                                                        37,500 lm
Colour temperature                                                                                  6500 K
Colour rendering index                                                                            ≥ 80
Average lamp durability                                                                        >50000 h
Type of cable gland                                                                         M25 / 10-20 mm
Material cable gland                                                                 Polyamide/stainless steel

Remarks:

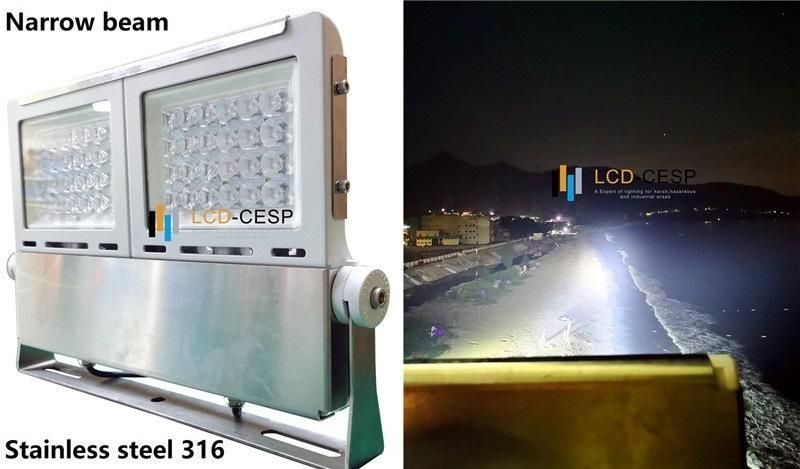

Different beam angle for choosing,seawater and acid steam vapor resistant module housing

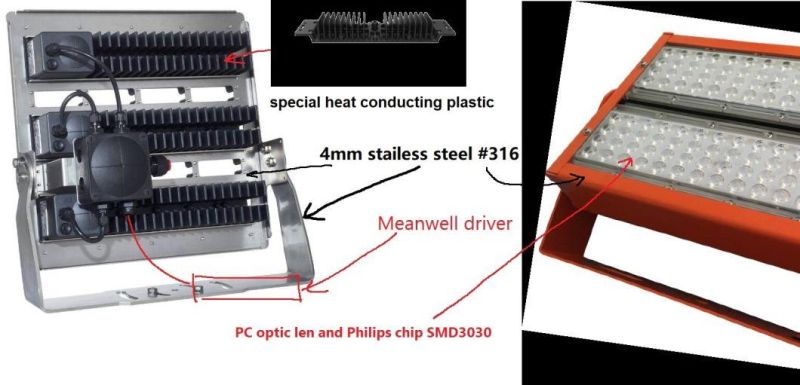

Made of special heat conducting plastic,
Stainless steel #316 frame, back cover and mounting bracket,
Back cover black or white powder coated,
Connection box with Ex mark,
1 cable gland M25 for cable 10-20mm in diameter
2x3-pole terminal max. 4mm²
fixed angle
