LED Outdoor Lighting

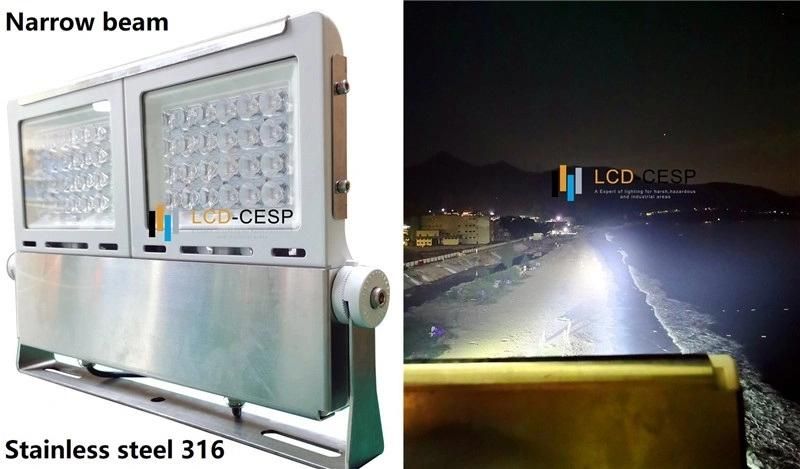

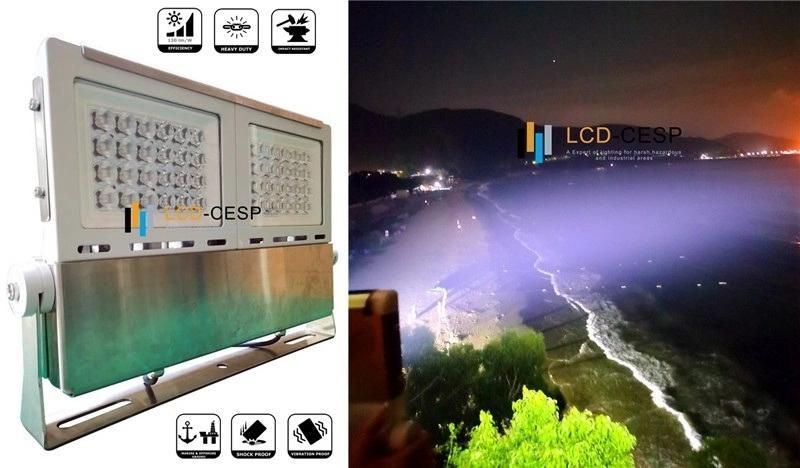

200 Watt Waterproof Marine High Intensity LED Flood Lights 4000K Optic Beam 2deg LED Searchlight

LCD (HK) -CESP LIGHTING CO., LIMITED
  • Color Temperature:Cool White
  • Lamp Body Material:Stainless Steel
  • Power:≥100W
  • Projection Distance:1000m-2500m
  • Application:Park, Square, Factory, Garden, Fishing Boat, Crane, Marine, Offshore Rig etc
  • IP Rating:IP68

Base Info

  • Model NO.:LCD-FXH-S1-203
  • Certification:CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
  • Operating Voltage:85-265V
  • Input Voltage:220V
  • LED Chips Brand:CREE
  • Transport Package:Carton Box
  • Trademark:LCD brand
  • Origin:Shenzhen City, China
  • HS Code:9405421000
  • Production Capacity:50000PCS , Year

Description

>70,000 hoursVoltage100-277VAC, 50/60Hz or 18-32VDCPan/Tilt Rangepending : Control for MC & EC Types: Pan 0°- 350° , Tilt -30°- +30°Warranty5 years warranty for maritime applicationsNote: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.
200 Watt Waterproof Marine High Intensity LED Flood Lights 4000K Optic Beam 2deg LED Searchlight


200 Watt Waterproof Marine High Intensity LED Flood Lights 4000K Optic Beam 2deg LED Searchlight
50W +/-10%Luminous flux6500-7250lm +/-10%CRI≥75Calculated Lumen Maintenance>100000hoursColor Temperature3000/4000/6500K



lens optional

Symmetrical PC lens:20/40/60/60/90˚

Asymmetrical PC lens:100*140˚

1060 Aluminum Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.

LED quantity60pcs x 1module / 25pcs x 1 moduleInput Voltage100-277 VAC DriverMeanwell & PH driverTHD<20%Power Factor>95%Power-supply Efficiency>90%Weight4.0kgLensPolycarbonateFixation material bracketstainless Steel#316WaterproofIP66Protection class IECSafety class I (I)Corrosion-proof gradeMarine gradeOperating Temperature-35ºC-+55ºCHumidity10-90% RHSurge Protection4KVDimension340*125*176mmMaximum Exposed Surface0.0425



Key Points:

Long lifespan: 110.000Hr and free maintenance.

High lumen: 130lm/watt to offer a bright world and protect eyes.

Energy saving: 60% compare to traditional ML and HID Lights





Power saving and Maintaining:

200 Watt Waterproof Marine High Intensity LED Flood Lights 4000K Optic Beam 2deg LED Searchlight



Photometric:

200 Watt Waterproof Marine High Intensity LED Flood Lights 4000K Optic Beam 2deg LED Searchlight





Test





Application





FAQ



1. What 's your payment method?

In general, we use Paypal and Western Union for the total order less than US$ 500 in order to reduce the extra fee, Bank Tranfer payment can be accepted for large order too.



2. How long will it take to execute my order ?

This depends on the order quantity.Our nornal delivery time is 5-7 working days.



3. How much will the shipping charges be ?

This will depend on the size of your shipment and the method of shipping. Whe inquiriedabout shipping charges, we hope that you let us know the detailed information such as the post code and quantity, your favorable method of shipping (by air or by sea ) and your designated port or airport.



4. Do you provide samples ?

Yes, we can provide samples of all the items listed.In general of facture rule, the sample cost and shipping cost will be in buyer side. We can send the sample by DHL, FEDEX, EMS and UPS .



5. Do you have products in stock?

For most common items we have stock but we could not reserve all the items in stock. If there is any in stock, we will inform you with details.



6. What the warranty term for your products?

All of our products have at least one year warranty in normal use. Please provide or video ia any quality problem during this period.We will replace a new one to you in thenext order.



7. Can I visit you?

Sure, please let us know if you wanna visit our factory, we will arrange it for you.



8. Do I need to send the defective products back to you for warranty.

No, you don't need to send it back for warranty for the defective products. If any damage happens not caused by misure or vandalism, then we 'll send you a new one.



Remarks:
Different beam angle for choosing,seawater and acid steam vapor resistant module housing
Made of special heat conducting plastic,
Stainless steel #316 frame, back cover and mounting bracket,
Back cover black or white powder coated,
Connection box with Ex mark,
1 cable gland M25 for cable 10-20mm in diameter
2x3-pole terminal max. 4mm²
fixed angle
